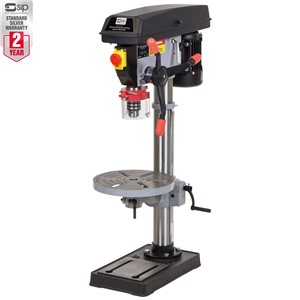

SIP Pro F20 12-Speed 750w Floor Pillar Drill

01716

Click on image to enlarge

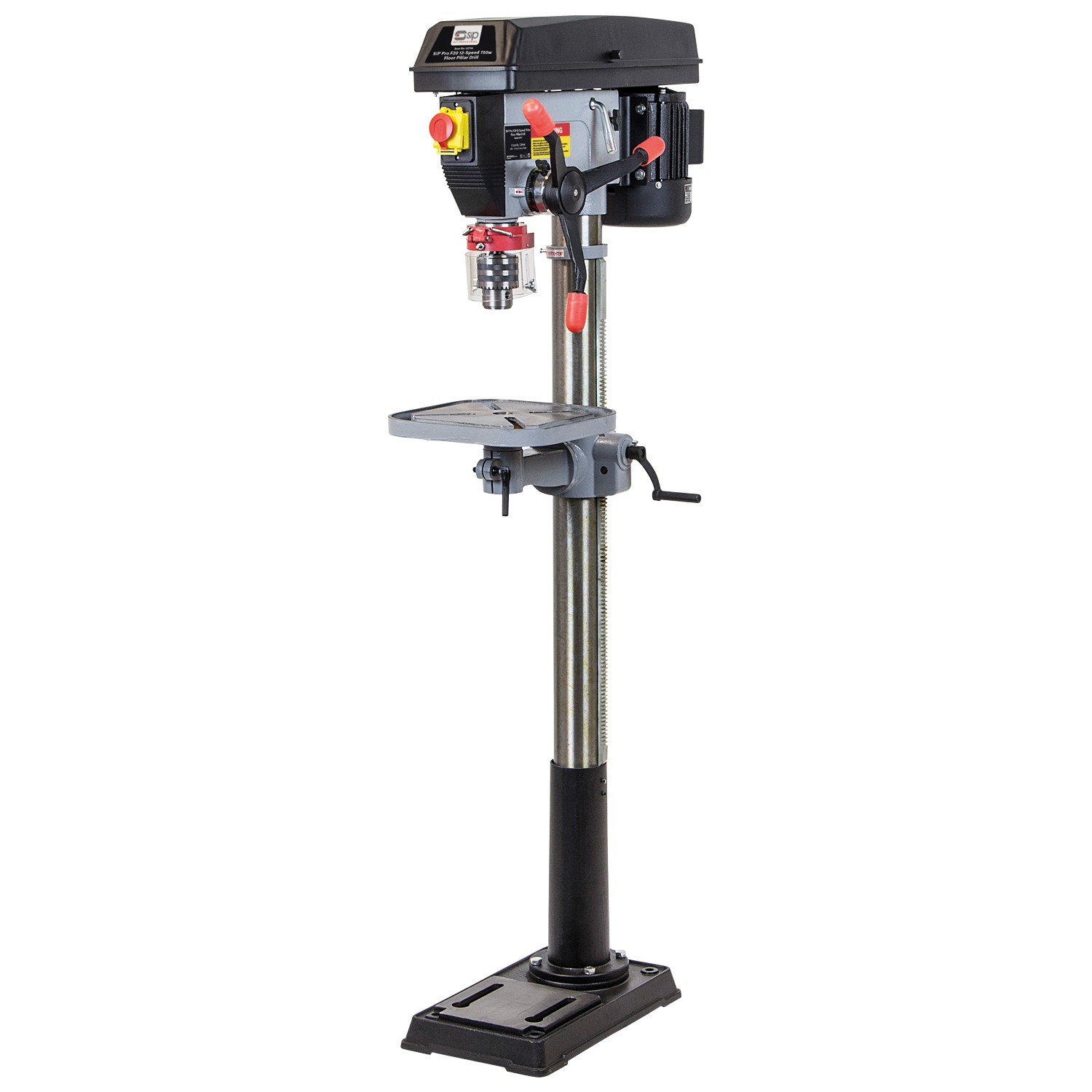

SIP Pro F20 12-Speed 750w Floor Pillar Drill

01716

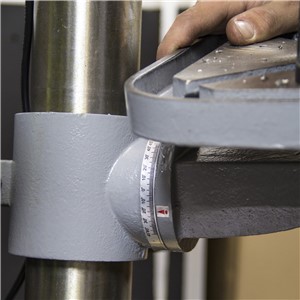

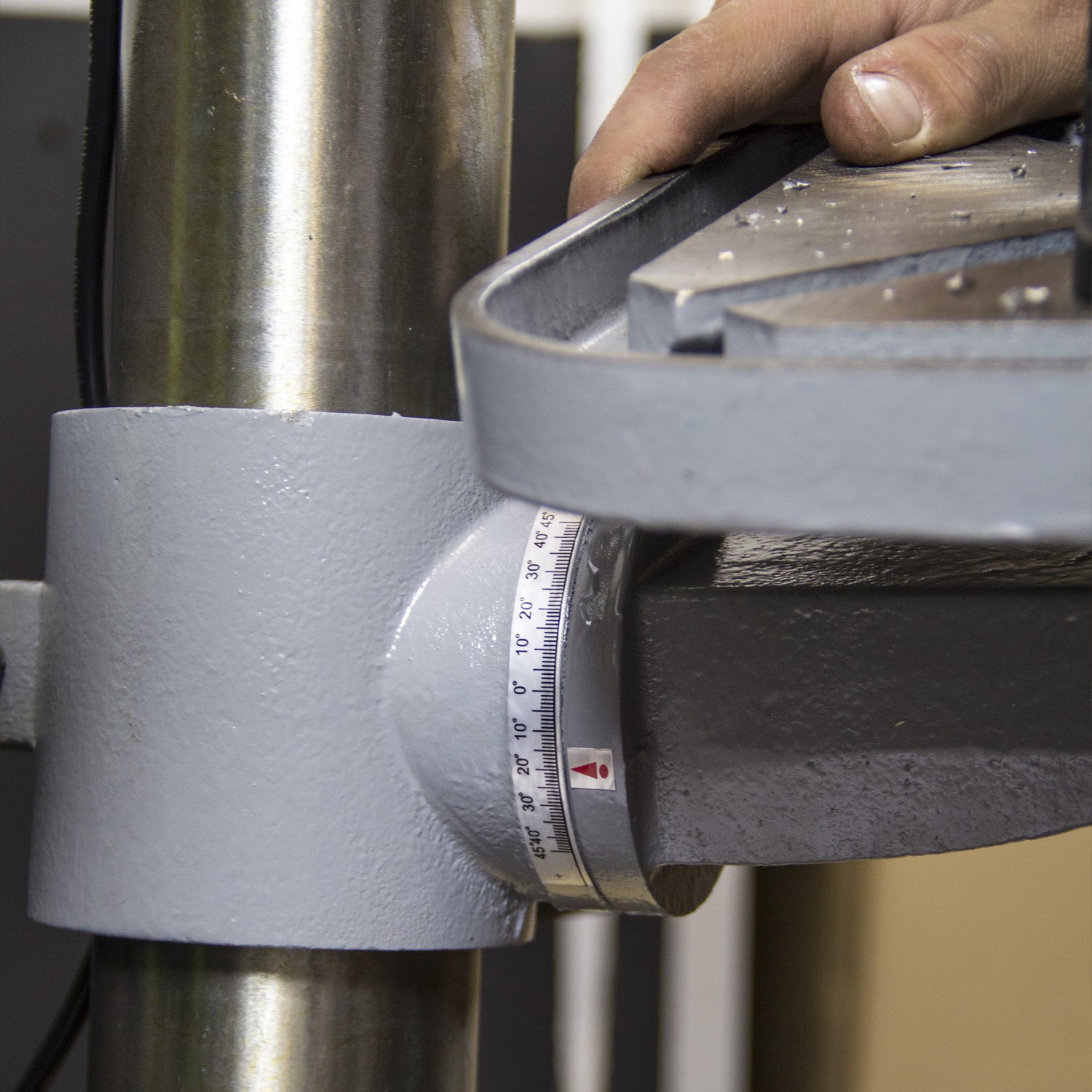

The SIP Pro F20 12-Speed 750w Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned to enable accurate drilling. Plus, it's MT3 taper allows users to fit larger drill bits.

KEY FEATURES

12 spindle speeds powered by a 750w motor from a 230v (13A) supply
Supports a variety of drilling applications
High-power brushless induction motor
Fitted with drilling depth stop
Adjustable drill table for greater accuracy
Safety interlock switch for safe motor belt adjustment

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP Pro F20 12-Speed 750w Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT3 taper allows users to fit larger drill bits.

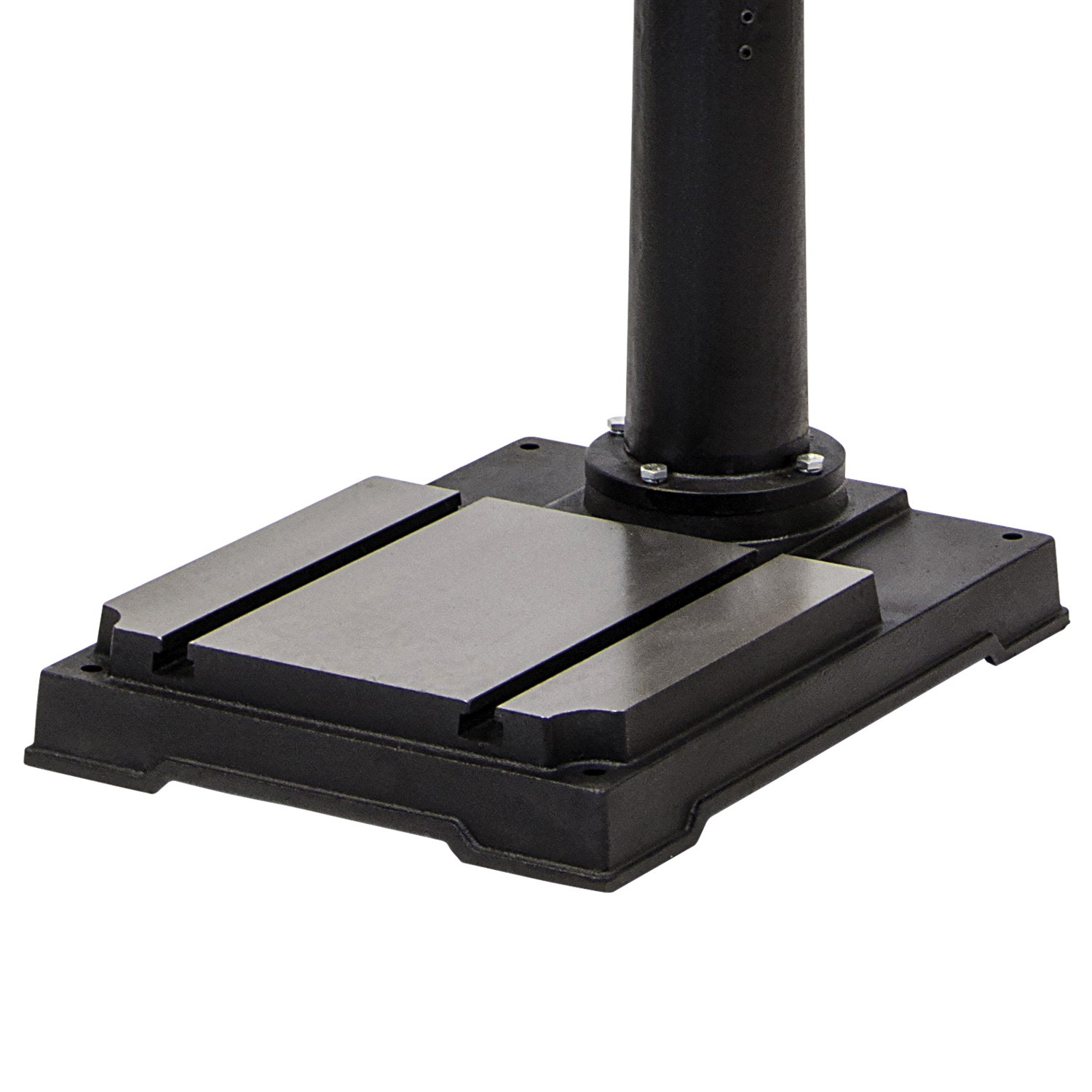

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT3 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, manufacturing gates, rails and engineering components, plus metalwork and woodwork environments.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

SUPPORTS A VARIETY OF DRILLING APPLICATIONS

A larger drilling capacity via an MT3 fitting is ideal for materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.

MULTI-SPEED FUNCTIONALITY

Allows precise control of hole sizes across the drilling spectrum.

HIGH-POWER BRUSHLESS INDUCTION MOTOR

Delivers powerful performance for consistent high-quality drilling.

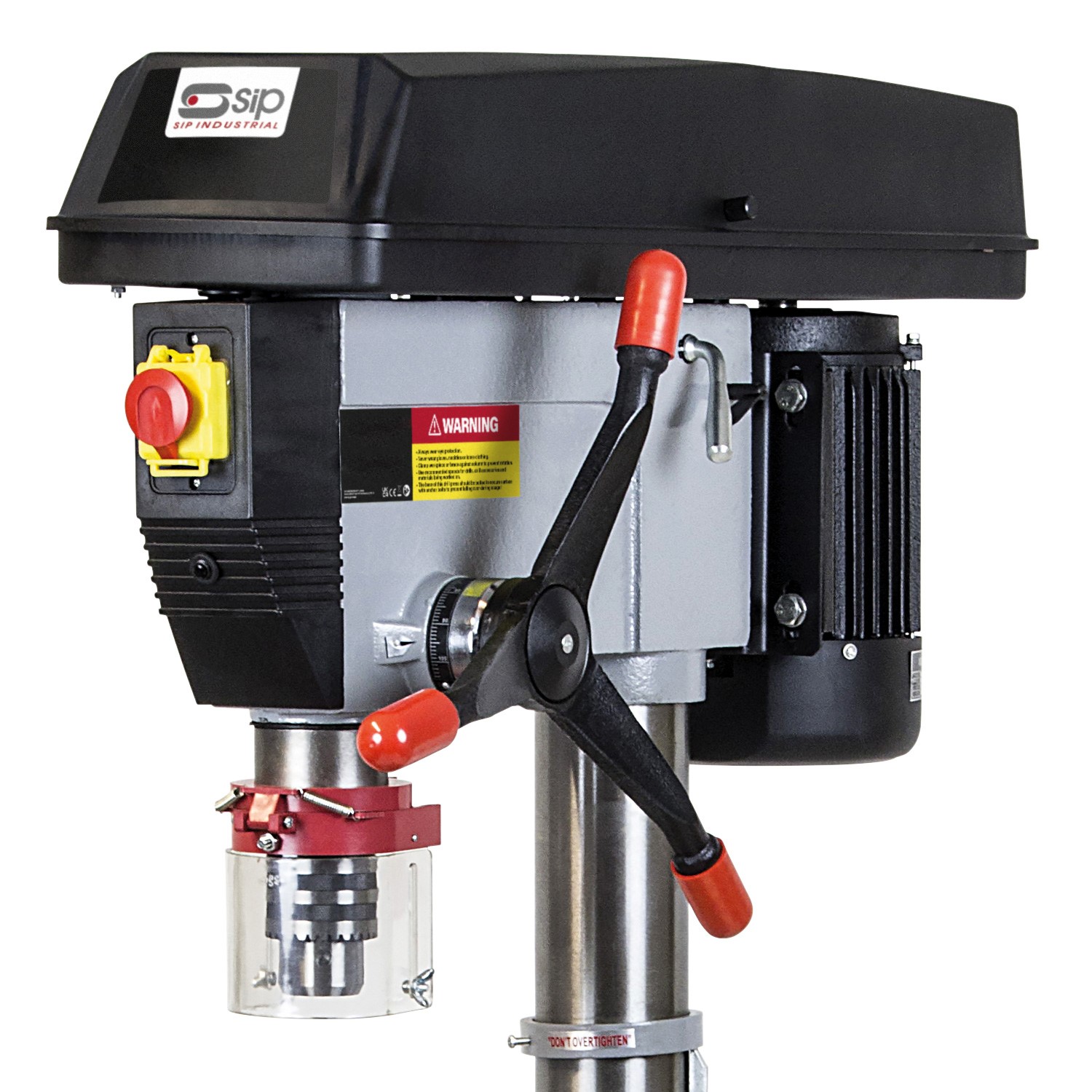

INTUITIVE FEATURES FOR EASE-OF-USE

Adjustable drilling table and 3-lever handle ensures smooth drilling force.

FITTED WITH DRILLING DEPTH STOP

Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

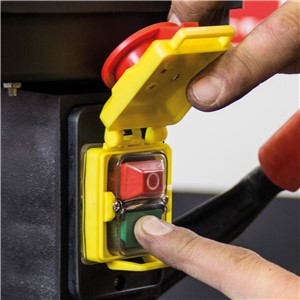

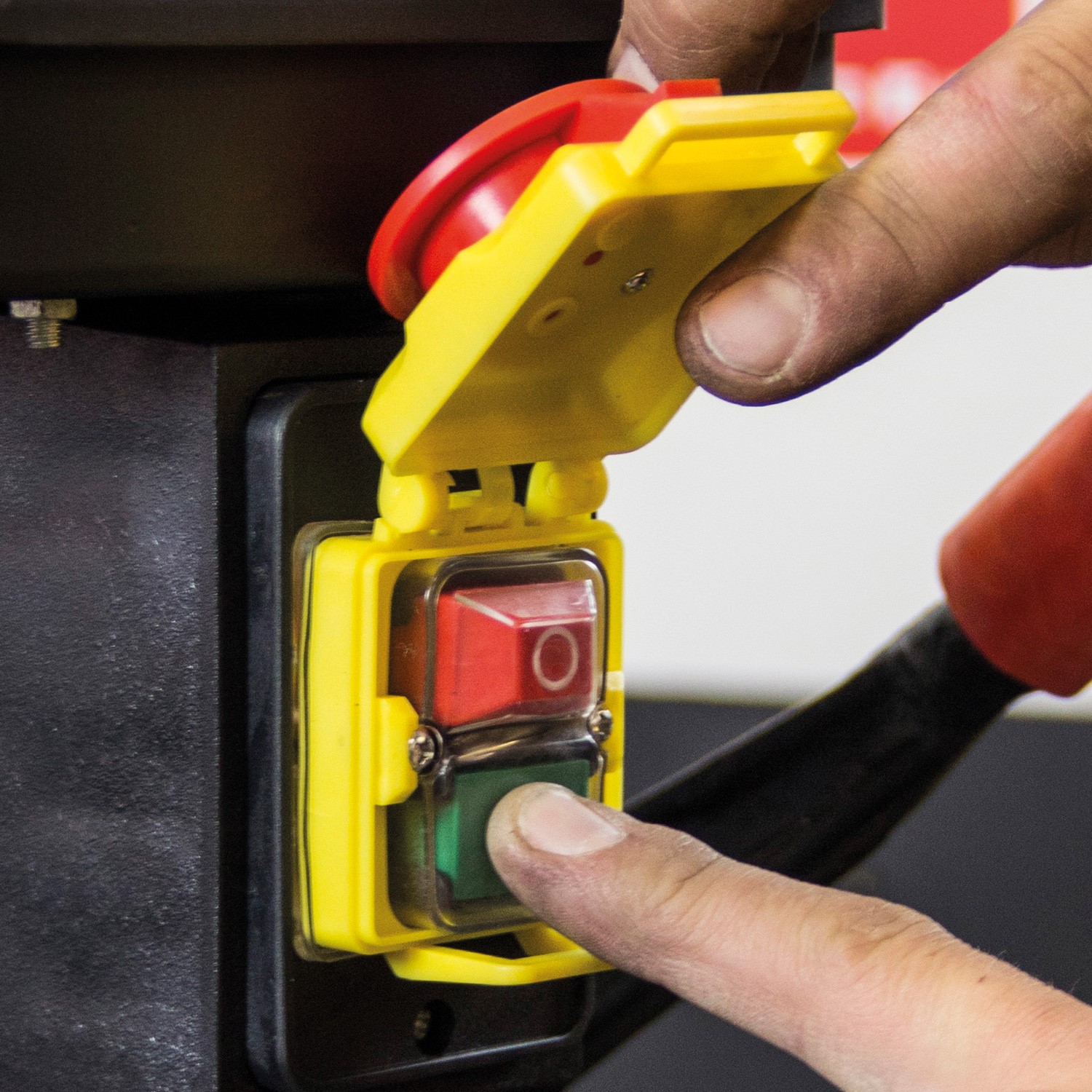

SAFETY INTERLOCK SWITCH

Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.

Technical Information

ITEM NO.	01716
Input Voltage:	230v (13A)
Motor Power:	750w
No. of Speeds:	12 speeds
Speed Range:	320rpm - 2380rpm
Drill Bit Size:	5mm - 20mm
Max. Drilling Capacity:	25mm
Spindle Taper:	MT3
Table Size:	285mm x 285mm
Base Size:	460mm x 270mm
Column Diameter:	Ø 80mm
Swing:	350mm
Height:	1575mm
Spindle Travel:	80mm
Collar Diameter:	Ø 80mm
Max. Distance:	585mm (chuck to table) 1075mm (chuck to base)
Net Weight:	58.50kg
Gross Weight:	62.20kg
Product Dimensions:	1580(H) x 290(W) x 460mm(D)
Packaged Dimensions:	275(H) x 1140(W) x 490mm(D)
