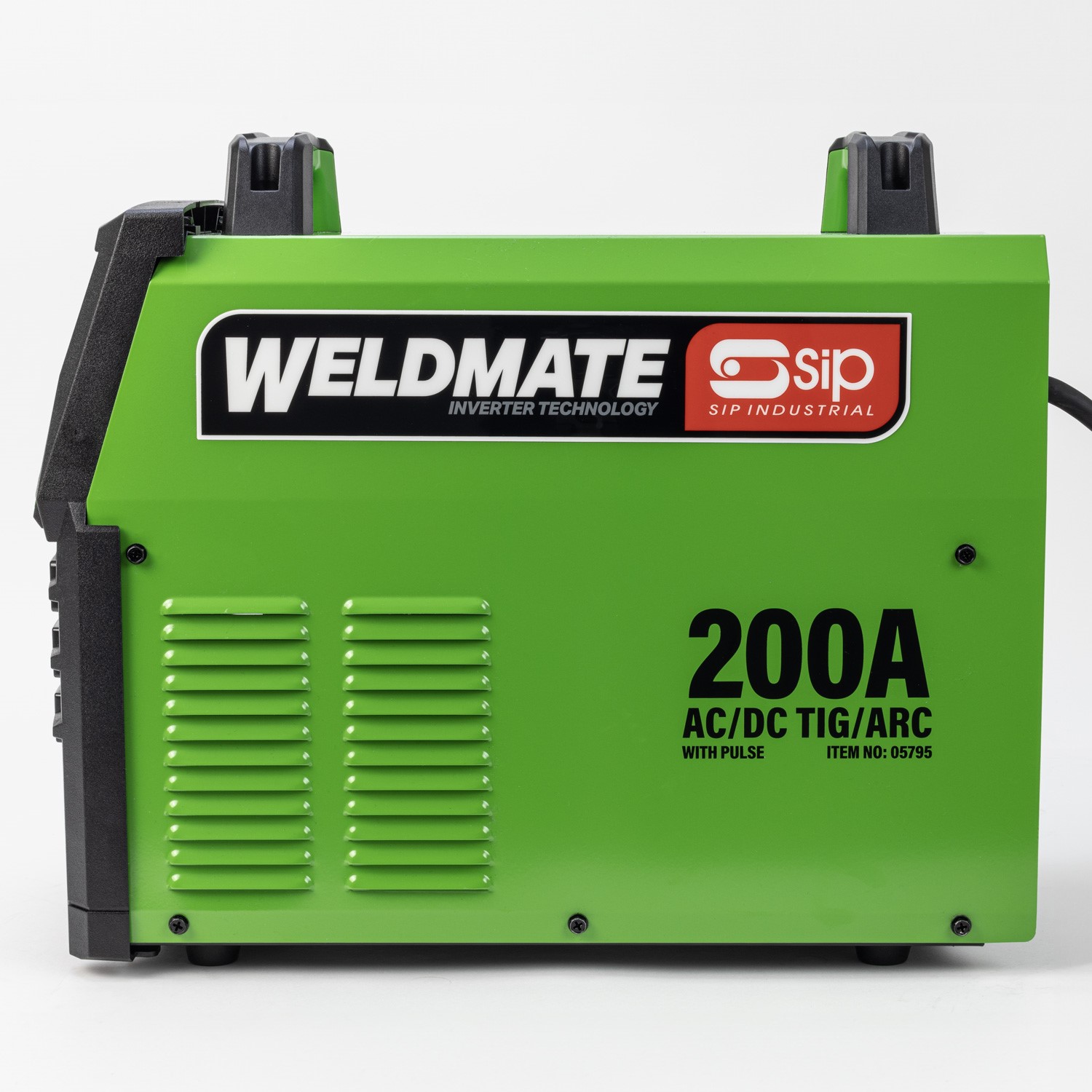

AC/DC TIG WELDING CAPABILITY FOR GREATER VERSATILITY IN PROFESSIONAL APPLICATIONS

• AC current is ideal for welding aluminium and it's alloys. Allows the welder to create a deeper penetration weld.
• DC current is suitable for mild steel, stainless steel, brass and copper. Offers a smoother a more controlled weld.
• Working within a highly adaptable amperage range allows a variety of material thicknesses to be welded.

DUAL TIG & ARC PROCESSES FOR FLEXIBILITY AT HIGH DUTY CYCLES

• For efficient and versatile application use in a range of professional settings.
• TIG AC/DC (40°C / 10min): 200A @ 25% / 150A @ 60% / 120A @ 100%.
• ARC (40°C / 10min): 160A @ 25% / 110A @ 60% / 90A @ 100%.

TIG PULSE FACILITY FOR SMOOTHER & MORE CONTROLLED WELD WITH ENHANCED STABILITY

• Frequency fluctuations achieve deeper workpiece penetration for strong and more durable welds. Produces a smoother and more controlled weld bead for cleaner quality finish.
• Also helps to prevent warping or cracking of thinner materials for reduced distortion.

MULTI-STAGE PULSE PARAMETER ADJUSTMENT FOR GREATER WELDING ARC CONTROL

• This allows customisation of the welding settings to suit specific user needs. Includes adjustable slope-up, slope-down, pre-flow, post-flow and AC balance.

4 AC WAVEFORMS FOR SUPERIOR CONTROL WITH DIFFERENT MATERIAL TYPES

• SQUARE: Offers high heat input coupled with good puddle control and arc stability. Ideal for production applications.
• TRIANGULAR: Quick puddle formation with reduced weld distortion. Ideal for thin materials.
• TRAPEZOIDAL: Recommended for welding thin aluminium plates which require less penetration.
• SINE: Produces a smooth welding arc with slower energy transfer and travel rates.

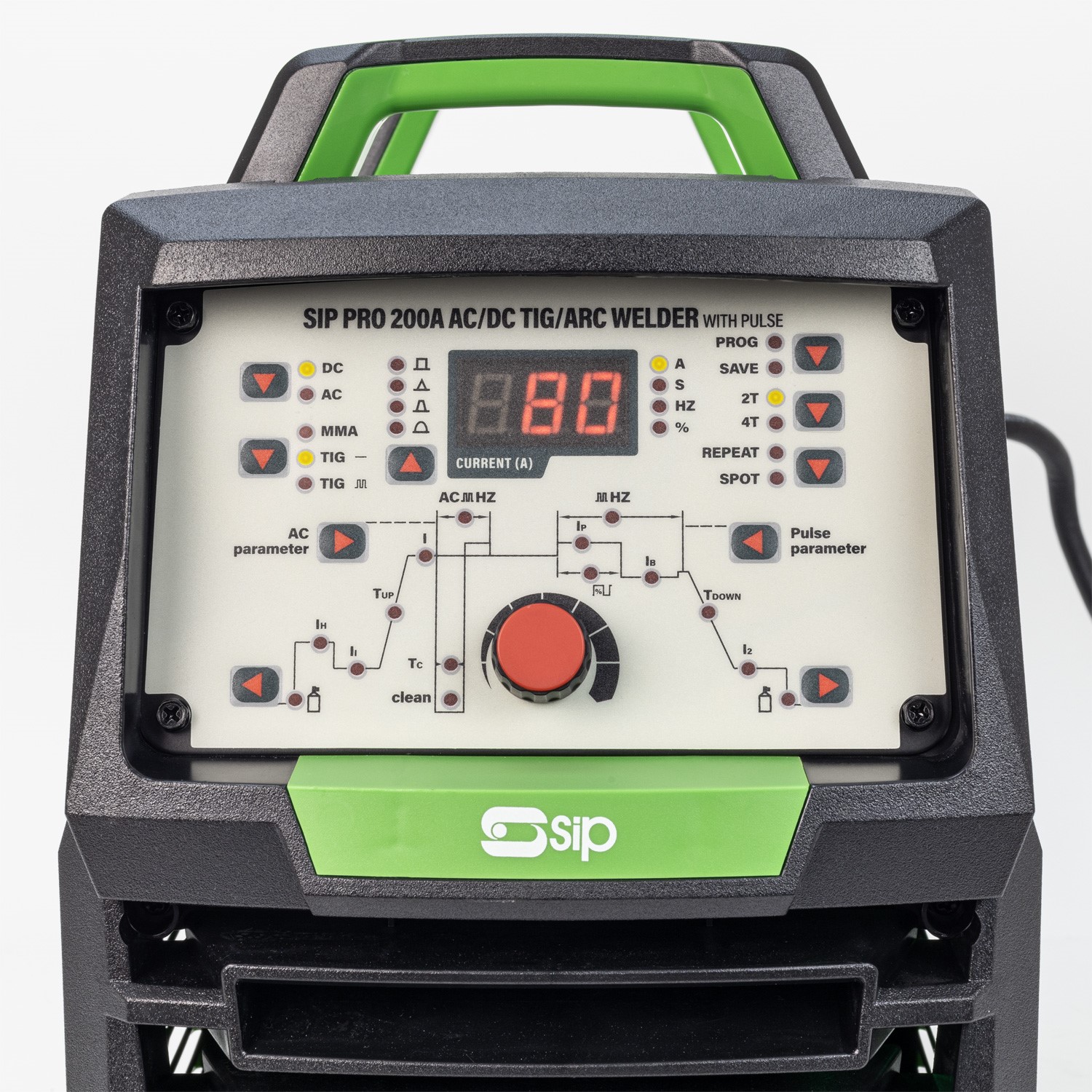

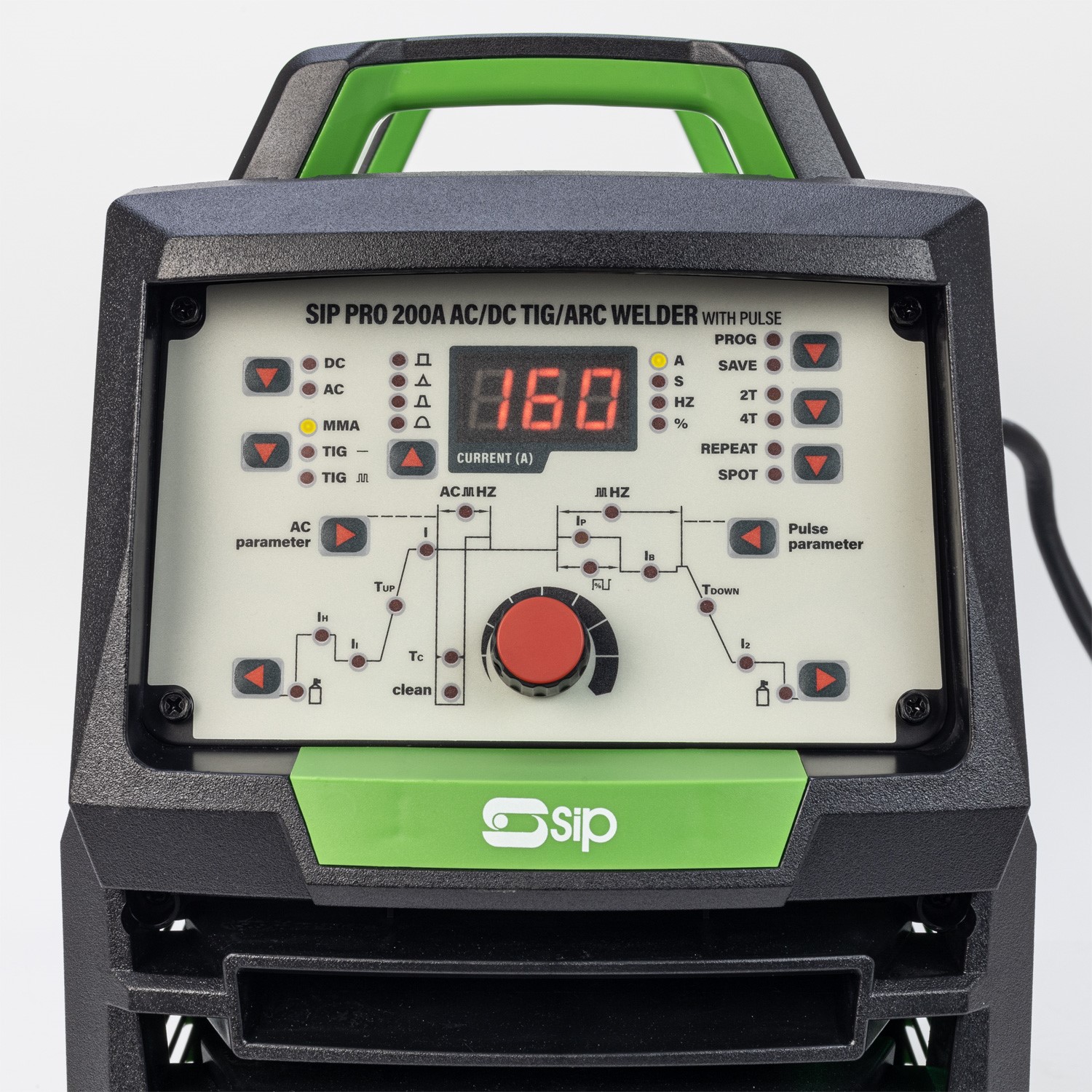

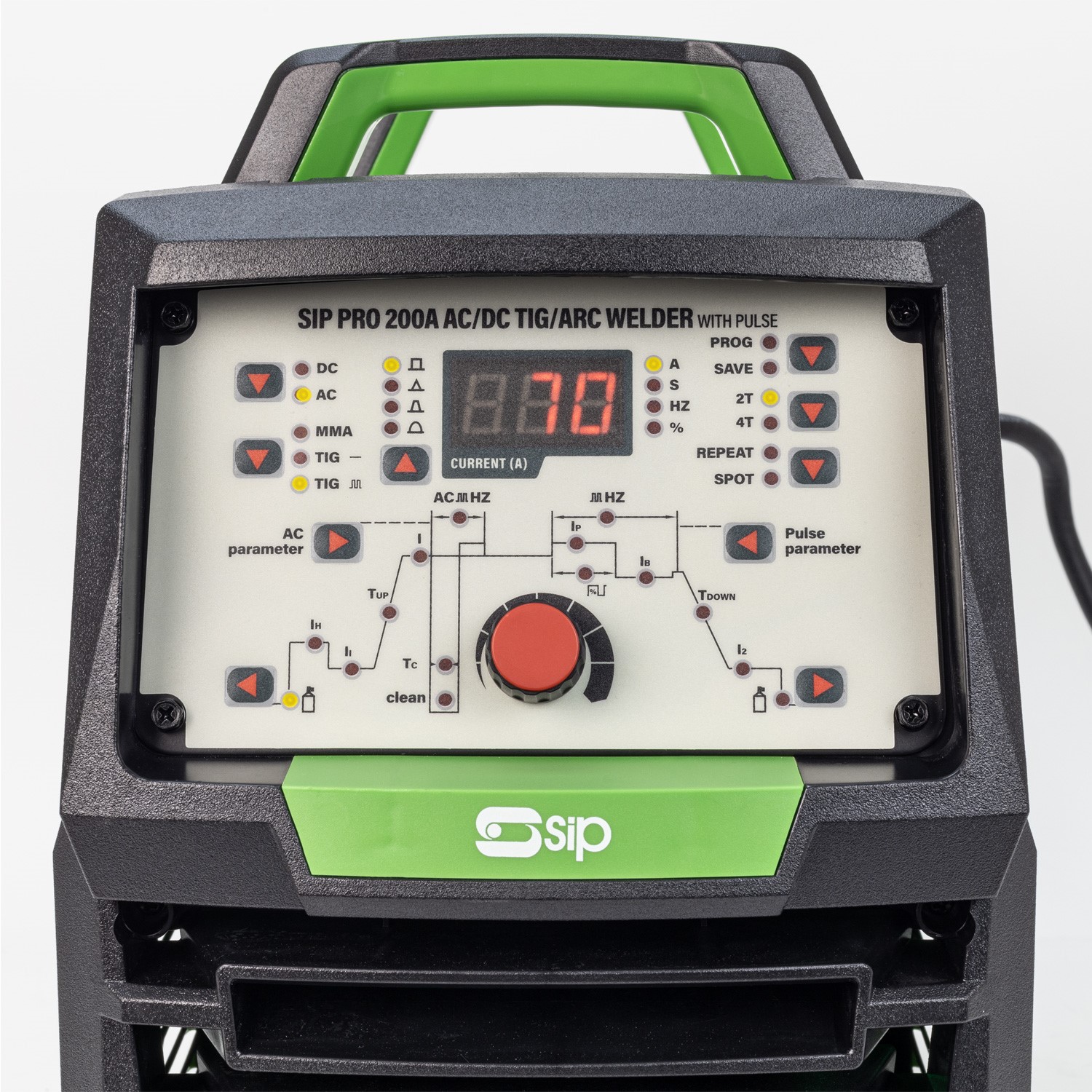

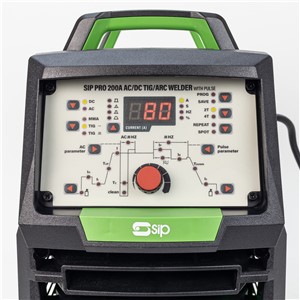

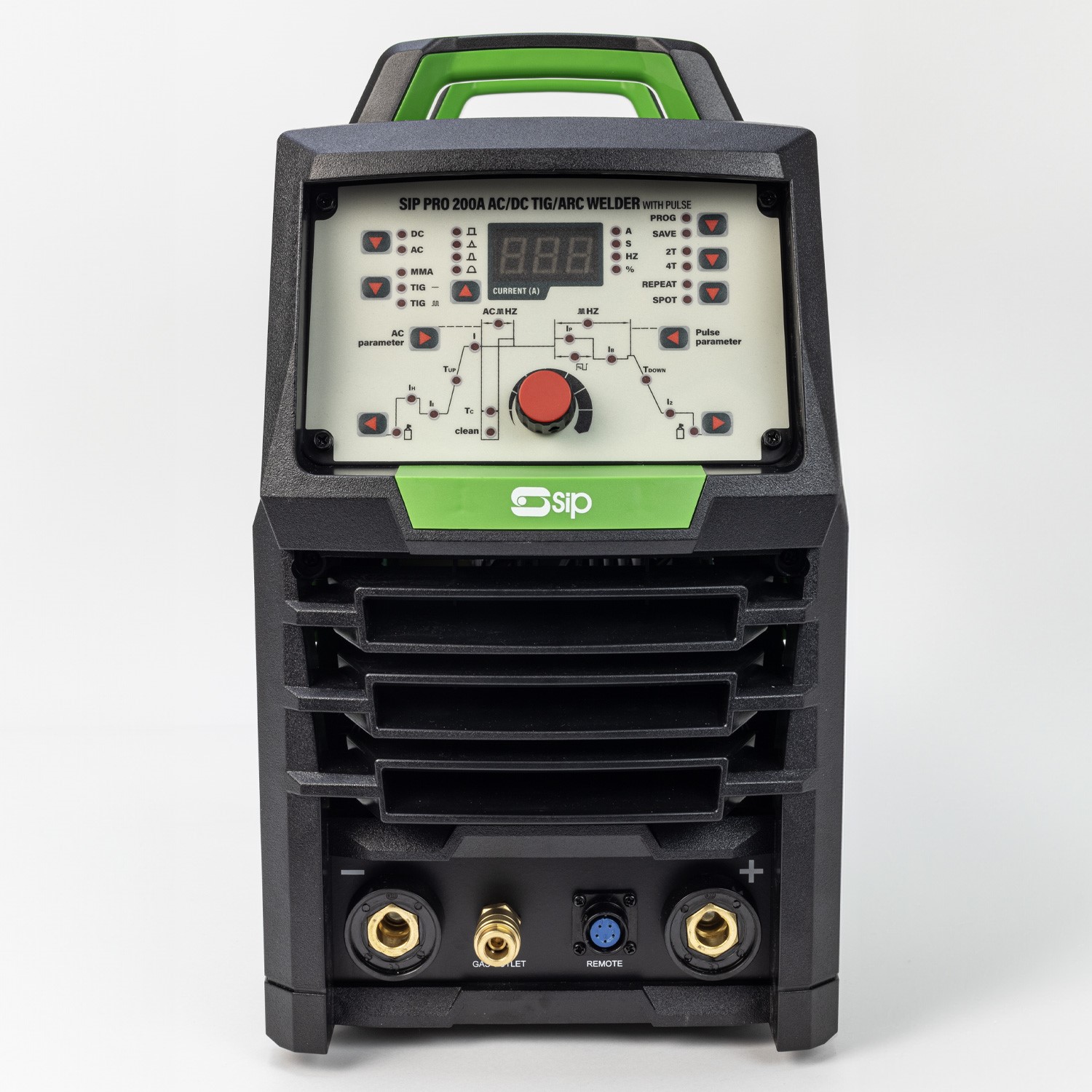

LED DISPLAY WITH INFINITELY VARIABLE DIAL & INTUITIVE CONTROL PANEL

• Easy-to-use settings ensure precise control of the welding functions.

PROGRAMMABLE MEMORY STORAGE FOR EASY RECALL OF SPECIFIC WELDING JOBS

• Select and save up to 10 different 'favourites' using the control panel settings.

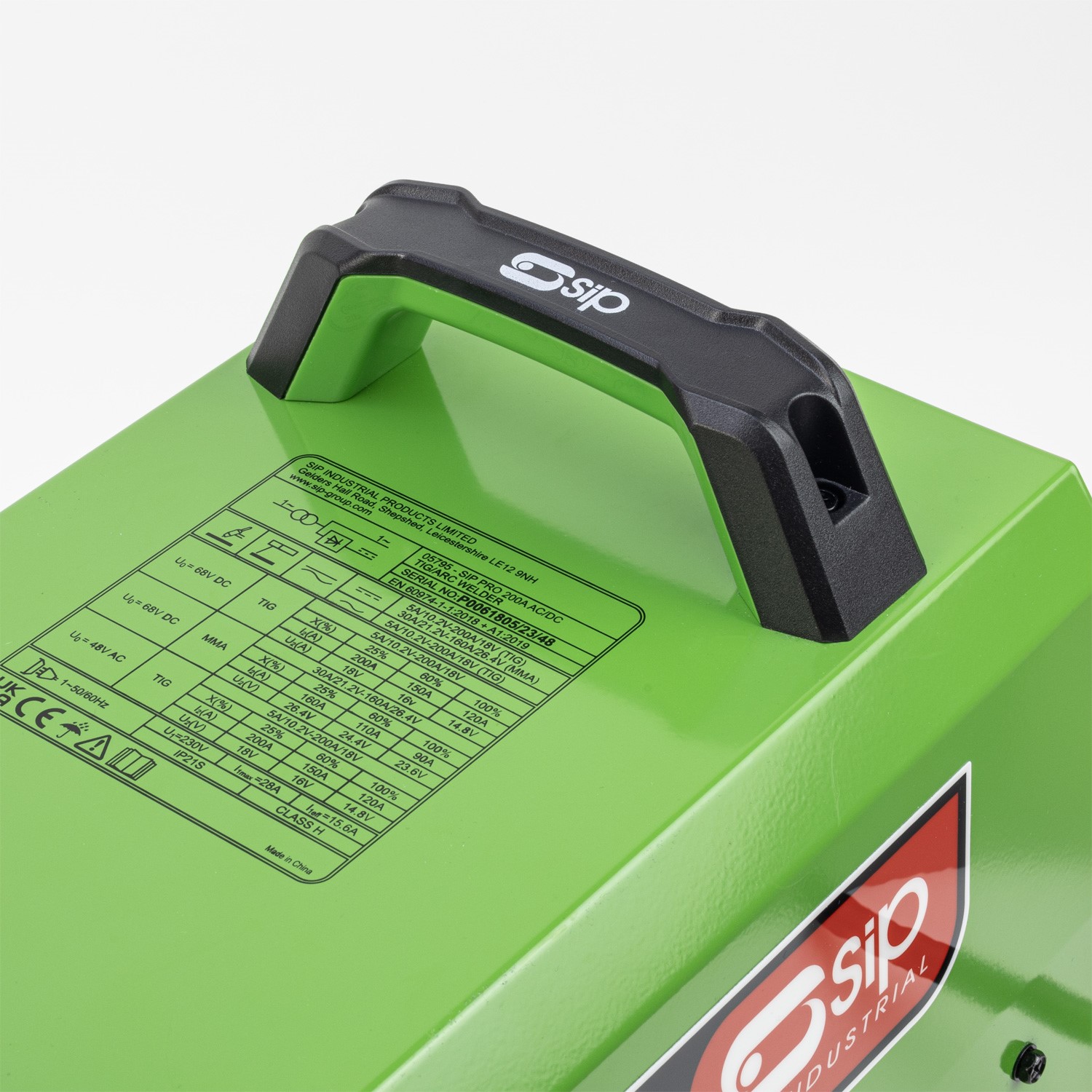

DURABLE STEEL CASING WITH HEAVY-DUTY CARRY HANDLES FOR LONG LIFE USE

• High-quality finish is resistant to work area damage and aids mobility.

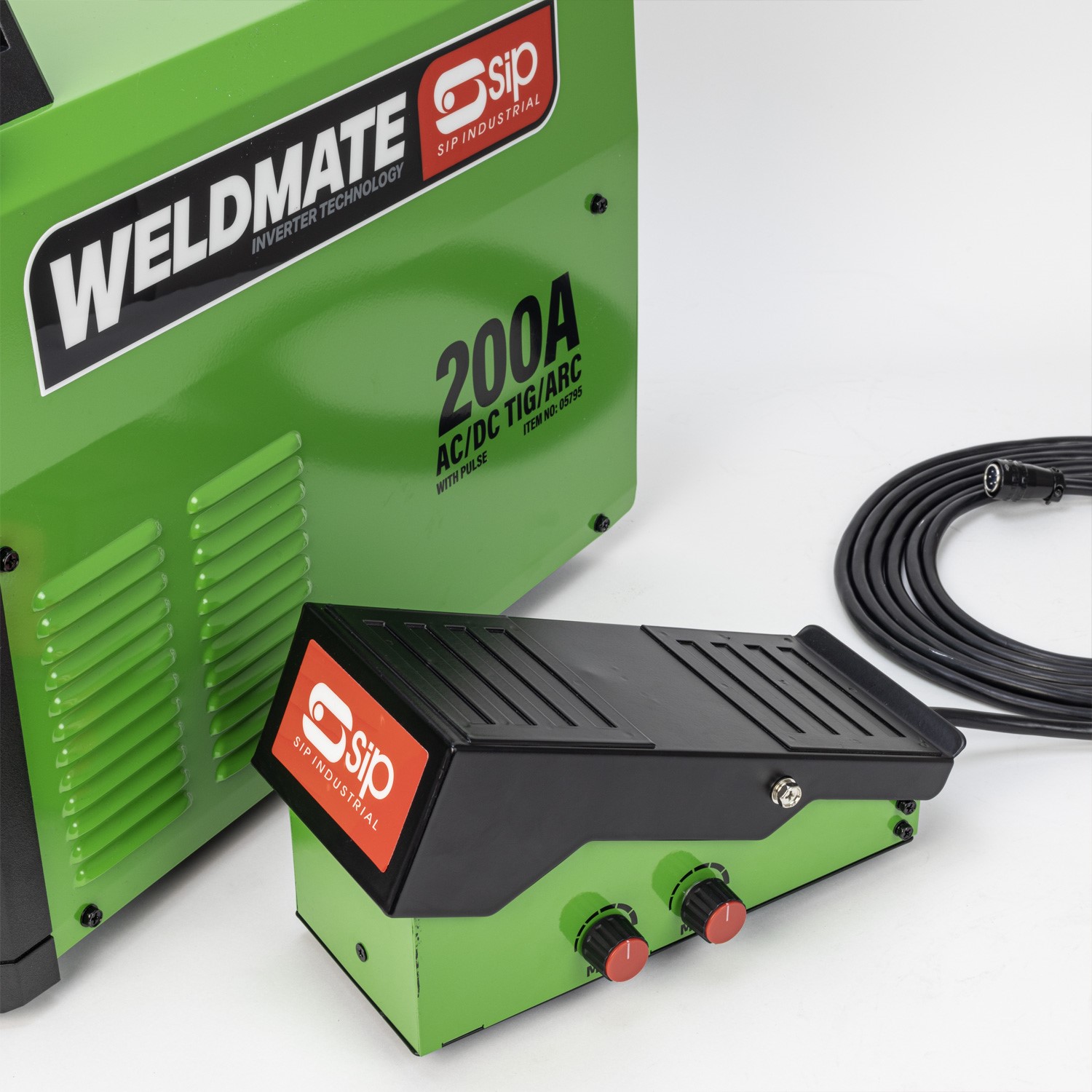

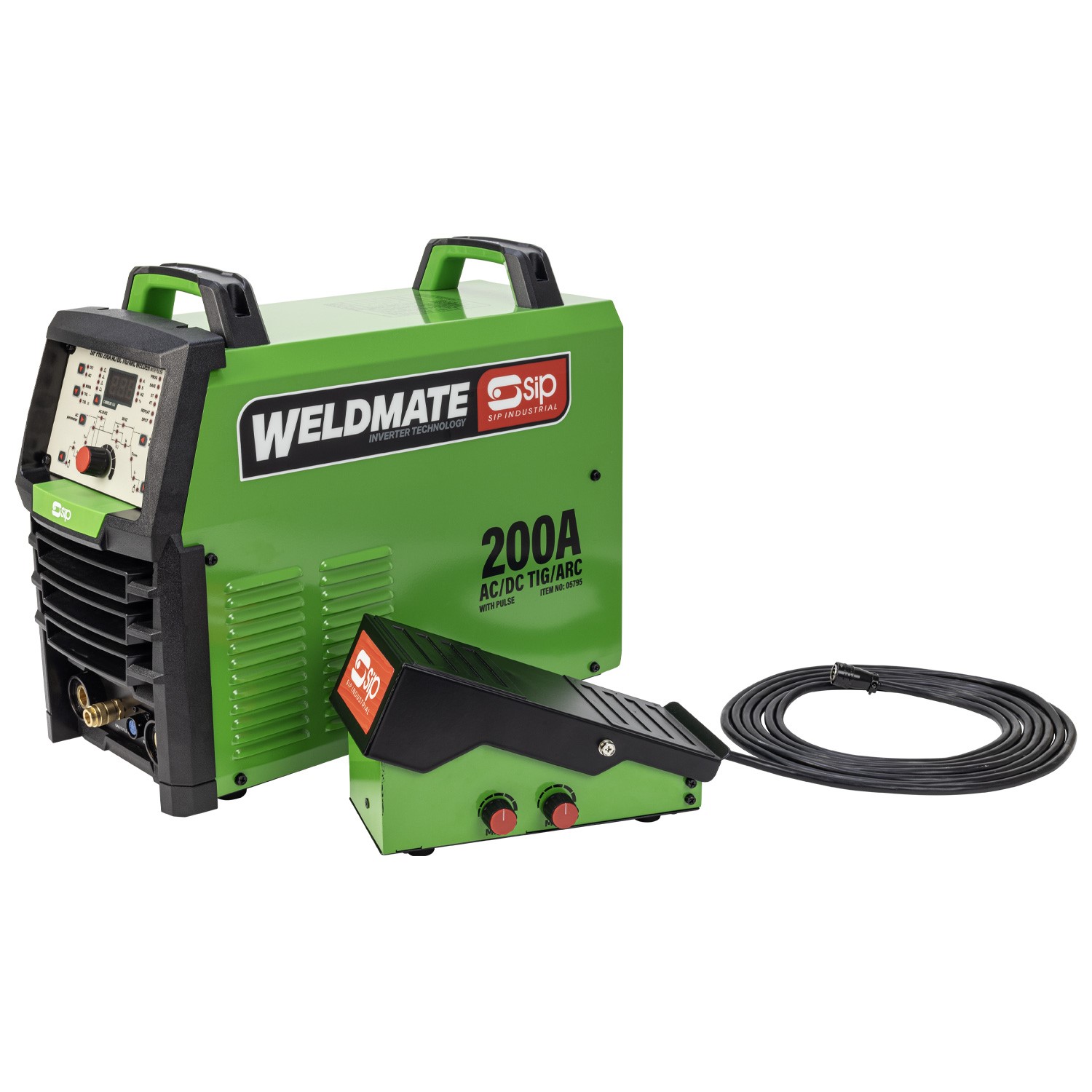

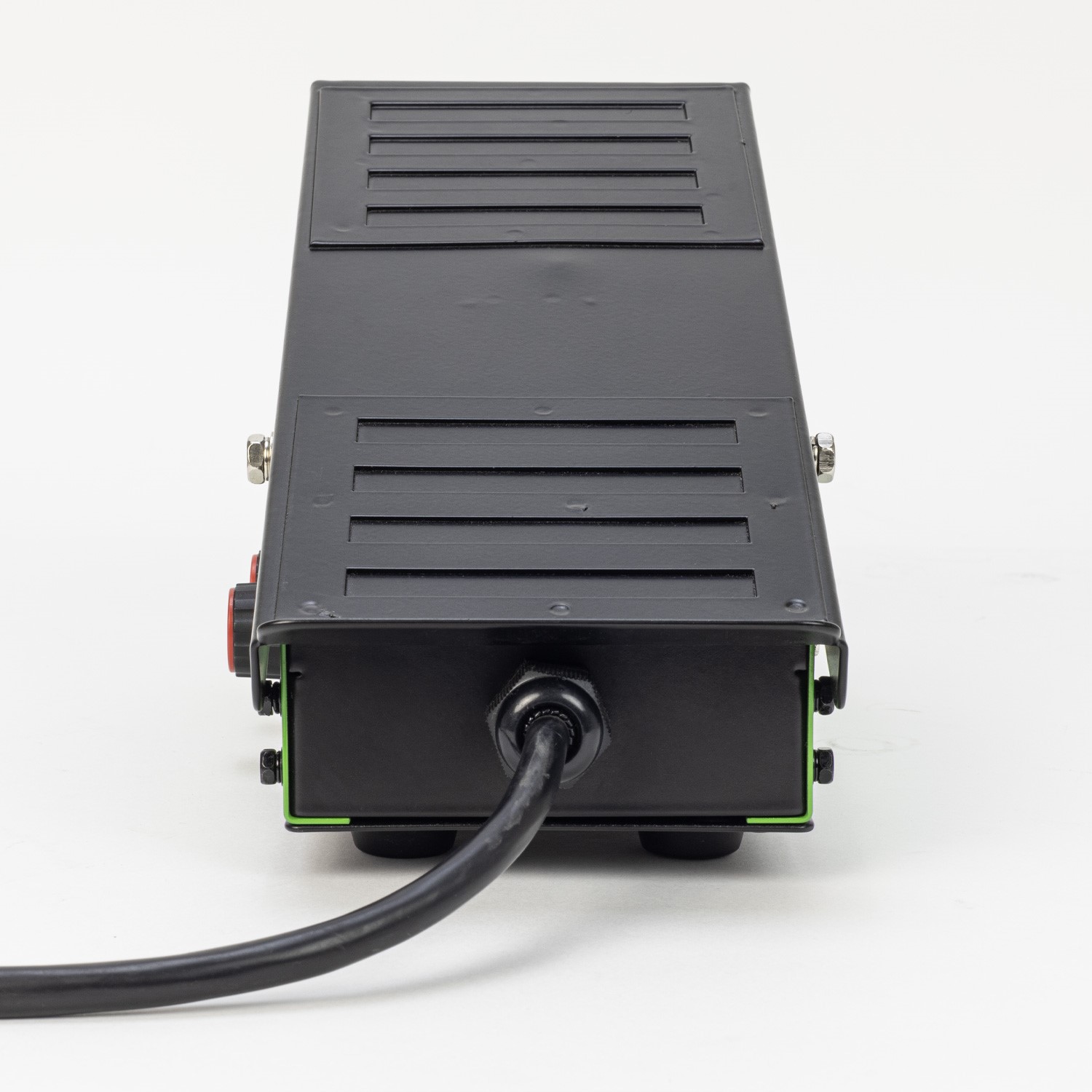

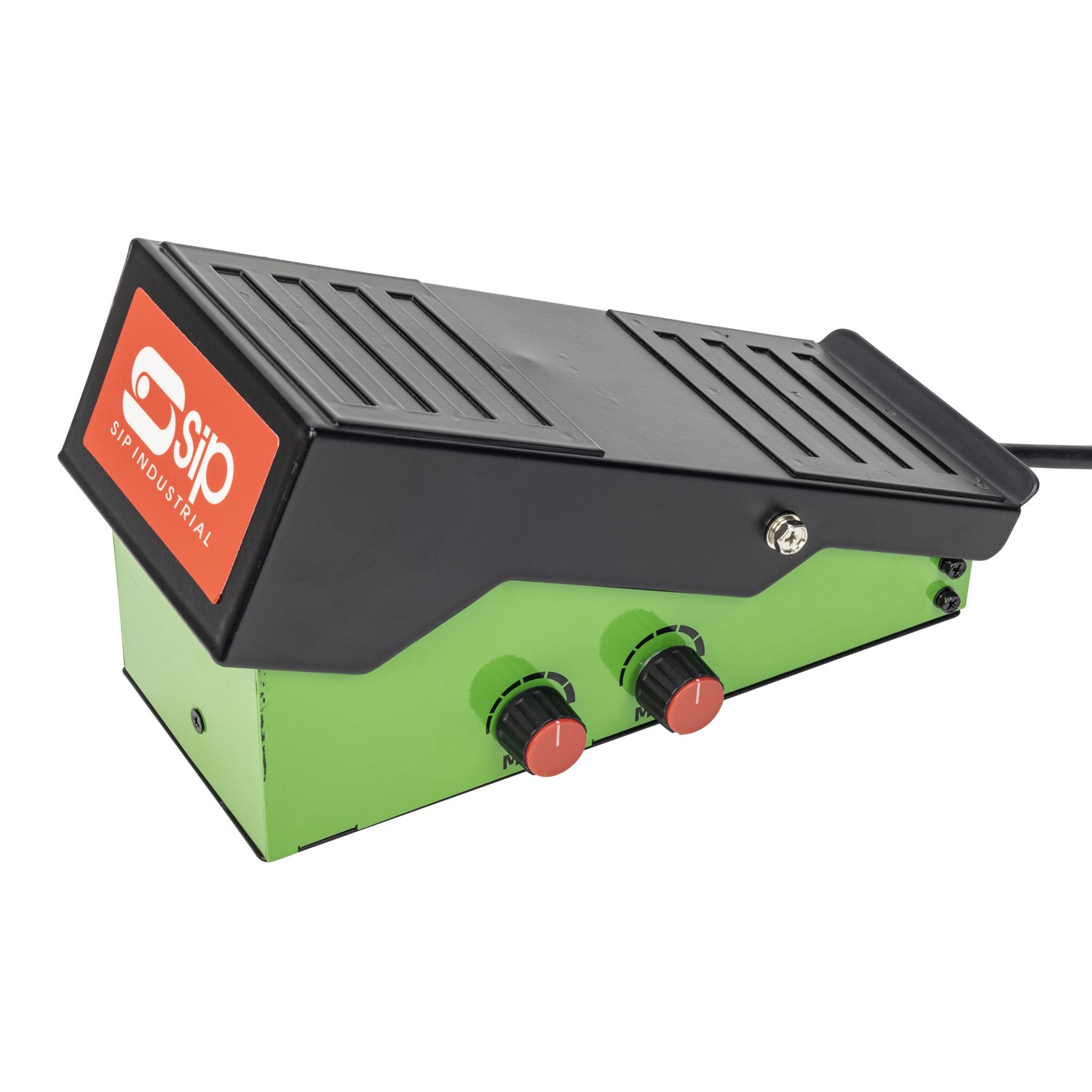

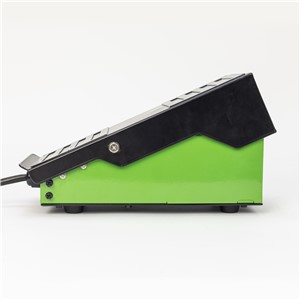

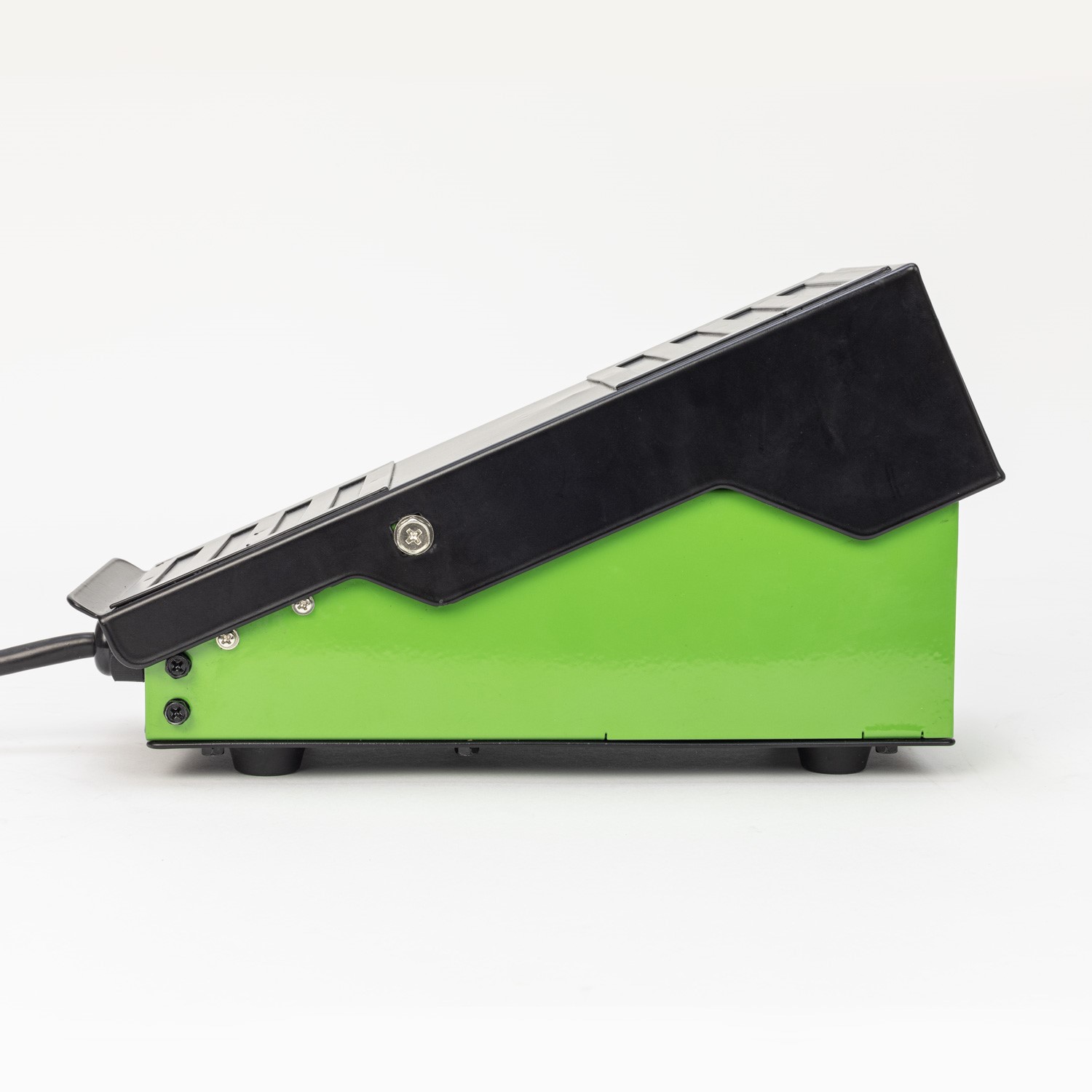

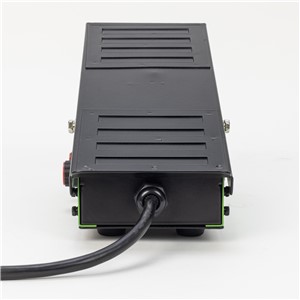

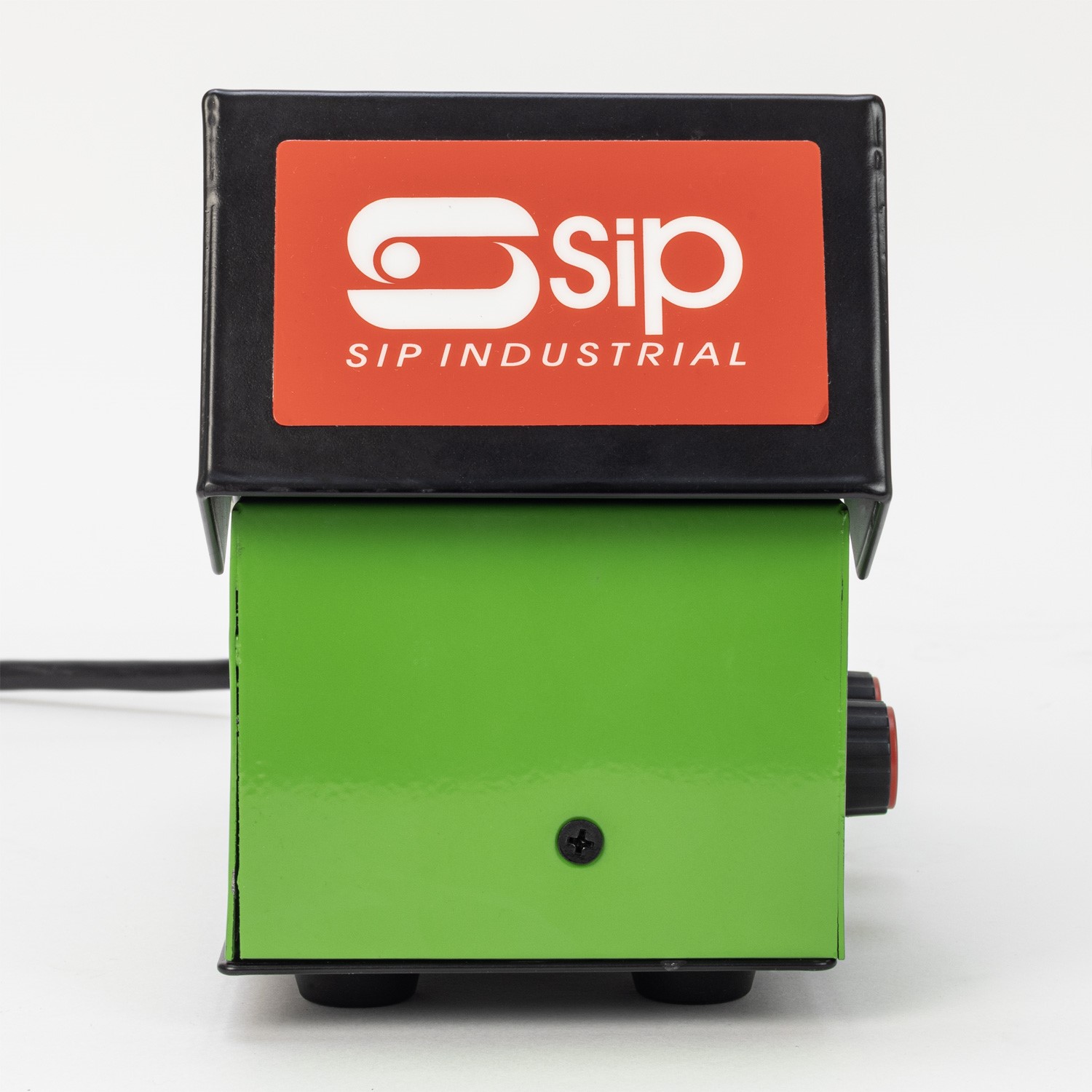

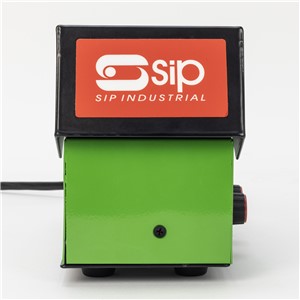

SIP FOOT PEDAL CONTROL OFFERS HANDS-FREE WELDING FOR SKILLED PROFESSIONAL USERS

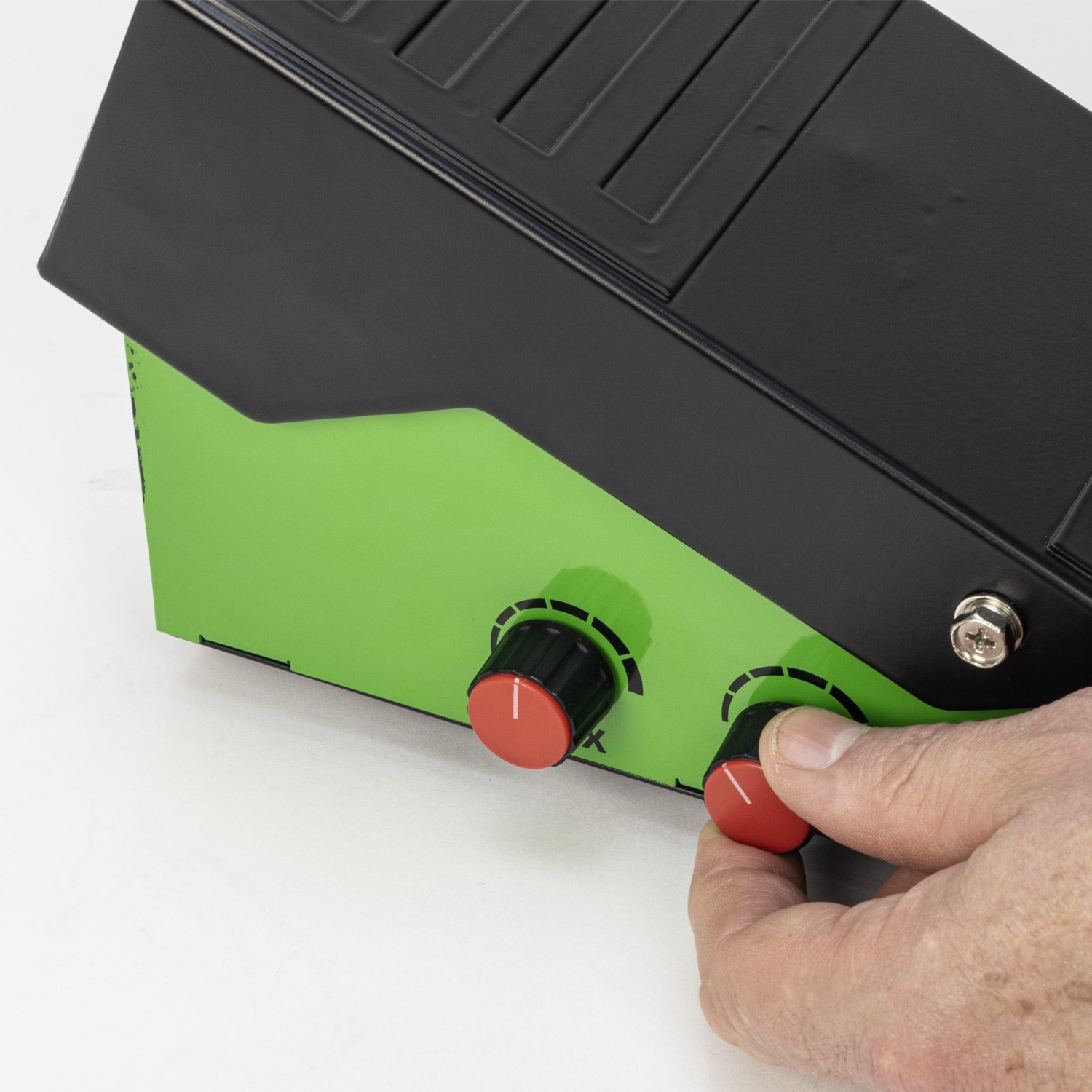

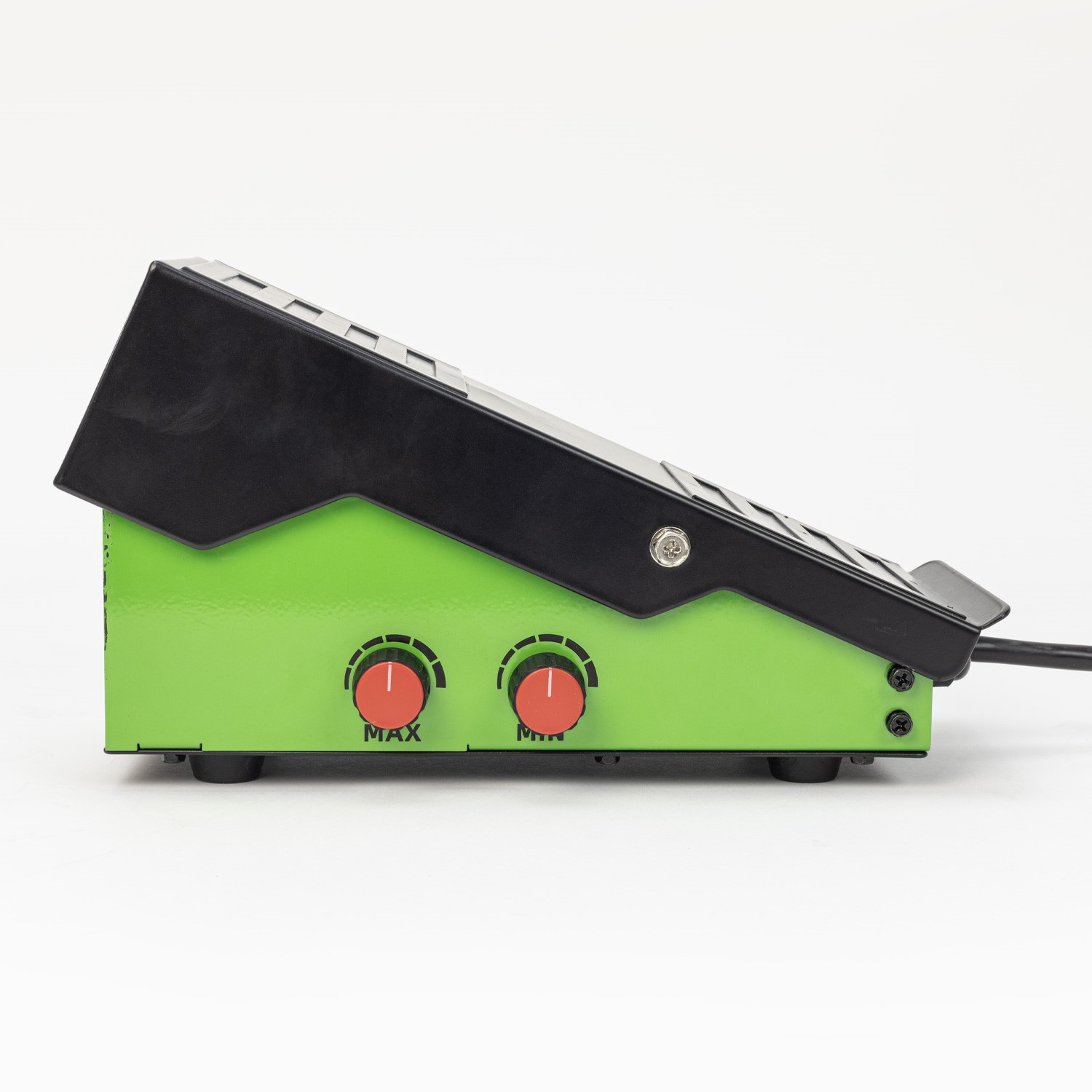

• The 05727 SIP Foot Pedal Control allows the user to set a minimum and maximum output current.
• The pedal action varies between those settings for greater control of the weld pool and welidng process.
