SIP Bench Morticer with Cabinet

01950

Click on image to enlarge

SIP Bench Morticer with Cabinet

01950

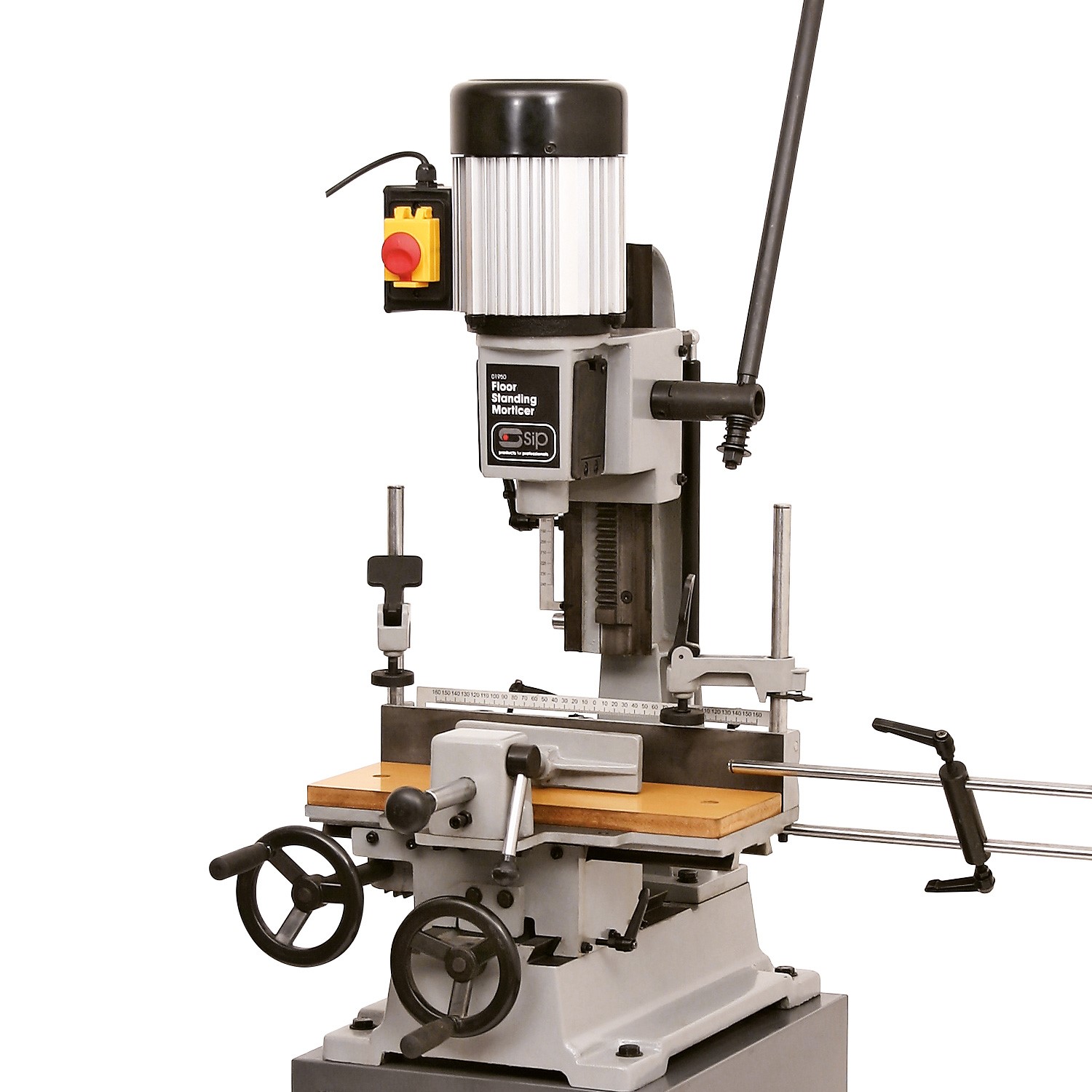

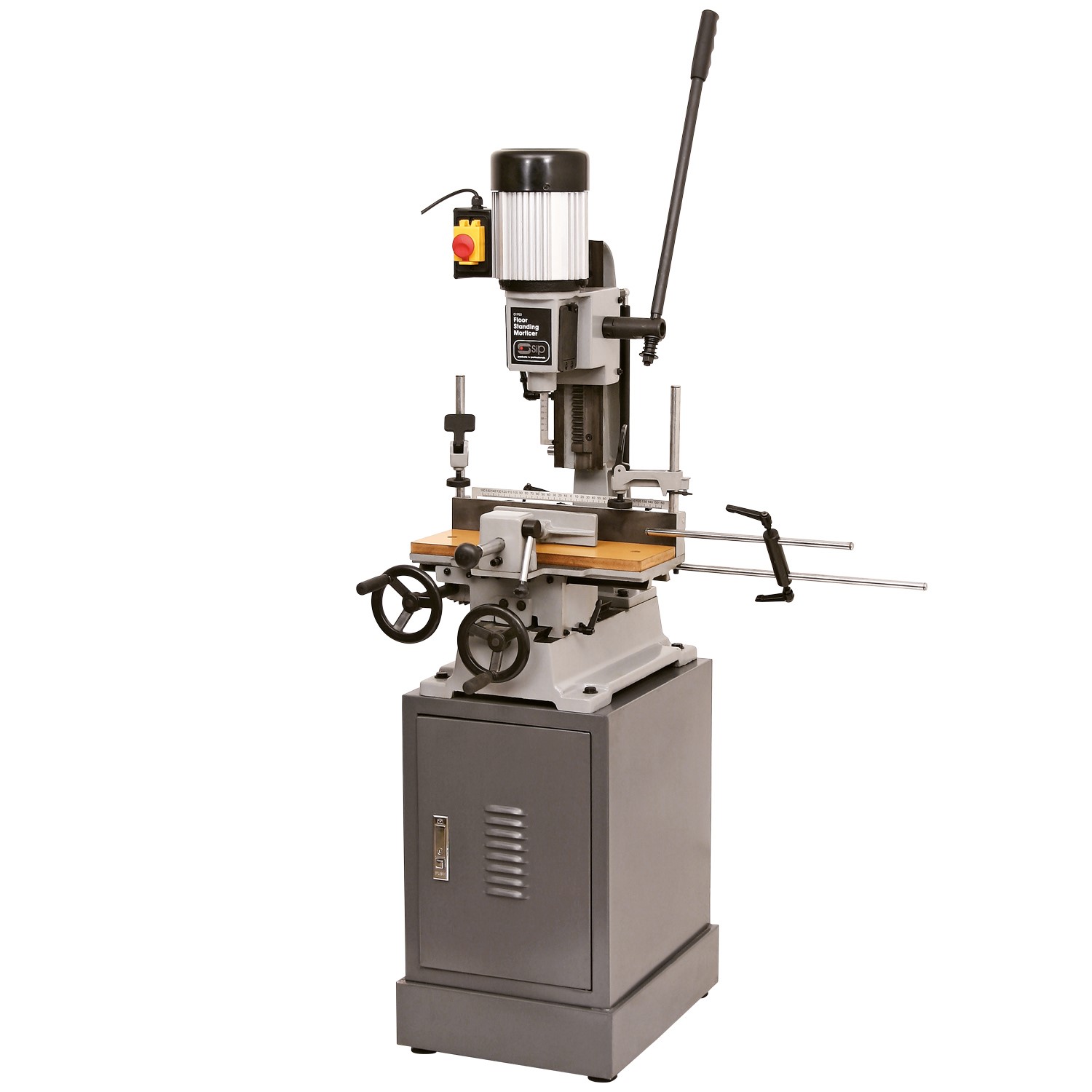

The SIP Bench Morticer with Cabinet can easily cut square or rectangular holes in a variety of timber, providing robust morticing performance but also doubling as a floor-standing pillar drill, and utilises a heavy-duty clamp that keeps any workpiece secure.

Designed for home, trade, and professional woodwork applications.

KEY FEATURES

6mm (1/4") to 26mm (1") chisel capacity
210mm max. chisel stroke; 210mm chisel to table
Built from heavy-duty cast iron for durability
Design doubles as a floor-standing pillar drill
Integrated NVR switch for increased safety

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP Bench Morticer with Cabinet can easily cut square or rectangular holes in a variety of timber, providing robust morticing performance but also doubling as a floor-standing pillar drill, and utilises a heavy-duty clamp that helps to keep workpieces secure even in the most demanding tasks.

Browse SIP WOODWORK for more woodworking and woodturning essentials.

6mm (1/4") to 26mm (1") chisel capacity
210mm max. chisel stroke; 210mm chisel to table

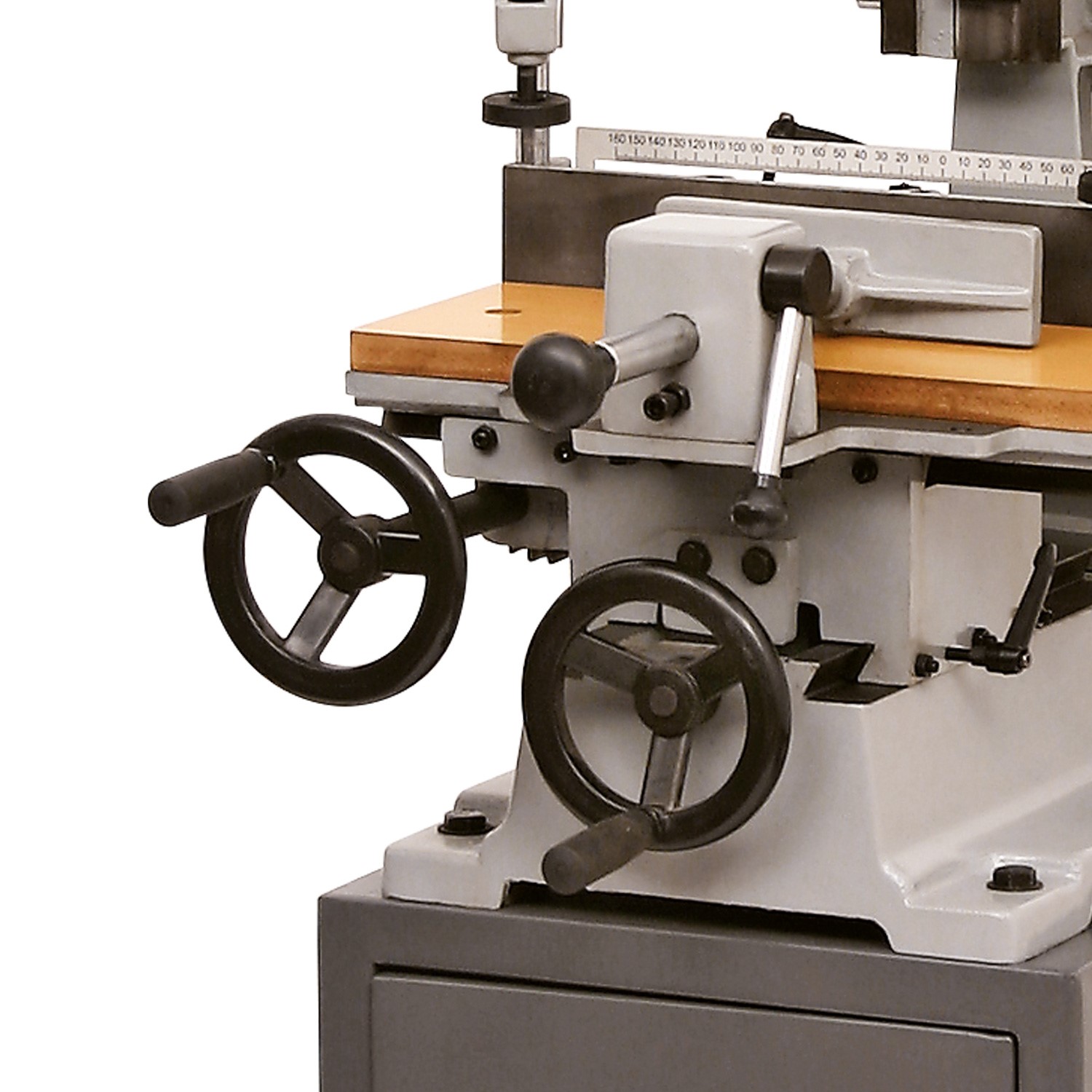

Versatile longitudinal and lateral table movement

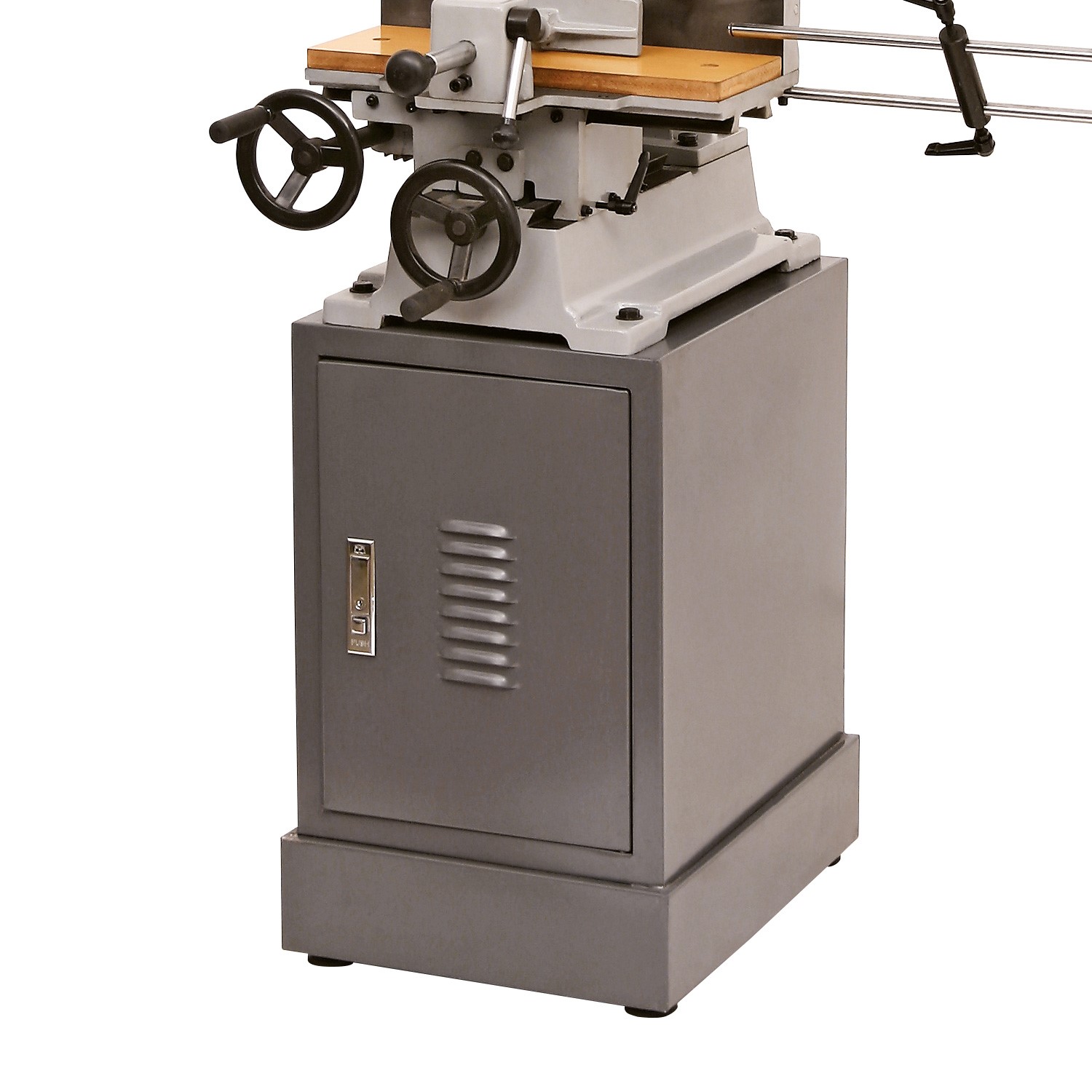

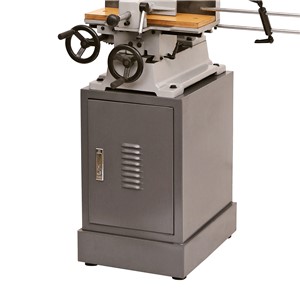

Heavy-duty cabinet for a comfortable work height
400mm x 150mm table size for larger workpieces
Built from heavy-duty cast iron for durability
Design doubles as a floor-standing pillar drill
Heavy-duty clamps keeps the workpiece secure
Large work area for bigger or irregular timber

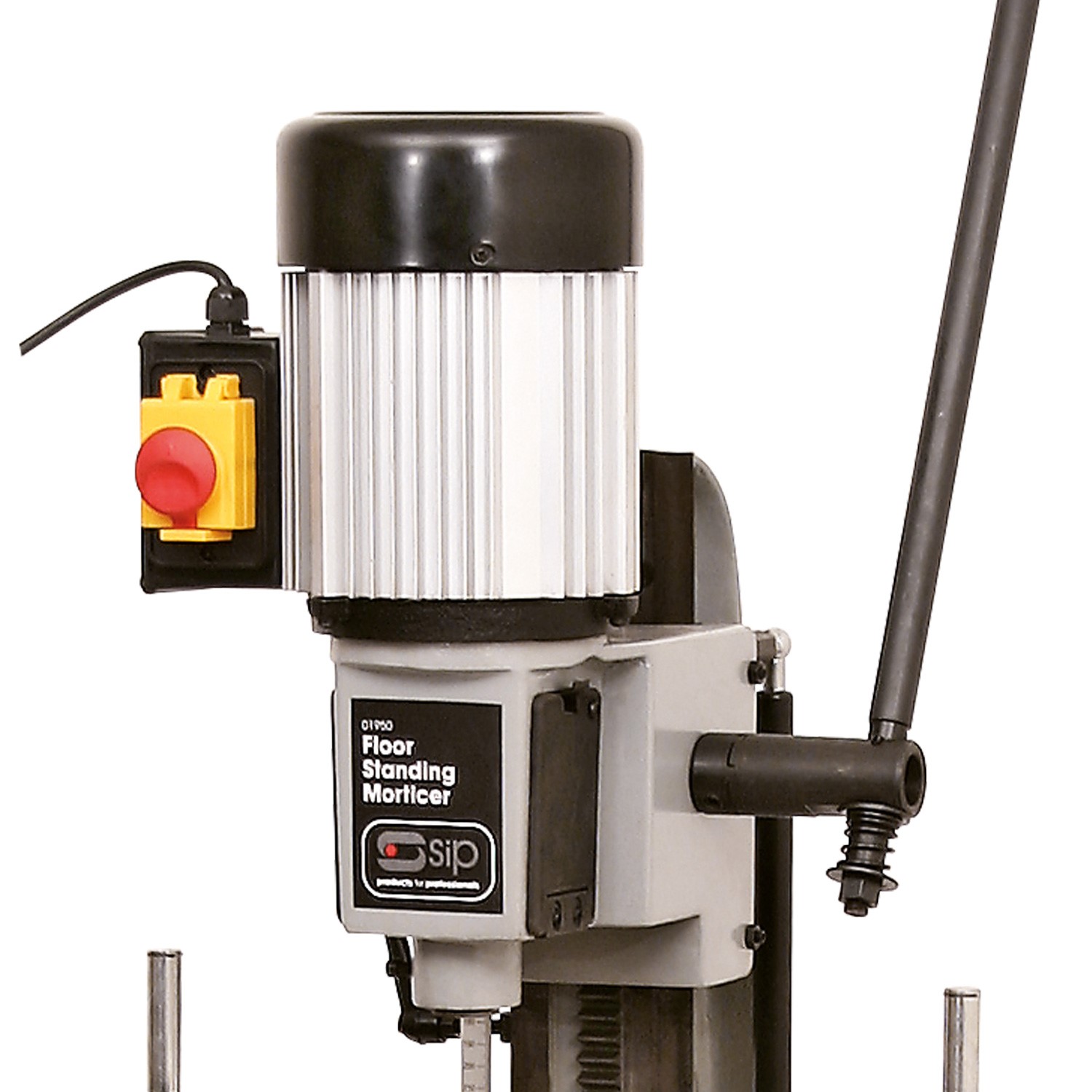

Integrated NVR switch for increased safety
SIP 2-Year Standard Silver Warranty

Product Video

Technical Information

ITEM NO.	01950
Input Supply:	230v (13A)
Motor Power:	750w (1hp)
Morticing Capacity:	6mm - 26mm (1/2" - 1")
Max. Chisel Stroke:	210mm
Max. Spindle to Fence:	140mm
Max. Drilling Capacity:	70mm
Chuck Capacity:	16mm
Work Table Size:	400mm x 150mm
Net Weight:	73.00kg 16.00kg
Gross Weight:	83.00kg 18.00kg
Product Dimensions:
Packaged Dimensions:	815(H) x 560(W) x 470mm(D) 630(H) x 500(W) x 395mm(D)
