SIP Professional Tilting Spindle Moulder

01456

Click on image to enlarge

SIP Professional Tilting Spindle Moulder

01456

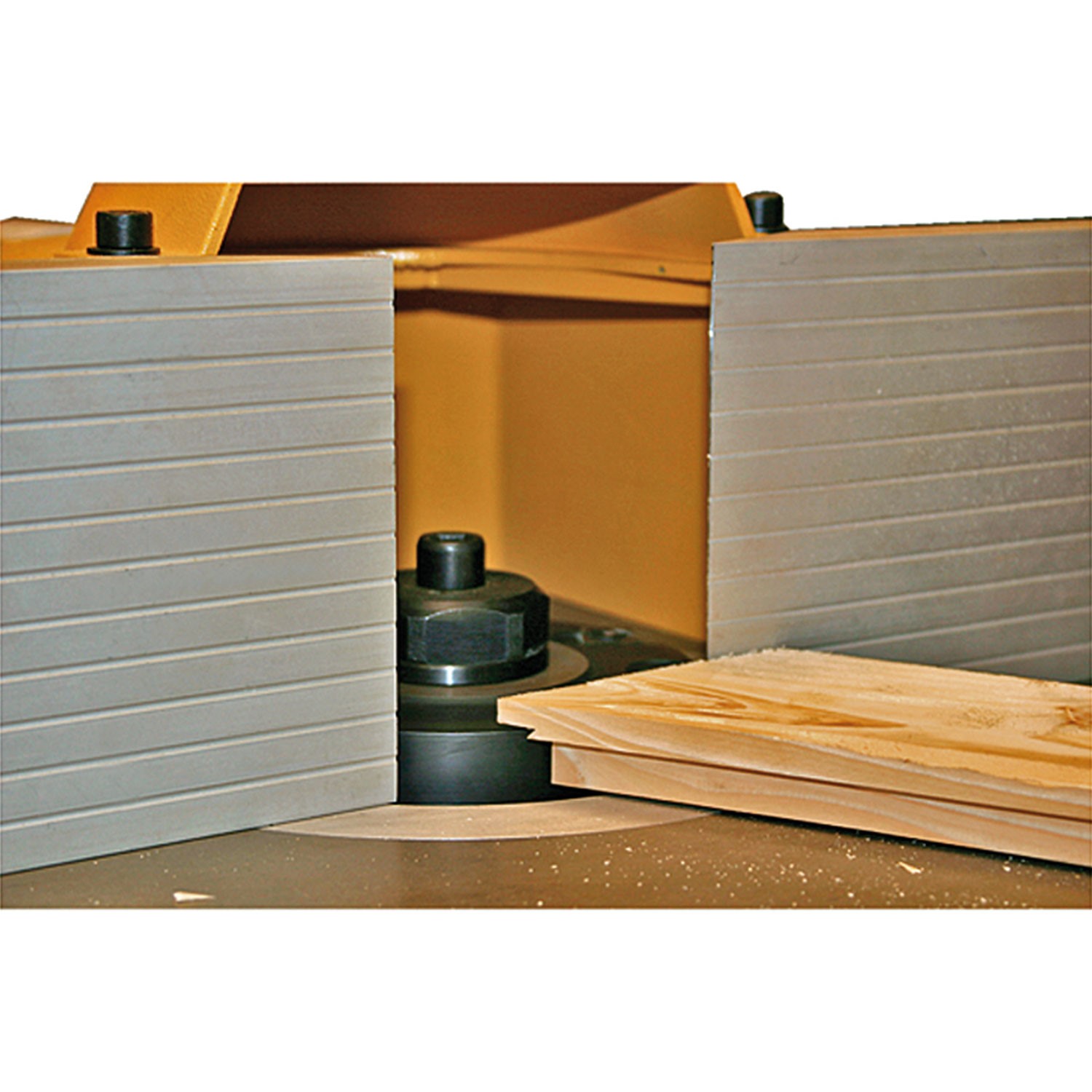

The SIP Professional Tilting Spindle Moulder offers powerful performance in shaping, profiling, and machining, accommodating rebates, grooves, and much more on wood edges, with tilting angles providing increased versatility ideal for all demanding tasks.

Designed for home, trade, and professional woodwork applications.

KEY FEATURES

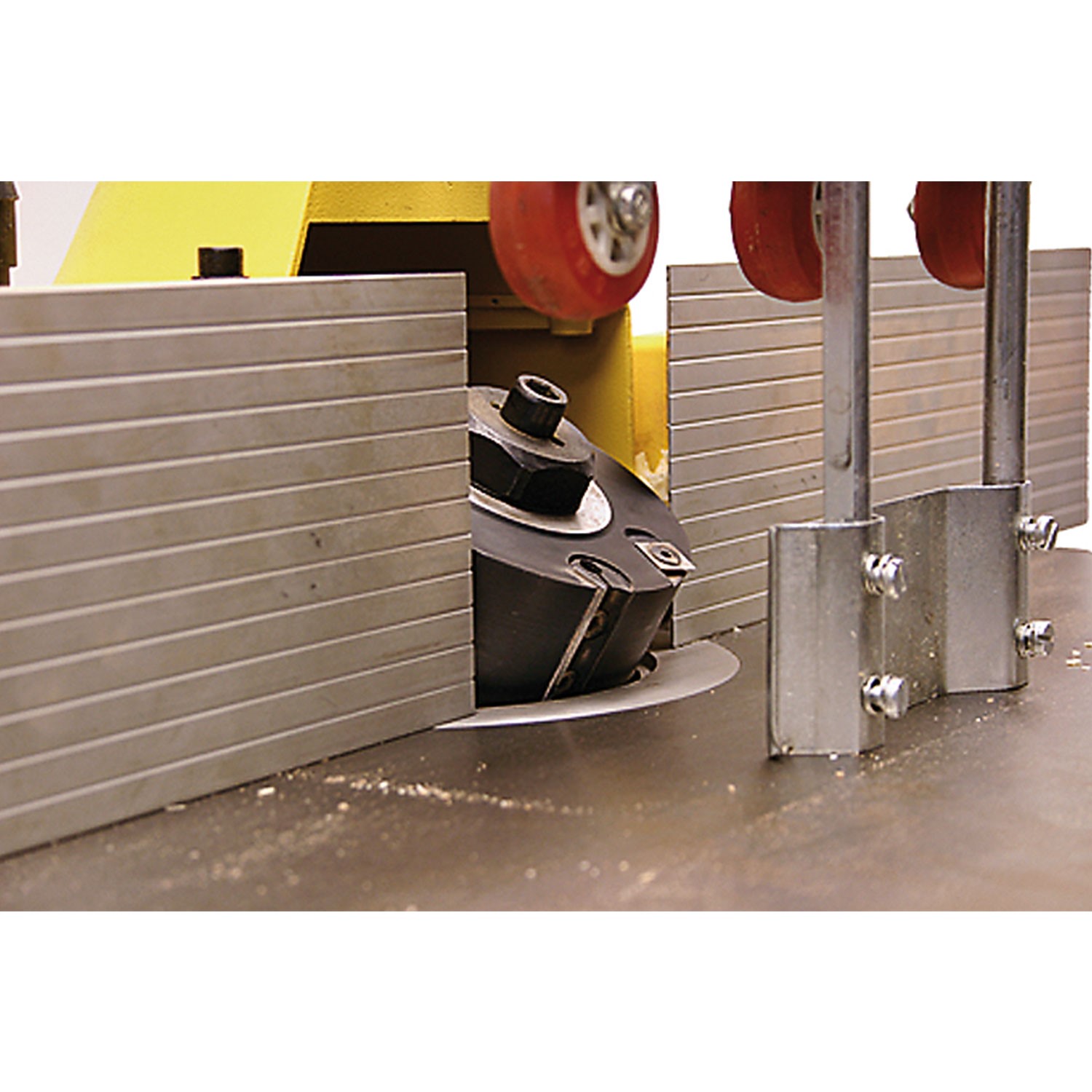

Versatile -10° to +30° spindle tilting shaft angle
Comfortable working height with cast iron work table

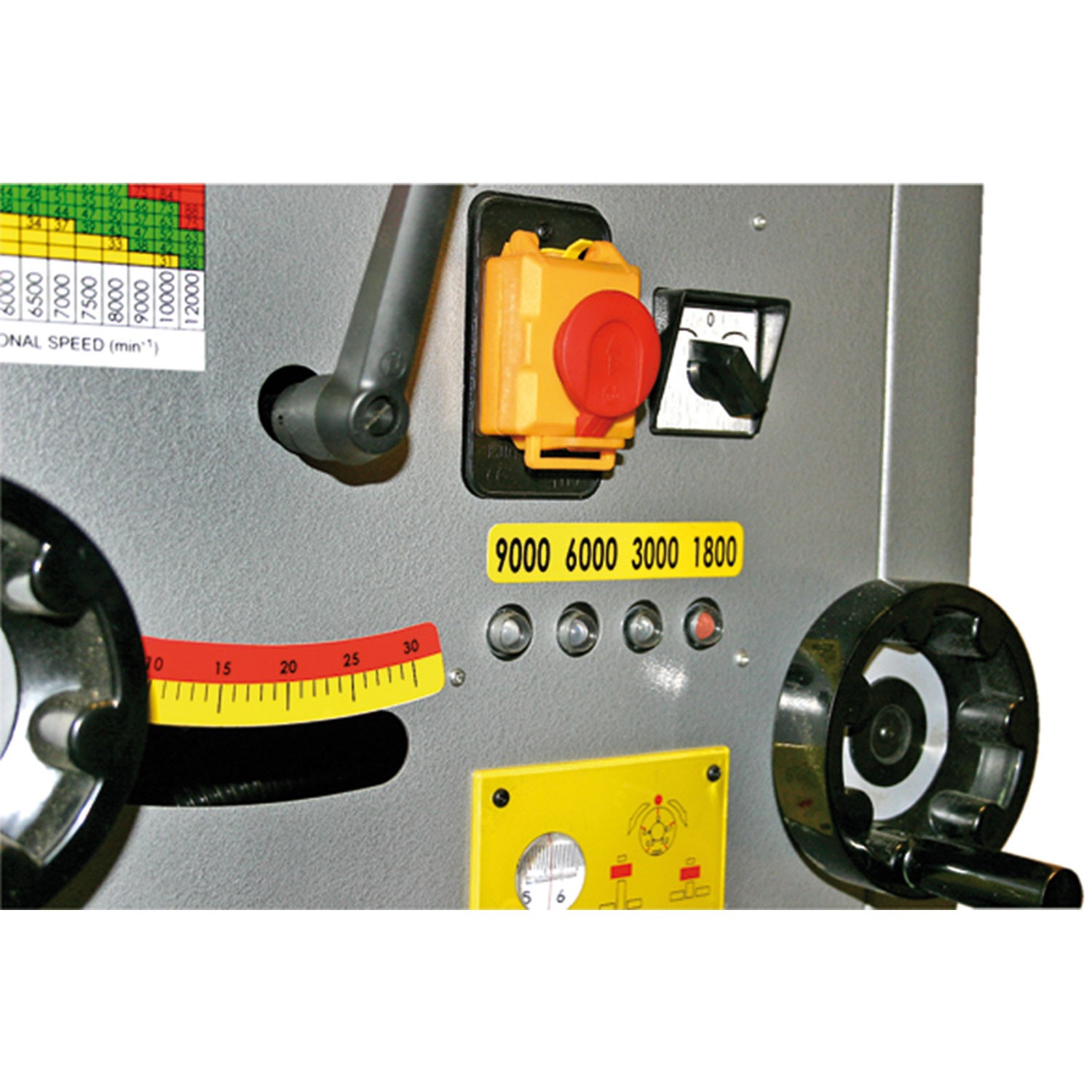

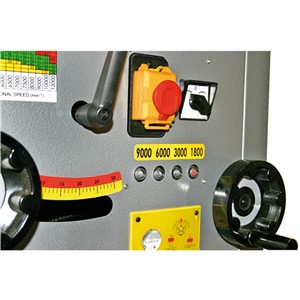

4 powerful working speeds to accommodate all demands

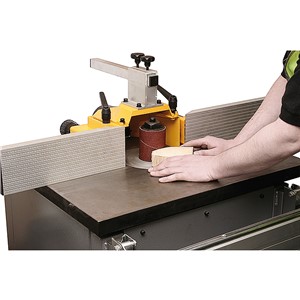

Low speed for use with supplied sanding bobbin
Integrated NVR switch for added safety

SIP 2-Year Standard Silver Warranty* | Find out more

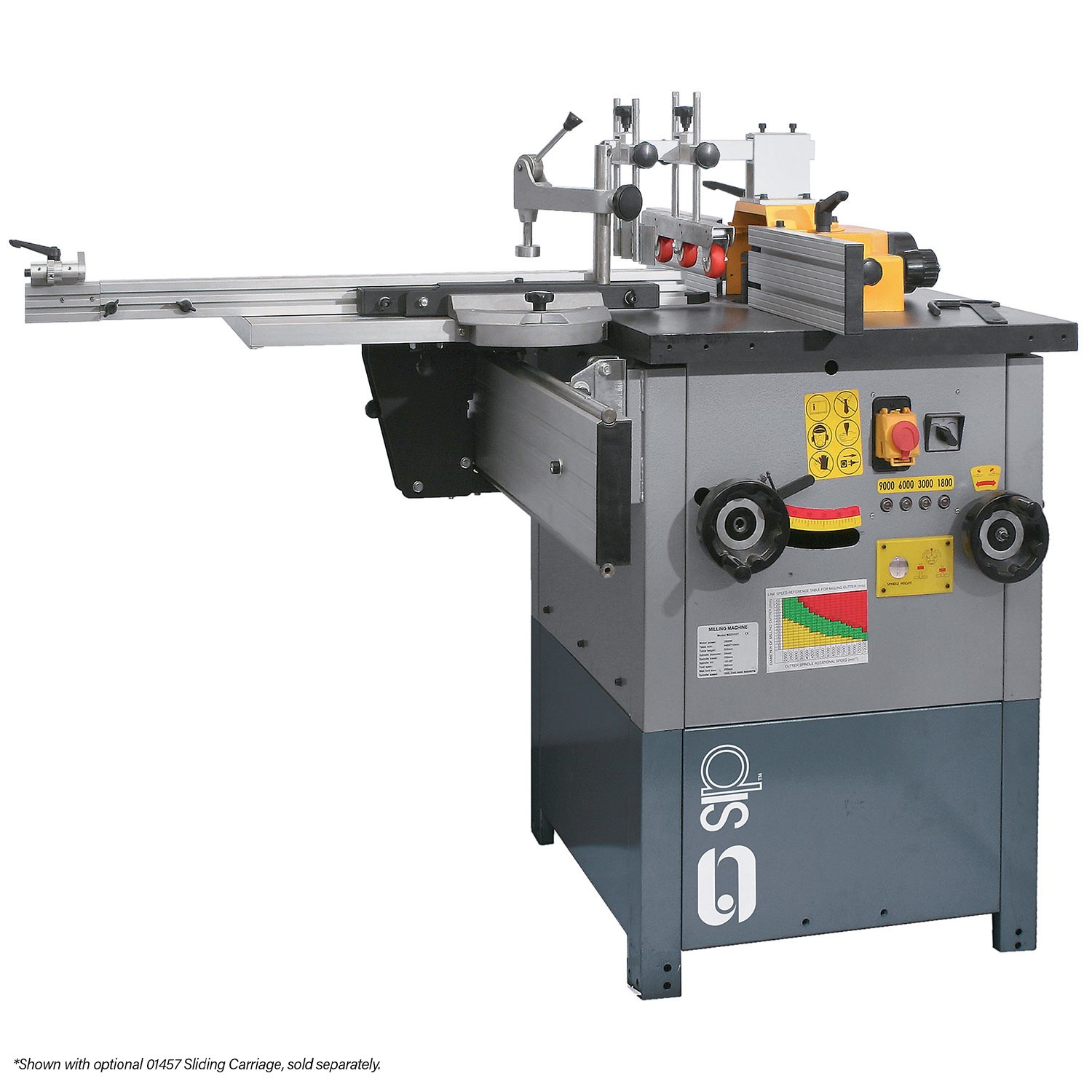

Machine shown with optional SIP Sliding Carriage (01457).

Full Specification

The SIP Professional Tilting Spindle Moulder offers powerful performance in shaping, profiling, and machining, accommodating rebates, grooves, and much more on wood edges, with tilting angles providing increased versatility ideal for all demanding tasks.

Browse SIP WOODWORK for more woodworking and woodturning essentials.

Powerful induction motor for heavy-duty performance
Versatile -10° to +30° spindle tilting shaft angle
Comfortable 900mm unit height with large 710mm x 640mm work surface designed from high-quality and durable cast iron
Table is predrilled for power feed unit acceptance
4 powerful working speeds to accommodate all demands
Low speed for use with supplied sanding bobbin
Integrated NVR switch for added safety
SIP 2-Year Standard Silver Warranty

Machine shown with optional SIP Sliding Carriage (01457).

Product Video

Technical Information

ITEM NO.	01456
Input Supply:	230v (16A)
Motor Power:	2.8kW (3.75hp)
Spindle Speeds:	4 speeds; 1800rpm 3000rpm 6000rpm 9000rpm
Spindle Diameter:	Ø 30mm
Spindle Travel:	100mm
Max. Tool Diameter:	Ø 200mm
Table Opening:	200mm
Table Size:	710mm x 640mm
Spindle Tilting:	-10° - +30°
Net Weight:	170.00kg
Gross Weight:	188.00kg
Product Dimensions:
Packaged Dimensions:	700(H) x 760(W) x 690mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE
