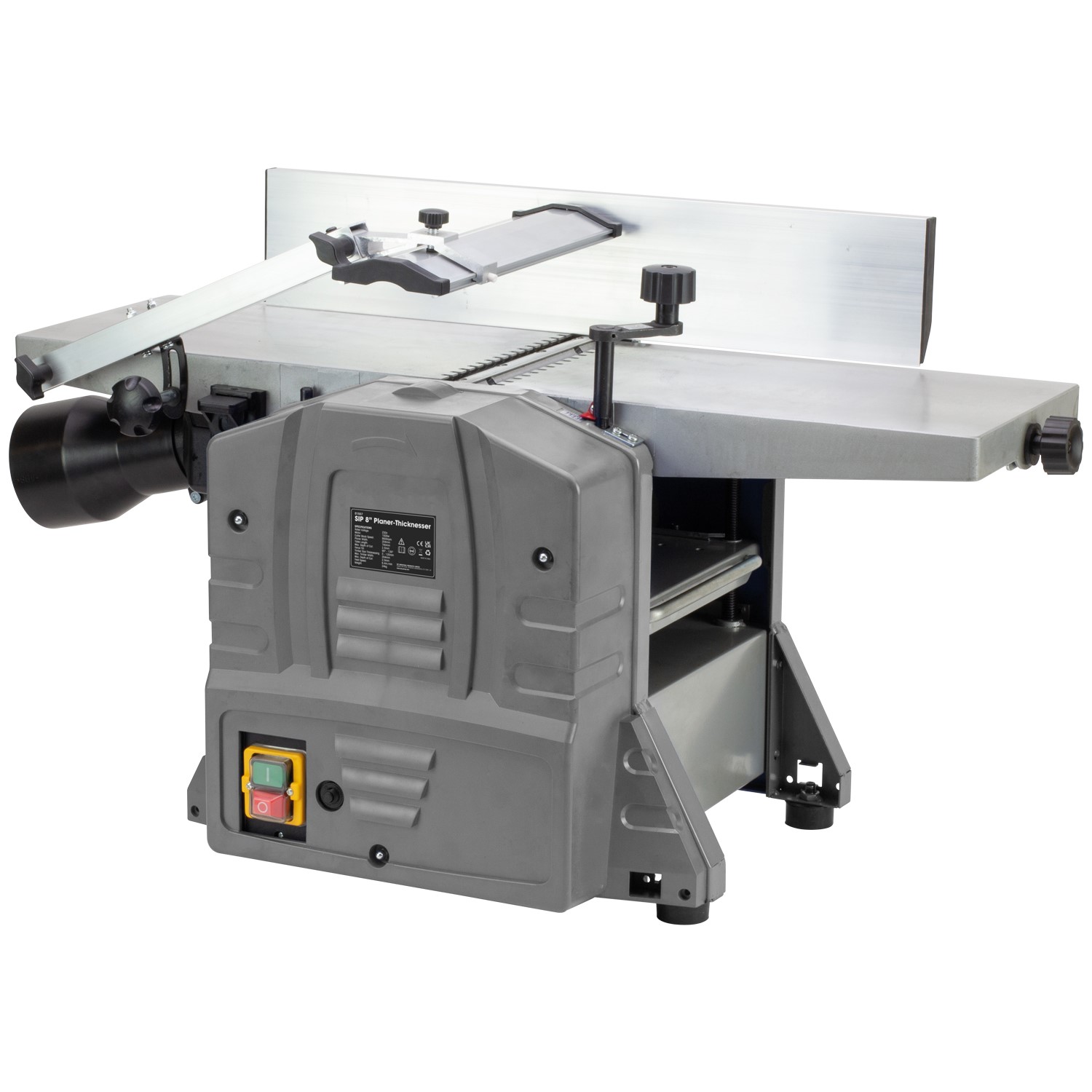

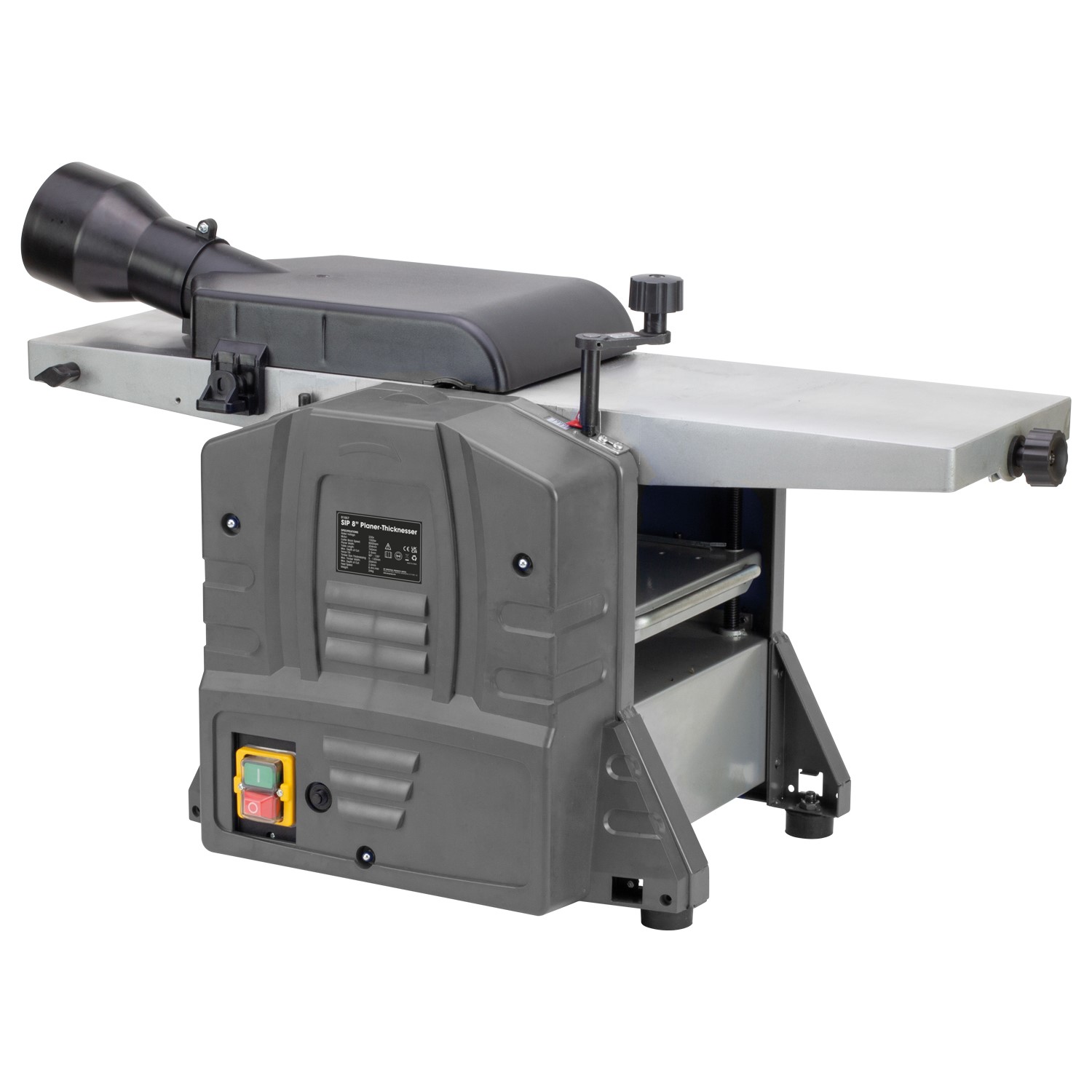

SIP 8" x 5" Planer Thicknesser

01557

SIP 8" x 5" Planer Thicknesser01557SIP 8" x 5" Planer ThicknesserSIP 8" x 5" Planer ThicknesserSIP 8" x 5" Planer ThicknesserSIP 8" x 5" Planer Thicknesser
01557
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

The SIP 8" x 5" Planer Thicknesser is designed for efficient planing and trimming of workpieces to uniform thicknesses and width, comfortably removing large amount of material in one pass, making sure that all boards, planks, and surfaces are consistent.

For machine longevity, this planer thicknesser must be operated with an attached dust extractor. Recommended extractors for this machine are the SIP 50ltr Dust & Chip Collector (01923) or SIP 1hp Portable Single Bag Dust Collector (01963).

KEY FEATURES

  •  204mm planer width and 2.5mm max. cutting depth

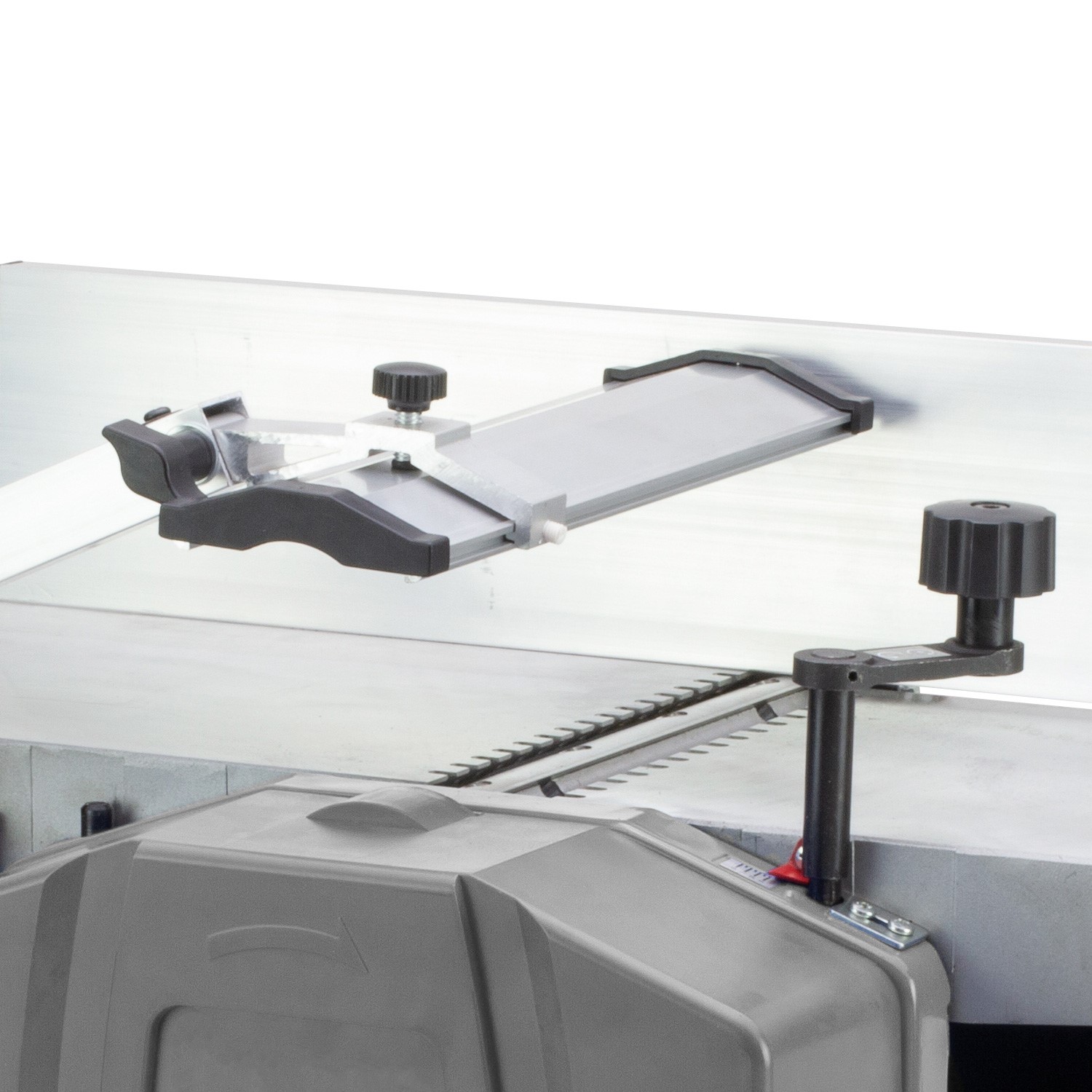

  •  Adjustable 90° to 135° fence tilting for versatility
  •  Quality machine-surfaced cast aluminium table tops
  •  Power-fed rollers for a consistently smooth finish
  •  Perfect for both square and chamfered planing

   SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 8" x 5" Planer Thicknesser is designed for efficient planing and trimming of workpieces to uniform thicknesses and width, comfortably removing large amount of material in one pass, making sure that all boards, planks, and surfaces are consistent.

For machine longevity, this planer thicknesser must be operated with an attached dust extractor. Recommended extractors for this machine are the SIP 50ltr Dust & Chip Collector (01923) or SIP 1hp Portable Single Bag Dust Collector (01963).

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

  • 204mm planer width and 2.5mm max. cutting depth
  • Adjustable 90° to 135° fence tilting for versatility

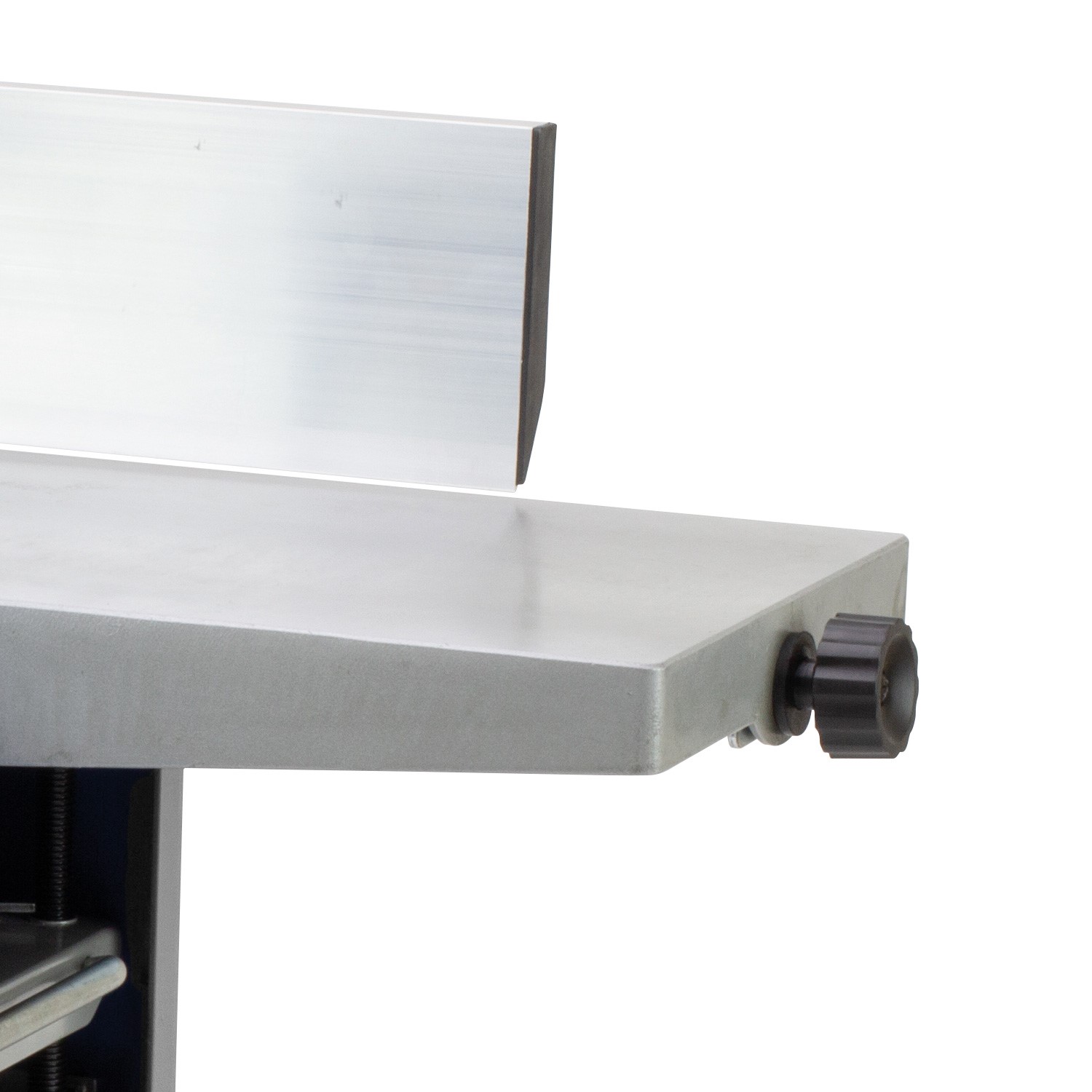

  • Machine-surfaced cast aluminium tables for accurate planing of larger timber
  • Power-fed rollers for a consistently high performance and a smooth finish

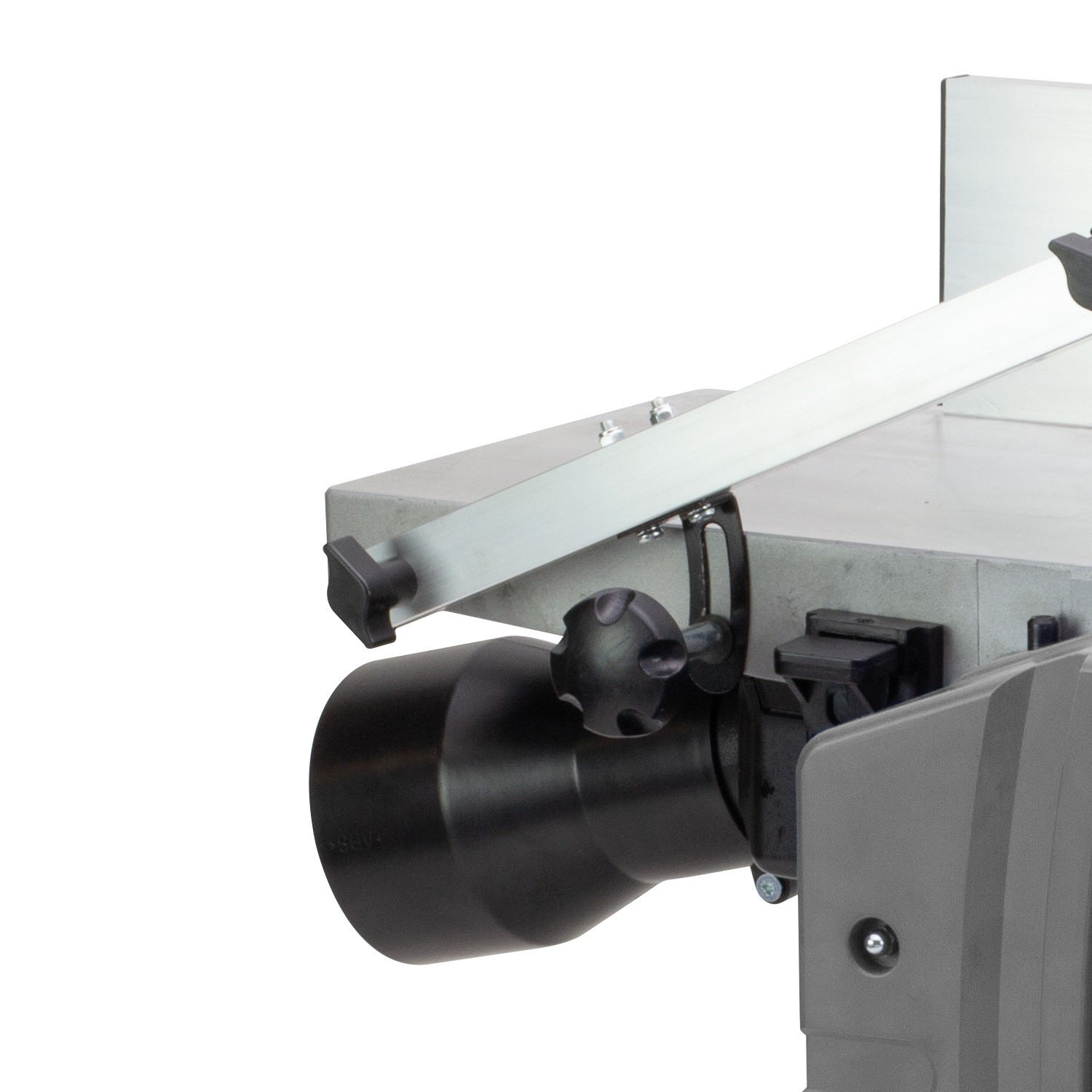

  • Built-in dust extraction port and expander adaptor
  • Fitted with reliable safety interlock switches
  • Perfect for both square and chamfered planing
  • Integrated NVR switch for added safety
  • SIP 2-Year Standard Silver Warranty*

 

Technical Information

ITEM NO. 01557
Input Supply: 230v (13A)
Motor Power: 1.5kW (2hp)
Cutter Block Speed: 9000rpm
Dust Extraction Outlet (ID/OD): 55mm / 62mm
Dust Extraction Adaptor (ID/OD): 63mm / 68mm
Planer Width: 204mm
Table Height: 355mm
Table Length: 740mm
Fence Tilting: 90° - 135°
Max. Cutting Depth: PLANING; 2.5mm
THICKNESSING; 2mm
Timber Size Range: 5mm - 120mm
Max. Timber Width: 204mm
Noise Level: 105db(A)
Net Weight: 24.00kg
Gross Weight: 27.76kg
Product Dimensions: 490(H) x 980(W) x 460mm(D)
Packaged Dimensions: 850(H) x 430(W) x 460mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
