SIP 7 TON Electric Log Splitter

01978

Click on image to enlarge

SIP 7 TON Electric Log Splitter

01978

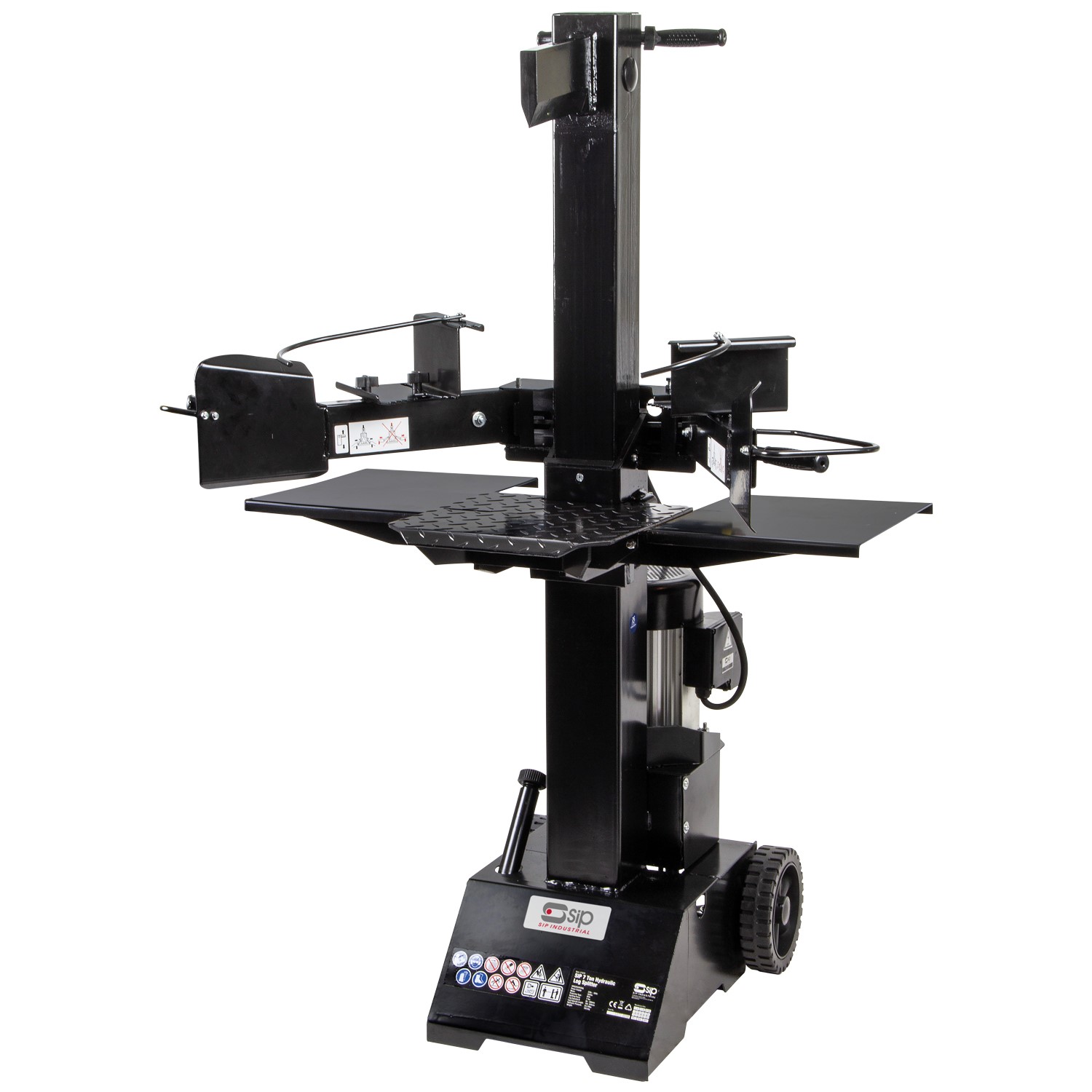

The SIP 7 TON Electric Log Splitter is a heavy-duty log splitter which features a hydraulic piston ram with 7 TON of continuous force to split logs safely and efficiently. Designed for agricultural and landscaping applications, this large capacity splitter is ideal for dried softwoods and hardwoods.

This log splitter has a vertical configuration for a smaller footprint which is mounted on solid wheels for easy mobility, plus operator handle guards for added user safety. A 230v (13A) input supply ensures this splitter can be used in a variety of environments.

KEY FEATURES

Hydraulic piston ram delivers 7 TON of continuous splitting force
Vertical splitter configuration ensures a smaller working footprint
Large log capacity of ⌀ 80mm - 300mm x 100mm - 550mm log length
Operator handle guards help to protect hands from the splitting area
Fitted ram lock and NVR switch provide increased user safety
Integrated handle and wheel-mounted design for added mobility

SIP 2-Year Standard Silver Warranty* | Find out more

BUY NOW

Full Specification

The SIP 7 TON Electric Log Splitter is a heavy-duty log splitter which features a hydraulic piston ram with 7 TON of continuous force to split logs safely and efficiently. Designed for agricultural and landscaping applications, this large capacity splitter is ideal for dried softwoods and hardwoods.

This log splitter has a vertical configuration for a smaller footprint which is mounted on solid wheels for easy mobility, plus operator handle guards for added user safety. A 230v (13A) input supply ensures this splitter can be used in a variety of environments.

Applications & uses: Ideal for splitting softwood and hardwoods. Suitable for agricultural and landscaping applications.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

ELECTRIC SPLITTER WITH HYDRAULIC PISTON RAM WITH 7 TON OF CONTINUOUS FORCE FOR RELIABLE & EFFICIENT LOG SPLITTING

Delivers continuous splitting force of 7 TON under a hydraulic pressure of 23.5MPa.
Large log capacity of ⌀ 80mm - 300mm x 100mm - 550mm log length.

HEAVY-DUTY FRAME WITH OPERATOR HANDLE GUARDS HELPS TO MAXIMISE USER SAFETY

Operator handle guards help to protect hands from the splitting area.
Further enhanced safety via an integrated ram lock and NVR switch.

VERTICAL CONFIGURATION OFFERS FLEXIBILITY IN A VARIETY OF SPACES

Upright vertical design ensures a smaller footprint is required to operate the machine.
The vertical configuration is mounted on 2 solid wheels for added mobility and versatility.
An integrated handle near the splitting wedge makes the splitter easier to position.

Technical Information

ITEM NO.	01978
Input Supply:	230v (13A)
Motor Power:	3kW (4hp)
Splitting Force:	7 TON
Hydraulic Pressure:	23.5MPa
Hydraulic Oil Capacity:	4ltr HV22 hydraulic oil
Log Capacity:	⌀ 80mm - 300mm x 100mm - 550mm
Noise Level (LpA):	89.7dB(A) full load / 83.6dB(A) no-load
Net Weight:	109.2kg
Gross Weight:	119kg
Product Dimensions:
Packaged Dimensions:	1150(H) x 560(W) x 400mm(D)
