SIP B13 5-Speed 350w Bench Pillar Drill

01710

Click on image to enlarge

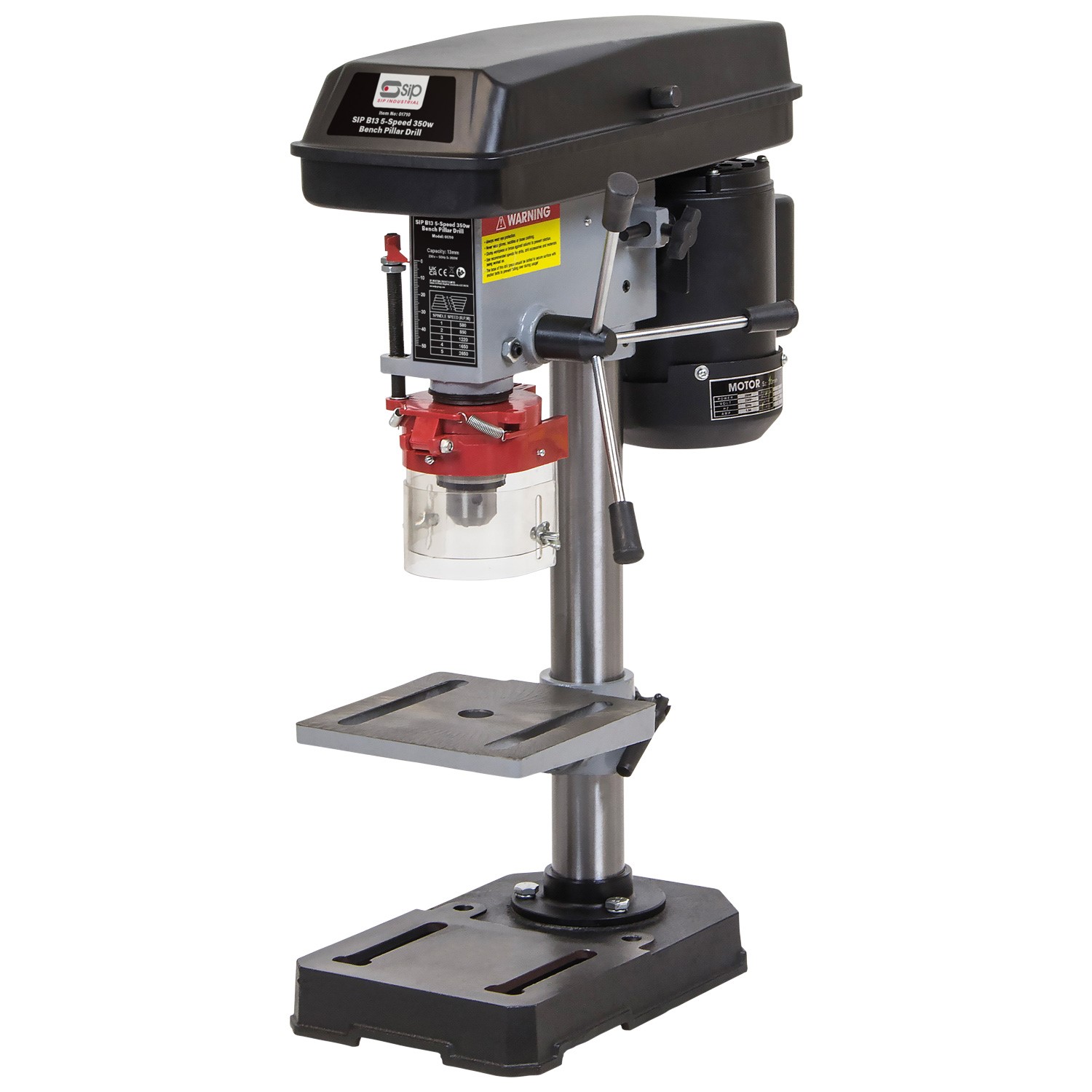

SIP B13 5-Speed 350w Bench Pillar Drill

01710

The SIP B13 5-Speed 350w Bench Pillar Drill makes light work of preparing and finishing workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling.

KEY FEATURES

5 spindle speeds powered by a 350w motor from a 230v (13A) supply
Supports a variety of drilling applications
High-power brushless induction motor
Fitted with drilling depth stop
Adjustable drill table for greater accuracy
Safety interlock switch for safe motor belt adjustment

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP B13 5-Speed 350w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling.

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for a range of home workshop applications with limited floor space.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind and general drilling applications, small bracketry, and home metalwork and woodwork applications.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

SUPPORTS A VARIETY OF DRILLING APPLICATIONS

Compatible with materials including ferrous and non-ferrous metals, hard and soft woods and high-density plastics.

MULTI-SPEED FUNCTIONALITY

Allows precise control of hole sizes across the drilling spectrum.

HIGH-POWER BRUSHLESS INDUCTION MOTOR

Delivers powerful performance for consistent high-quality drilling.

INTUITIVE FEATURES FOR EASE-OF-USE

Adjustable drilling table and 3-lever handle ensures smooth drilling force.

FITTED WITH DRILLING DEPTH STOP

Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

SAFETY INTERLOCK SWITCH

Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.

Technical Information

ITEM NO.	01710
Input Voltage:	230v (13A)
Motor Power:	350w
No. of Speeds:	5 speeds
Speed Range:	580rpm - 2650rpm
Drill Bit Size:	1.5mm - 13mm
Max. Drilling Capacity:	13mm
Spindle Taper:	B16
Table Size:	160mm x 160mm
Base Size:	290mm x 182mm
Column Diameter:	Ø 46mm
Swing:	210mm
Height:	580mm
Spindle Travel:	50mm
Collar Diameter:	Ø N/A
Max. Distance:	169mm (chuck to table) 250mm (chuck to base)
Net Weight:	14.00kg
Gross Weight:	15.00kg
Product Dimensions:
Packaged Dimensions:	245(H) x 450(W) x 345mm(D)
