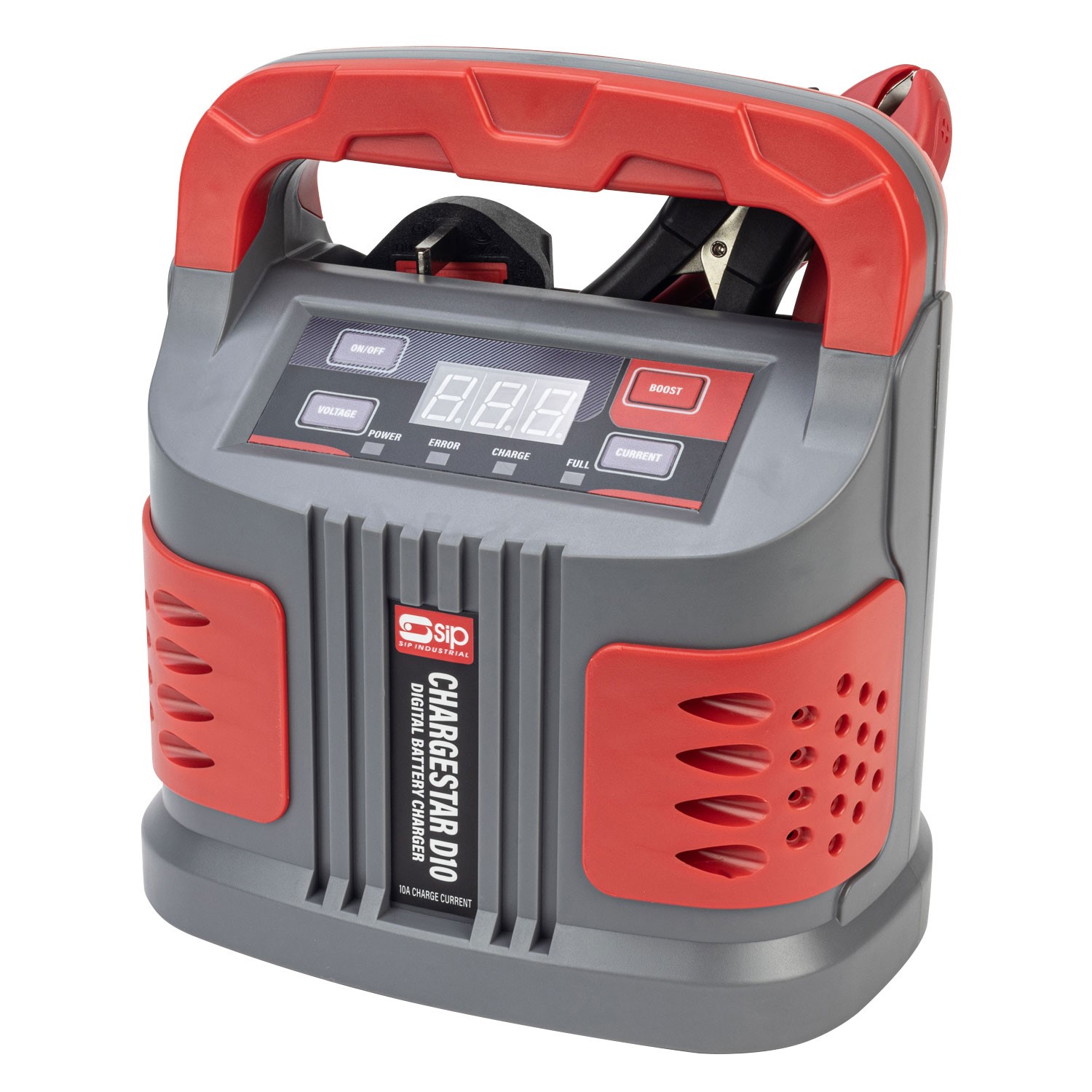

SIP CHARGESTAR D10 Digital Battery Charger

03502

SIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery ChargerSIP CHARGESTAR D10 Digital Battery Charger
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

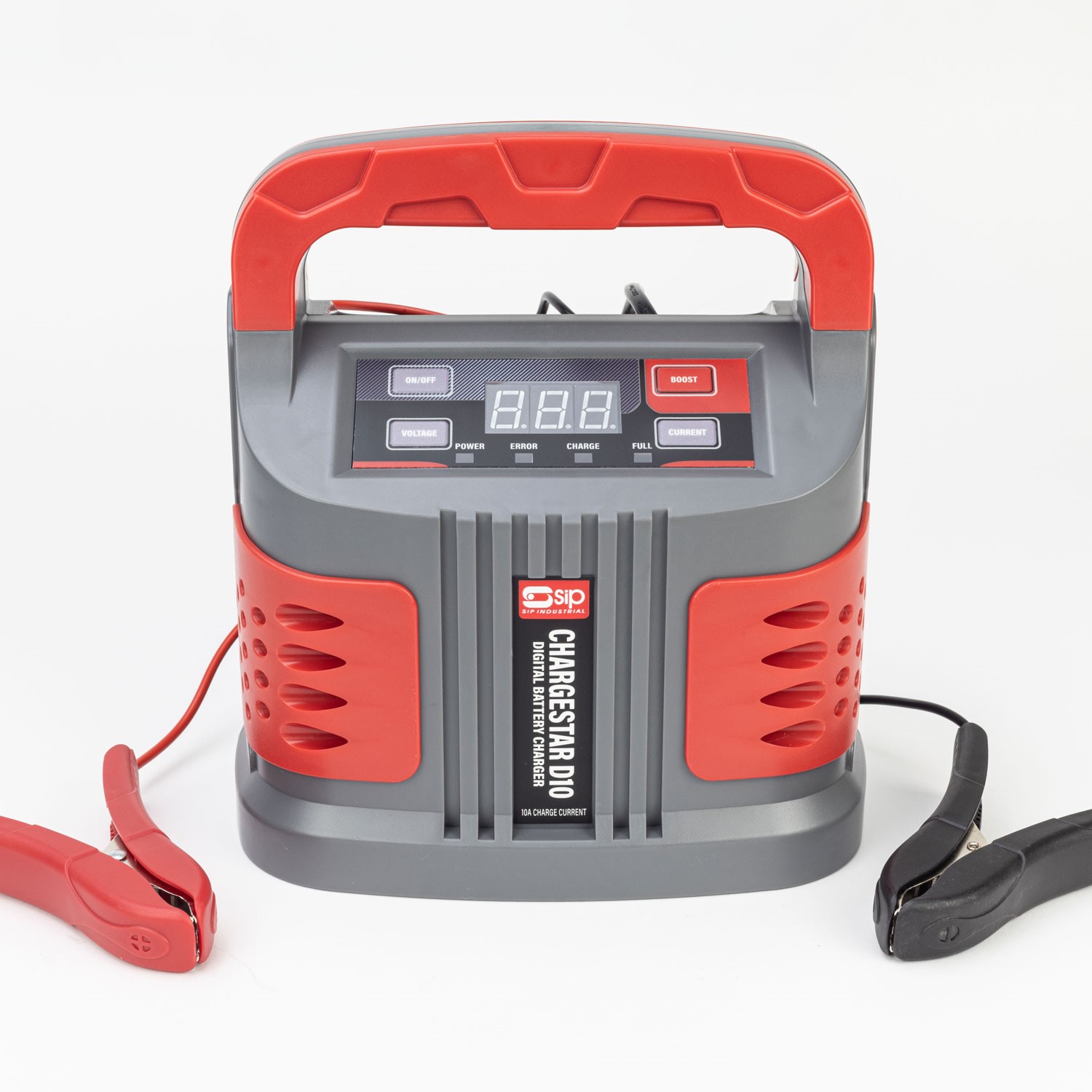

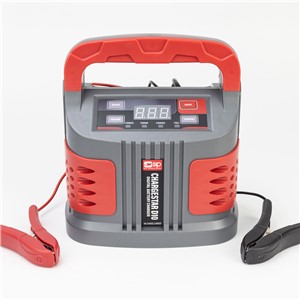

The SIP CHARGESTAR D10 Digital Battery Charger is a compact and portable digital battery charger designed for all types of 6v/12v lead acid batteries.

Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D10 makes battery charging easier, faster and safer.

KEY FEATURES

  •  6v / 12v dual voltage charging output
  •  Charging capacity of up to 200Ah max. rated
  •  Microprocessor-controlled automatic 6-step charging cycle
  •  Battery low voltage detector >3v
  •  LED display screen and intuitive soft touch control panel
  •  Compact and lightweight design with carry handle

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP CHARGESTAR D10 Digital Battery Charger is a compact and portable digital battery charger designed for all types of 6v/12v lead acid batteries.

Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D10 makes battery charging easier, faster and safer.

Applications & uses: Ideal for battery charging applications in automotive and workshop environments.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

VERSATILE BATTERY CHARGER SUITABLE FOR A VARIETY OF 6V/12V LEAD ACID BATTERIES

  • This includes WET, MF, EFB, GEL, AGM and CA battery types.
  • Charging capacity of up to 200Ah.

MICROPROCESSOR-CONTROLLED CHARGER MAINTAINS HEALTHY LONG LIFE BATTERY PERFORMANCE

  • An intelligent 6-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
  • Once battery capacity is full, the unit stops charging and a control panel light is displayed.
  • If the voltage is less than 3v, the unit prevents charging as battery recovery will not be possible.
  • 'Boost - Fast Charge' mode delivers 5mins of continuous 15A charge.

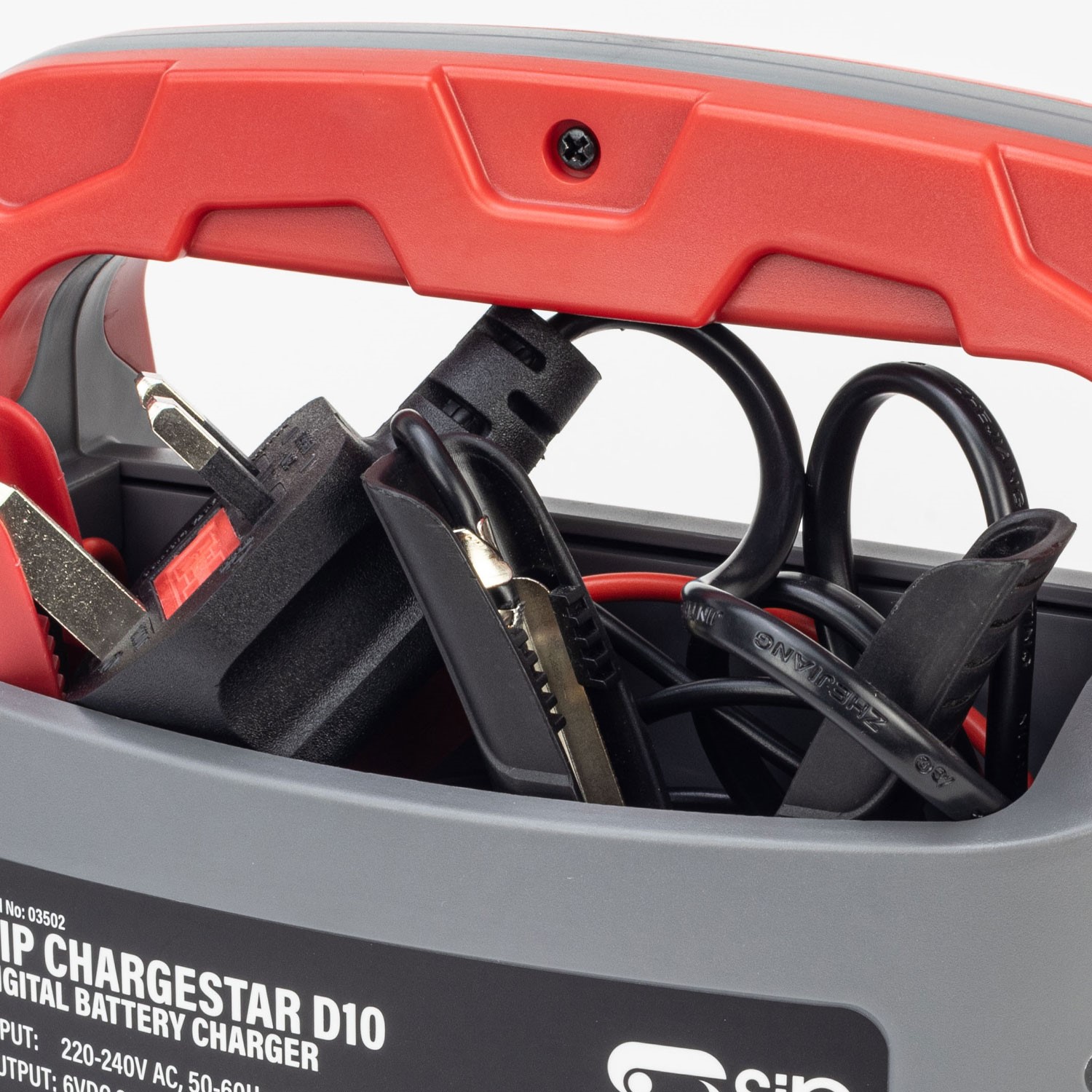

  • Supplied with 2x 1.2mtr leads and clip clamps.

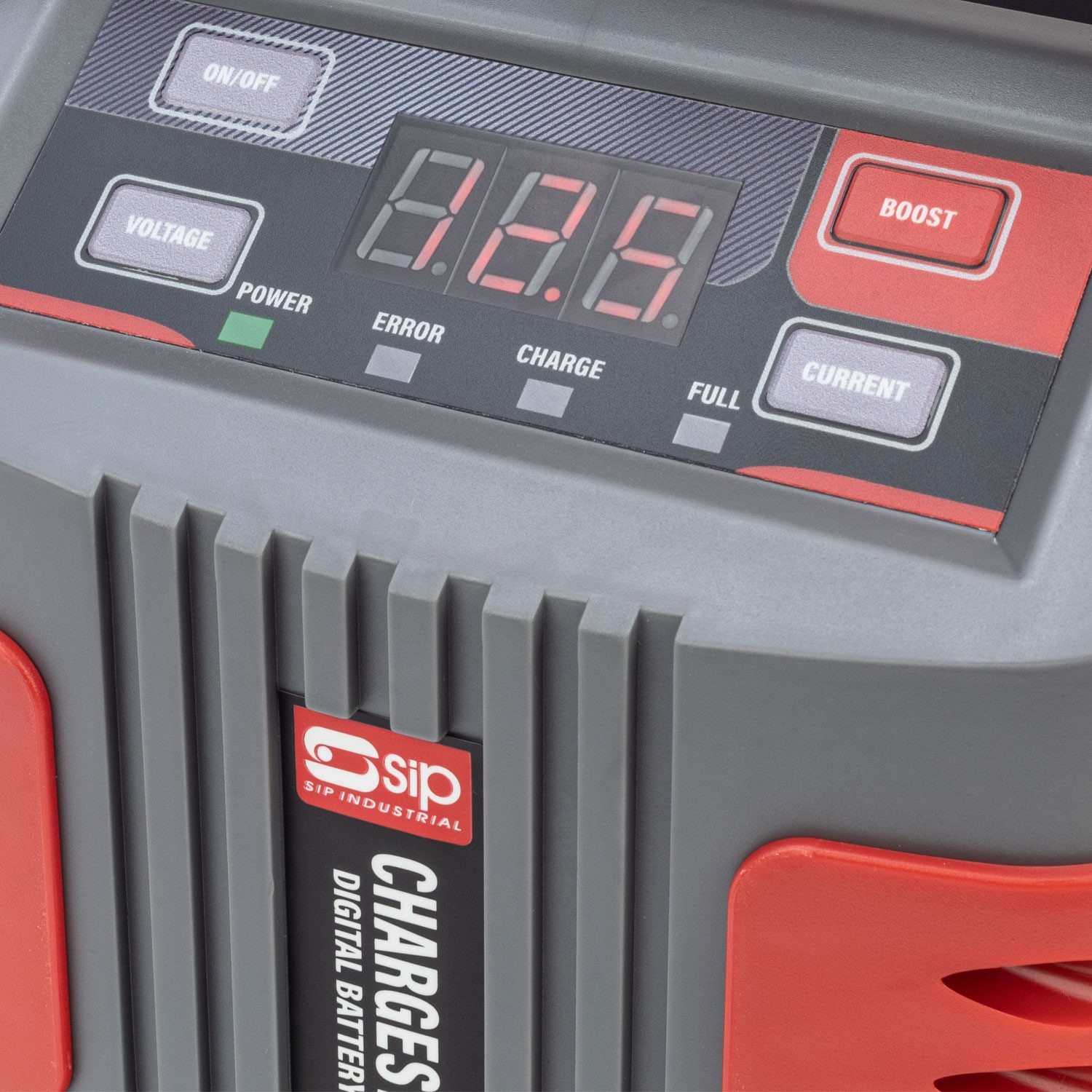

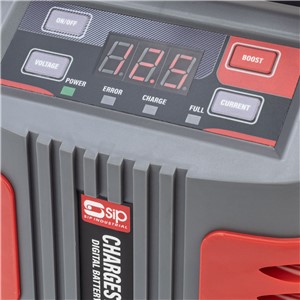

  • LED display screen and intuitive soft touch control panel.

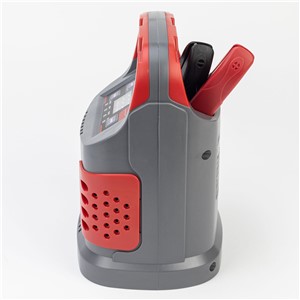

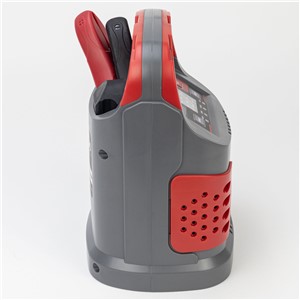

  • Compact and lightweight design with carry handle for easy movement between use.

BUILT-IN SAFETY & PROTECTION FEATURES MAXIMISE USER SAFETY

  • Anti-spark system prevents sparks when connecting the clips to the battery terminals.
  • Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
  • Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.

Technical Information

ITEM NO. 03502
Input Supply: 220v - 240v 50-60Hz, 220w max.
Input Fuse: 10A
Charging Voltage: 6v / 12v DC
Charging Current: 2A / 5A / 10A
Battery Low Voltage Detector: >3v
Charging Steps: 6; Fully Automatic Charging Cycle
Battery Types: All 12v Lead Acid (WET, MF, EFB, GEL, AGM)
Battery Capacity: 4Ah - 220Ah (Charging)
Temperature Range: 0°C - 40°C
Protection Level: IP20
Net Weight: 1.18kg
Gross Weight: 1.5kg
Product Dimensions: 206(H) x 220(W) x 105mm(D)
Packaged Dimensions: 230(H) x 230(W) x 115mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.
