SIP ISBD10/270 Industrial Electric Compressor

06295

Click on image to enlarge

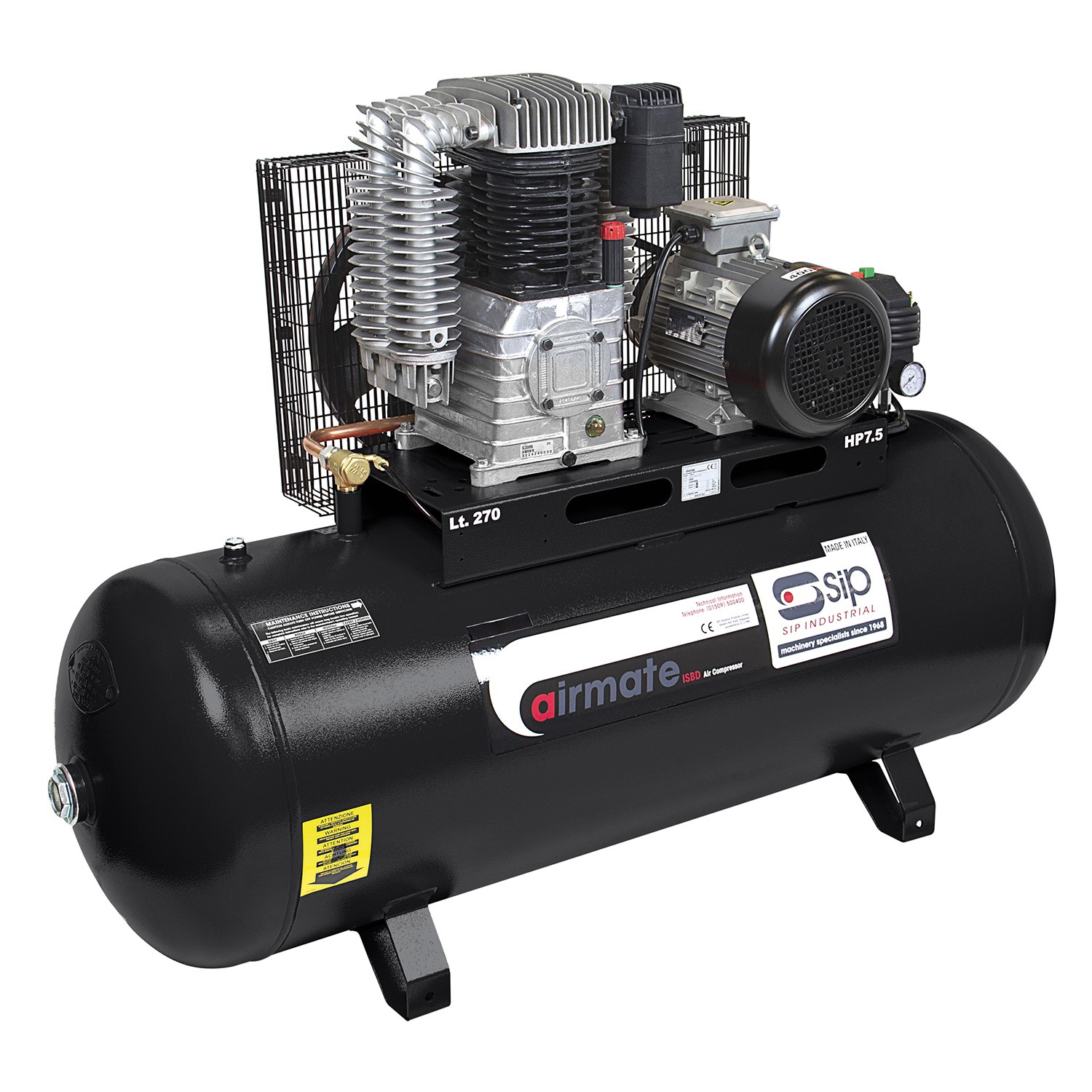

SIP ISBD10/270 Industrial Electric Compressor

06295

The SIP ISBD10/270 270ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built to last and designed for consistently high performance plus superior compressed air production. Fitted with large interstage coolers, this compressor provides cooler air ideal for a variety of demanding environments.

A must-have premium compressor for heavy-duty industrial applications.

KEY FEATURES

Oil-lubricated industrial-grade belt-driven compressor
Large interstage coolers for cooler air and reduced moisture
Long-stroke cast iron cylinders for slower running and longer life
Robust valve plate; individual valves for efficient performance
SIP 10-Year Anti-Corrosion Receiver Warranty

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP ISBD10/270 270ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a large range of demanding industrial applications.

Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control. Meanwhile, an industrial-grade 3-phase motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.

Each ISBD10/270 Industrial Electric Compressor comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.

Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
Heavy-duty pump ideal for prolonged and demanding industrial applications
Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
Long-stroke cast iron cylinders for slower running and increased pump life
Robust valve plate with individual valves for efficient performance
Supplied with heavy-duty anti-vibration mounts
SIP 10-Year Anti-Corrosion Receiver Warranty
SIP 2-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	06295
Input Supply:	400v (20A) 3-PHASE
Motor Power:	10hp (7.5kW)
Receiver Size:	270ltr
Piston Displacement:	38.00CFM (1076ltr/min)
Free Air Delivery (FAD):	25.00CFM (708ltr/min)
Max. Air Pressure:	160psi (11bar)
Working Speed:	1000rpm
No. of Cylinders:	2 cylinders
No. of Stages:	2 stages
Net Weight:	220.00kg
Gross Weight:
Product Dimensions:
Packaged Dimensions:	1340(H) x 1640(W) x 560mm(D)
