SIP NB5.5/270 Silenced Piston Compressor

04205

Click on image to enlarge

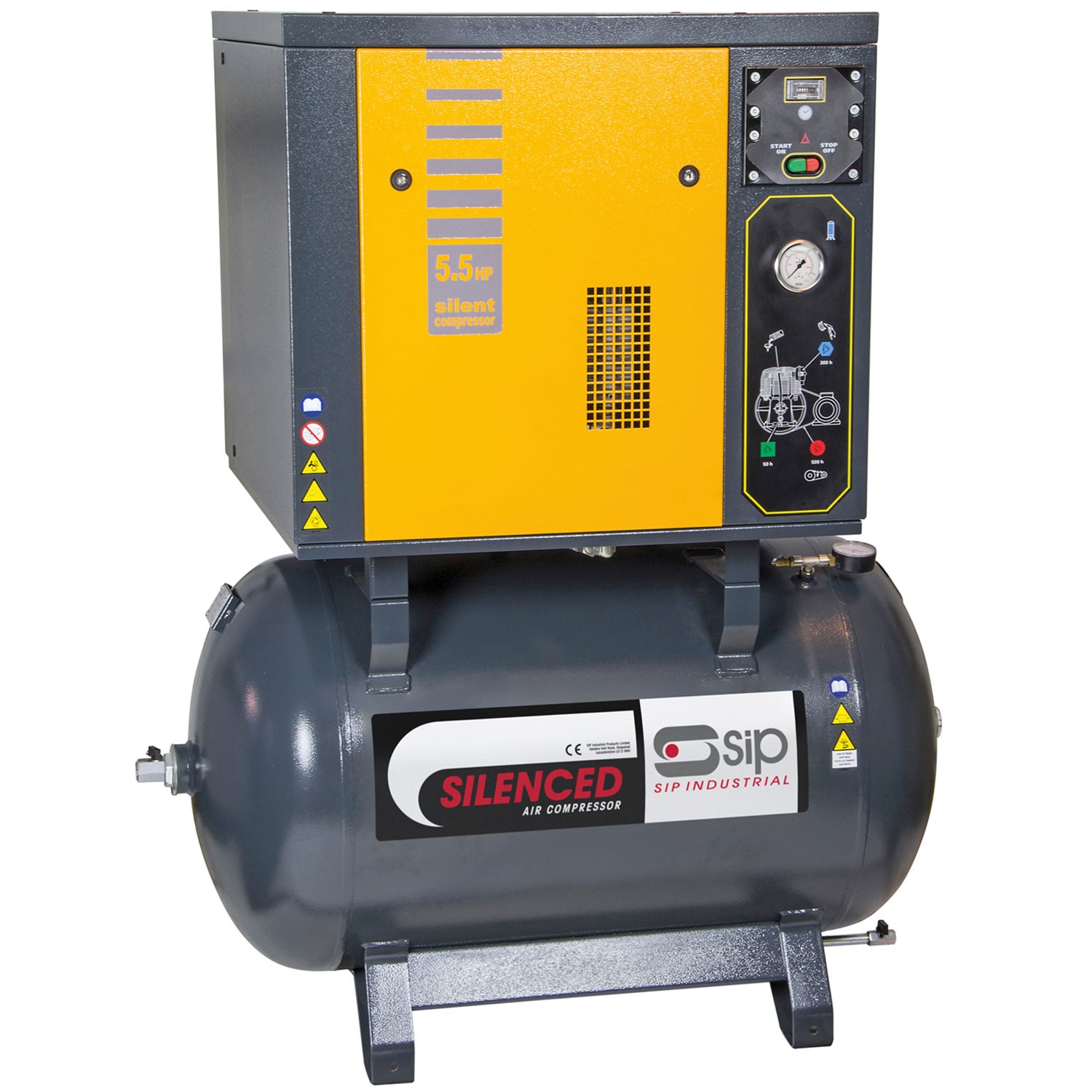

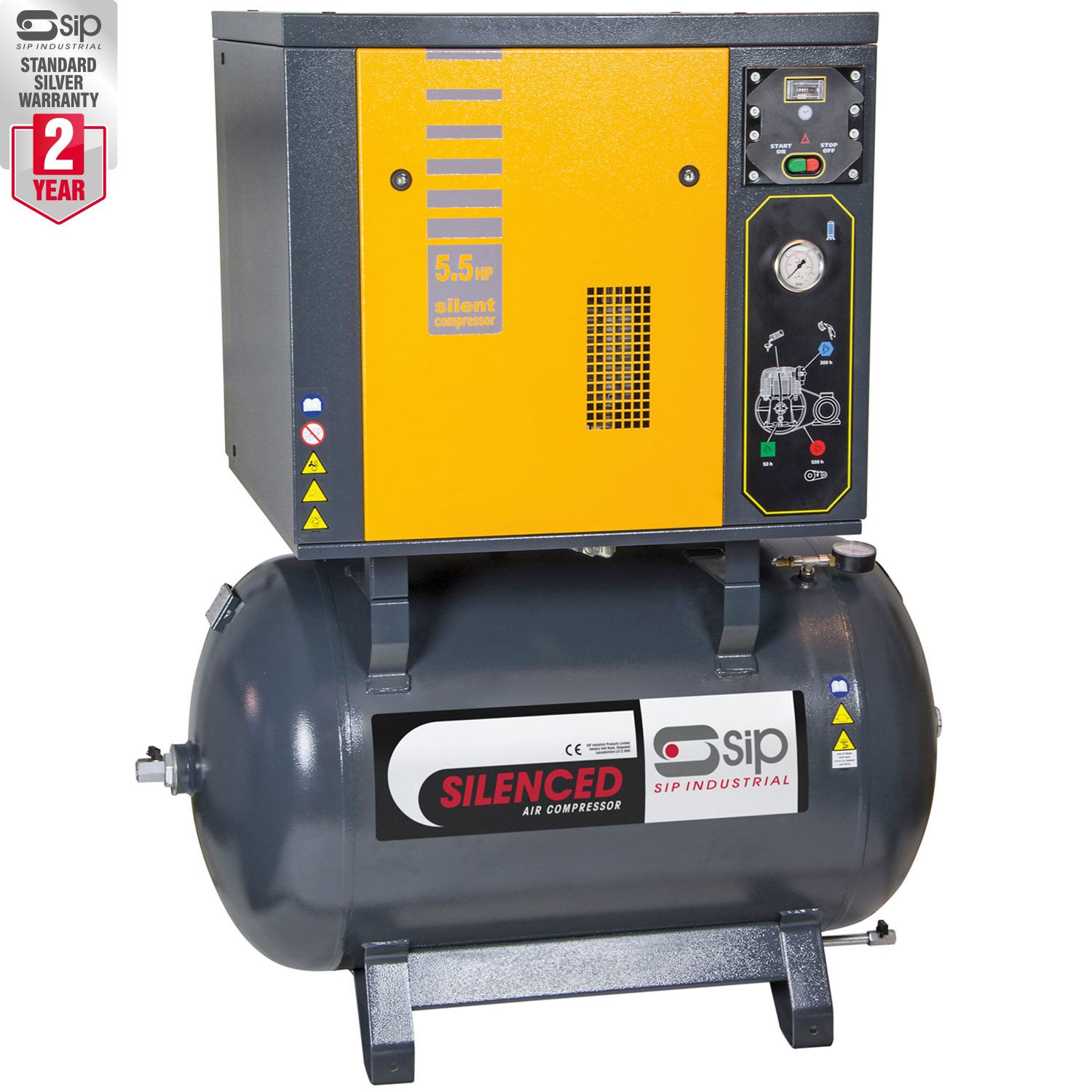

SIP NB5.5/270 Silenced Piston Compressor

04205

The SIP NB5.5/270 270ltr Silenced Piston Compressor is a powerful silenced piston compressor designed to provide reliable performance and long-lasting durability at a fraction of the operating noise offered by other compressor types. This is achieved via low-noise belt-driven operation and soundproof cabinet with air intake silencer.

This means the NB5.5/270 is an excellent addition to any workshop with demanding compressed air requirements that must have installation close to the workspace.

KEY FEATURES

Belt-driven performance with low noise levels

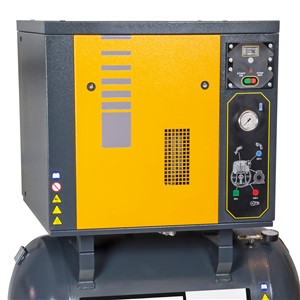

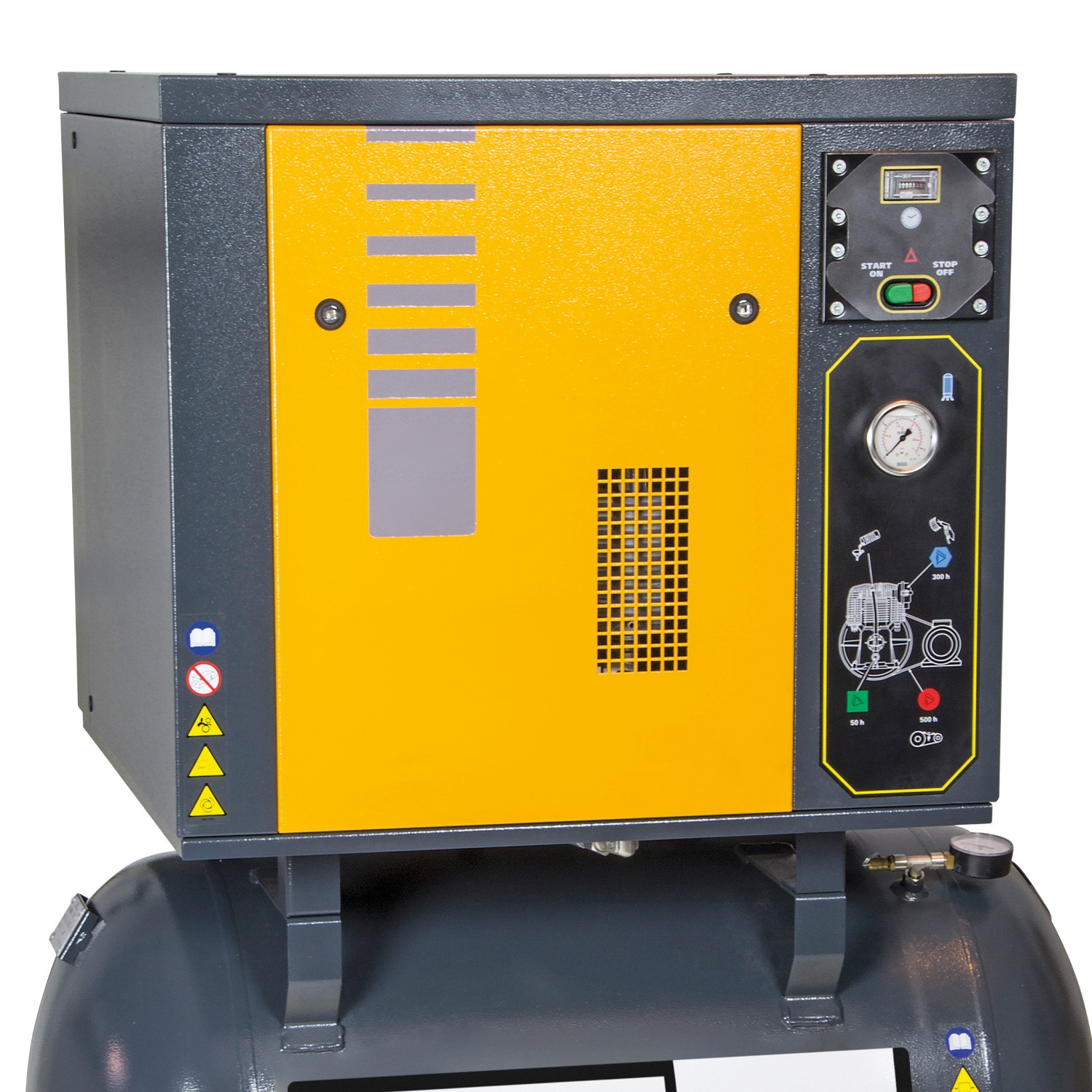

Soundproof cabinet enclosure with air intake silencer
Quick access panel for easy servicing and maintenance
Static placement for permanent siting near workspace
Heavy-duty rubber-mounted saddle

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP NB5.5/270 270ltr Silenced Piston Compressor is a powerful silenced piston compressor designed to provide reliable performance and long-lasting durability at a fraction of the operating noise offered by other compressor types. This is achieved via low-noise belt-driven operation and soundproof cabinet with air intake silencer.

This means the NB5.5/270 is an excellent addition to any workshop with demanding compressed air requirements that must have installation close to the workspace.

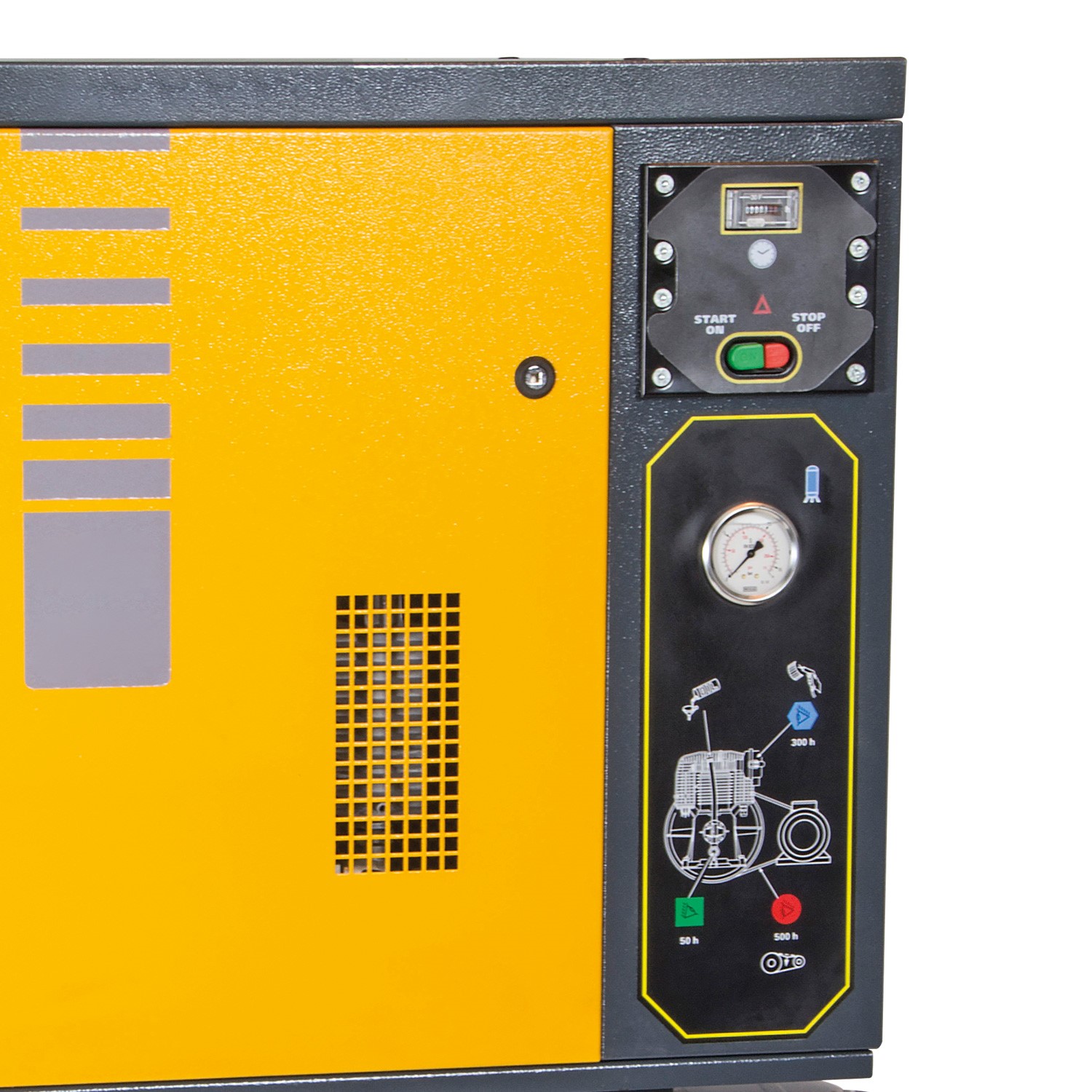

An integrated quick access panel ensures that servicing and maintenance is easy.

Belt-driven performance with low noise levels perfect for close installation
Soundproof cabinet enclosure with built-in air intake silencer
Quick access panel for easy servicing and maintenance requirements
Heavy-duty 2-stage pump for high efficiency and performance
Heavy-duty rubber-mounted saddle
Static placement for permanent siting near workspaces
SIP 2-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	04205
Input Supply:	400v (20A)
Motor Power:	5.5hp (4kW)
Receiver Size:	270ltr
Piston Displacement:	22.60CFM (640ltr/min)
Free Air Delivery (FAD):	16.00CFM (453ltr/min)
Max. Air Pressure:	160psi (11bar)
No. of Cylinders:	2 cylinders
No. of Stages:	2 stages
Noise Level:	64dB(A)
Net Weight:	223.00kg
Gross Weight:	253.00kg
Product Dimensions:
Packaged Dimensions:	1505(H) x 1544(W) x 695mm(D)
