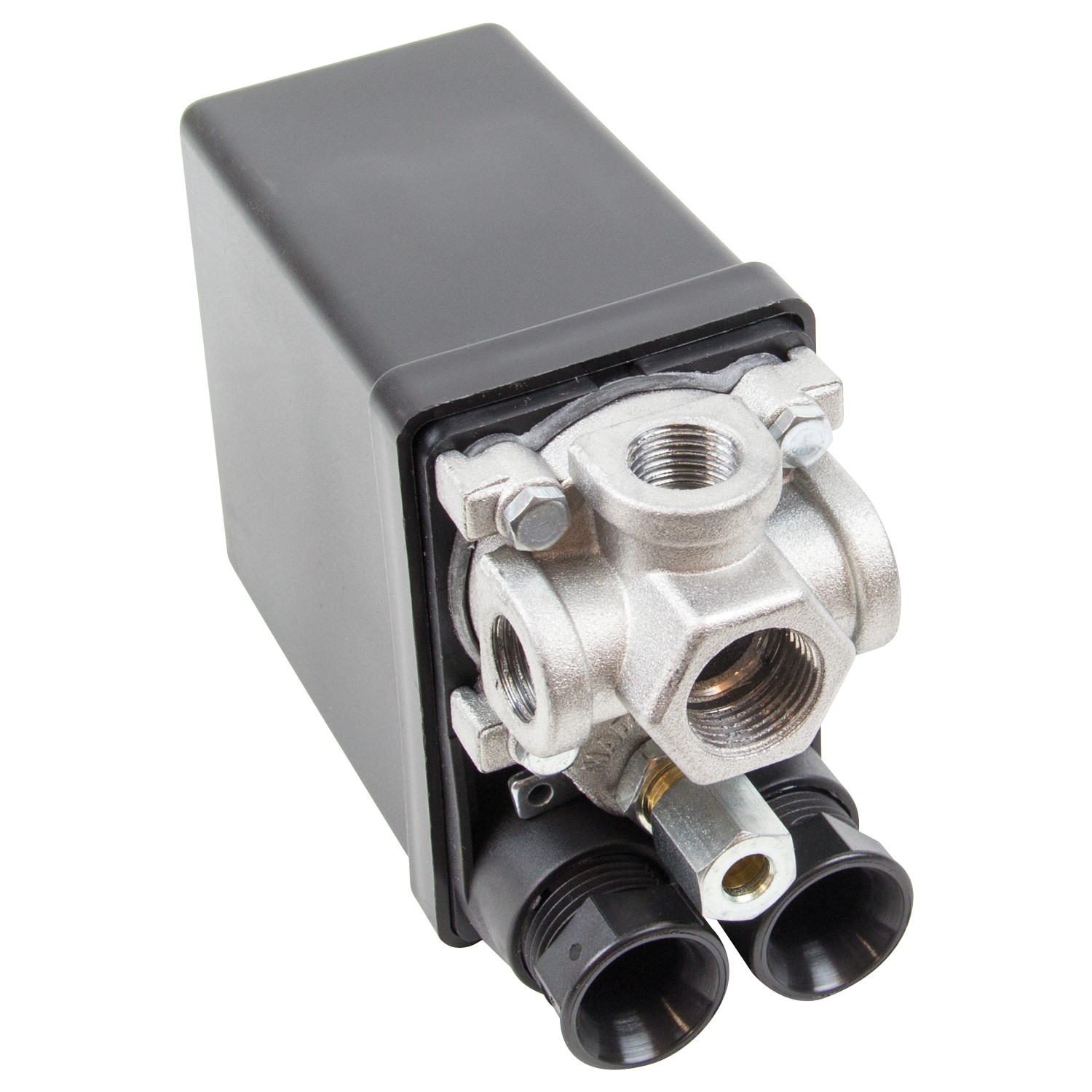

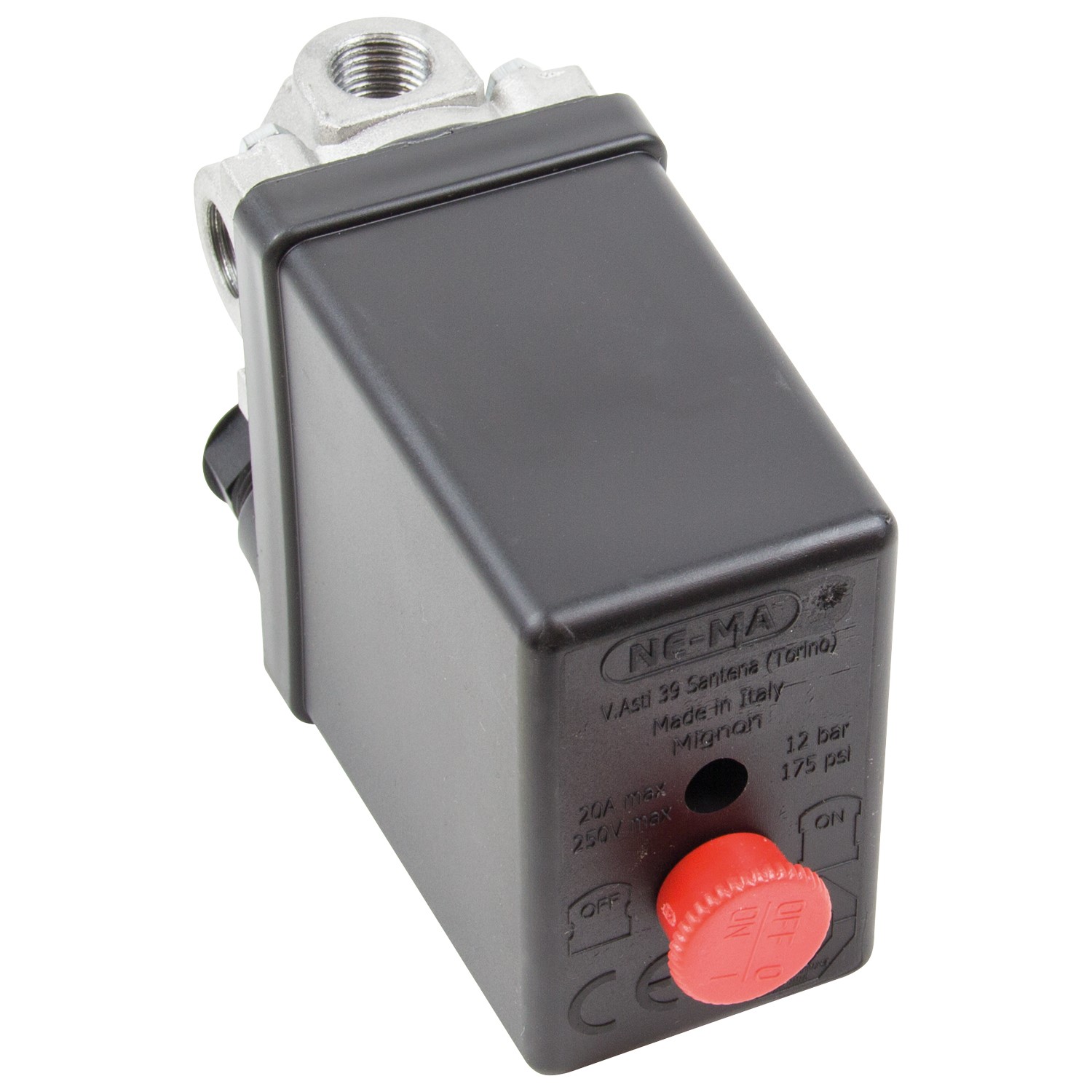

SIP 3/8" 4-Way Pressure Switch

02316

SIP 3/8" 4-Way Pressure Switch02316SIP 3/8" 4-Way Pressure Switch
02316
Product thumbnail.

The SIP 3/8" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This easy-to-install switch offers 3x 1/4" BSP port and adjustable cut-off pressure.

KEY FEATURES

  •  3/8" 4-way pressure switch with 3x 1/4" BSP ports
  •  Easily adjustable cut-off pressure via built-in switch
  •  Designed to start and stop electric compressor motors
  •  Manufactured for long-lasting and reliable use
  •  Integrated bleed facility with 6mm pipe entry

Full Specification

The SIP 3/8" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This easy-to-install switch offers 3x 1/4" BSP port and adjustable cut-off pressure.

  • 3/8" 4-way pressure switch with 3x 1/4" BSP ports
  • Easily adjustable cut-off pressure via built-in switch
  • Designed to start and stop electric compressor motors
  • Manufactured for long-lasting and reliable use
  • Integrated bleed facility with 6mm pipe entry

 

Technical Information

ITEM NO. 02316
Switch Type: Mignon 4-Way
Voltage / Current: 230v / 20A
Overload: N/A
Inlet Connection Size: 3/8" BSP
Inlet Connection Type Bottom Entry
Side Port Size: 3x 1/4" BSP
Switch Type: Pull
Phase Type: 1-phase
No. of Poles: 2 poles
Net Weight: 0.95kg
Gross Weight: 1.00kg
Product Dimensions:
Packaged Dimensions: 125(H) x 80(W) x 50mm(D)
