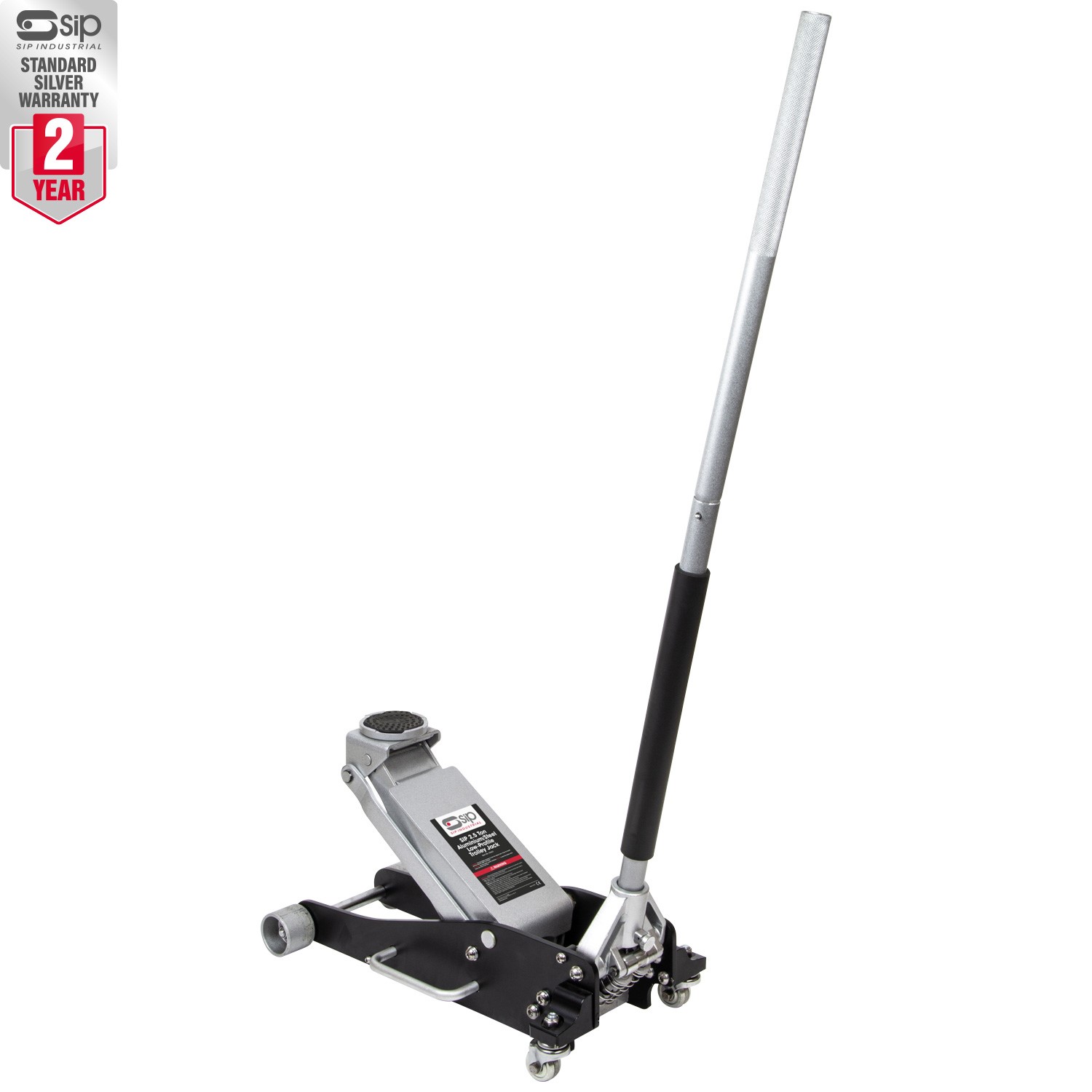

SIP 2.5 TON Aluminium Low-Profile Trolley Jack

03623

Click on image to enlarge

SIP 2.5 TON Aluminium Low-Profile Trolley Jack

03623

The SIP 2.5 TON Aluminium Low-Profile Trolley Jack is ideal for powerful performance in a range of demanding lifting applications in garages and workshops via high-quality and durable components encased in a heavy-duty aluminium and steel design.

An integrated Quick-Lift system and dual piston pump helps reduce user fatigue by raising the saddle efficiently, while a safety bypass system protects against overloading.

KEY FEATURES

95mm to 470mm adjustable lifting height
Manufactured from heavy-duty aluminium and steel
Extra low-profile design for lower vehicle clearances
Dual piston pump and Quick-Lift system for efficiency
Safety bypass system protects the jack from overloading
Extra-large saddle with rubber pad for secure contact

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 2.5 TON Aluminium Low-Profile Trolley Jack is ideal for powerful and reliable performance in demanding lifting applications in garages and workshops via high-quality and durable components encased in a heavy-duty aluminium and steel design.

Despite an extra low-profile design, perfect for lower clearance vehicles including sports and performance cars, this jack has a max. lifting height of 470mm.

A Quick-Lift system and dual piston pump helps to reduce the user effort exerted by quickly, safely and efficiently raising the saddle to the lifting point.

For further user safety, this jack is fitted with a bypass system to prevent overloading or risk of damage to the jack itself. A large 2-piece handle with rubber bumper and durable wheels and castors ensure easy positioning and manoeuvrability.

2.5 TON maximum weight capacity
95mm to 470mm adjustable lifting height
Extra low-profile design for lower vehicle clearances
Manufactured from heavy-duty aluminium and steel for durability
Dual piston pump and Quick-Lift system for efficiency
Safety bypass system protects the jack from overloading
Extra-large saddle with rubber pad for secure contact
Large 2-piece handle with rubber bumper
Mounted on durable wheels and castors
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03623
Weight Capacity:	2.5 TON
Min. Lifting Height:	95mm
Max. Lifting Height:	470mm
Manufactured From:	Aluminium / Steel
Quick-Lift System:	Yes
Safety Bypass:	Yes
Saddle Size:	Extra-large
Net Weight:	26.70kg
Gross Weight:	28.35kg
Product Dimensions:	100(H) x 600(W) x 300mm(D)
Packaged Dimensions:	170(H) x 340(W) x 710mm(D)
