SIP 30 TON Shop Floor Press

03695

Click on image to enlarge

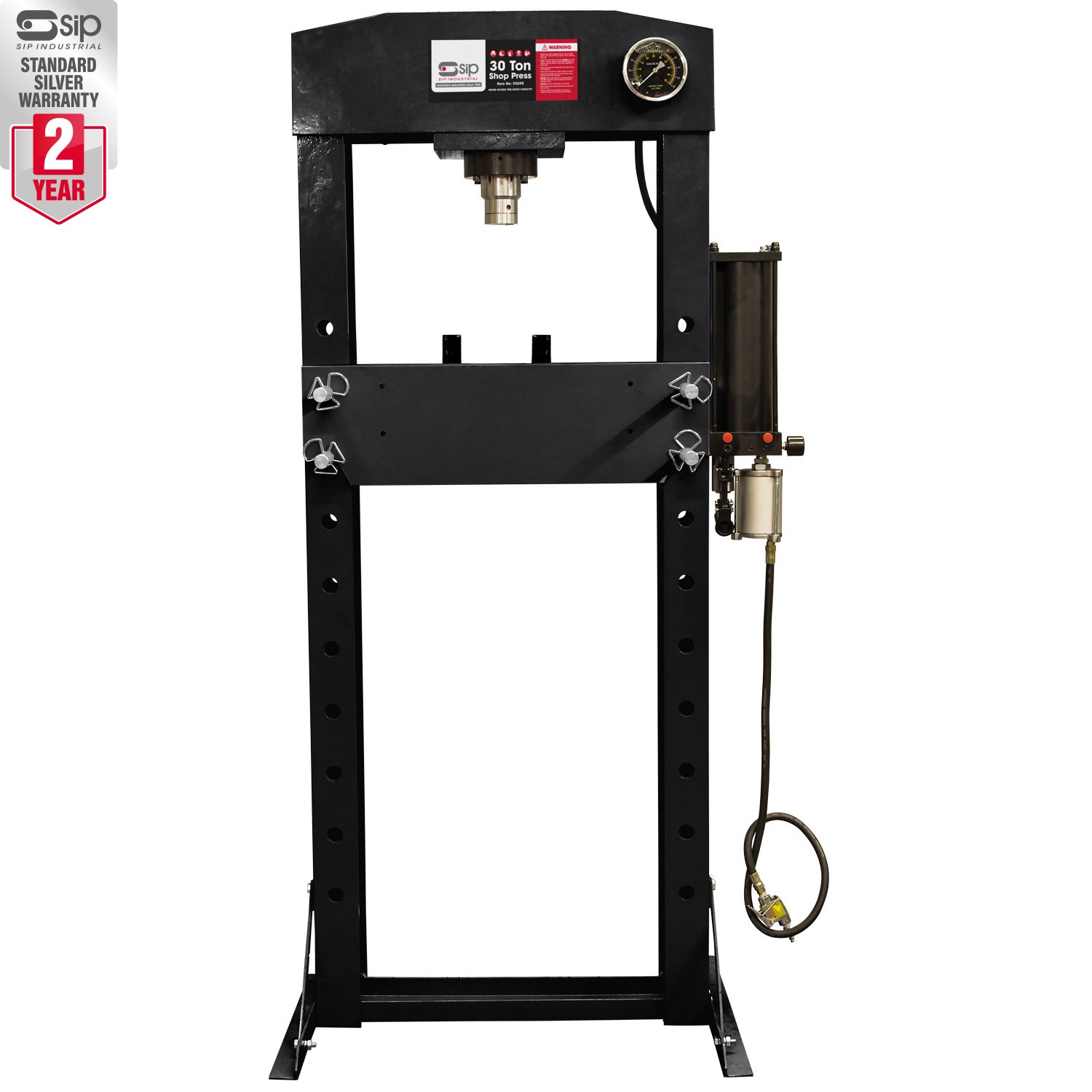

SIP 30 TON Shop Floor Press

03695

The SIP 30 TON Shop Floor Press is perfect for garage and workshop applications, such as bending, straightening, riveting or bonding, forming and assembling. It is particularly suited for easy removal and installation of bearings, wrist pins, universal joints and pulleys.

A heavy-duty steel frame with pneumatically-assisted press provides exceptional durability and long service life, while a fully adjustable workbed offers increased versatility.

KEY FEATURES

151mm to 1031mm work range and a 150mm ram stroke
Ideal for bending, bonding, straightening applications
Bearing, wrist pin, universal joint or pulley removal
Fully adjustable workbed for improved versatility
Heavy-duty steel frame for increased durability
Integrated Glycerine-filled manometer

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 30 TON Shop Floor Press is perfect for a variety of applications in garage or workshop applications, offering pneumatically-assisted pressing performance within a robust and exceptionally durable frame, plus a fully adjustable workbed.

This press can be used for pressing bearings, bushings or sleeves, bending or shaping metal rods and bars, straightening bent metal, bonding and riveting, punching holes in sheets and plates, or forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys.

A glycerine-filled manometer helps protect the gauge and provides higher accuracy readings, plus durability against less-than-ideal conditions and corrosion.

30 TON floor-standing pneumatically-assisted press
151mm to 1031mm work range and a 150mm ram stroke
Heavy-duty steel frame for increased durability
Fully adjustable workbed for improved versatility
Suitable for pressing, bending, bonding and straightening
Bearing, wrist pin, universal joint and pulley removal
Glycerine-filled manometer for durability
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03695
Press Capacity:	30 TON
Press Type:	FLOOR
Press Operation:	Pneumatic
Working Range:	151mm - 1031mm
Press Height:	1830mm
Press Width:	915mm
Press Depth:	700mm
Ram Stroke:	150mm
Bed Width:	535mm
Net Weight:	171.00kg
Gross Weight:	207.00kg
Product Dimensions:
Packaged Dimensions:	260(H) x 790(W) x 1900mm(D)
