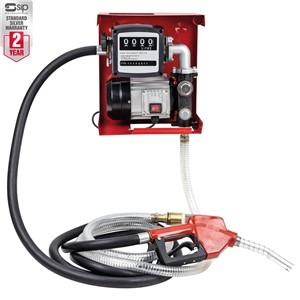

SIP 230v Diesel Transfer Pump with Fuel Meter

06807

Click on image to enlarge

SIP 230v Diesel Transfer Pump with Fuel Meter

06807

The SIP 230v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 15mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuel oils, and provides high accuracy and speed-of-use.

This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

KEY FEATURES

Compact design with wall-mountable bracket
Meter with 4 digit subtotal and 8 digit grand total
Powerful 550w AC motor with copper-wound armatures
Supplied with non-return valve to aid self-priming
Built-in bypass system for start and stop operation
15mtr pumping head and 2mtr suction head

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 230v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 15mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuel oils, and provides high accuracy and speed-of-use.

This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

Compact design with wall-mountable bracket
Meter with 4 digit subtotal and 8 digit grand total
Powerful 550w AC motor with copper-wound armatures
High-quality aluminium nozzle for added durability
Supplied with non-return value to aid self-priming
Built-in bypass system for start and stop operation
High-quality delivery and suction hoses
15mtr pumping head and 2mtr suction head
60ltr/min flow rate for easy operation
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	06807
Input Voltage:	230v AC
Motor Power:	550w
Max. Pumping Head:	15mtr
Max. Flow Rate:	60ltr/min
Speed:	2850rpm
Max. Working Pressure:	22psi (1.5bar)
Duty Cycle:	30min
Connection:	1" BSP
Protection:	IPX4
Suction Hose Length:	2mtr
Delivery Hose Length:	4mtr
Net Weight:	16.90kg
Gross Weight:	17.65kg
Product Dimensions:	300(H) x 340(W) x 245mm(D)
Packaged Dimensions:	410(H) x 360(W) x 330mm(D)
