SIP 24v Diesel Transfer Pump

06803

Click on image to enlarge

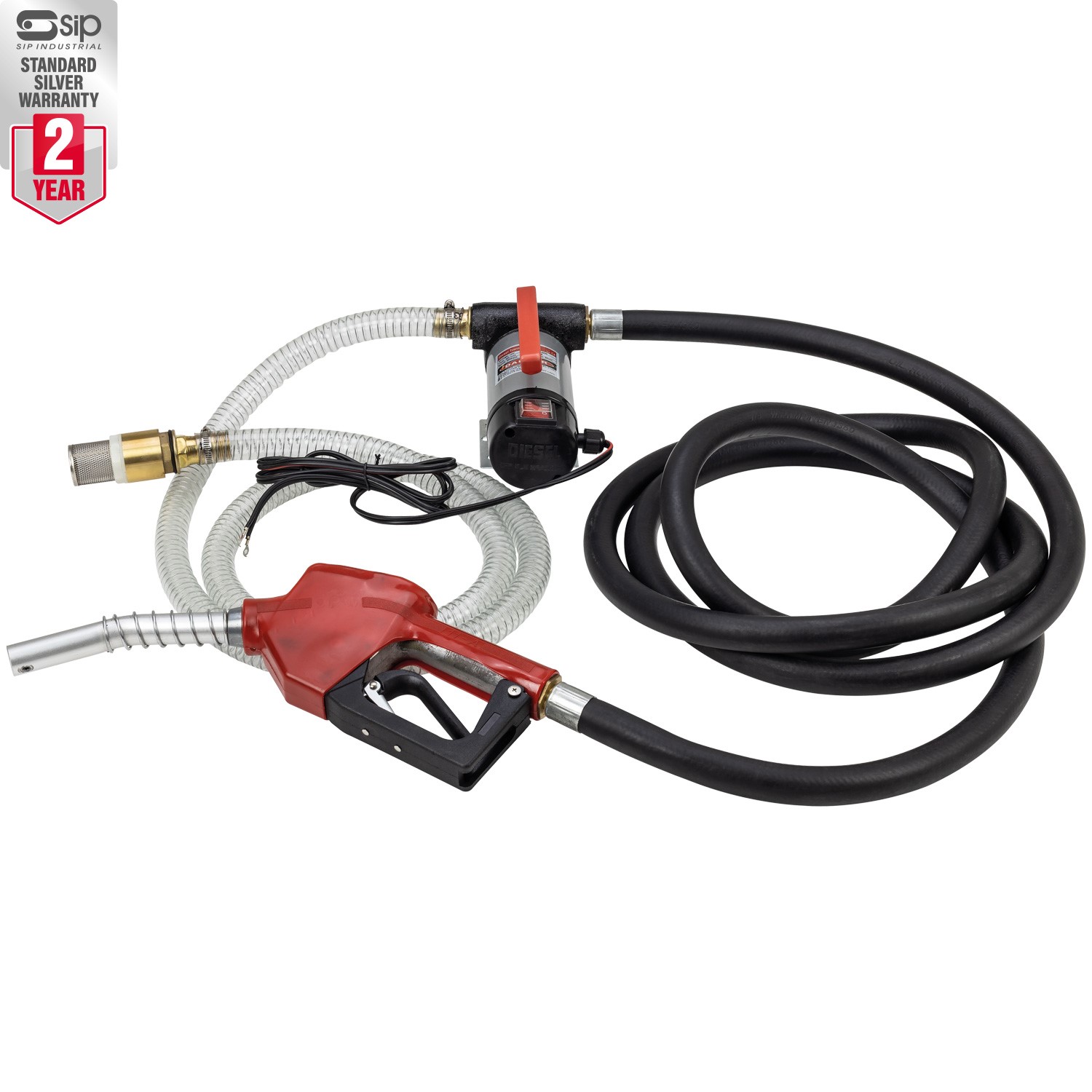

SIP 24v Diesel Transfer Pump

06803

The SIP 24v Diesel Transfer Pump is a robust electric diesel transfer pump developed for safe dispensing of diesel and fuel oils. This high-quality long-lasting fuel dispenser has a 10mtr pumping head and 2mtr suction head for versatility and speed-of-use.

This compact and lightweight fuel transfer pump is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

KEY FEATURES

Compact and lightweight design for portability
Powerful 160w DC motor with copper-wound armatures
High-quality aluminium nozzle for added durability
Supplied with non-return valve to aid self-priming
Built-in bypass system for start and stop operation
10mtr pumping head and 2mtr suction head

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 24v Diesel Transfer Pump is a robust electric diesel transfer pump developed for safe dispensing of diesel and fuel oils. This high-quality long-lasting fuel dispenser has a 10mtr pumping head and 2mtr suction head for versatility and speed-of-use.

This compact and lightweight fuel transfer pump is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

Compact and lightweight design for portability
Powerful 160w DC motor with copper-wound armatures
High-quality aluminium nozzle for added durability
Supplied with non-return valve to aid self-priming
Built-in bypass system for start and stop operation
10mtr pumping head and 2mtr suction head
40ltr/min flow rate for easy operation
High-quality delivery and suction hoses
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	06803
Input Voltage:	24v DC
Motor Power:	160w
Max. Pumping Head:	10mtr
Max. Flow Rate:	40ltr/min
Speed:	3200rpm
Max. Working Pressure:	15psi (1bar)
Duty Cycle:	30min
Connection:	3/4" BSP
Protection:	IPX4
Suction Hose Length:	2mtr
Delivery Hose Length:	4mtr
Net Weight:	7.10kg
Gross Weight:	8.05kg
Product Dimensions:	202(H) x 105(W) x 140mm(D)
Packaged Dimensions:	435(H) x 320(W) x 210mm(D)
