SIP 80ltr Suction Oil Drainer

03711

Click on image to enlarge

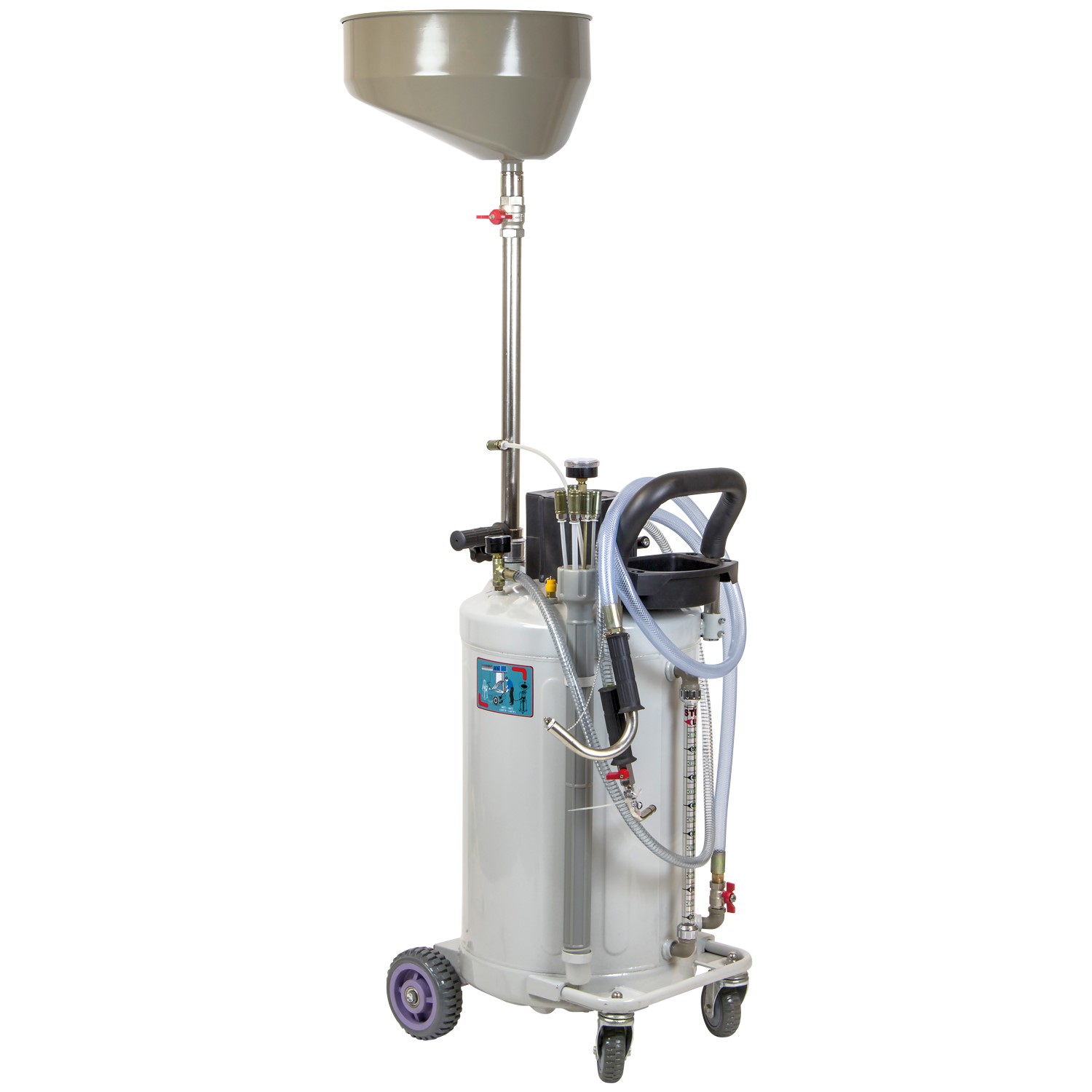

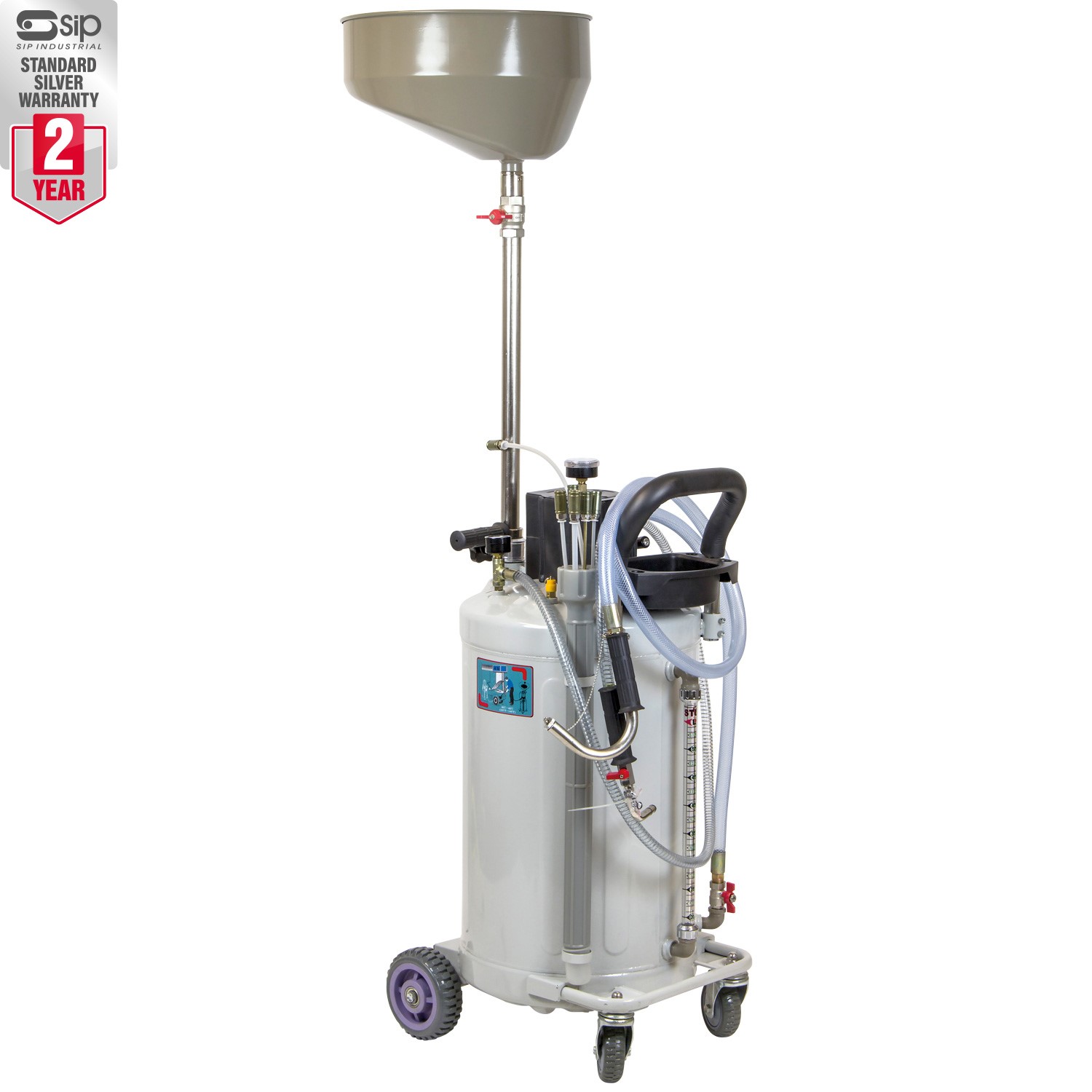

SIP 80ltr Suction Oil Drainer

03711

The SIP 80ltr Suction Oil Drainer is designed to collect waste and excess engine oil, transmission fluid and more from engines, gearboxes or assemblies in maintenance or servicing applications in garage or workshop environments.

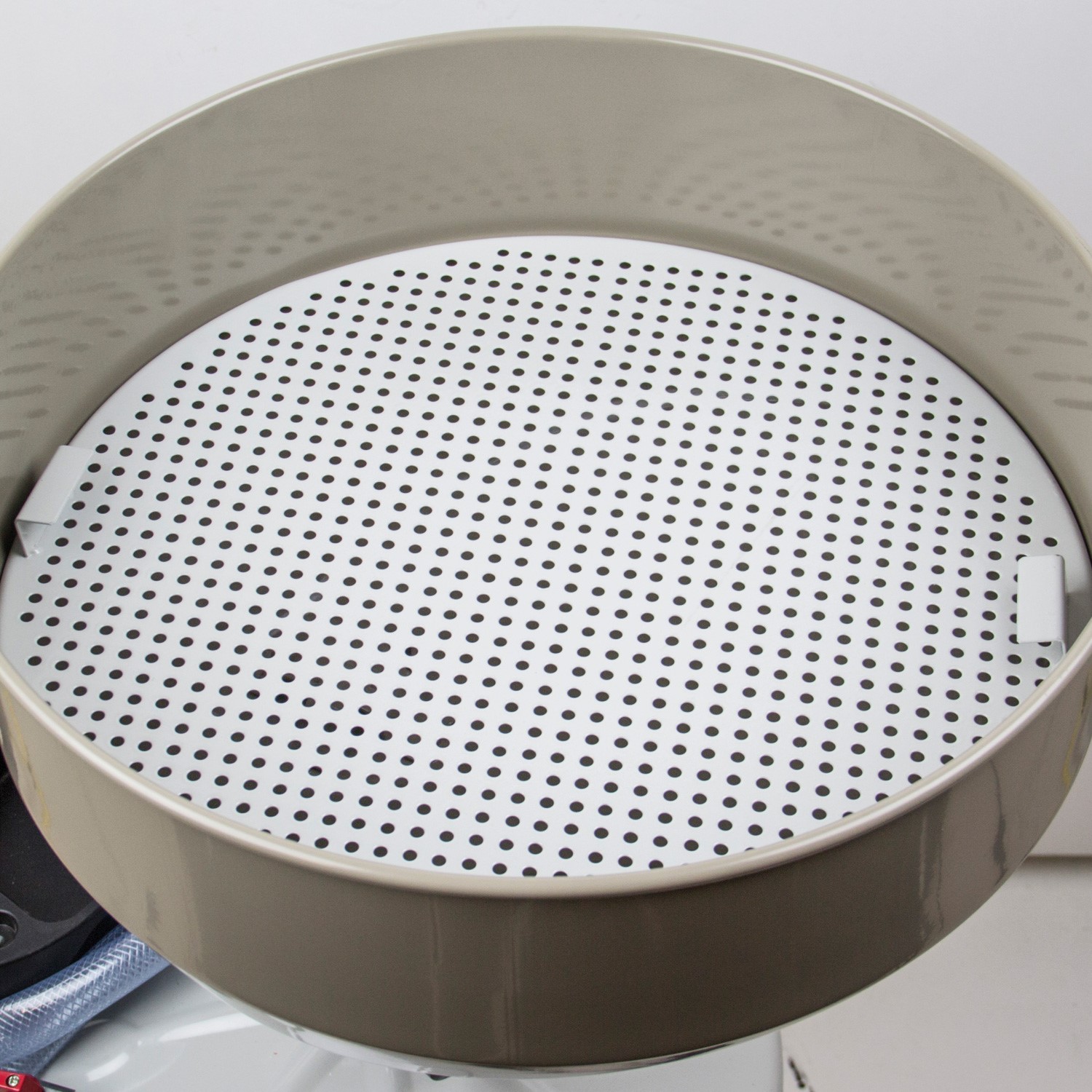

A large 20ltr collection tray allows easy emptying into the wheel and castor-mounted 80ltr collection tank from which the fluid can then be disposed of safely.

KEY FEATURES

Collects waste oil or fluids from vehicle components
80ltr heavy-duty steel collection tank and 20ltr tray
Versatile 1190mm to 1810mm adjustable height range
Wheel and castor-mounted for simple positioning
40°C to 60°C working temperature for engine oil

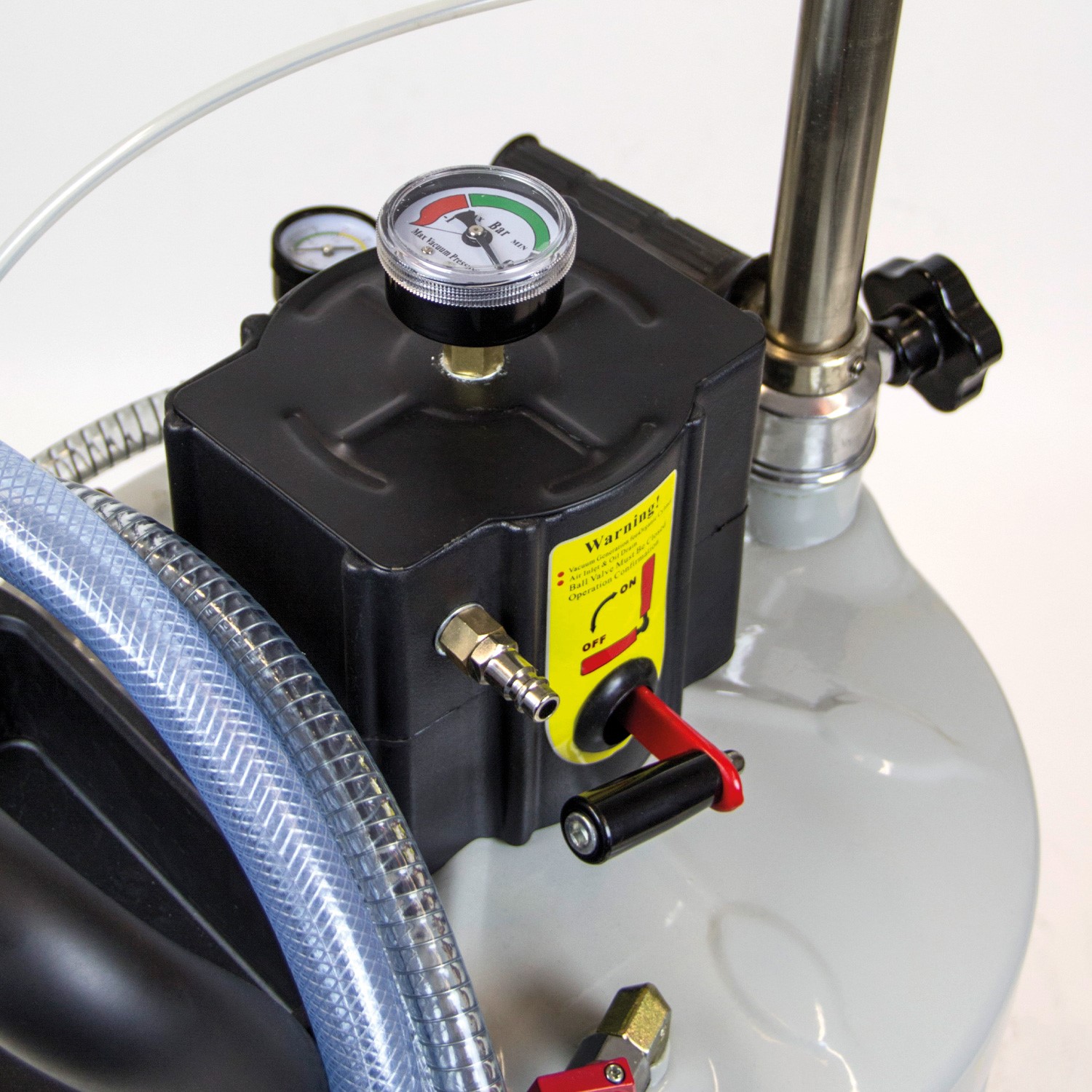

Oil level indicator tube on the oil reservoir

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 80ltr Suction Oil Drainer is designed to collect waste and excess engine oil, transmission fluid and more from engines, gearboxes or assemblies in maintenance or servicing applications in garage or workshop environments.

A large 20ltr collection tray allows easy emptying into the wheel and castor-mounted 80ltr collection tank from which the fluid can then be disposed of safely.

An adjustable height from 1190mm to 1810mm offers easy reach to a range of vehicles, while a mobile frame ensures easy positioning around the work area.

Collects waste oil or fluids from vehicle components
80ltr heavy-duty steel collection tank and 20ltr tray
Versatile 1190mm to 1810mm adjustable height range

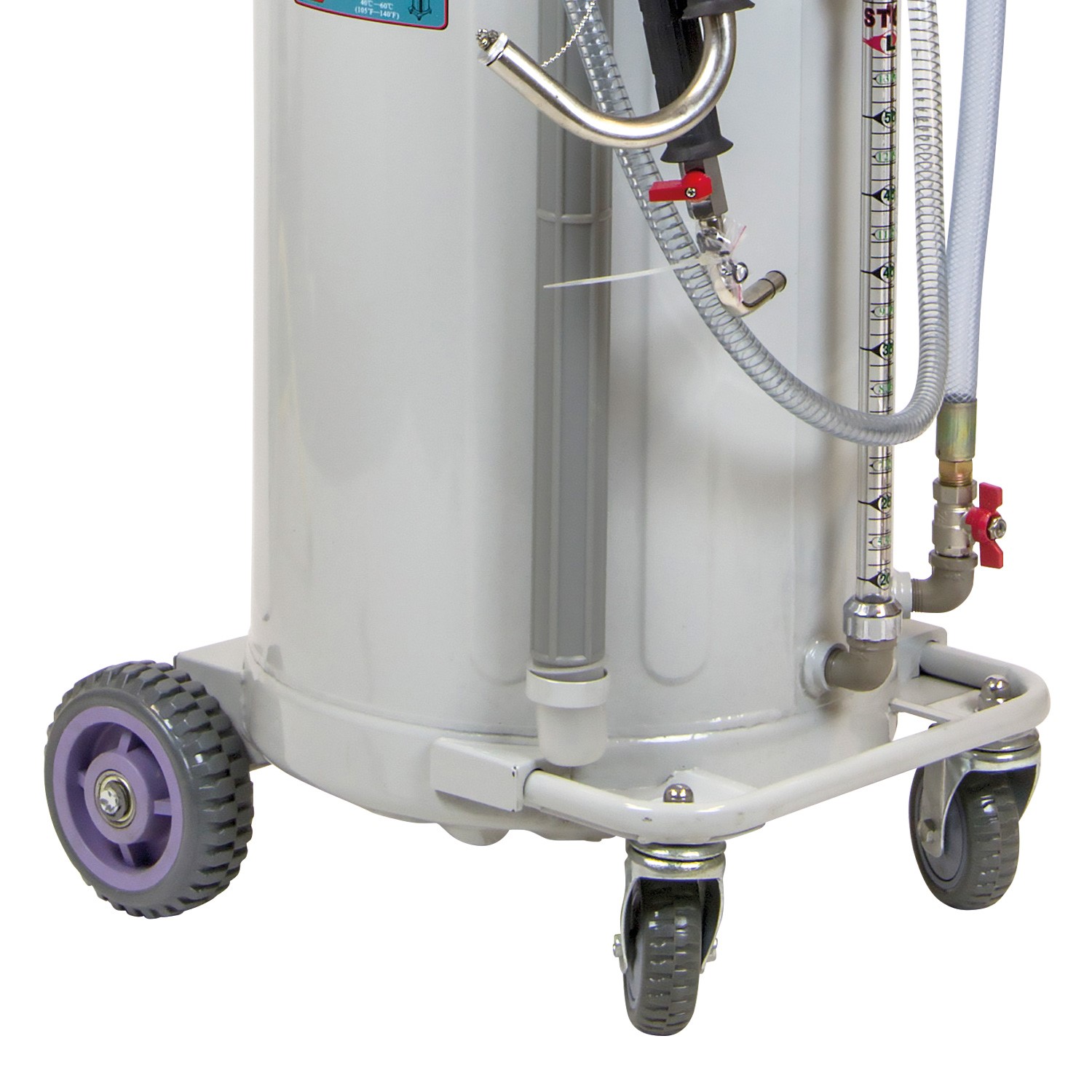

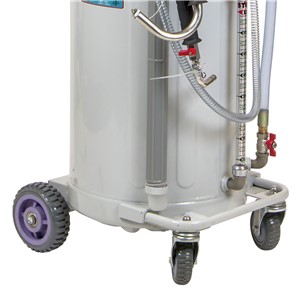

Wheel and castor-mounted for simple positioning
40°C to 60°C working temperature for engine oil
Oil level indicator tube on the oil reservoir

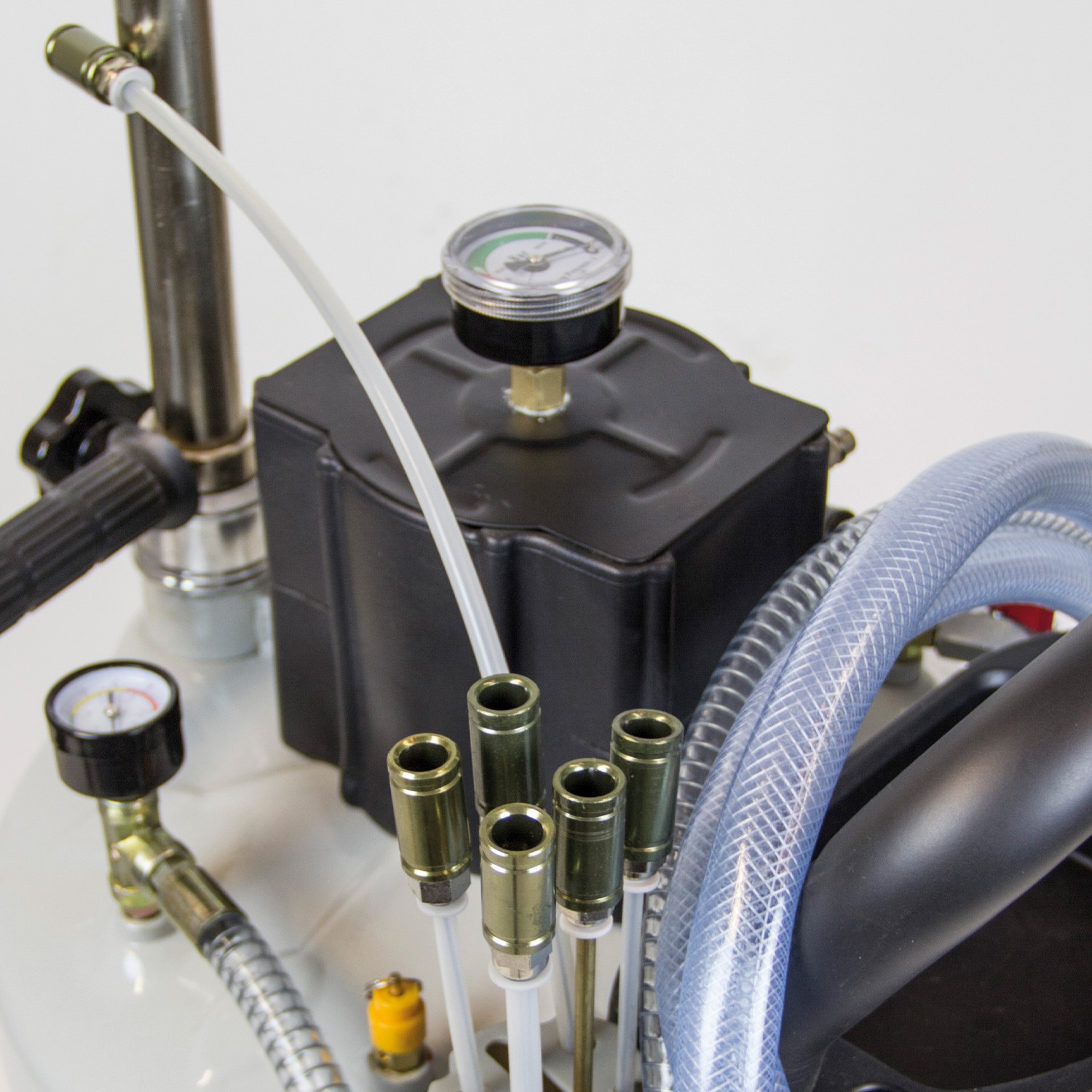

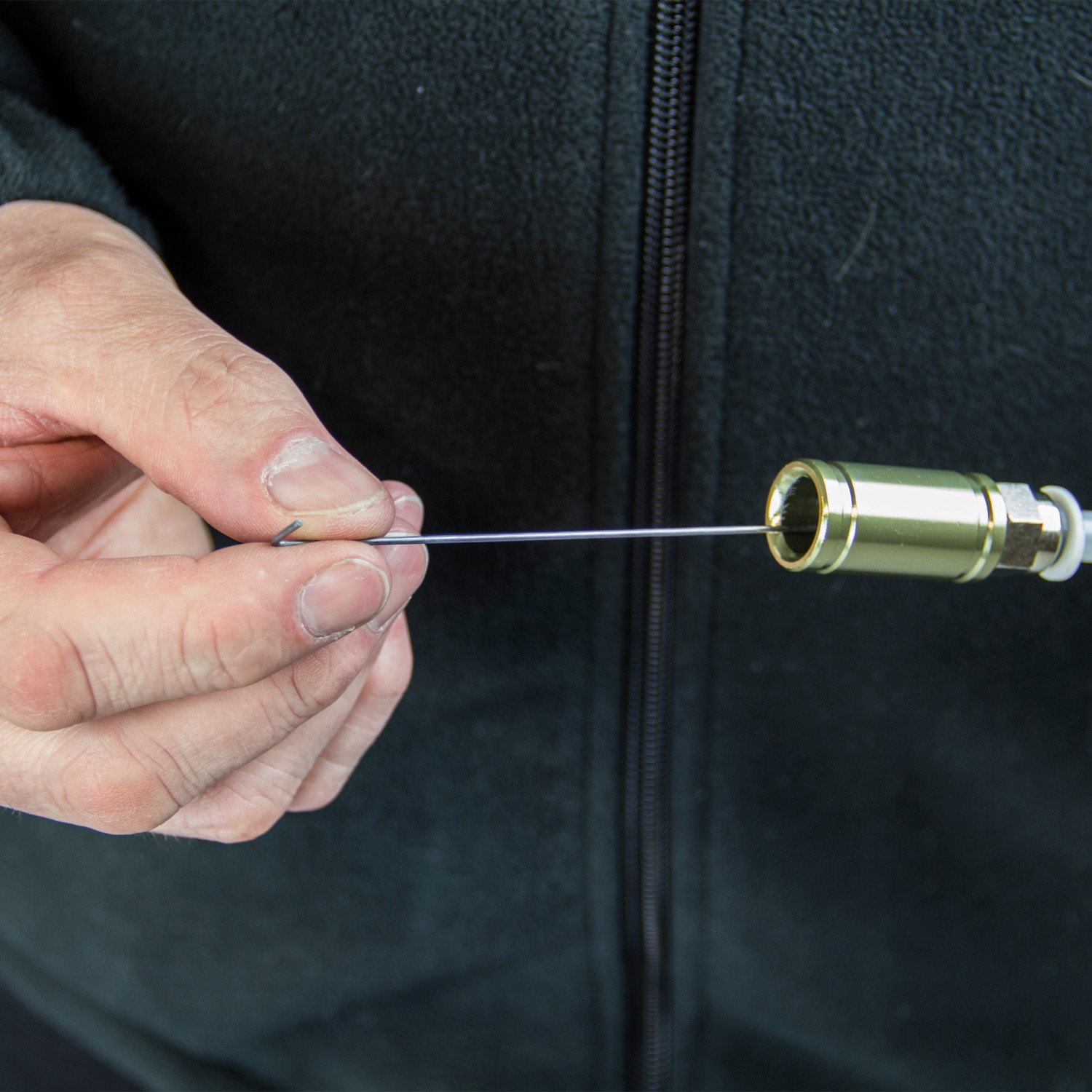

6 suction tubes included
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03711
Operation Type:	SUCTION / GRAVITY
Collection Tank Capacity:	80ltr
Collection Tray Capacity:	20ltr
Chamber Capacity:	N/A
Discharge Pressure:	10psi (0.7bar) - 15psi (1bar)
Extraction Pressure:	87psi (6bar) - 145psi (10bar)
Air Inlet:	1/4"
Working Temperature:	40°C - 60°C
Min. Adjustable Height:	1190mm
Max. Adjustable Height:	1810mm
Wheel Mounted:	2x wheels / 2x castors
Net Weight:	26.00kg
Gross Weight:	29.50kg
Product Dimensions:
Packaged Dimensions:	1010(H) x 550(W) x 450mm(D)
