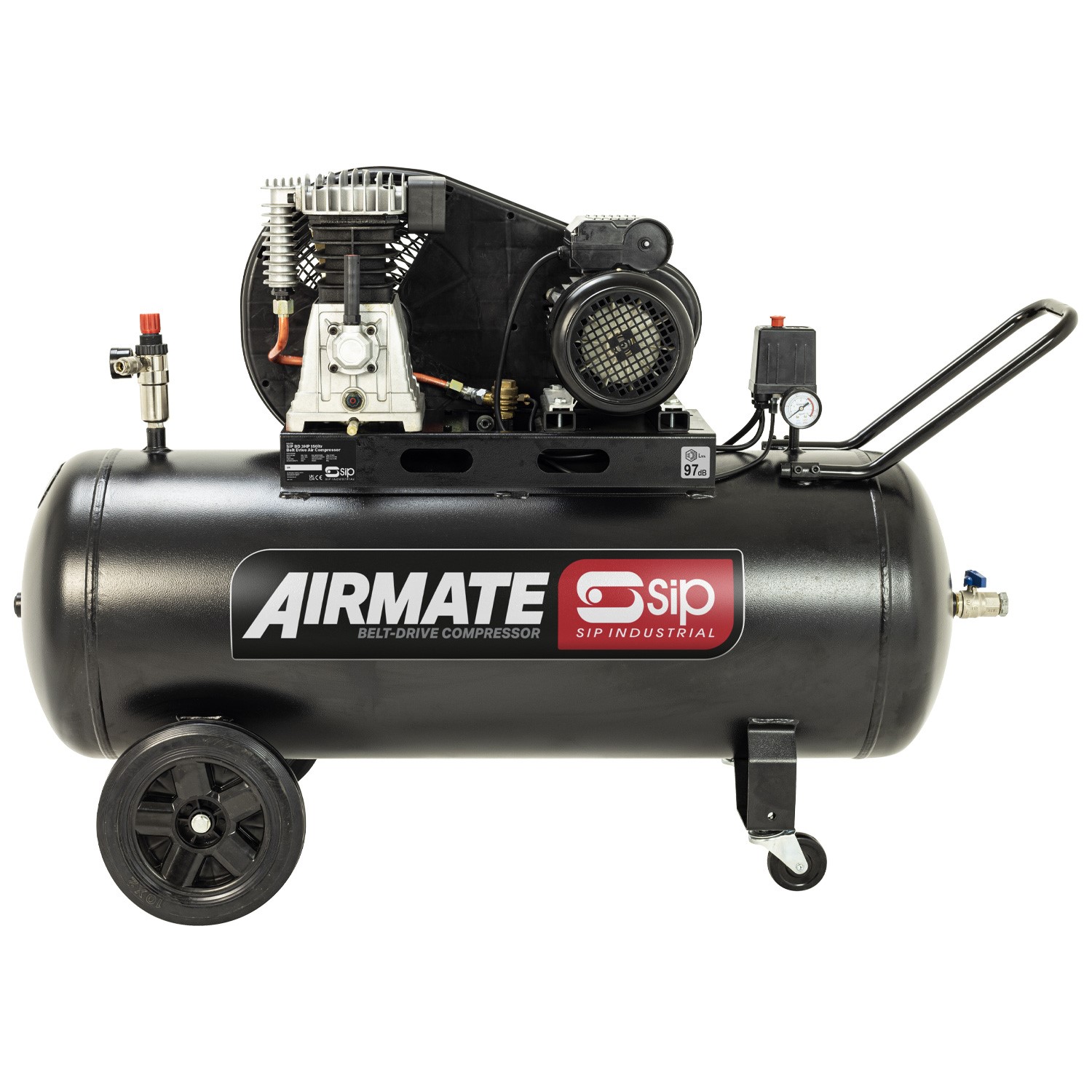

SIP BD 3HP 150ltr Belt Drive Compressor

06476

Click on image to enlarge

SIP BD 3HP 150ltr Belt Drive Compressor

06476

The SIP BD 3hp 150ltr Belt Drive Compressor is a powerful and versatile air compressor, ideal for general work area applications in automotive, agricultural and engineering settings.

Built for everyday use, this high performance compressor features a larger pump which fills the receiver more quickly. This delivers 14CFM piston displacement resulting in 10CFM Free Air Delivery (FAD) for a consistent air supply ideal for pneumatic air tools and air compressor ring main applications.

A wheel-mounted design with U-handle allows full movement in a variety of work area settings for added flexibility.

KEY FEATURES

14CFM piston displacement and 10CFM free air delivery (FAD)
Powerful 3hp (2.2kW) motor and large pump fills receiver more quickly
150ltr receiver maintains consistent air supply of up to 10bar pressure
Fixed and adjustable quick release air connectors for greater versatility
Built-in tank pressure and working pressure gauges with regulator
Long 3mtr supply cable for work area flexibility and U-handle for mobility

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP BD 3hp 150ltr Belt Drive Compressor is a powerful and versatile air compressor, ideal for general work area applications in automotive, agricultural and engineering settings.

Built for everyday use, this high performance compressor features a larger pump which fills the receiver more quickly. This delivers 14CFM piston displacement resulting in 10CFM Free Air Delivery (FAD) for a consistent air supply ideal for pneumatic air tools and air compressor ring main applications.

A wheel-mounted design with U-handle allows full movement in a variety of work area settings for added flexibility.

Applications & uses: Ideal for automotive, agricultural and engineering settings. Perfect for medium and large-sized work areas. Ideal for pneumatic air tools. Suitable for air compressor ring main applications.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

POWERFUL BELT DRIVE TRANSMISSION FOR CONSISTENT OUTPUT IN DEMANDING APPLICATIONS

Heavy-duty motor enables the compressor to fully meet it's performance capability (3hp / 2.2kW).
A bespoke belt guard improves airflow to the pump head for greater cooling, which increases machine durability.

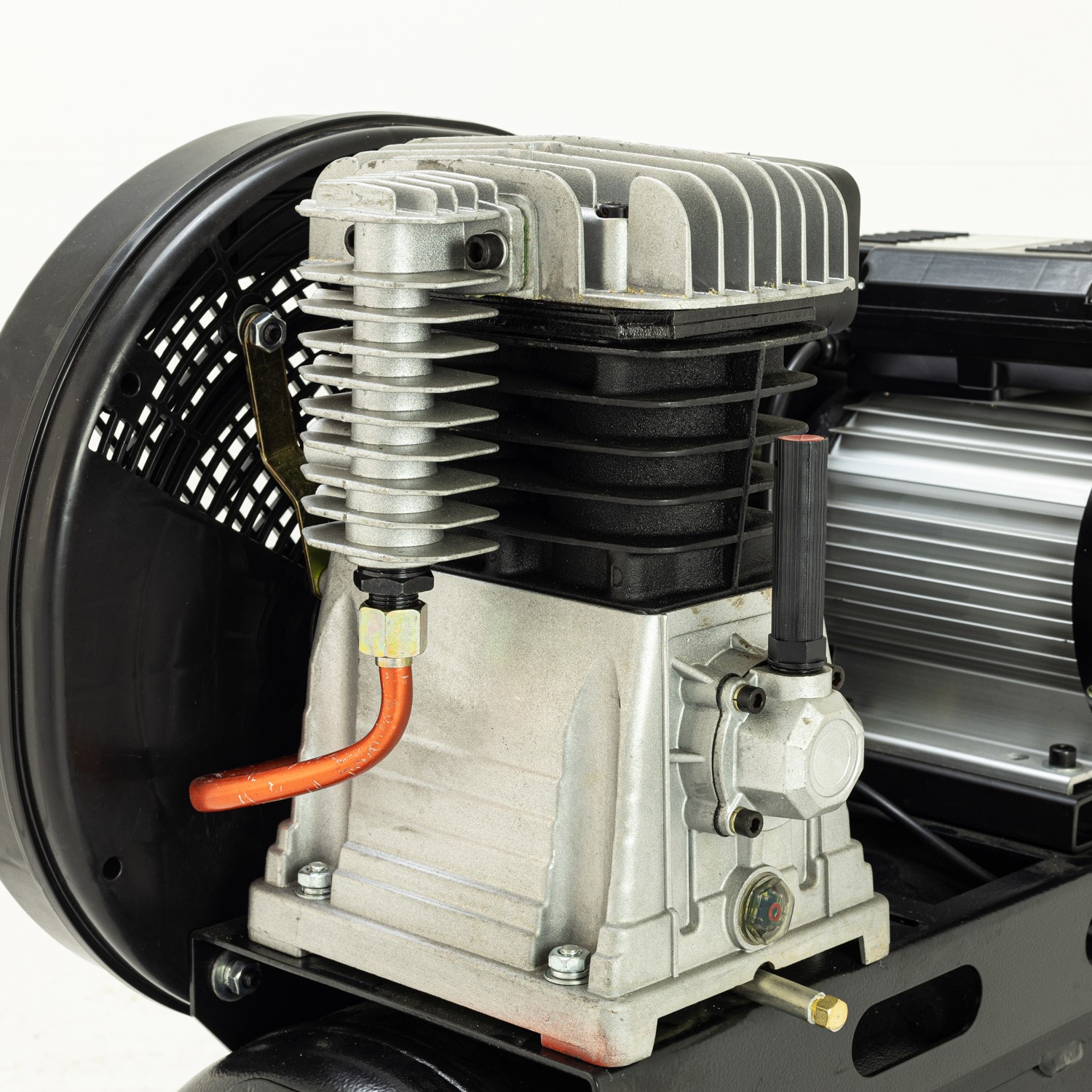

LARGER SLOW-RUNNING PUMP FILLS RECEIVER MORE QUICKLY FOR IMPROVED AIR DELIVERY

Greater airflow allows the receiver to fill faster for consistent and dependable use.
14CFM piston displacement and 10CFM Free Air Delivery (FAD).
Slow-running pump helps to reduce machine wear for longer running life.
An aftercooler reduces moisture for added protection against corrosion and greater air quality.

150LTR RECEIVER TANK SAFELY STORES COMPRESSED AIR READY FOR APPLICATION USE

Maintains a consistent supply of air for pneumatic tools and air equipment, up to 10bar air pressure.

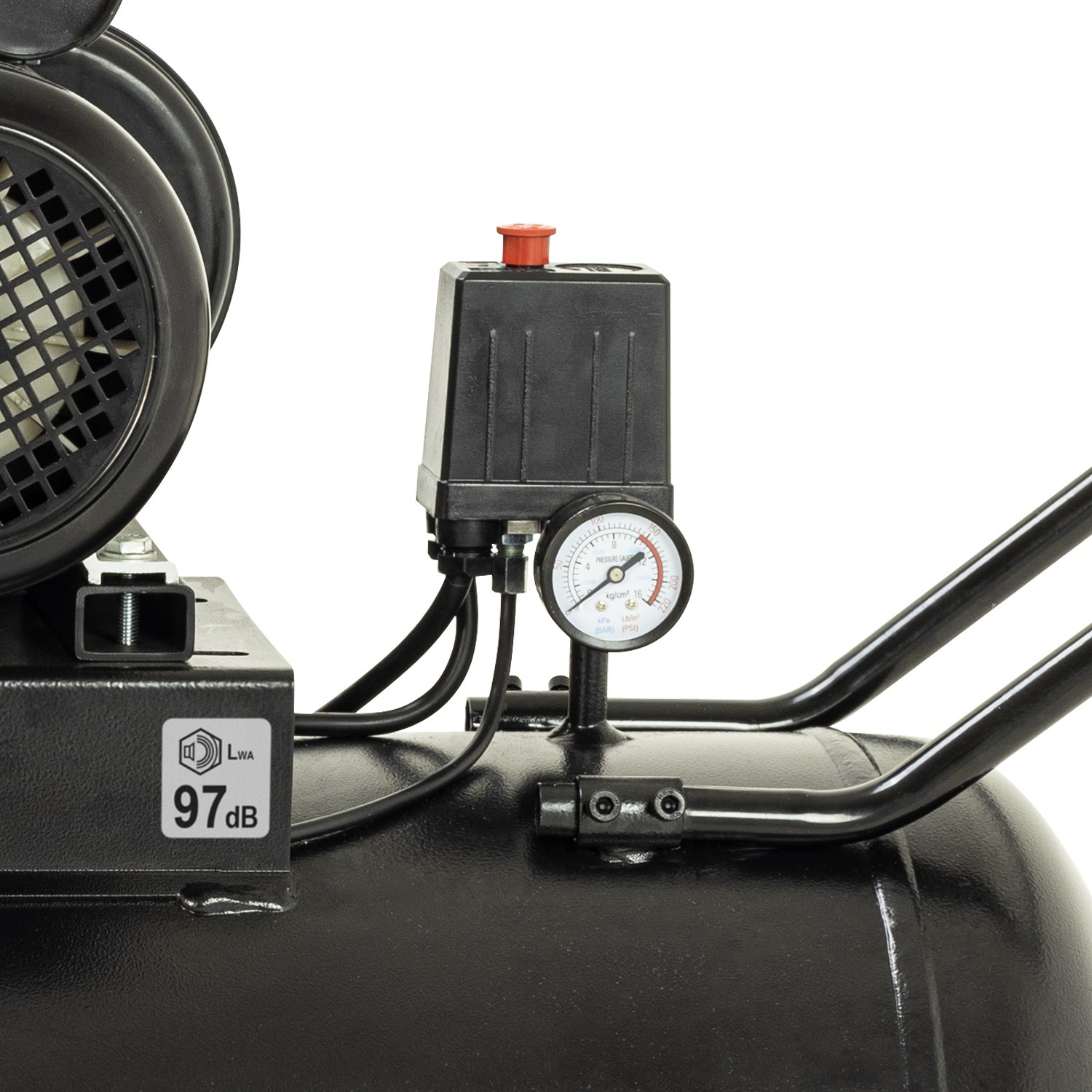

BUILT-IN TANK PRESSURE & WORKING PRESSURE GAUGES OPTIMISE AIR DELIVERY

Provides an accurate display of current pressures for enhanced user operation.

ADJUSTABLE AIR CONNECTORS & BALL VALVE OFFER GREATER APPLICATION VERSATILITY

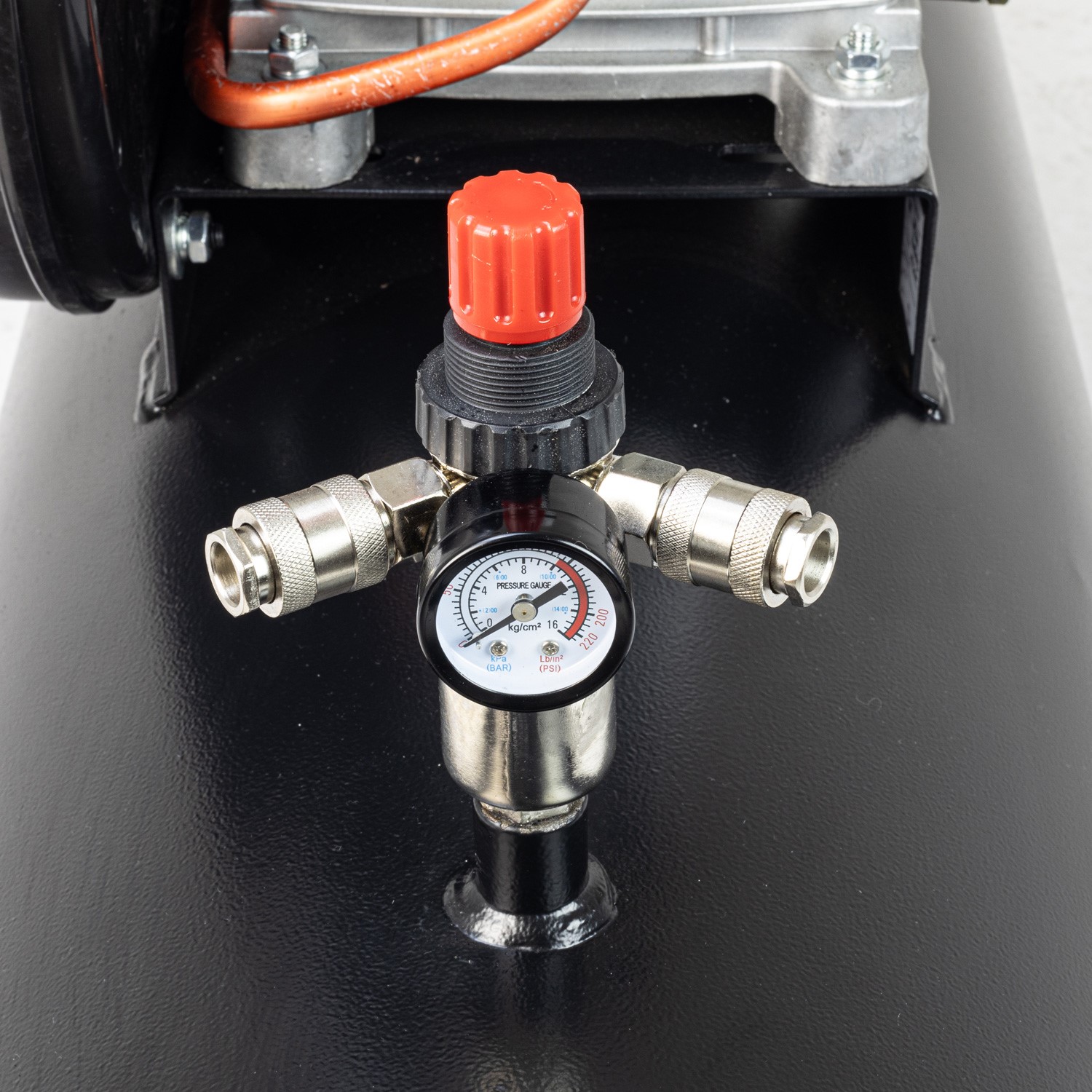

2x adjustable connectors (0 - 10bar) with air filter regulator optimise air requirements.

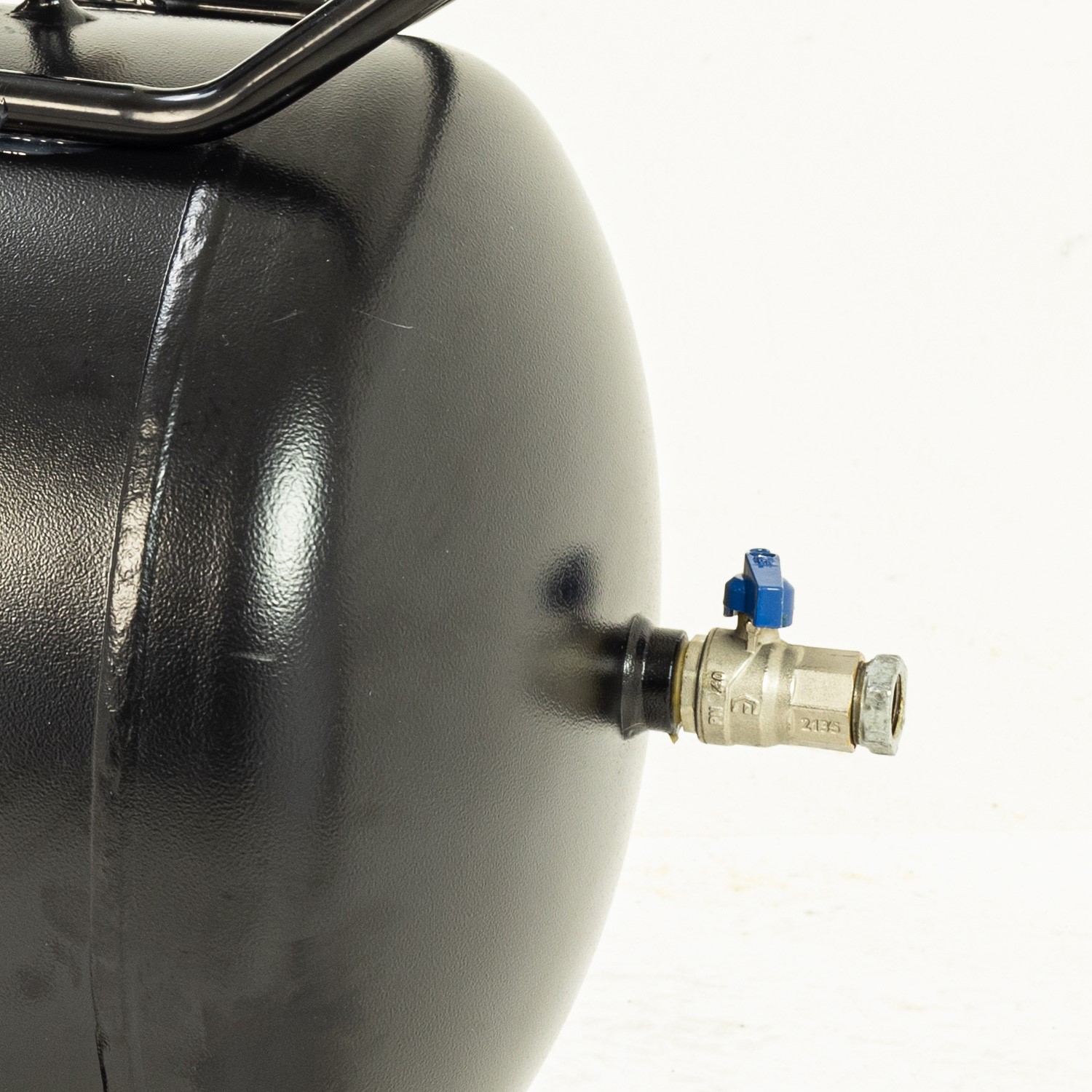

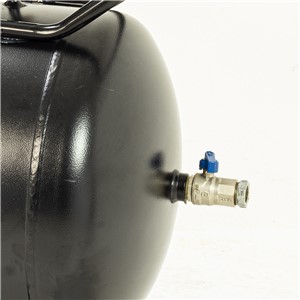

1x air receiver ball valve allows maximum airflow direct from the receiver.

FEATURES 3MTR MAINS CABLE & OPERATES FROM 13A SUPPLY FOR GREATER FLEXIBILITY

Helps to avoid use of extension cables, which maximises compressor output.

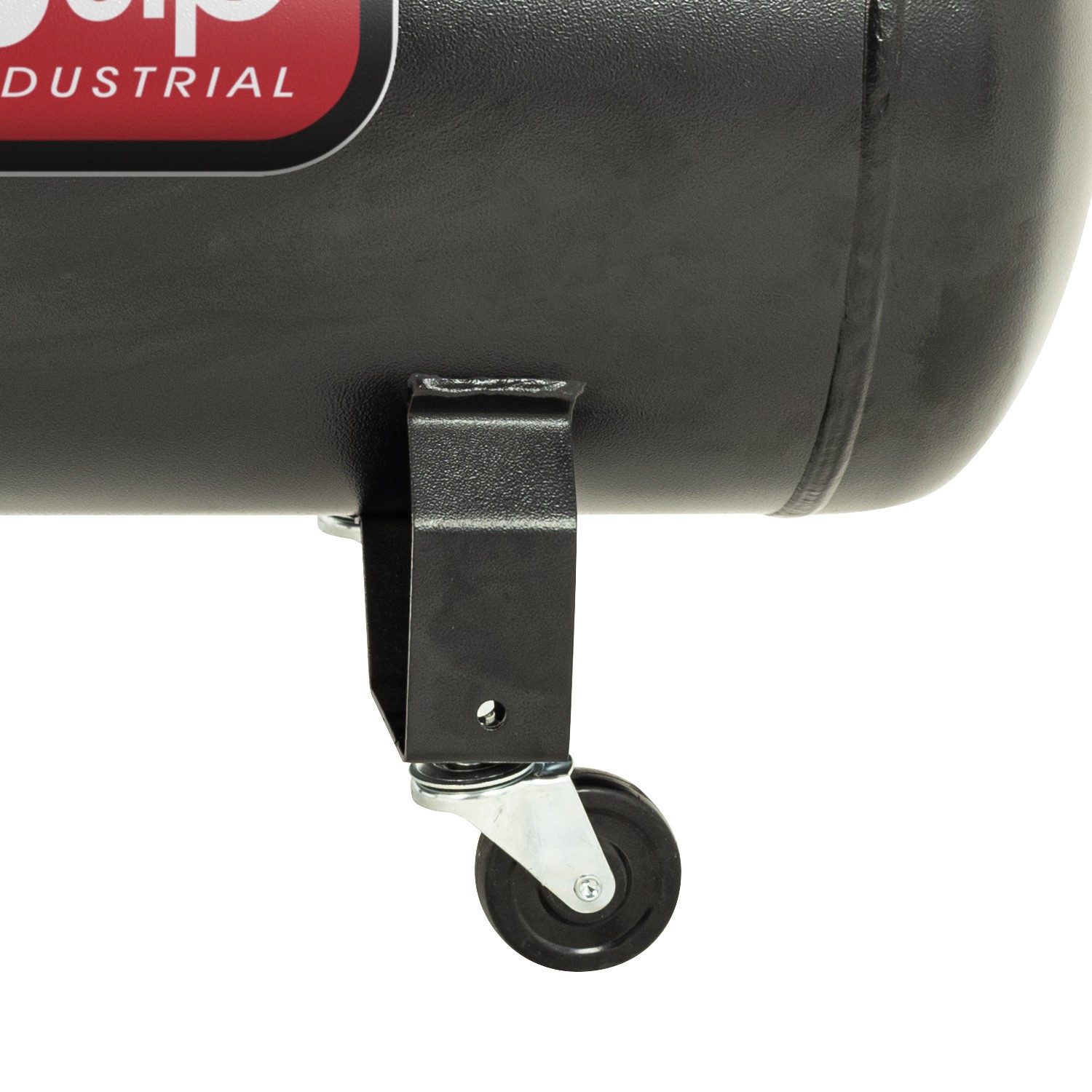

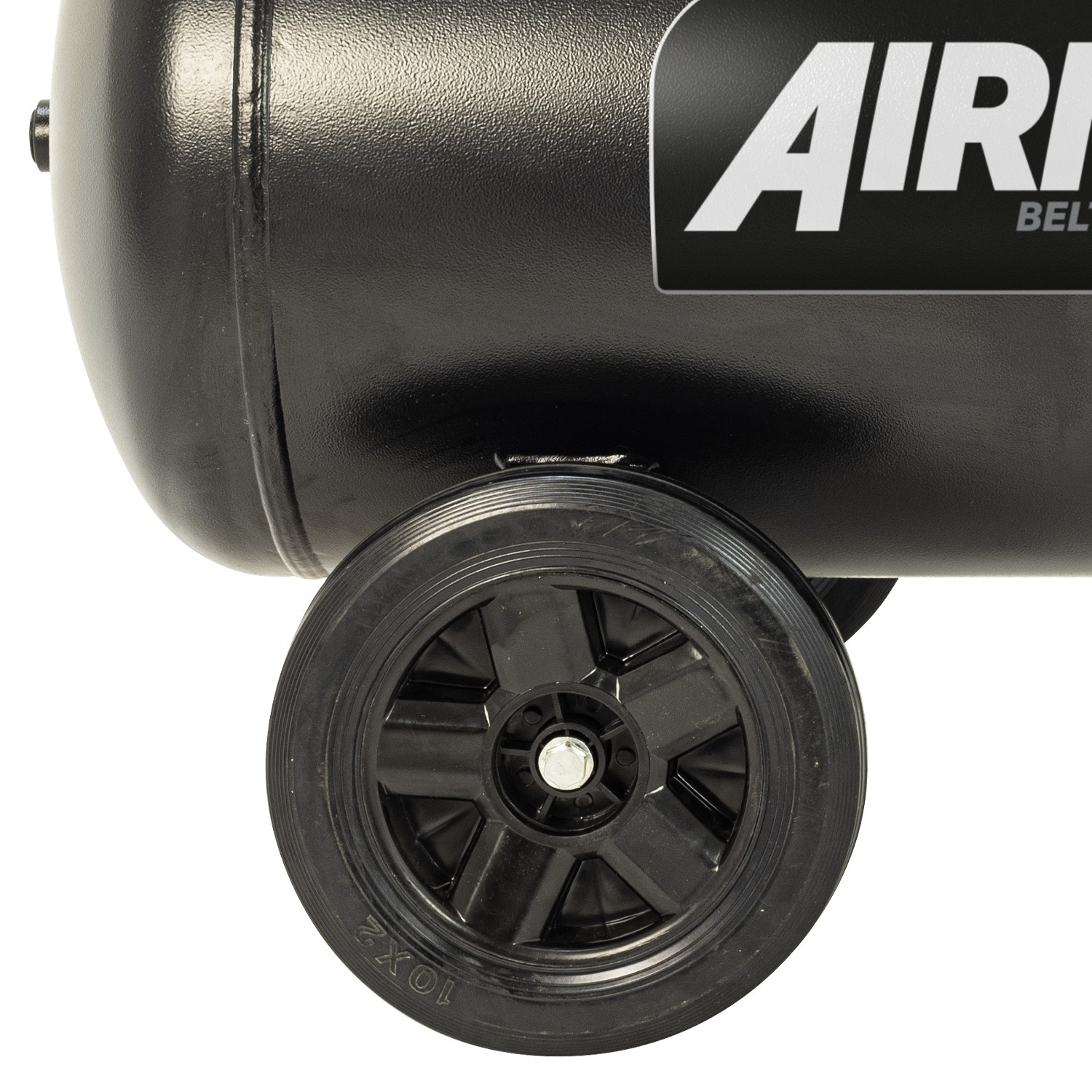

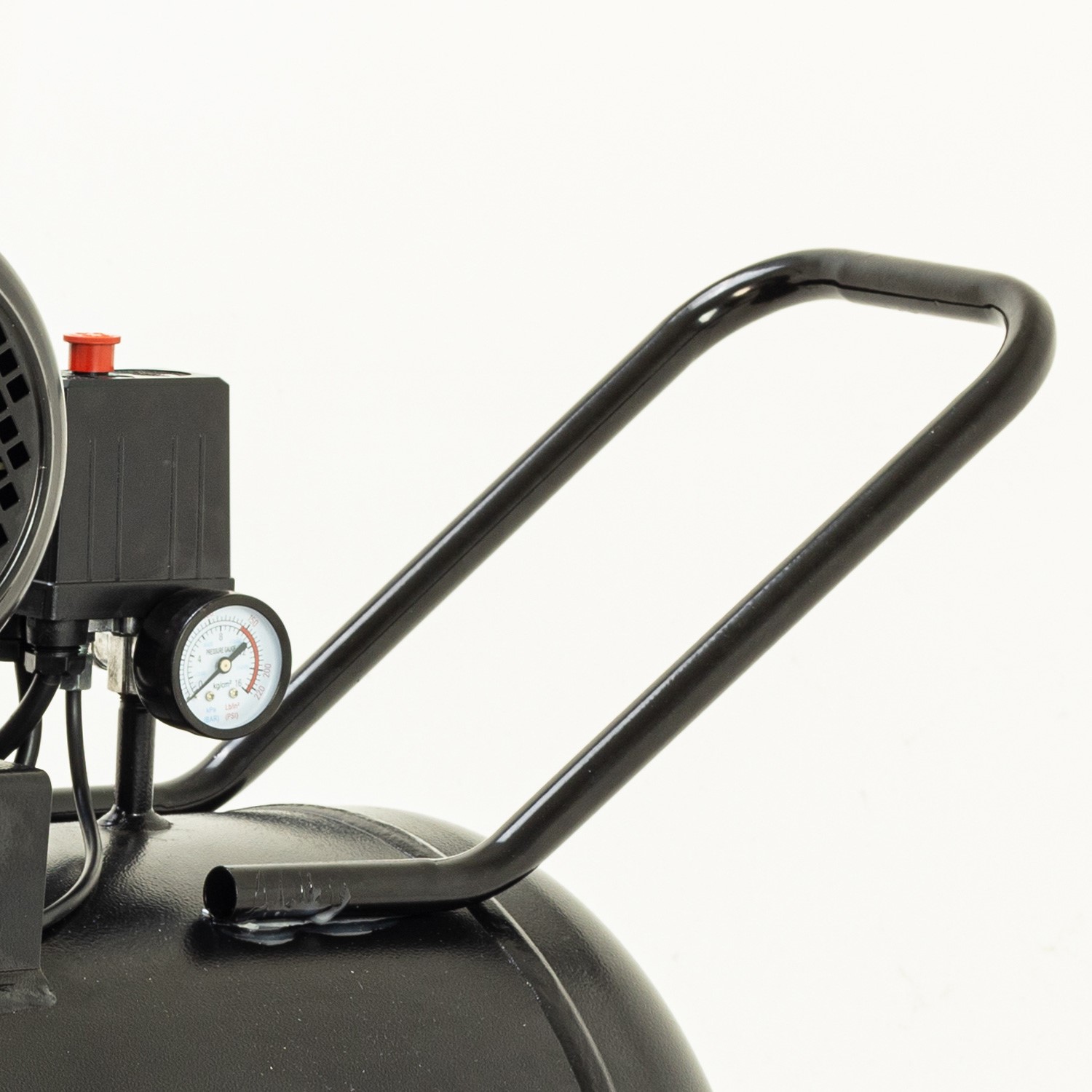

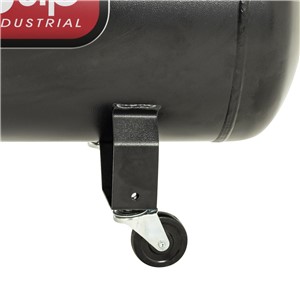

EXTRA-LARGE WHEELS & CASTORS WITH U-HANDLE FOR MOBILITY AROUND WORK AREA

Allows full movement in a variety of work area settings for added flexibility.

Product Video

Technical Information

ITEM NO.	06476
Input Supply:	230v (13A)
Motor Power:	3hp (2.2kW)
Receiver Size:	150ltr
Piston Displacement:	14CFM (400ltr/min)
Free Air Delivery (FAD):	10CFM (285ltr/min)
Max. Air Pressure:	145psi (10bar)
Noise Level:	97dB(A)
Net Weight:	90.00kg
Gross Weight:	98.00kg
Product Dimensions:	820(H) x 1310(W) x 370mm(D)
Packaged Dimensions:	980(H) x 1270(W) x 470mm(D)
