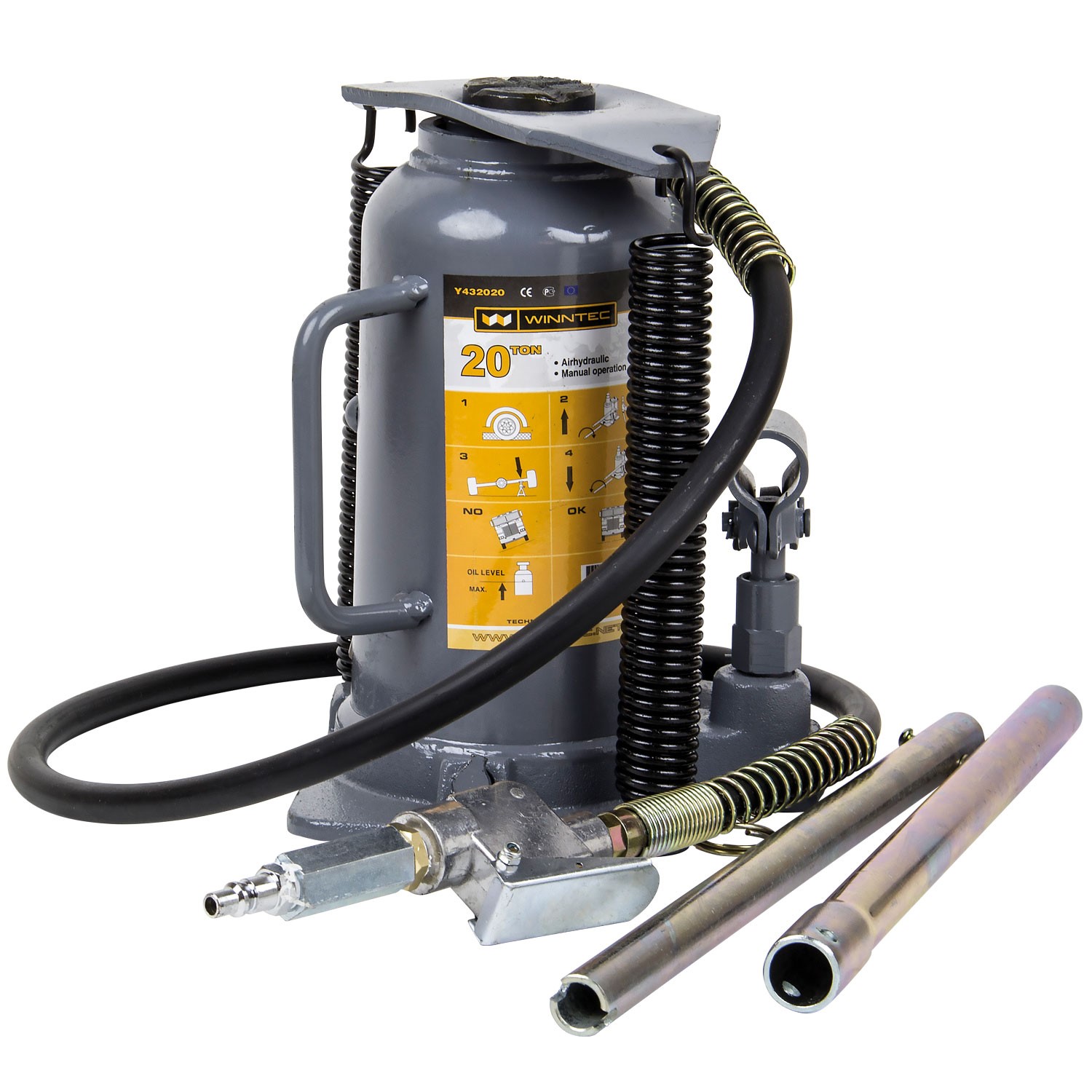

WINNTEC 20 TON Air Bottle Jack

09827

Click on image to enlarge

WINNTEC 20 TON Air Bottle Jack

09827

The WINNTEC® from SIP 20 TON Air Bottle Jack offers easier and safer lifting of vehicles both large and heavy, by providing powerful air-assisted performance horizontally and vertically and lifting up to 475mm along with a versatile 80mm screw extension.

Suitable for automotive and commercial vehicles in garages and workshops.

KEY FEATURES

245mm to 475mm lifting height range
80mm screw extension for improved versatility
Designed for horizontal and vertical operation
Aluminium air motor for heavy-duty performance
WINNTEC® from SIP 3-Year Warranty

WINNTEC 3-Year Warranty* | Find out more

Full Specification

The WINNTEC® from SIP 20 TON Air Bottle Jack utilises a combination of heavy-duty components and air-assisted lifting to provide powerful performance in automotive and commercial applications, offering safe support of large and heavy vehicles.

Designed for horizontal and vertical operation, this bottle jack is extremely versatile.

Browse WINNTEC from SIP for high-quality and reliable garage equipment.

20 TON maximum weight capacity
245mm to 475mm lifting height range

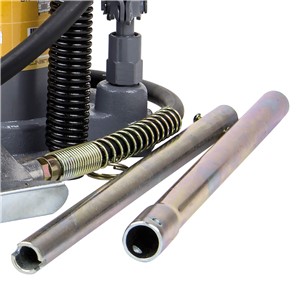

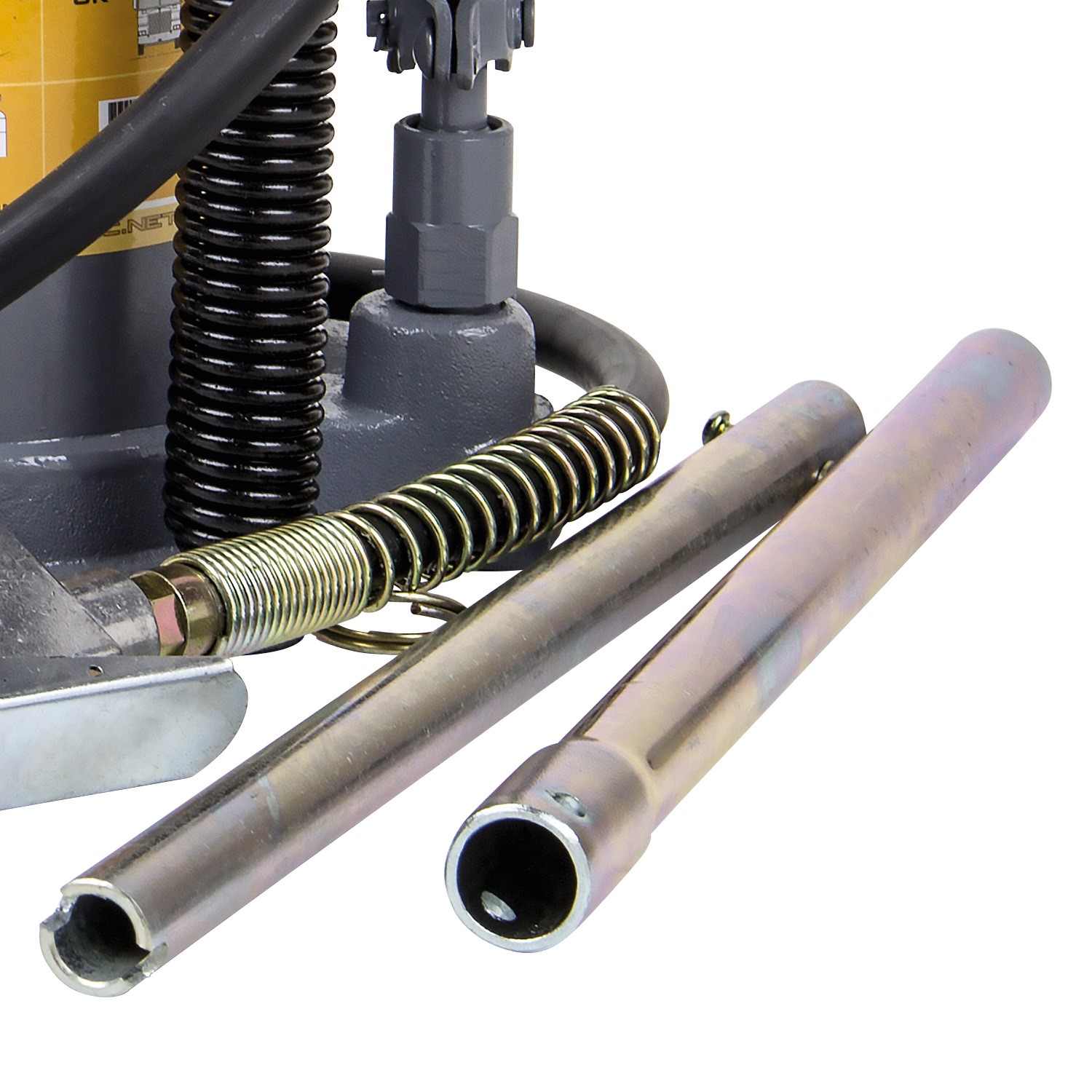

80mm screw extension for improved lifting versatility
Heavy-duty welded wide base helps spread weight evenly
Designed for both horizontal and vertical operation

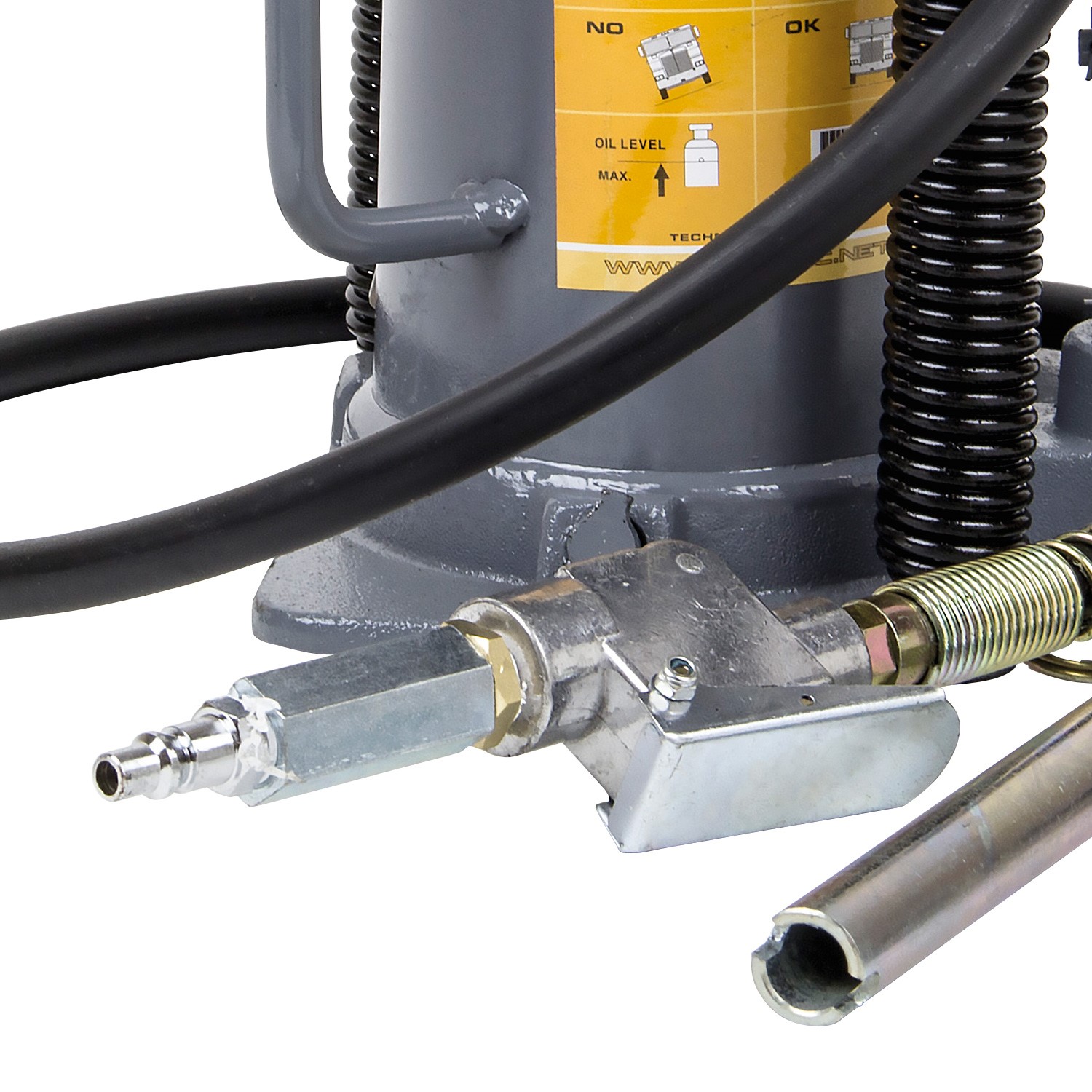

Heavy-duty aluminium air motor for rugged performance
Heat-treated cylinder wall for added durability
Durable polished ram and chromed pump pistons
Integrated overload protection for safety
Air filters help prevent contamination
Quality European design for performance
WINNTEC® from SIP 3-Year Warranty

Technical Information

ITEM NO.	09827
Weight Capacity:	20 TON
Min. Lifting Height:	245mm
Max. Lifting Height:	475mm
Screw Extension:	80mm
Air Consumption:	5CFM (140ltr/min)
Net Weight:	16.00kg
Gross Weight:	17.50kg
Product Dimensions:
Packaged Dimensions:	300(H) x 245(W) x 320mm(D)
