WINNTEC 24 TON Air Service Jack

09890

Click on image to enlarge

WINNTEC 24 TON Air Service Jack

09890

The WINNTEC® from SIP 24 TON Air Service Jack is designed for heavy-duty performance, ascending and descending safely with air which, when combined with chromed pistons and ram, offers reliable lifting of larger, heavier, and more demanding vehicles.

Suitable for a range of demanding lifting in garages and workshops.

KEY FEATURES

141mm to 441mm lifting height range
One-stage heavy-duty hydraulic lifting system
Safely ascends and descends with air for ease-of-use
Wheel-mounted with long handle for simple positioning
WINNTEC® from SIP 3-Year Warranty

Full Specification

The WINNTEC® from SIP 24 TON Air Service Jack offers powerful lifting and extremely heavy-duty performance across a range of larger and heavier vehicles which require a versatile lifting range, accommodating easy hydraulically-assisted lifting up to 441mm.

Operators are protected to the highest standard in all lifting applications through a number of safety features, including dead mans controls, and durable components.

Browse WINNTEC from SIP for high-quality and reliable garage equipment.

24 TON maximum weight capacity
141mm to 441mm lifting height range
One-stage hydraulic lifting system for increased ease-of-use
Easily ascension and descension with air for user protection

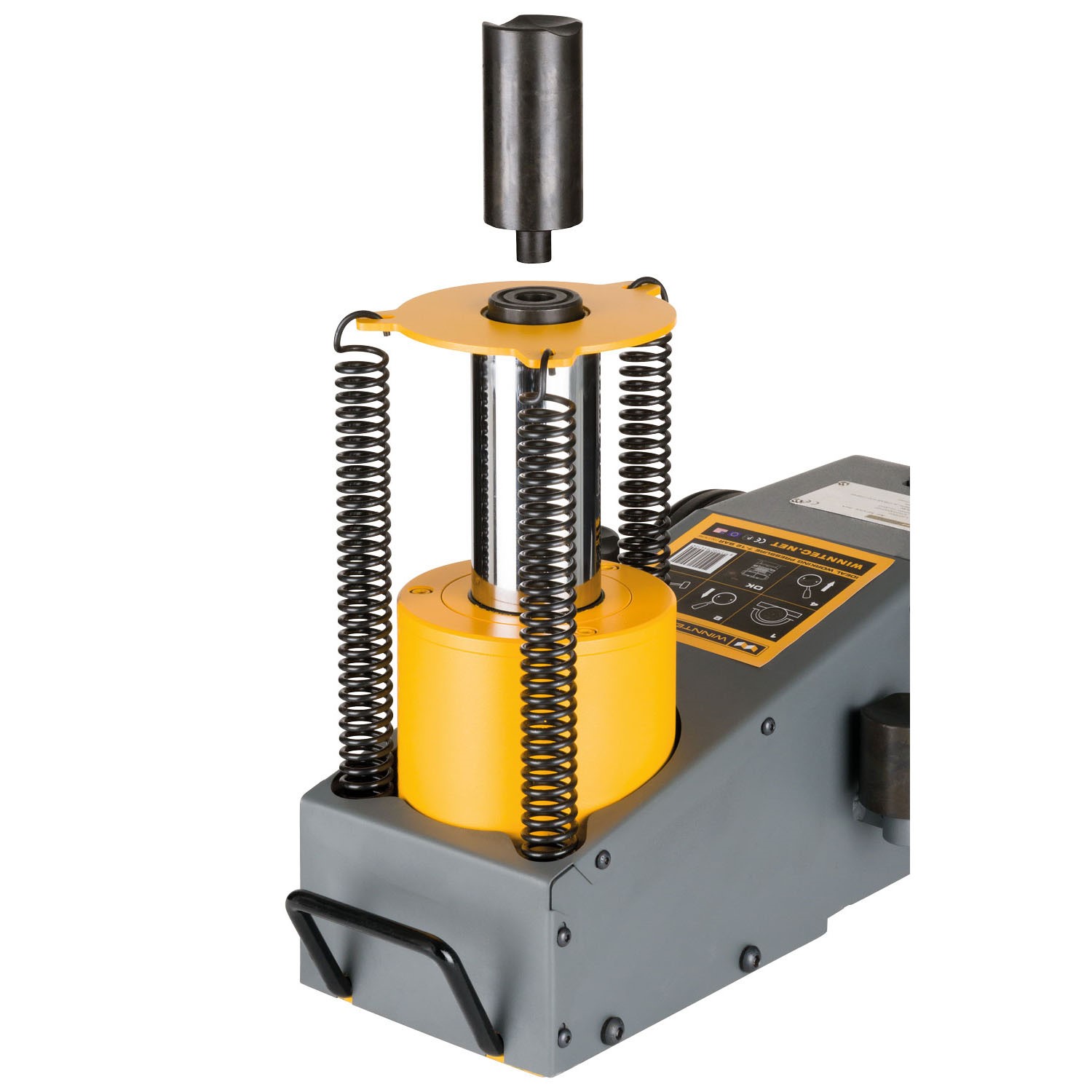

Supplied with 3 versatile extensions,: 20mm, 50mm, and 100mm

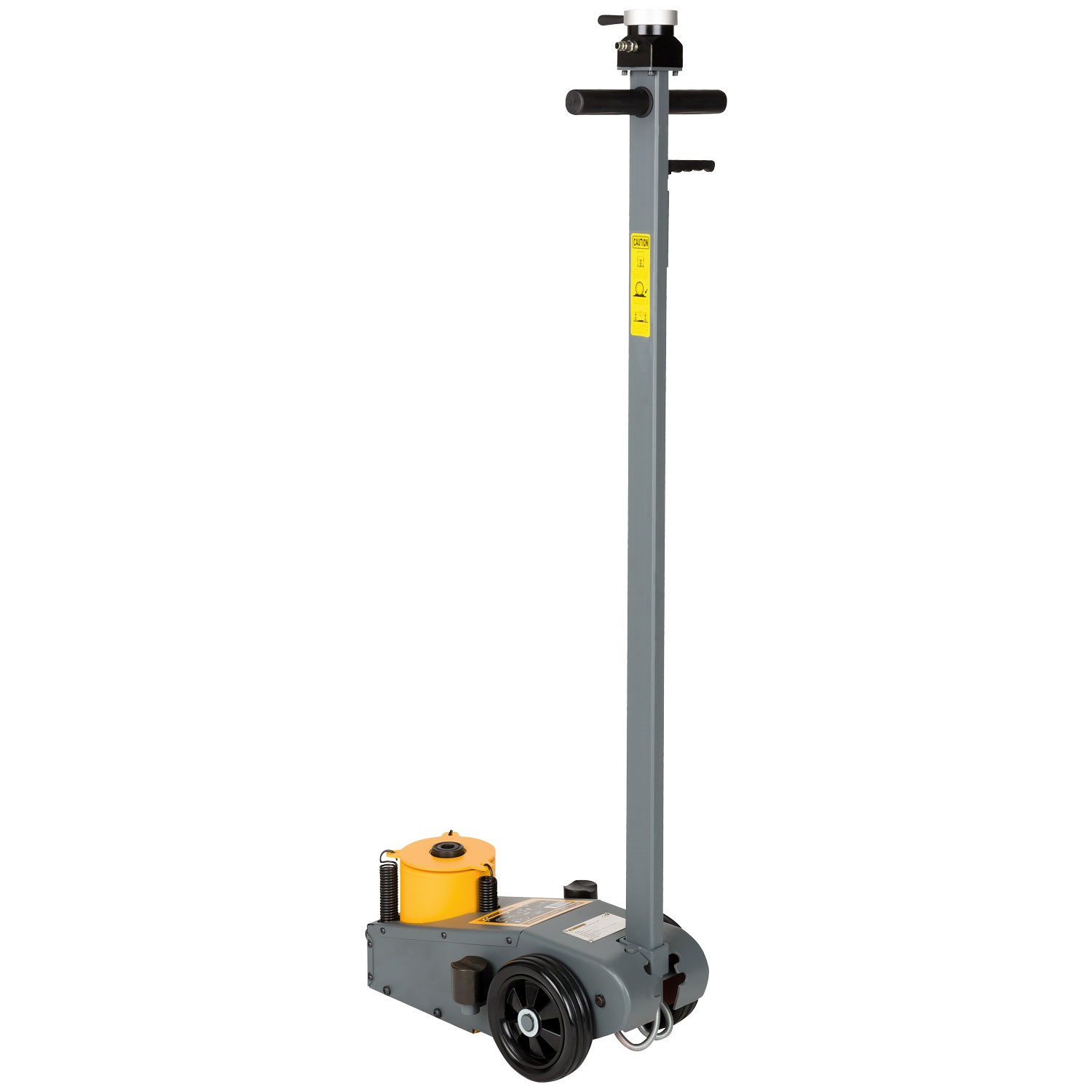

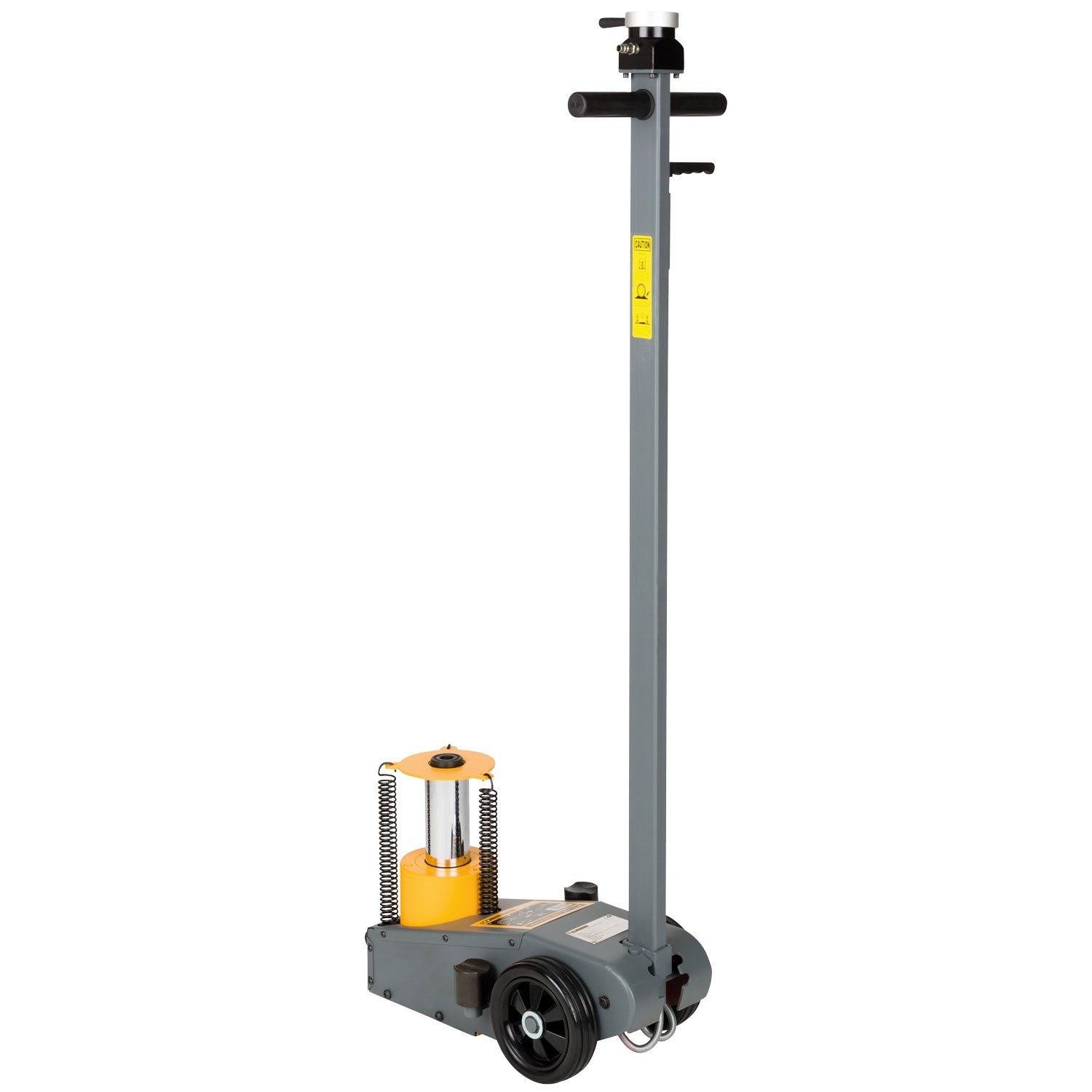

Wheel-mounted design with long handle for simple positioning

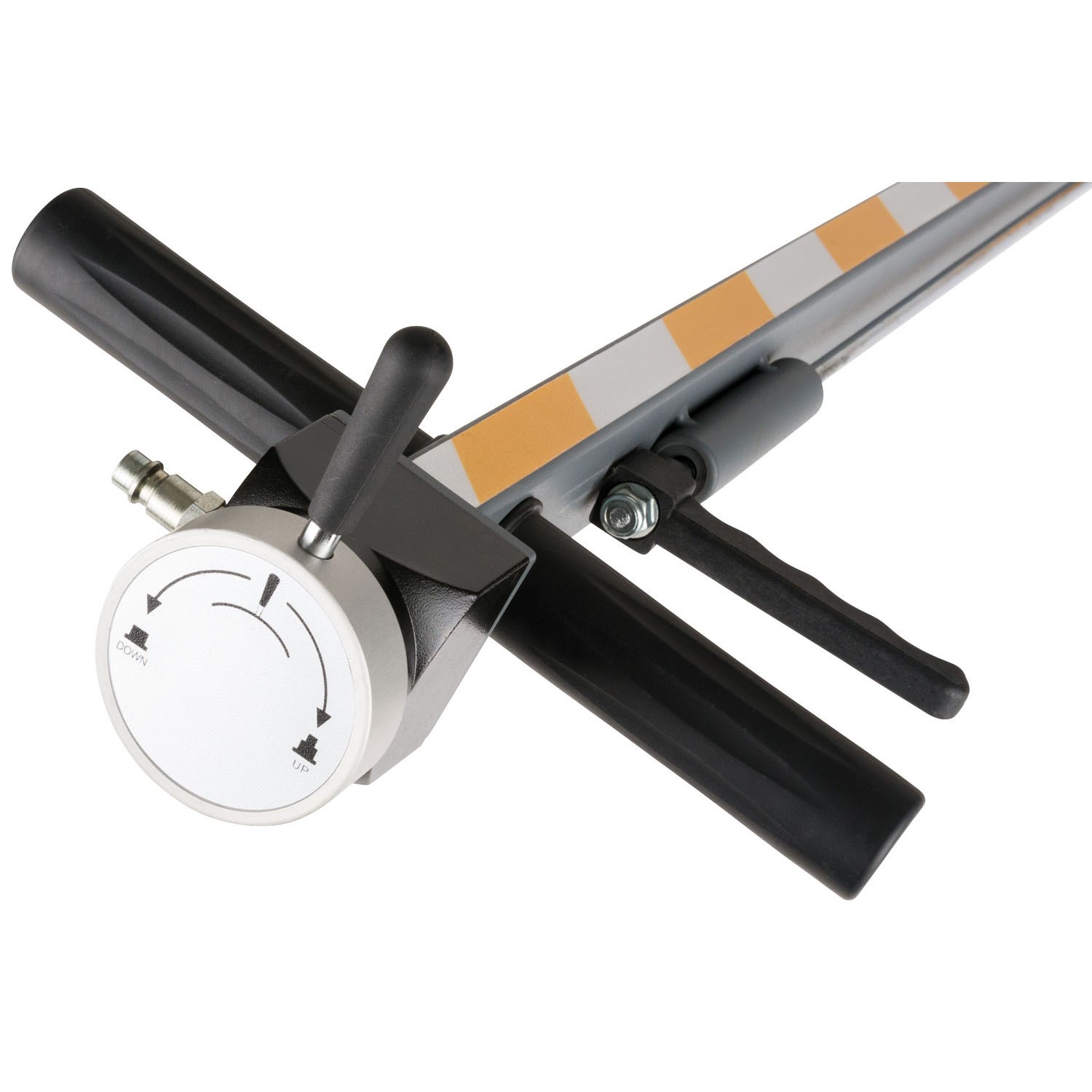

Built-in dead mans controls for reliable user safety

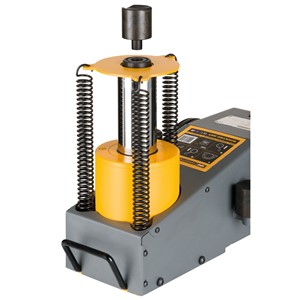

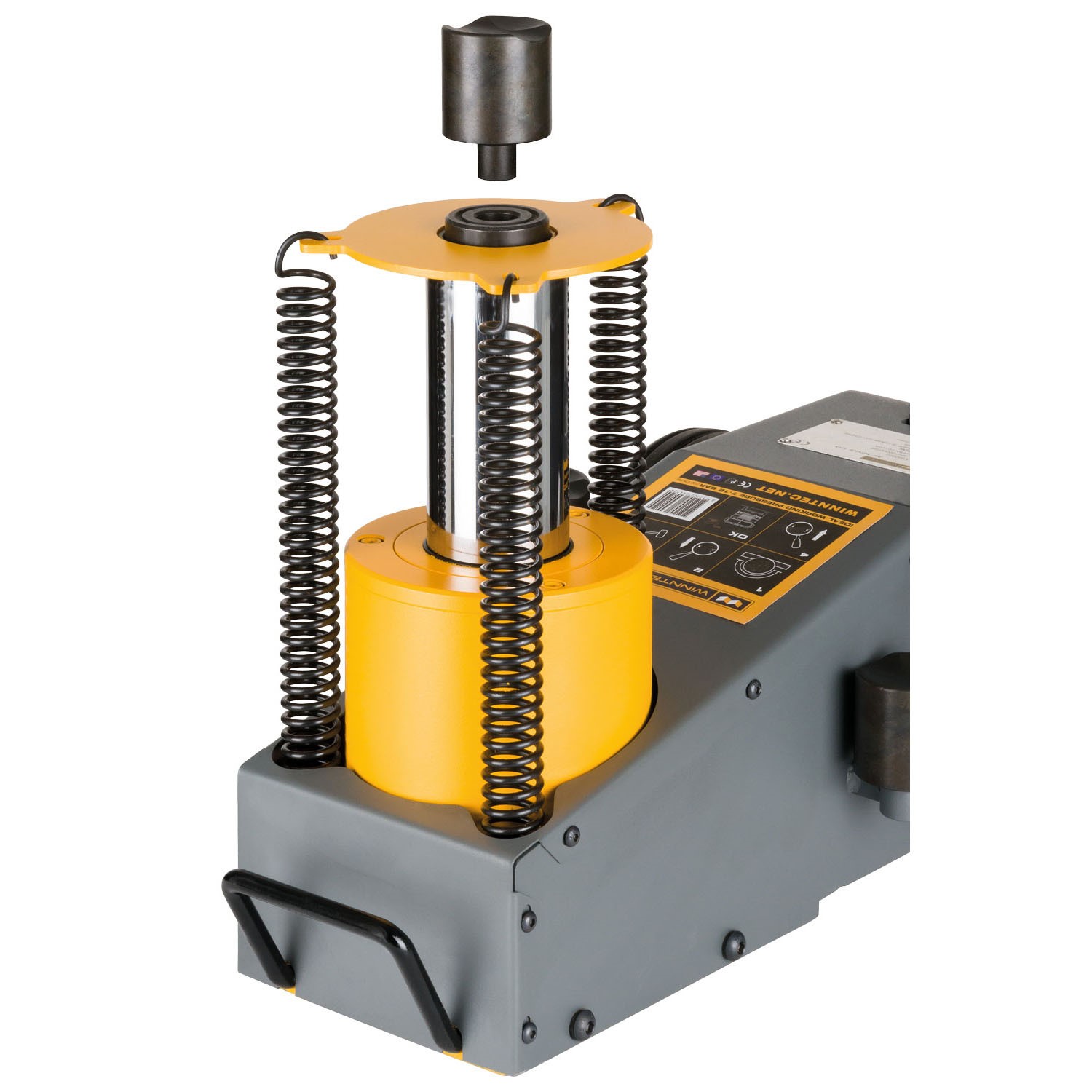

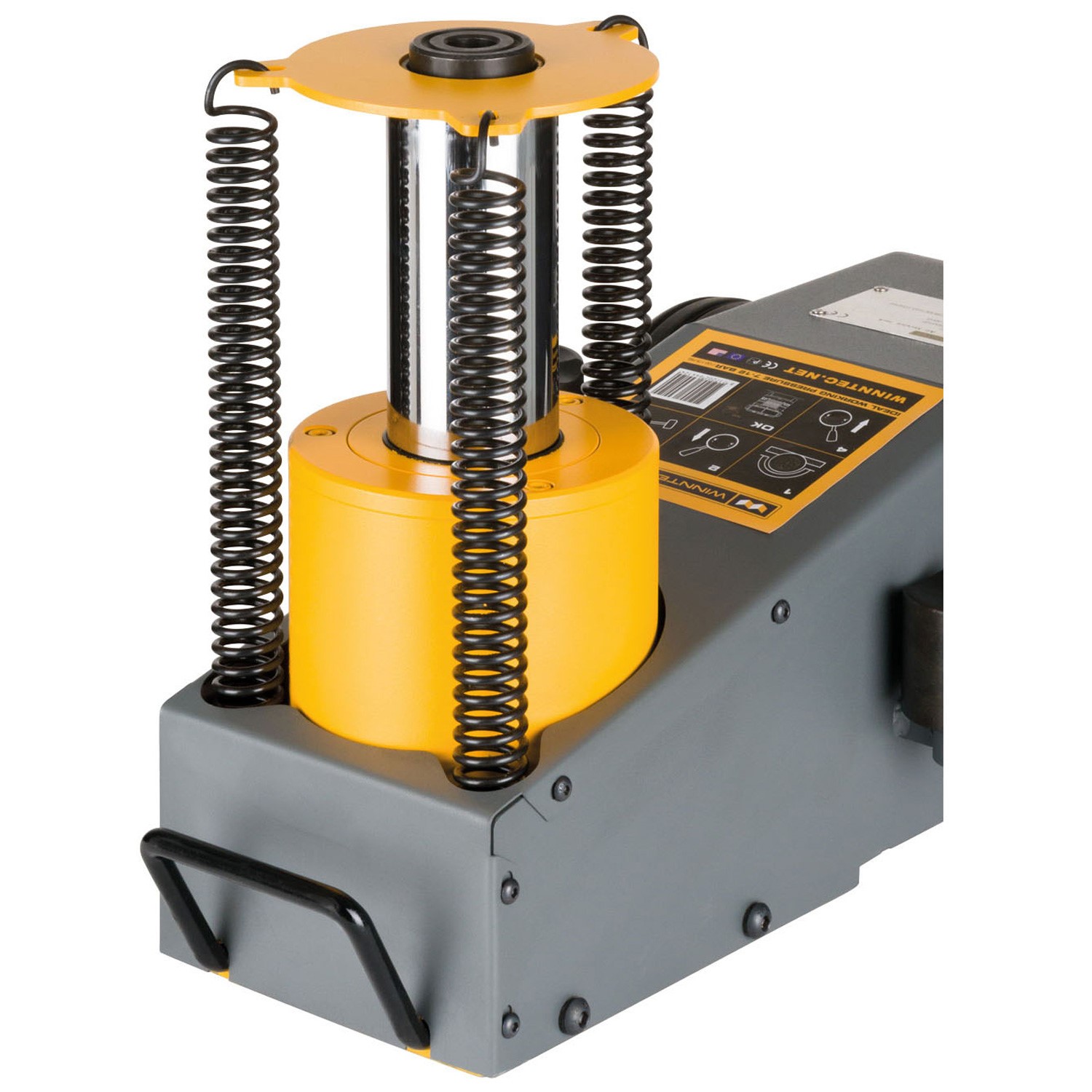

Heavy-duty hard chromed piston and main ram
Quality European design for performance
WINNTEC® from SIP 3-Year Warranty

Technical Information

ITEM NO.	09890
Weight Capacity:	24 TON
Min. Lifting Height:	141mm
Max. Lifting Height:	441mm
Screw Extension:	85mm
Supplied Extensions:	20mm / 50mm / 100mm
Air Consumption:	10.6CFM (300ltr/min)
No. of Stages:	1 stage
Handle Length:	1240mm
Jack Length:	525mm
Jack Width:	265mm
Base Height:	215mm
Net Weight:	33.50kg 7.00kg
Gross Weight	34.20kg 9.00kg
Product Dimensions:
Packaged Dimensions	110(H) x 1390(W) x 280mm(D) 260(H) x 290(W) x 580mm(D)
