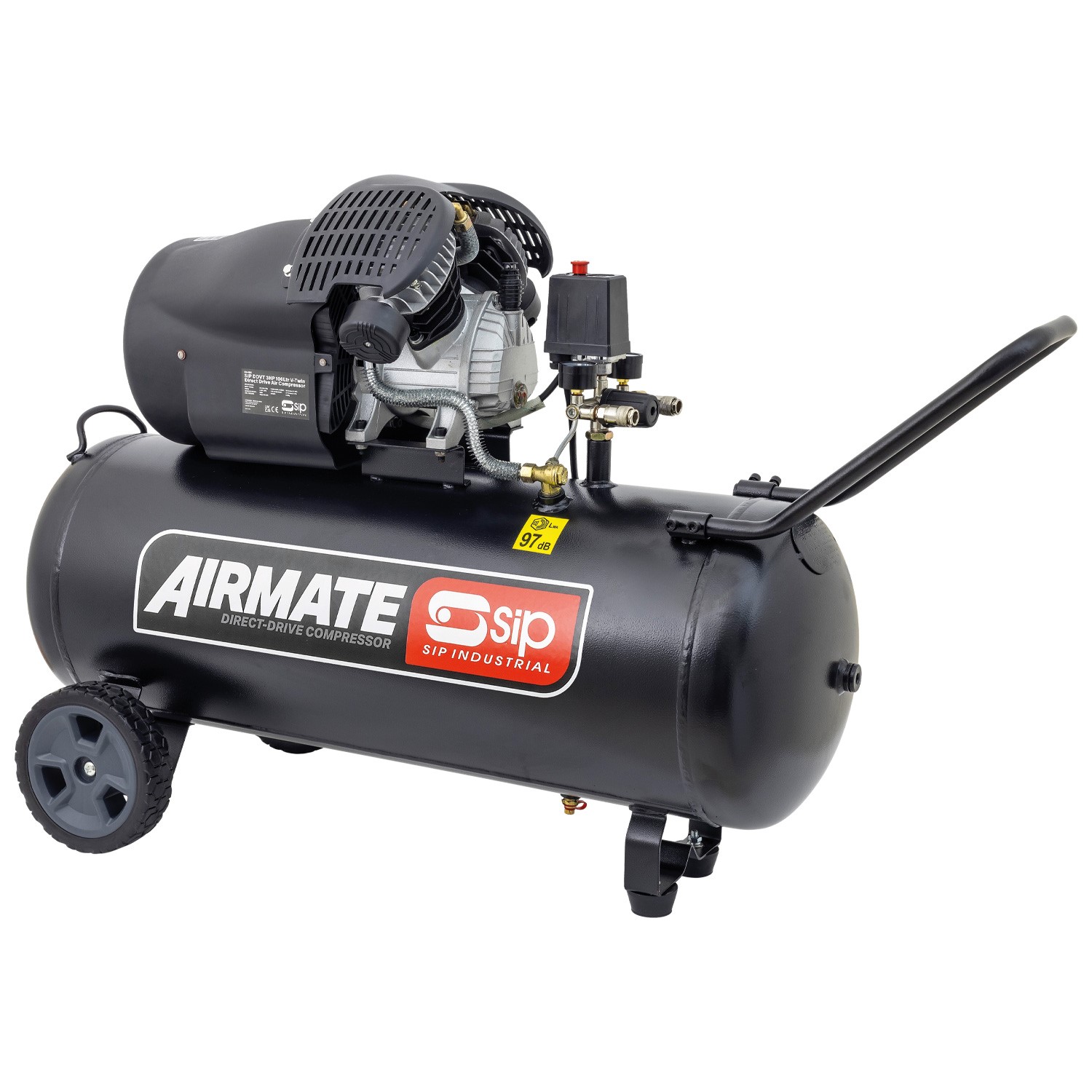

SIP DDVT 3HP 100ltr V-Twin Direct Drive Compressor

06455

Click on image to enlarge

SIP DDVT 3HP 100ltr V-Twin Direct Drive Compressor

06455

The SIP DDVT 3hp 100ltr V-Twin Direct Drive Compressor is a highly versatile and efficient compressor ideal for general purpose work area applications. This includes small to medium-sized workshops and automotive settings.

A V-Twin aluminium pump ensures greater efficiency and cooling when filling the receiver. It also offers improved resistance to machine wear for long life performance.

KEY FEATURES

14CFM piston displacement and 8CFM free air delivery (FAD)
Powerful 3hp (2.2kW) brushless induction motor for long life use
100ltr receiver maintains a consistent air supply of up to 10bar pressure
Fixed and adjustable quick release air connectors for greater versatility
Built-in tank pressure and working pressure gauges with regulator
Pull handle design for easy movement around the work area

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP DDVT 3hp 100ltr V-Twin Direct Drive Compressor is a highly versatile and efficient compressor ideal for general purpose work area applications. This includes small to medium-sized workshops and automotive settings.

A V-Twin aluminium pump ensures greater efficiency and cooling when filling the receiver. It also offers improved resistance to machine wear for long life performance.

Applications & uses: Suitable for general purpose work area applications. Perfect for small to medium-sized workshops. Ideal for automotive settings.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

BRUSHLESS INDUCTION MOTOR FOR GREATER EFFICIENCY & LONGER LIFESPAN

Enables the compressor to fully meet it's performance capability and support long life use (3hp / 2.2kW).

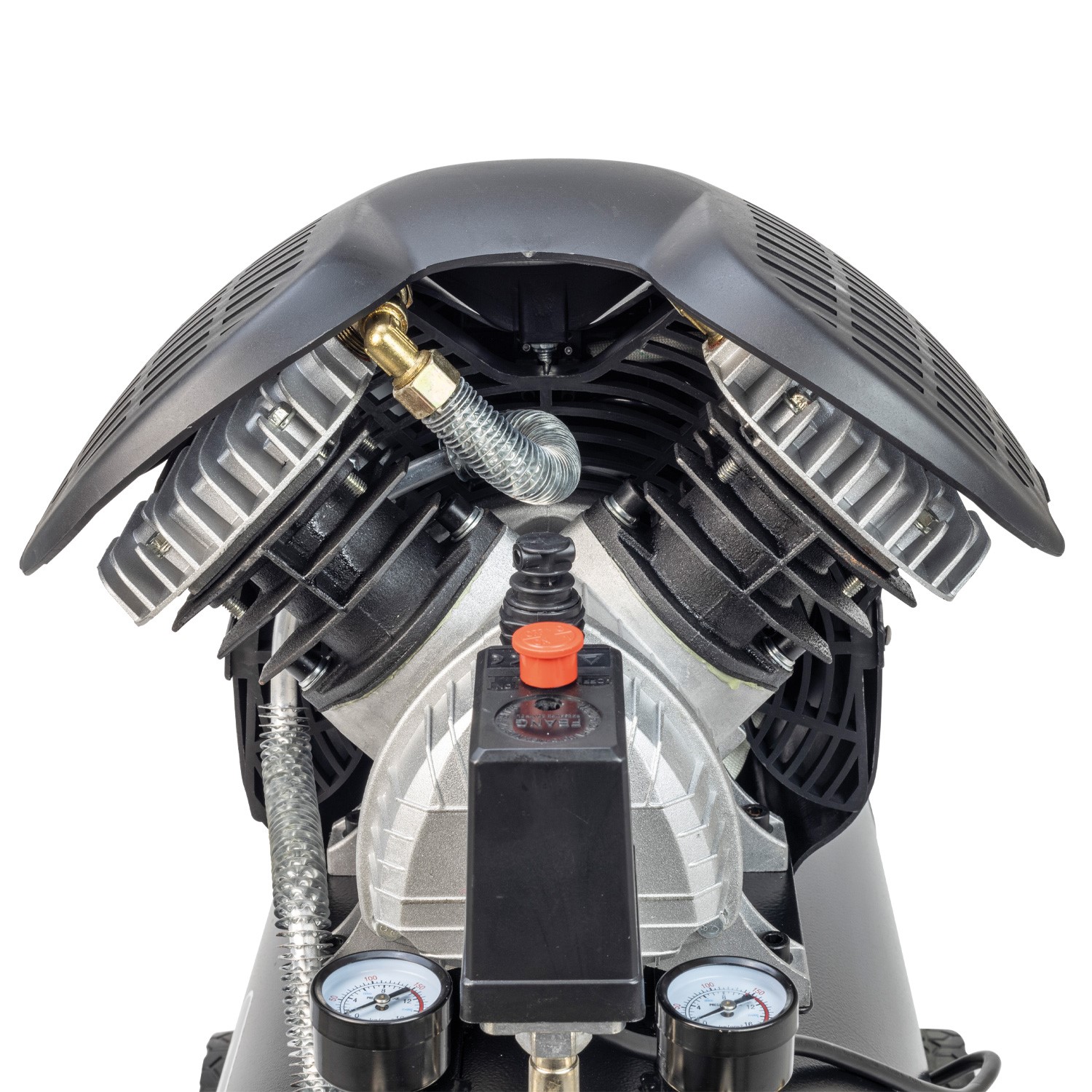

V-TWIN CONFIGURATION DIRECT DRIVE TRANSMISSION FOR EFFICIENT AIR PRODUCTION

Oil-lubricated 2-cylinder pump delivers a piston displacement of 14CFM for 8CFM of Free Air Delivery (FAD) for proven and reliable everyday use.
The V-Twin configuration delivers smoother and cooler operation, which also reduces vibration and noise levels.
A delivery pipe with spiral cooling fin also supports pump cooling

100LTR RECEIVER SAFELY STORES COMPRESSED AIR READY FOR APPLICATION USE

This maintains a consistent supply of up to 10bar air pressure for inflation tasks, air tools and other workshop uses.

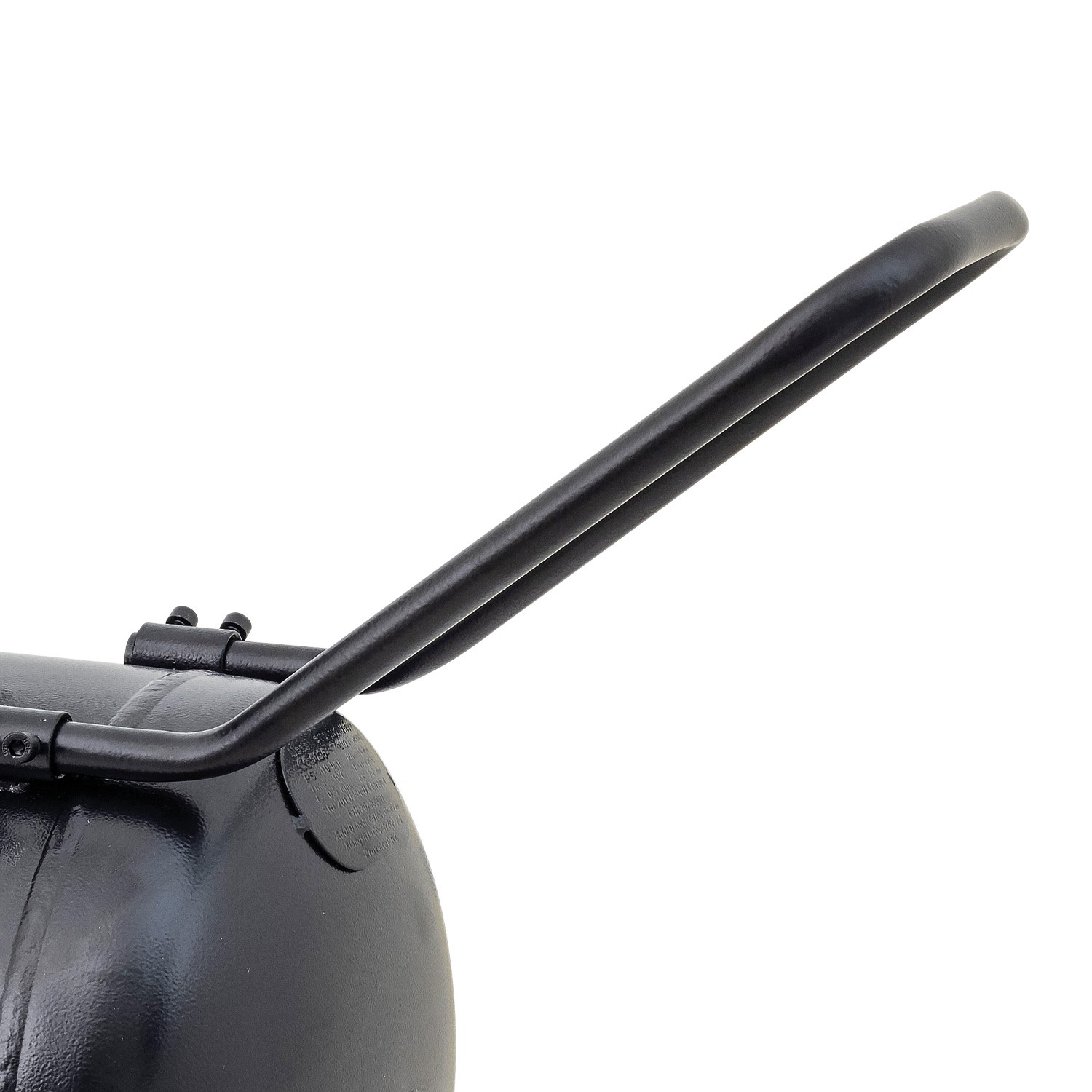

WHEEL-MOUNTED DESIGN WITH PULL HANDLE ENSURES OUTSTANDING MOBILITY

Allows the compressor to move easily between locations and is simple to store when not in use.

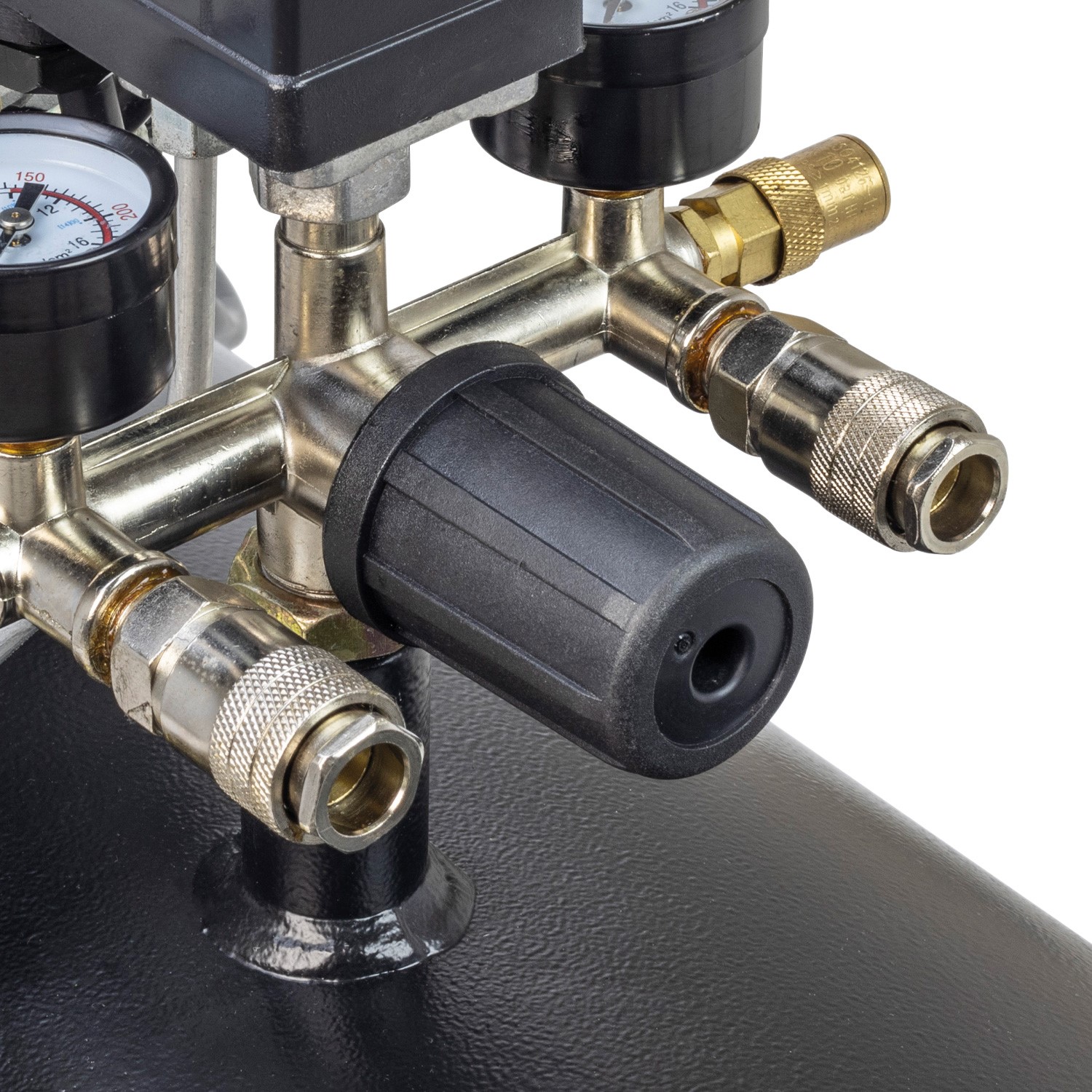

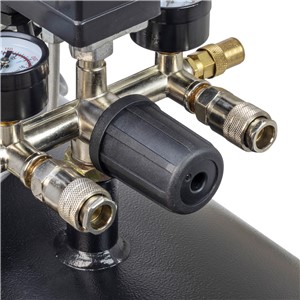

EASY-TO-OPERATE QUICK-RELEASE AIR CONNECTORS OFFER GREATER APPLICATION VERSATILITY

Fitted with 1x full pressure air connector (10bar) and 1x adjustable air connector (0 - 10bar) to optimise air requirements when in use.

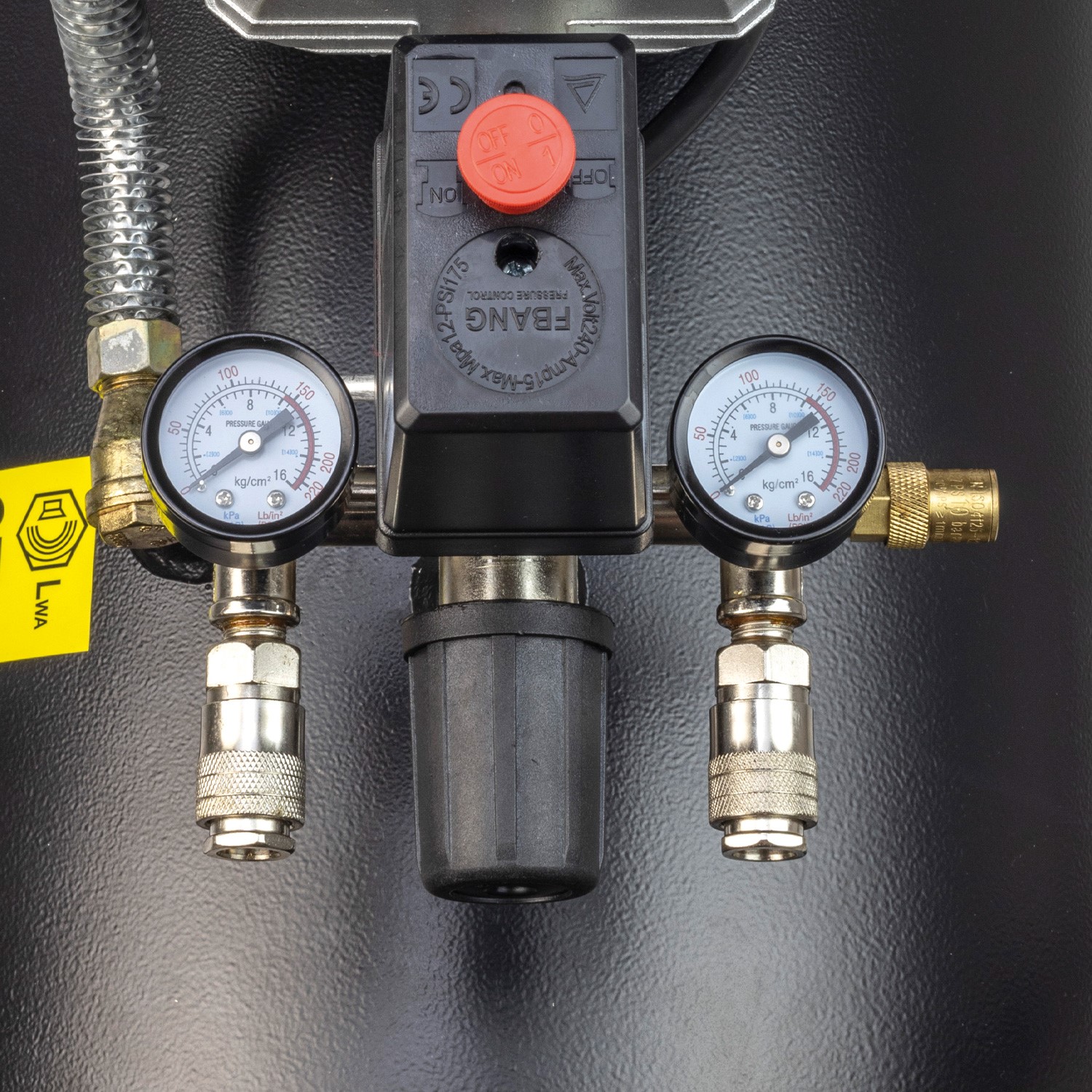

BUILT-IN TANK PRESSURE & WORKING PRESSURE GAUGE OPTIMISE AIR DELIVERY

Provides an accurate display of current pressures for enhanced user operation.

Product Video

Technical Information

ITEM NO.	06455
Input Supply	230v (13A)
Motor Power:	3hp (2.2kW)
Receiver Size:	100ltr
Piston Displacement:	14CFM (400ltr/min)
Free Air Delivery (FAD):	8CFM (226ltr/min)
Max. Air Pressure:	145psi (10bar)
Noise Level:	97dB(A)
Net Weight:	52.00kg
Gross Weight:	58.00kg
Product Dimensions:	770(H) x 1250(W) x 455mm(D)
Packaged Dimensions:	800(H) x 1080(W) x 385mm(D)
