SIP STARTMASTER DSC350B Digital Starter Charger

03586

Click on image to enlarge

SIP STARTMASTER DSC350B Digital Starter Charger

03586

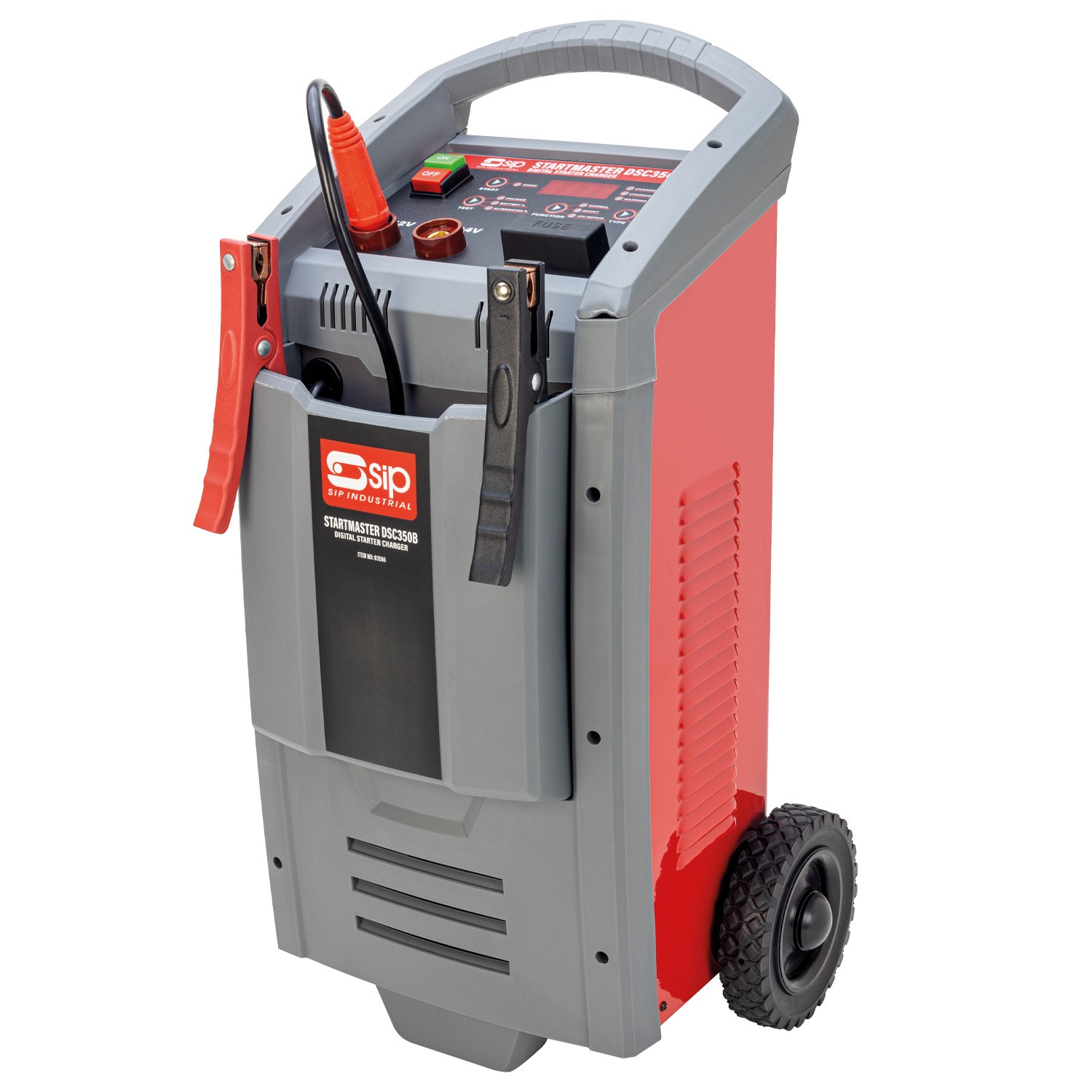

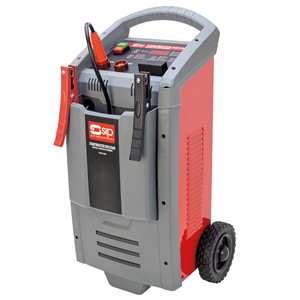

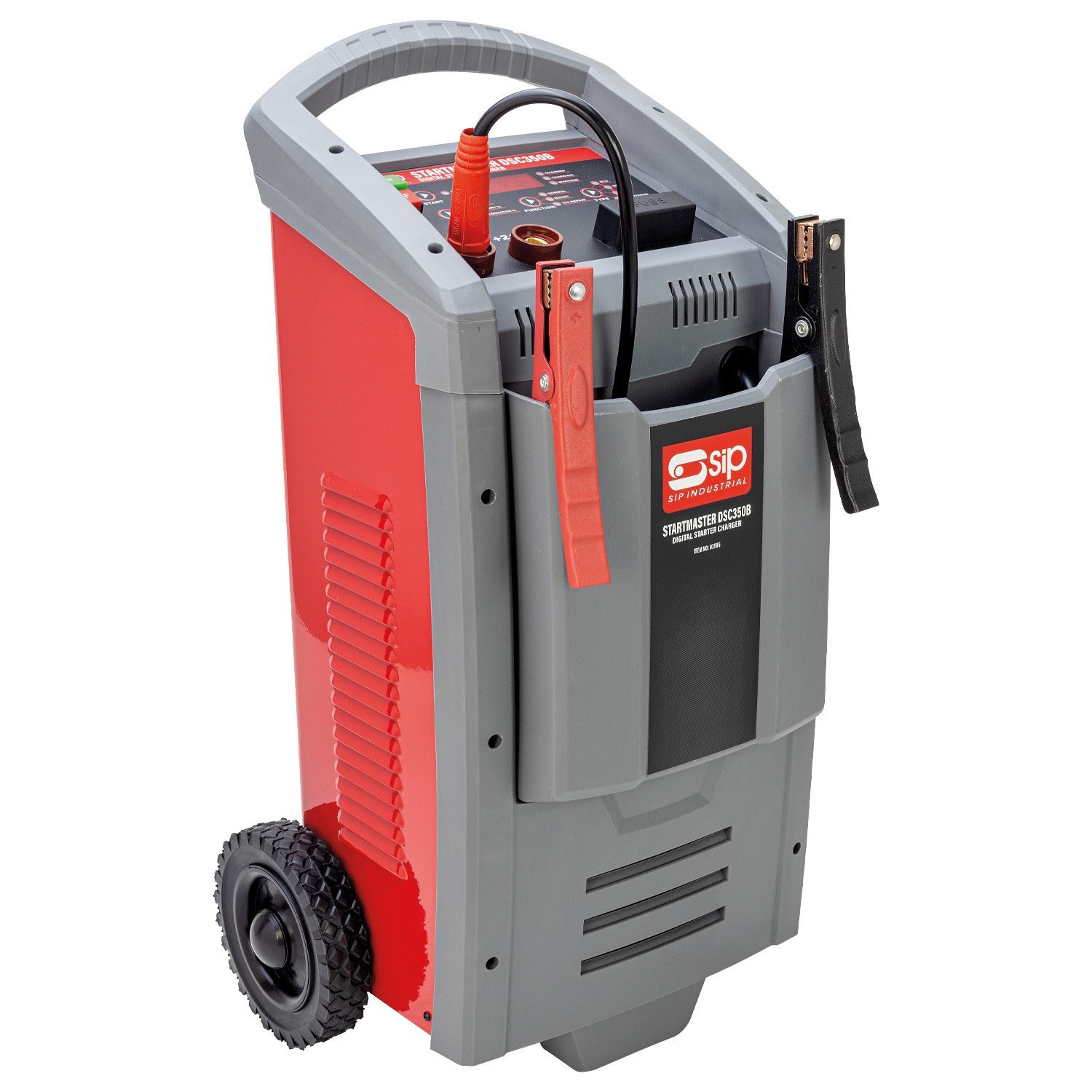

The SIP STARTMASTER DSC350B Digital Starter Charger is a powerful wheel-mounted digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types.

Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC350B makes battery charging and boosting easier, faster and safer.

KEY FEATURES

12v/24v charging voltage and 400A max. engine boost-start
Charging capacity of up to 350Ah max. rated
Microprocessor-controlled automatic 10-step charging cycle
Battery low voltage detector >1v
One-person operation allows for single user engine boost-start
LED display screen and intuitive soft touch control panel

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP STARTMASTER DSC350B Digital Starter Charger is a powerful wheel-mounted digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types.

Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC350B makes battery charging and boosting easier, faster and safer.

Applications & uses: Ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments. Suitable for charging commercial vehicle batteries.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

VERSATILE CHARGER BOOSTER SUITABLE FOR A VARIETY OF LEAD ACID & LITHIUM-ION BATTERIES

This includes WET, MF, EFB, GEL, AGM, CA and 12v LiFePO4 battery types.

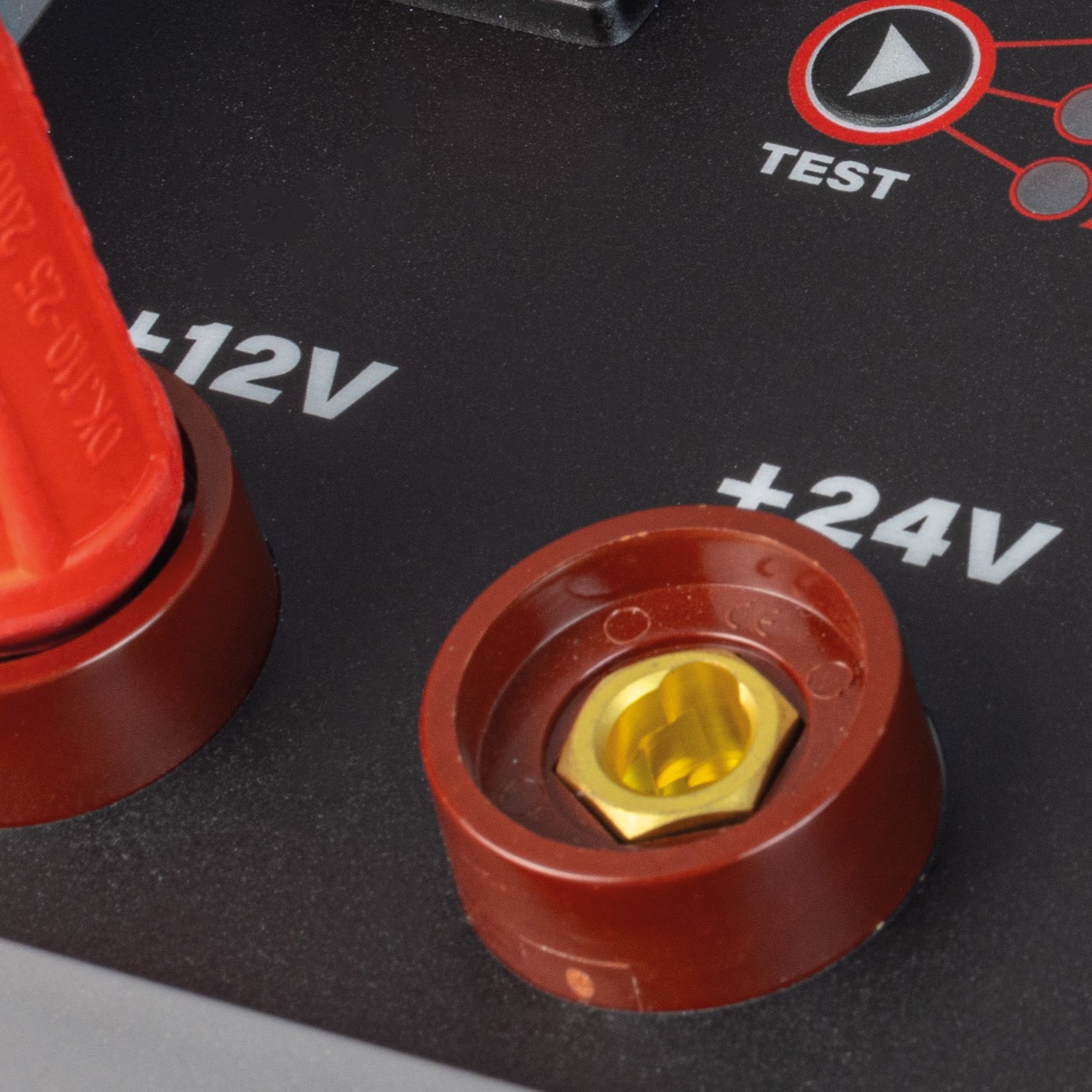

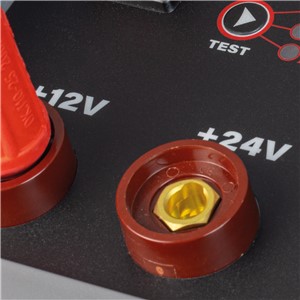

Suitable for charging 12v and 24v batteries.
Durable booster capacity for 12v and 24v batteries.

MICROPROCESSOR-CONTROLLED CHARGER BOOSTER SUPPORTS RELIABLE PERFORMANCE & FUNCTIONALITY

An intelligent 10-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
Battery auto-detect intelligently recognises 12v or 24v before beginning a charging or boosting cycle.
Low 1v detection improves chances of recovering batteries unwilling to power. Voltage will display when starter charger is switched on.
'Alternator Test' mode indicates alternator working condition before applying charging or boosting.
'One-person operation' allows for single user engine boost-start.

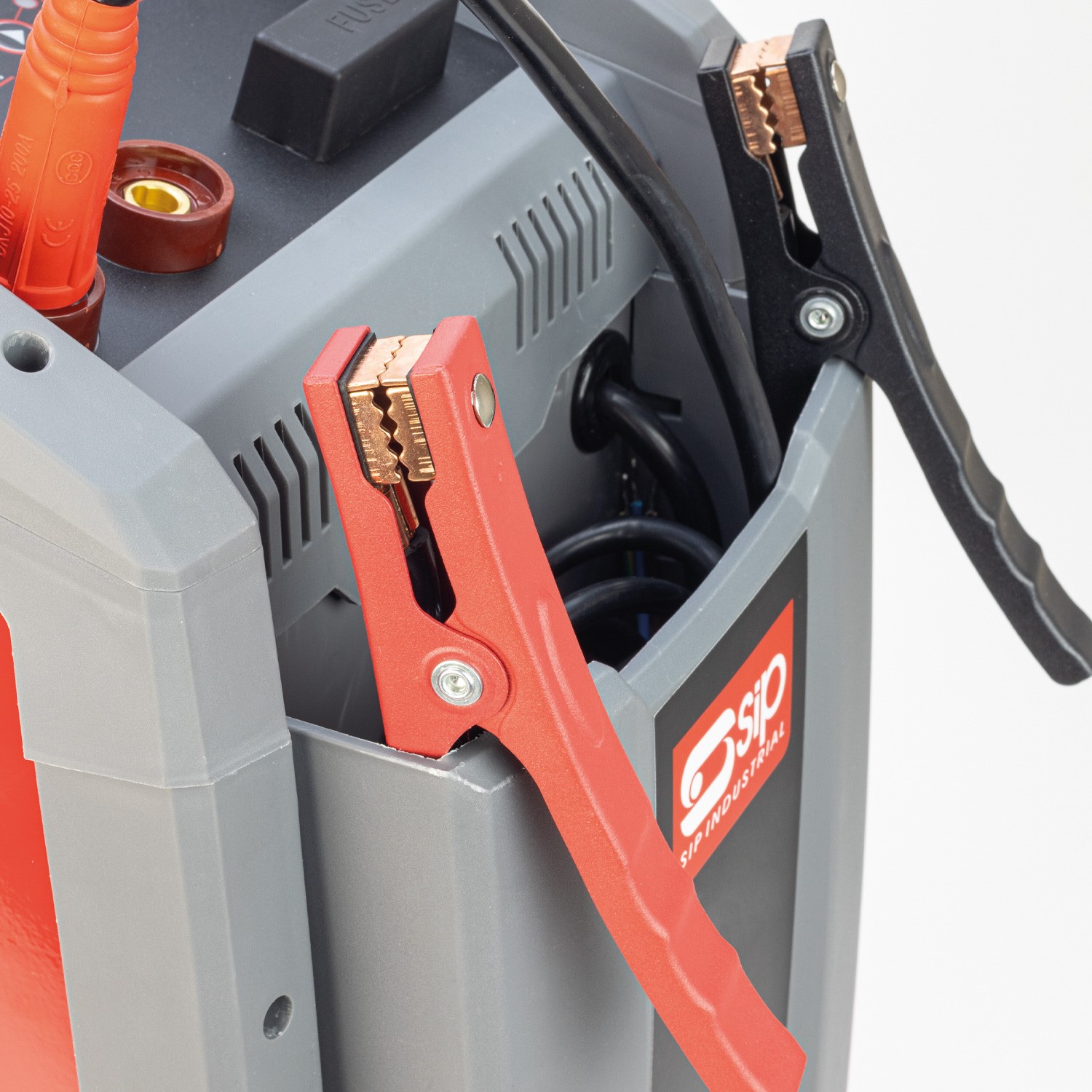

Supplied with 2x 2mtr leads and clip clamps.

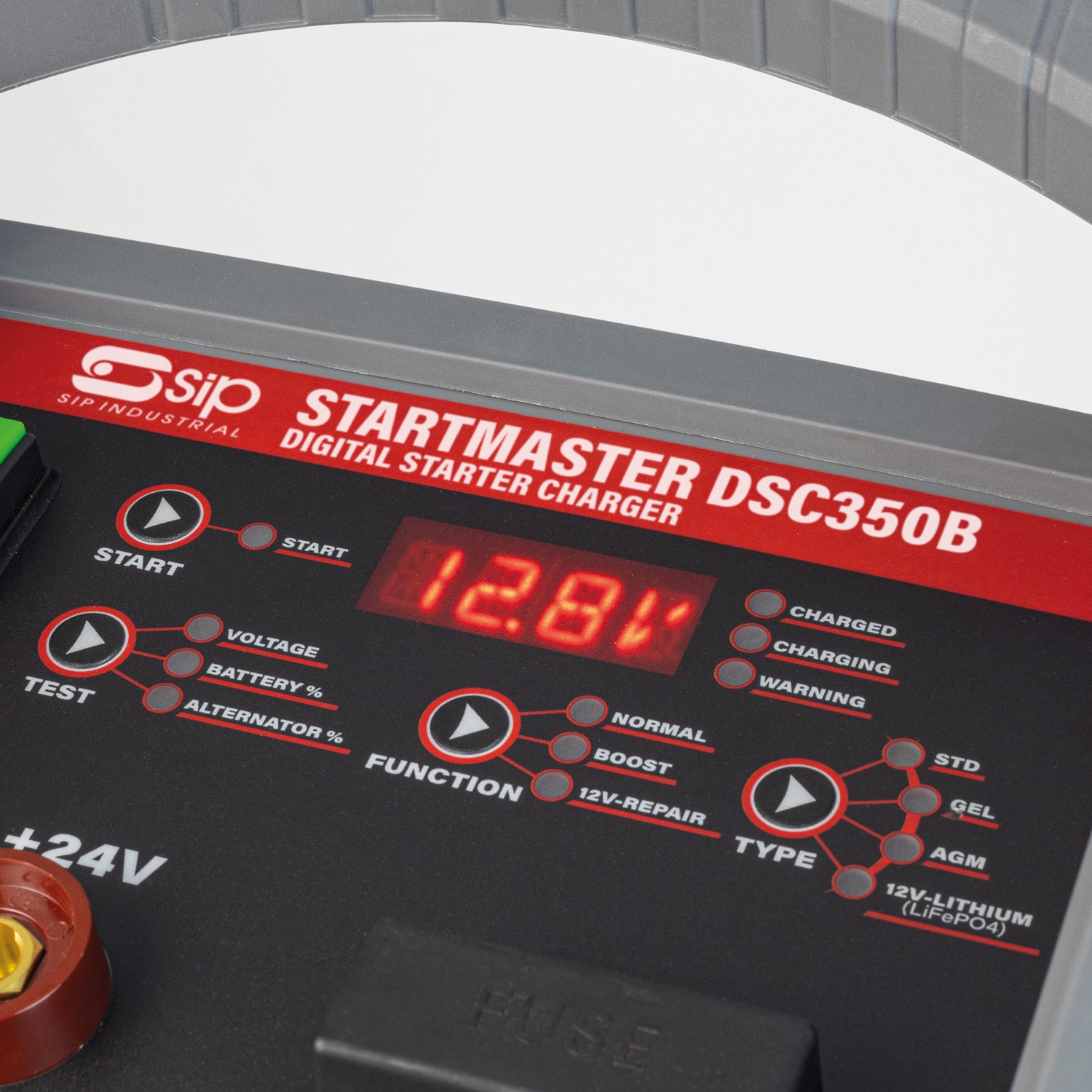

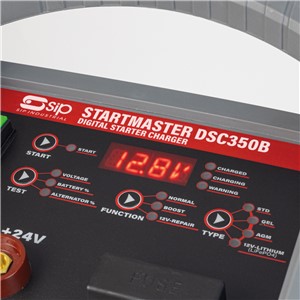

LED display screen and intuitive soft touch control panel to select charge and boost settings.

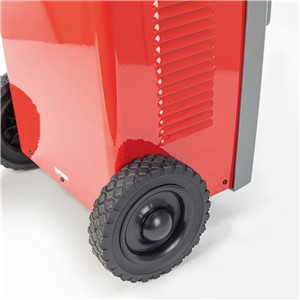

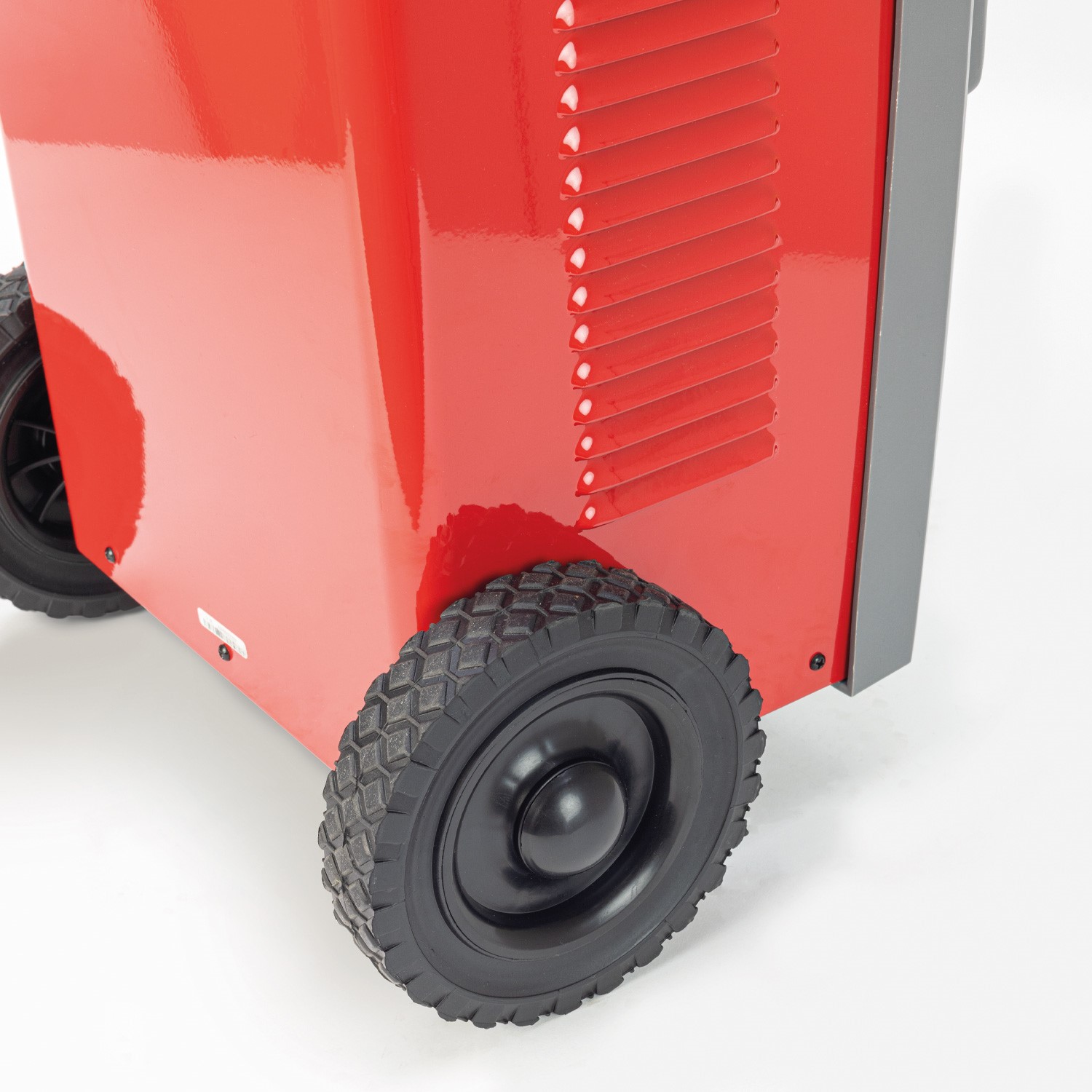

Wheel-mounted with pull handle for outstanding mobility.

BUILT-IN SAFETY & PROTECTION FEATURES MAXIMISE USER SAFETY

Anti-spark system prevents sparks when connecting the clips to the battery terminals.
Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
Fitted with an overheat alarm to prevent unit damage. This automatically restarts once cooled.

Product Video

Technical Information

ITEM NO.	03586
Input Supply:	230v 50Hz
Battery Voltage:	12v / 24v
Functions:	10-Stage Charging, Boost & Support
	CHARGING
Battery Types:	All 12v/24v Lead Acid 12v 4-cell Lithium-Ion LiFePO4
Charging Input:	Continuous; 1400w / 5A
Recommended Plug (not supplied):	230v (13A)
Charging Current:	5A - 20A
Boost Charging Current (5min max.):	35A
Battery Capacity:	350Ah
	JUMP START
Start Voltage:	>1v
Start Input (5sec):	7.5kW / 32A
Recommended Plug (not supplied):	230v (32A)
Fuse:	200A
Max. Start Current:	400A (fully discharged battery) 300A (medium charged battery)
Protection / Ambient Temperature:	IP20 / 0°C - 20°C
Net Weight:	18.69kg
Gross Weight:	21.10kg
Product Dimensions:	613(H) x 293(W) x 214mm(D)
Packaged Dimensions:	600(H) x 358(W) x 358mm(D)
