NARDI ESPRIT 0.75HP 60/4 3ltr Compressor

ESP3604

Click on image to enlarge

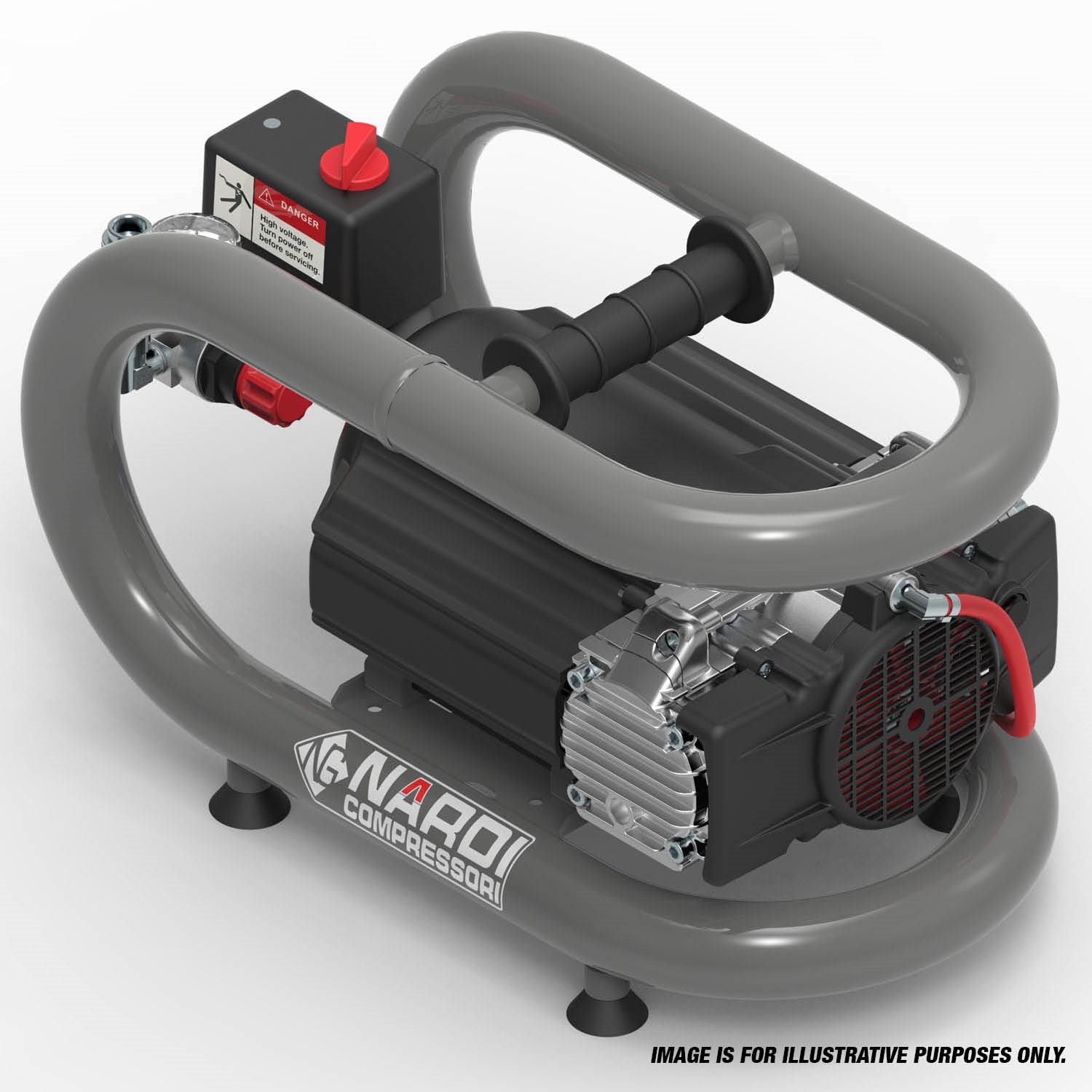

NARDI ESPRIT 0.75HP 60/4 3ltr Compressor

ESP3604

The NARDI ESPRIT 0.75HP 60/4 3ltr Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low volume and low pressure uses, including airbrushing, nailing, and stapling.

KEY FEATURES

Lightweight and compact framed design with easy carry handle
Flat-twin cylinder; direct drive crankshaft via motor shaft
High-quality oil-free pump for long life and low maintenance
Forced air cooling for an extended runtime and performance
Heavy-duty stainless steel valve plate for added durability

SIP 3-Year Standard Silver Warranty* | Find out more

Full Specification

The NARDI ESPRIT 0.75HP 60/4 3ltr Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low volume and low pressure uses, including airbrushing, nailing, and stapling.

Browse NARDI Compressors for more specialist compressor solutions.

Powerful 4-pole brushless induction motor
Lightweight and compact framed design with easy carry handle
Flat-twin cylinder; direct drive crankshaft via motor shaft
High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
Forced air cooling for an extended runtime and performance
Heavy-duty stainless steel valve plate for added durability
Pressure cut-off switch and adjustable air regulator
SIP 3-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	ESP3604
Input Supply:	230v (13A)
Motor Power:	0.50kW (0.75hp) 4-POLE 1400rpm
Receiver Size:	3ltr
Piston Displacement:	3.70CFM (105ltr/min)
Free Air Delivery (FAD):	2.59CFM (74ltr/min)
Max. Air Pressure:	145psi (10bar)
No. of Cylinders:	2 cylinders
Noise Level:	52dB(A)
Net Weight:	13.00kg
Gross Weight:	13.50kg
Product Dimensions:	280(H) x 240(W) x 450mm(D)
Packaged Dimensions:	330(H) x 310(W) x 450mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 3 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL NARDI MACHINES!

We are extremely confident that our products will offer exceptional durability, reliability, and heavy-duty performance, and to back that up we are now offering the SIP 3-Year Standard Silver Warranty across all* NARDI machines. On top of this, we offer a service-based Gold Warranty that extends the duration of your warranty for a further 24 months if purchased.

In addition, all SIP Premium Partner Brands now offer comprehensive warranties of their own!

FIND OUT MORE

*excludes accessories and consumables.
