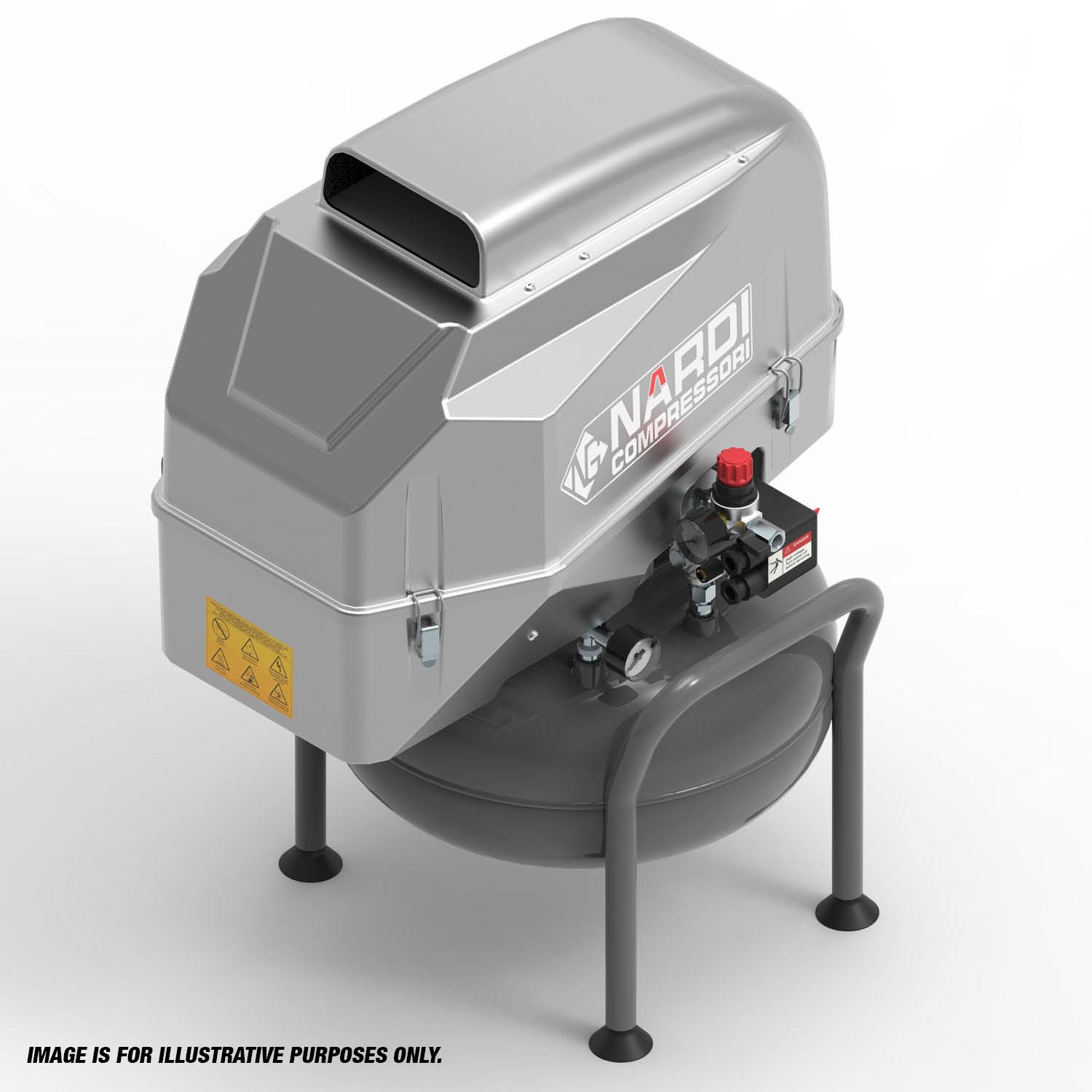

NARDI EXTREME 2 1.50HP 25ltr Compressor

EXTS25154

Click on image to enlarge

NARDI EXTREME 2 1.50HP 25ltr Compressor

EXTS25154

The NARDI EXTREME 2 1.50HP 25ltr Silenced Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low or medium pressure and low or medium flow applications.

KEY FEATURES

Low noise design perfect for noise critical situations
Lightweight, compact, and highly portable framed design
V-Twin cylinder; direct drive crankshaft via motor shaft
High-quality oil-free pump for long life and low maintenance
Air intake particle diffusion for reduced air contamination
Stainless steel fan-shaped valves for added durability

SIP 3-Year Standard Silver Warranty* | Find out more

Full Specification

The NARDI EXTREME 2 1.50HP 25ltr Silenced Direct Drive Compressor is designed with forced air cooling and a high-quality oil-free pump manufactured with robust technopolymer piston rings that offers longer life and low maintenance performance.

Ideal for low or medium pressure and low or medium flow applications.

Browse NARDI Compressors for more specialist compressor solutions.

Powerful 4-pole brushless induction motor
Low noise design perfect for noise critical situations
Lightweight, compact, and highly portable framed design
V-Twin cylinder; direct drive crankshaft via motor shaft
High-quality pump designed with robust technopolymer piston rings providing oil-free operation for long life and low maintenance performance
Concentric big end bearings for reduced vibration and increased pump life
Unique crankcase air intake particle diffusion reduces air contamination, ensuring longer life of the valve plate
Fan-shaped stainless steel valves provide long life and durability
Forced air cooling for an extended runtime and performance
Pressure cut-off switch and adjustable air regulator
SIP 3-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	EXTS25154
Input Supply:	230v (13A)
Motor Power:	1.10kW (1.50hp) 4-POLE 1400rpm
Receiver Size:	25ltr
Piston Displacement:	8.50CFM (240ltr/min)
Free Air Delivery (FAD):	5.95CFM (170ltr/min)
Max. Air Pressure:	145psi (10bar)
No. of Cylinders:	2 cylinders
Noise Level:	66dB(A)
Net Weight:	38.50kg
Gross Weight:	44.00kg
Product Dimensions:	850(H) x 430(W) x 500mm(D)
Packaged Dimensions:	720(H) x 575(W) x 520mm(D)
