SIP 3HP Double Bag Dust Collector

01956

Click on image to enlarge

SIP 3HP Double Bag Dust Collector

01956

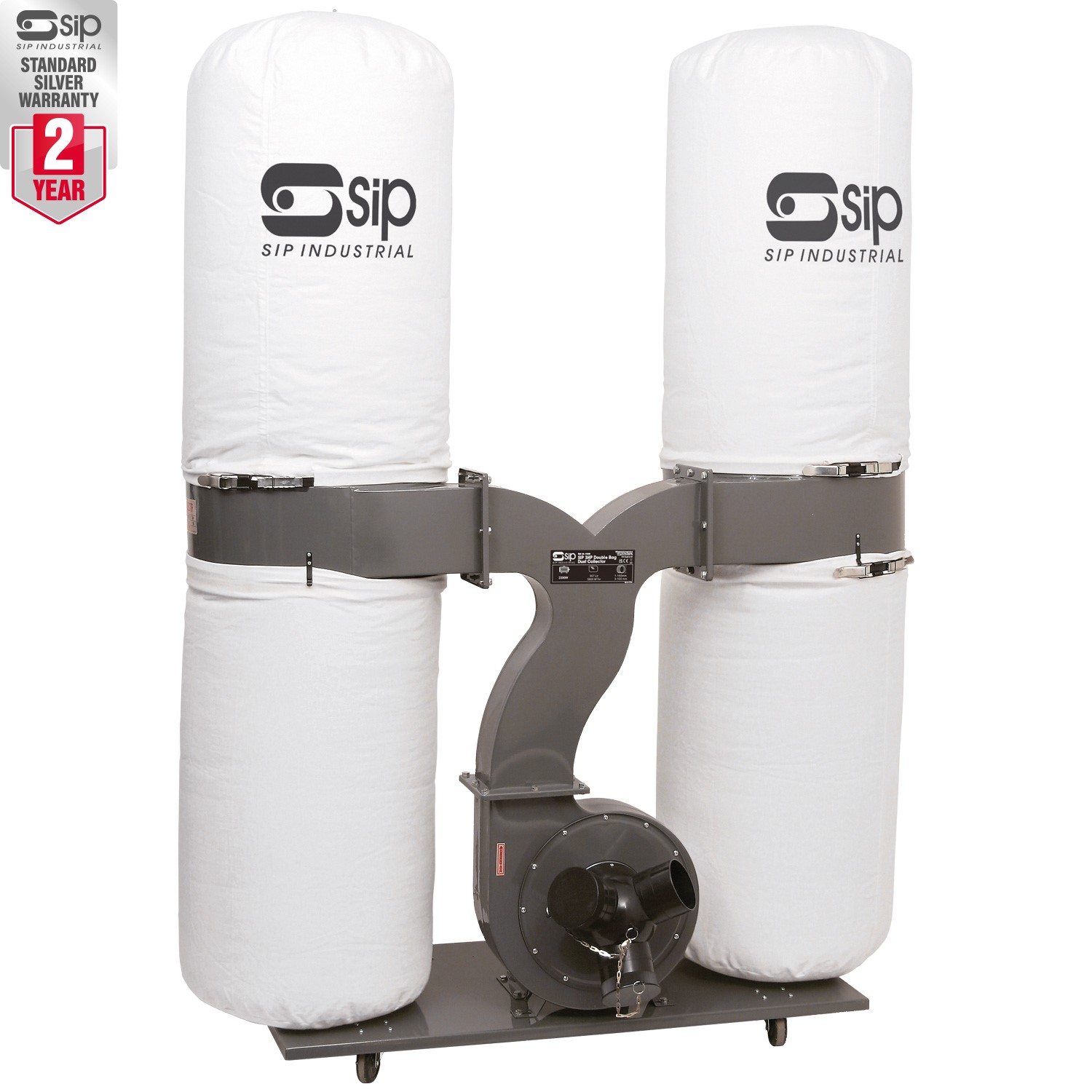

The SIP 3HP Double Bag Dust Collector offers a robust mobile collection solution ideal for a variety of environments, offering powerful airflow and effective filtration down to 5µm, suitable for all manner of particles in general woodwork applications.

Ideal for professional-grade users and workshops.

KEY FEATURES

3900mtr³/hr working airflow to 2x 153ltr collection bags
Robust brushless induction motor for high performance
Effective filtration down to 5µm for general particles
Triple inlet for running three machines with one collector
Ideal for professional-grade applications

2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 3HP Single Bag Dust Collector is built with an multiple inlet adaptor that is perfect for running more than one machine simultaneously, bolstered by a durable wheel-mounted design for easy positioning and versatility.

This, combined with powerful filtration down to 5µm, means this dust collector is suitable for all manner of general wood particles.

Browse SIP WOODWORK for more heavy-duty workshop equipment.

3900mtr³/hr working airflow to 2x 153ltr collection bags
Robust brushless induction motor for high performance
Ø 305mm impeller size with options for 1x Ø 150mm or 3x Ø 100mm inlet sizes for both single to triple outlet configurations, ideal for a range of spaces
Triple inlet adaptor runs three machines from one dust collector
Effective filtration down to 5µm for general dust particles
1µm filter cartridge sold separately; 2 required (62606)
Wheel-mounted design offers easy unit positioning
Ideal for professional-grade applications
Supplied with an inlet blanking adaptor
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	01956
Input Supply:	230v (13A)
Motor Power:	2.20kW (3.00hp)
Inlet Size:	1x Ø 150mm / 3x Ø 100mm
Impeller Size:	Ø 305mm
Collection Capacity:	2x 153ltr
Av. Airflow:	3900mtr³/hr
Filtration Level:	2x 5µm
Net Weight:	47.50kg
Gross Weight:	51.70kg
Product Dimensions:	1500(H) x 750(W) x 1900mm(D)
Packaged Dimensions:	575(H) x 575(W) x 1160mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE
