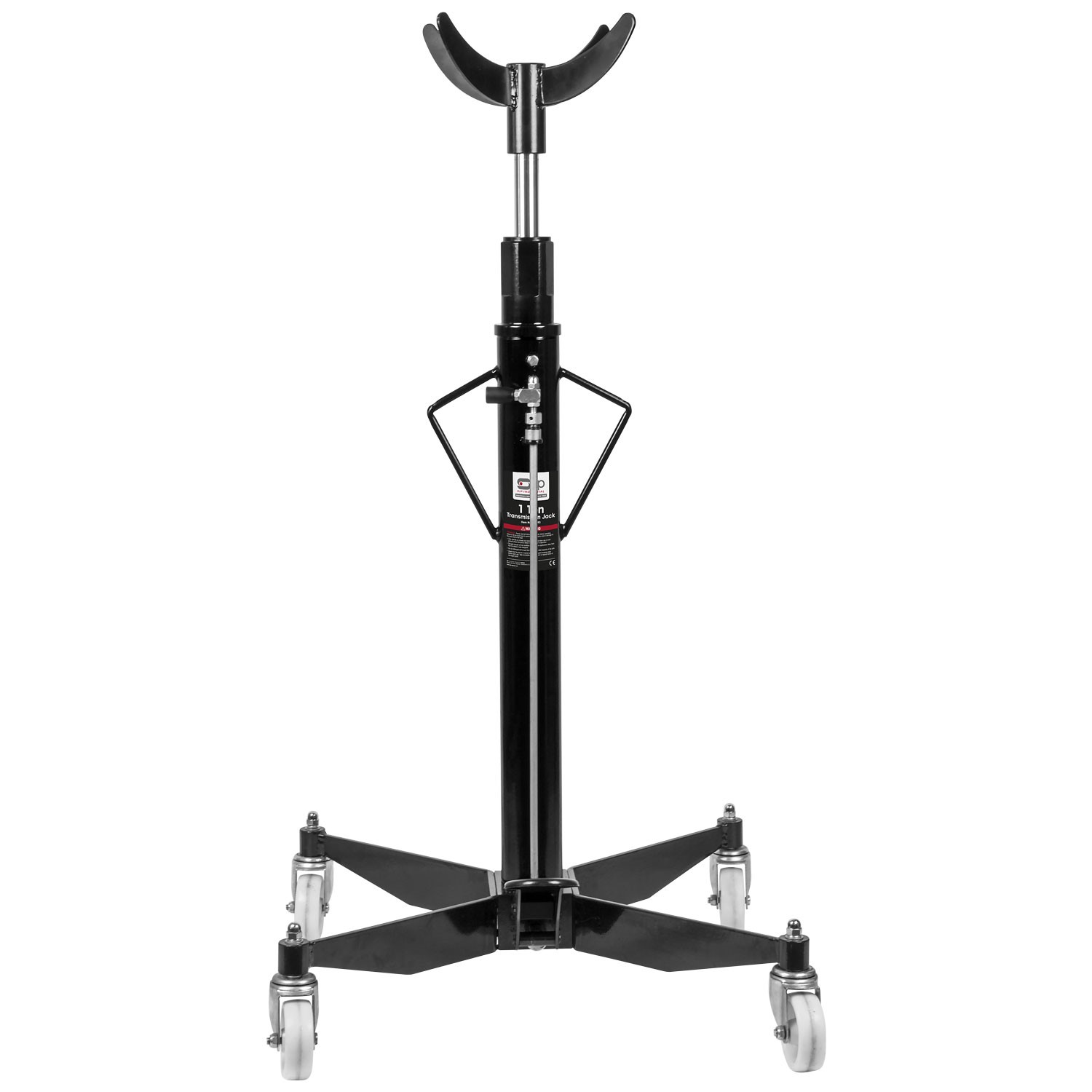

SIP 1 TON Heavy-Duty Transmission Jack w/ Adaptor

03693

SIP 1 TON Heavy-Duty Transmission Jack w/ Adaptor03693SIP 1 TON Heavy-Duty Transmission Jack w/ AdaptorSIP 1 TON Heavy-Duty Transmission Jack w/ AdaptorSIP 1 TON Heavy-Duty Transmission Jack w/ AdaptorSIP 1 TON Heavy-Duty Transmission Jack w/ Adaptor
03693
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

The SIP 1 TON Heavy-Duty Transmission Jack with Transmission Adaptor provides safe and adjustable lifting through a robust design with a large footprint to distribute weight evenly and provide secure support, plus 4 swivel castors for simple mobility.

This transmission jack is perfect for the installation or removal of transmissions and gearboxes in a variety of garage and workshop environments.

KEY FEATURES

  •  1258mm to 2145mm lifting height range

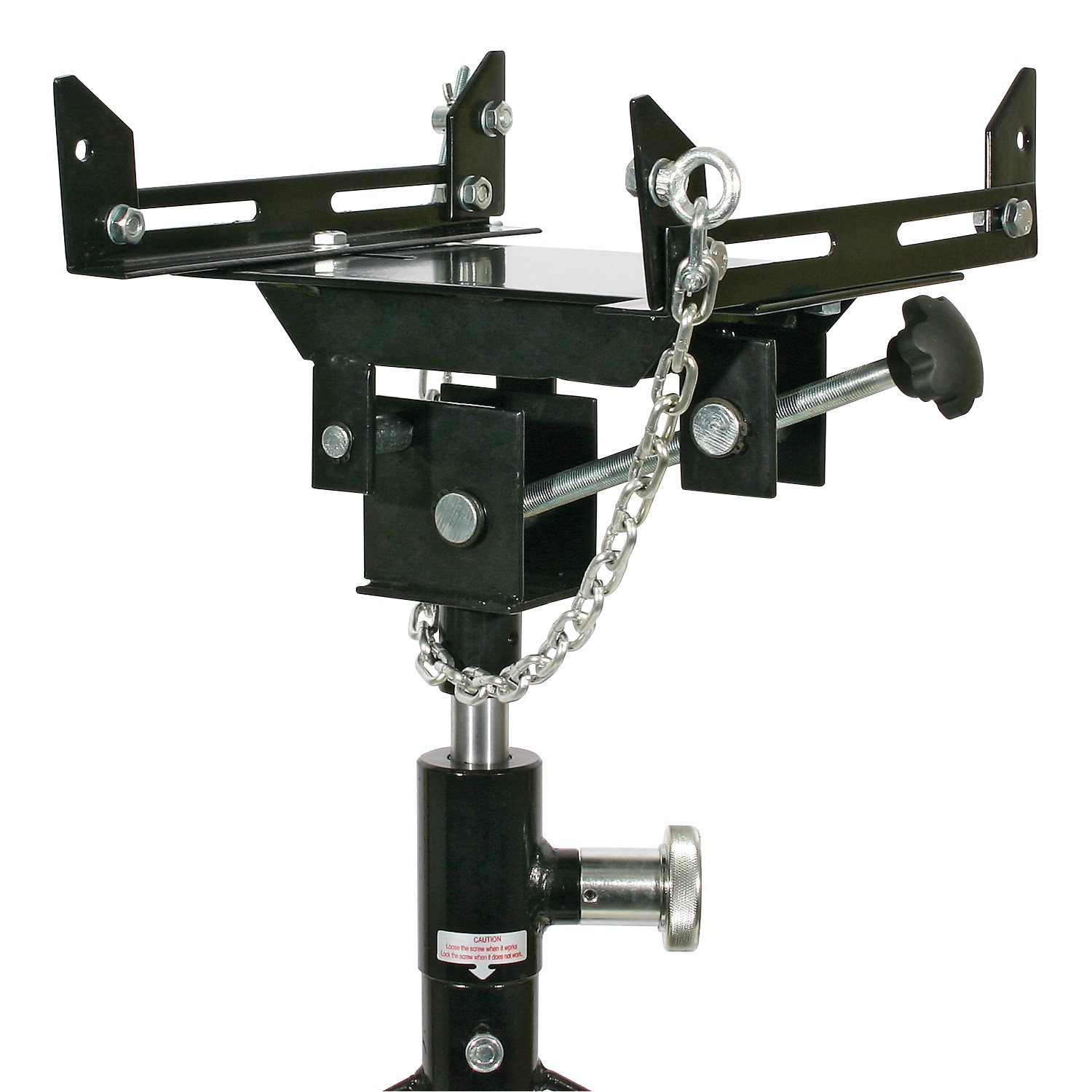

  •  Supplied with a FREE SIP Transmission Adaptor
  •  Ideal for raising or lowering transmissions and gearboxes

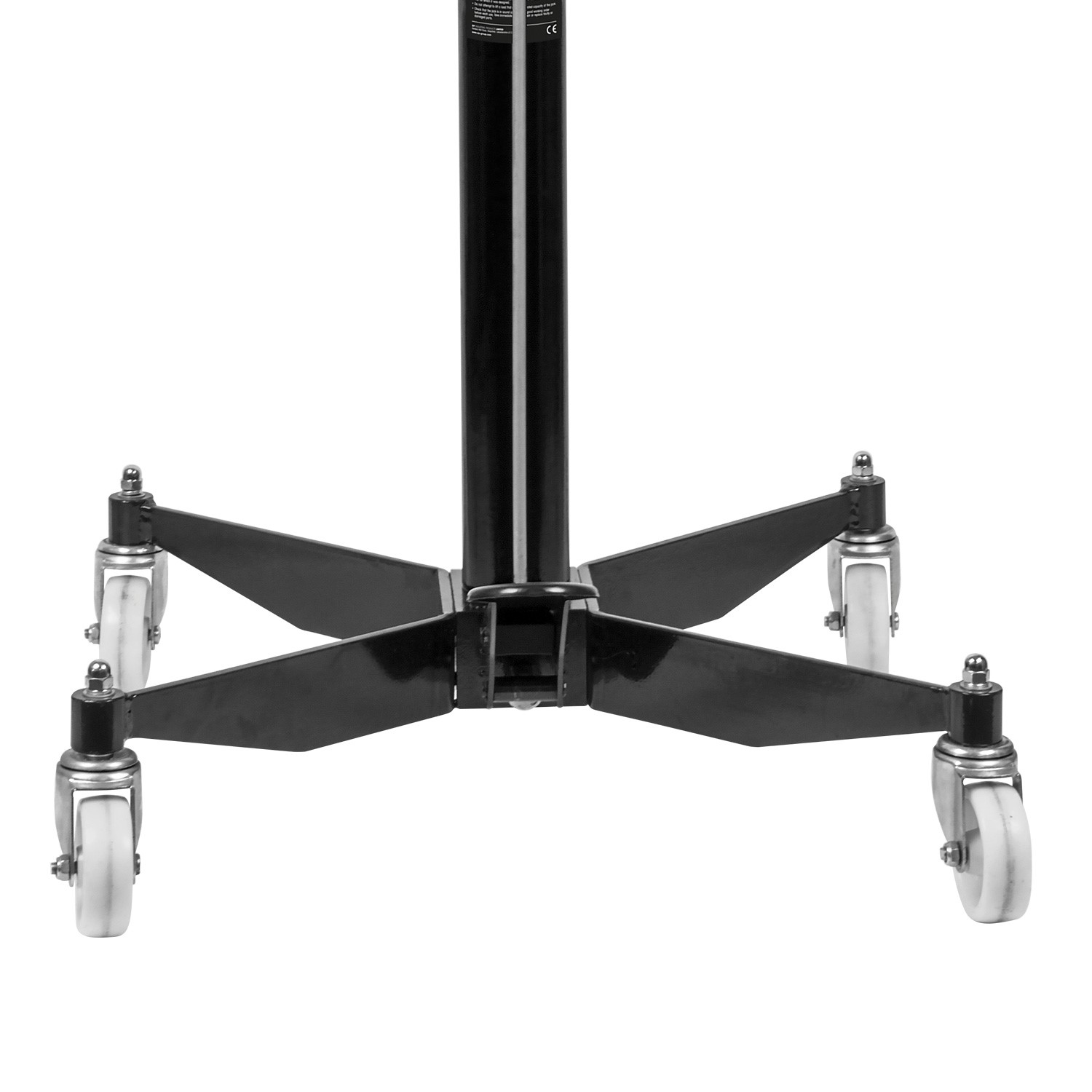

  •  Heavy-duty base with swivel castors for easy positioning
  •  Large footprint provides stability and even distribution

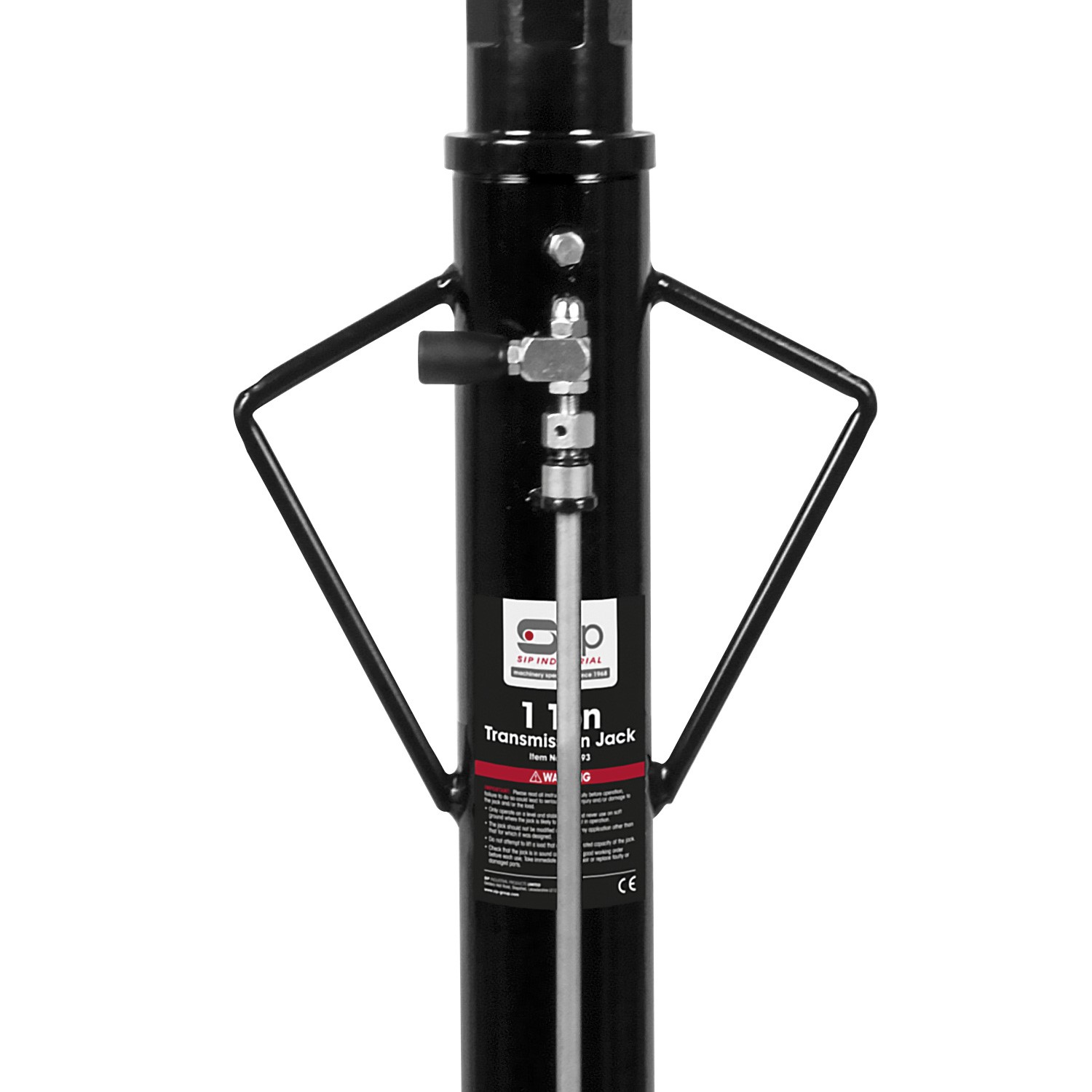

  •  Integrated spring-loaded release valve

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 1 TON Heavy-Duty Transmission Jack with Transmission Adaptor provides safe, efficient and adjustable lifting up to a max. height of 2145mm for versatile application use in a variety of automotive maintenance and repair applications.

A large heavy-duty base with 4 legs helps to provide vital stability and helps distribute the weight evenly. These are mounted on 4 heavy-duty swivel castors to ensure that positioning the jack and manoeuvring it throughout a garage or workshop is simple.

This transmission jack is perfect for the installation or removal of transmissions, gearboxes and assemblies in a variety of garage and workshop environments.

  • 1258mm to 2145mm lifting height range
  • Supplied with a FREE SIP Transmission Adaptor
  • Ideal for raising or lowering transmissions and gearboxes
  • Heavy-duty base with swivel castors for easy positioning
  • Large footprint provides stability and even distribution
  • Integrated spring-loaded release valve
  • SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO. 03693
Weight Capacity: 1 TON
Min. Lifting Height: 1258mm
Max. Lifting Height: 2145mm
Quick-Lift System: No
Net Weight: 65.00kg
Gross Weight: 75.00kg
Product Dimensions:
Packaged Dimensions: 280(H) x 1500(W) x 345mm(D)
