SIP 1 TONNE Mobile Gantry Crane Frame

03849

Click on image to enlarge

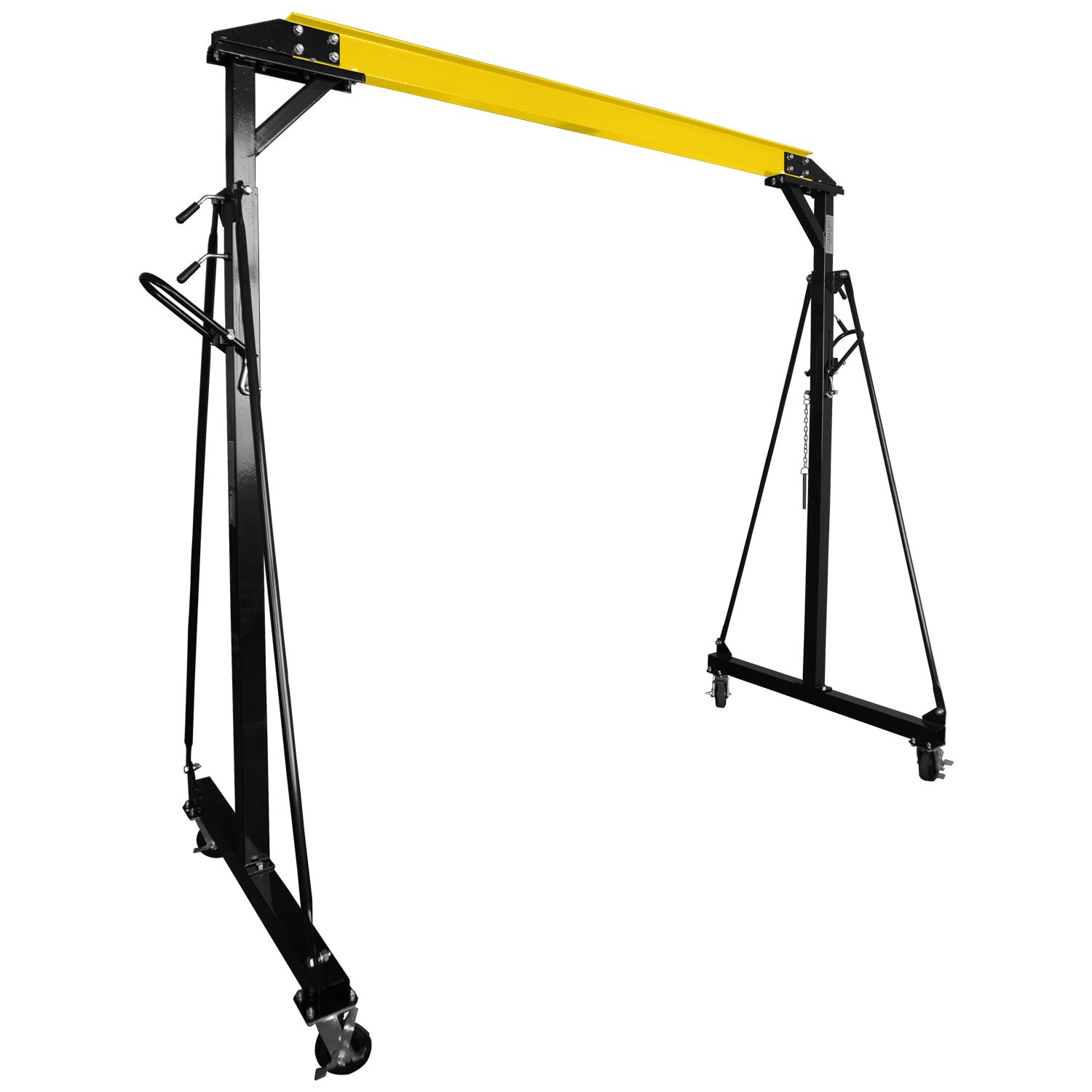

SIP 1 TONNE Mobile Gantry Crane Frame

03849

The SIP 1 TONNE Mobile Gantry Crane Frame utilises an adjustable height system and a heavy-duty painted steel construction with 'I' section crossbeam, ensuring it is ideal for a versatile range of demands, particularly alongside the Beam Trolley and Chain Block.

Suitable for use in a variety of applications including automotive repair and maintenance, servicing, material handling and manufacturing requirements.

KEY FEATURES

1 TONNE safe workload for versatile performance
Adjustable height range from min. 2.4mtr to max. 3.6mtr
Mobile gantry crane frame ideal for garages and workshops

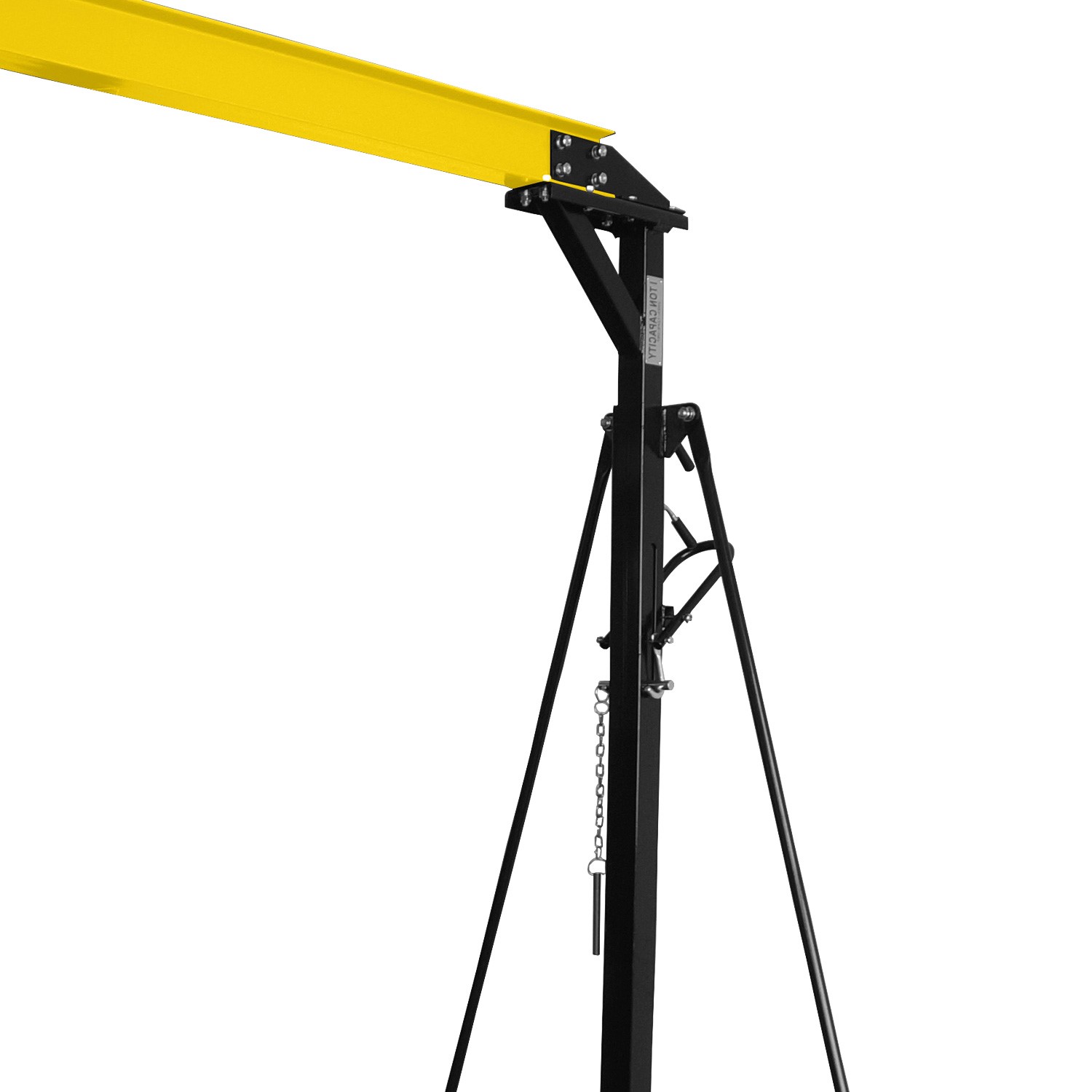

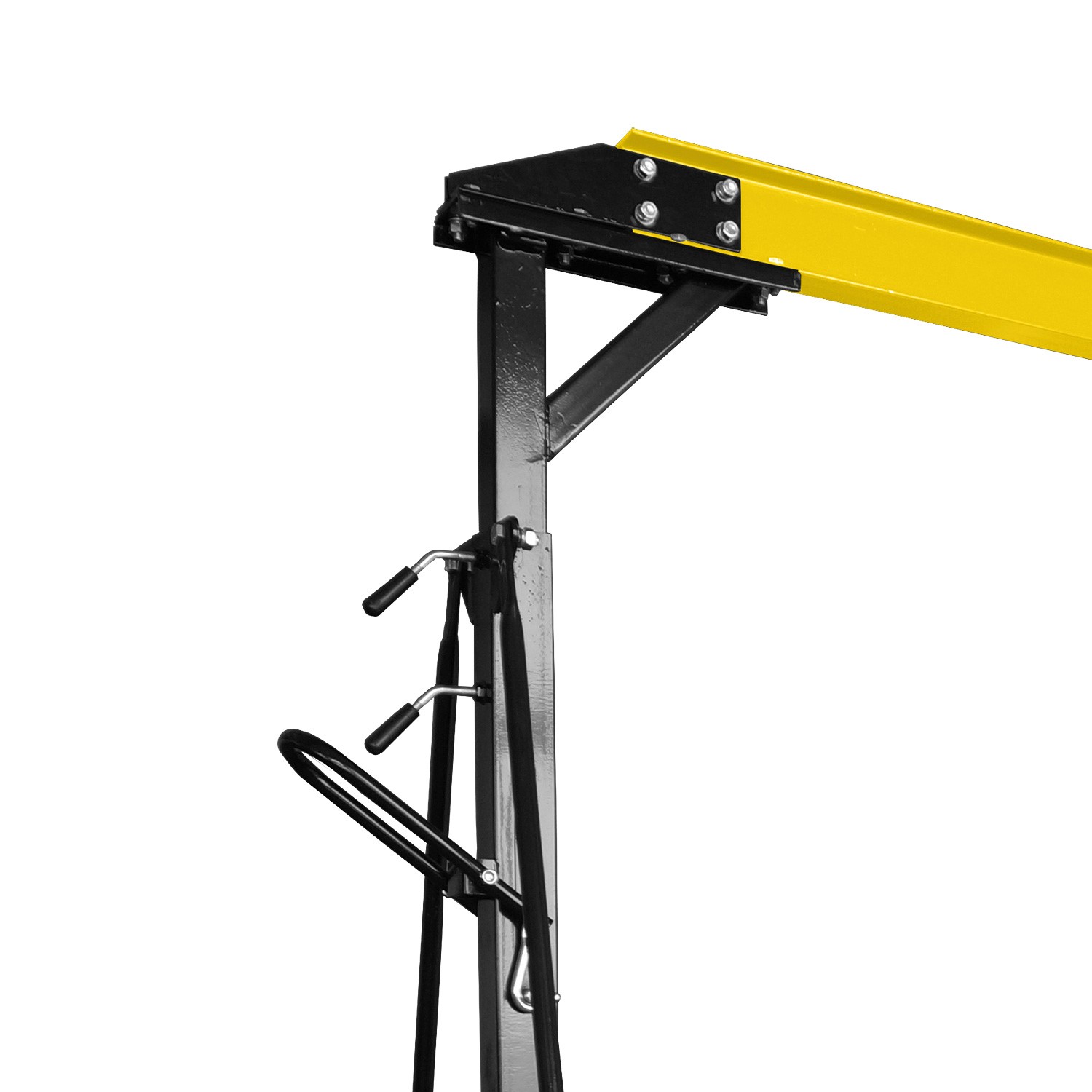

Heavy-duty painted steel design with 'I' section crossbeam
4 industrial-grade lockable swivel castors for positioning
Ideal for repair, maintenance, servicing and handling

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 1 TONNE Mobile Gantry Crane Frame utilises an adjustable height system and a heavy-duty painted steel construction with 'I' section crossbeam, ensuring it is ideal for a versatile range of demands in garage or workshop environments.

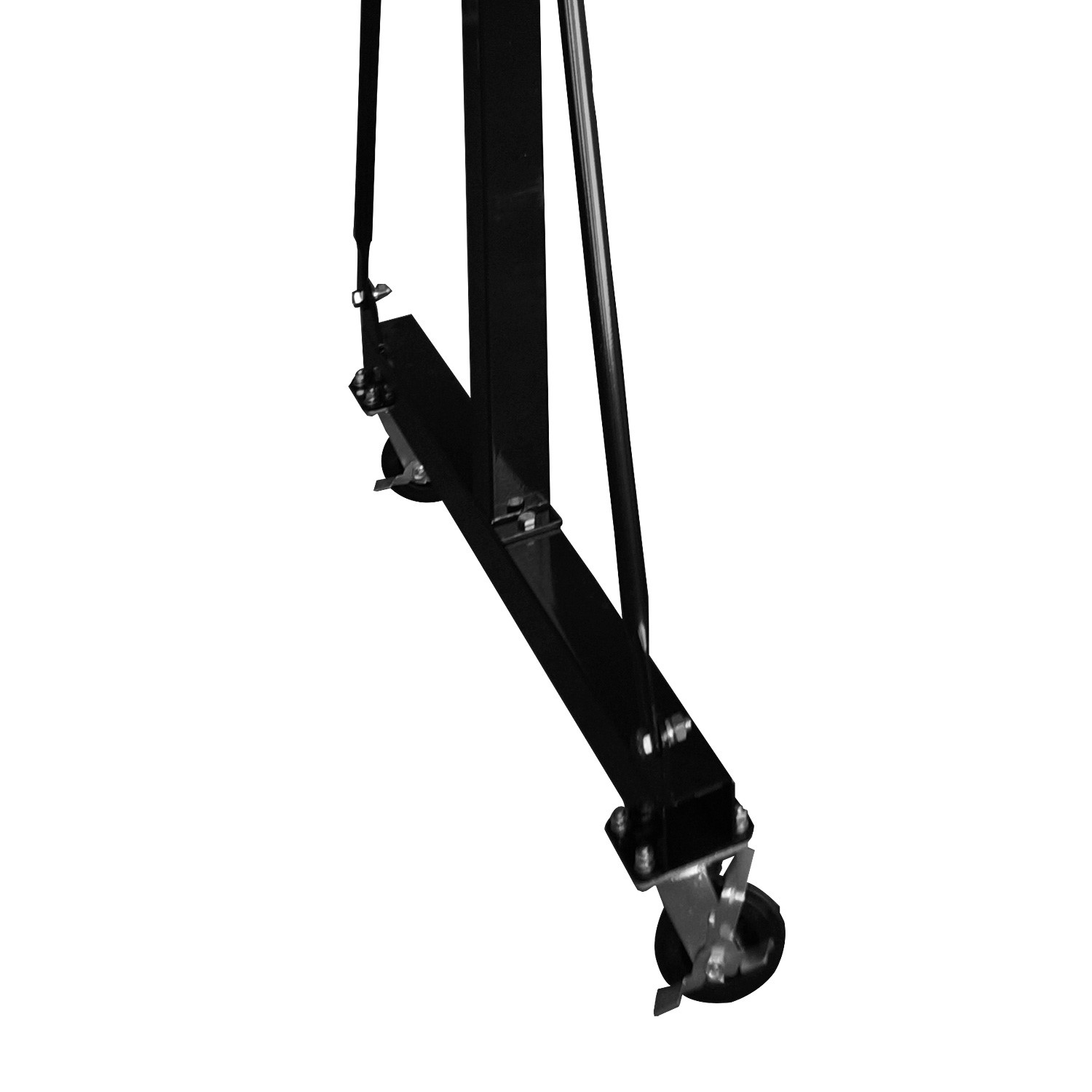

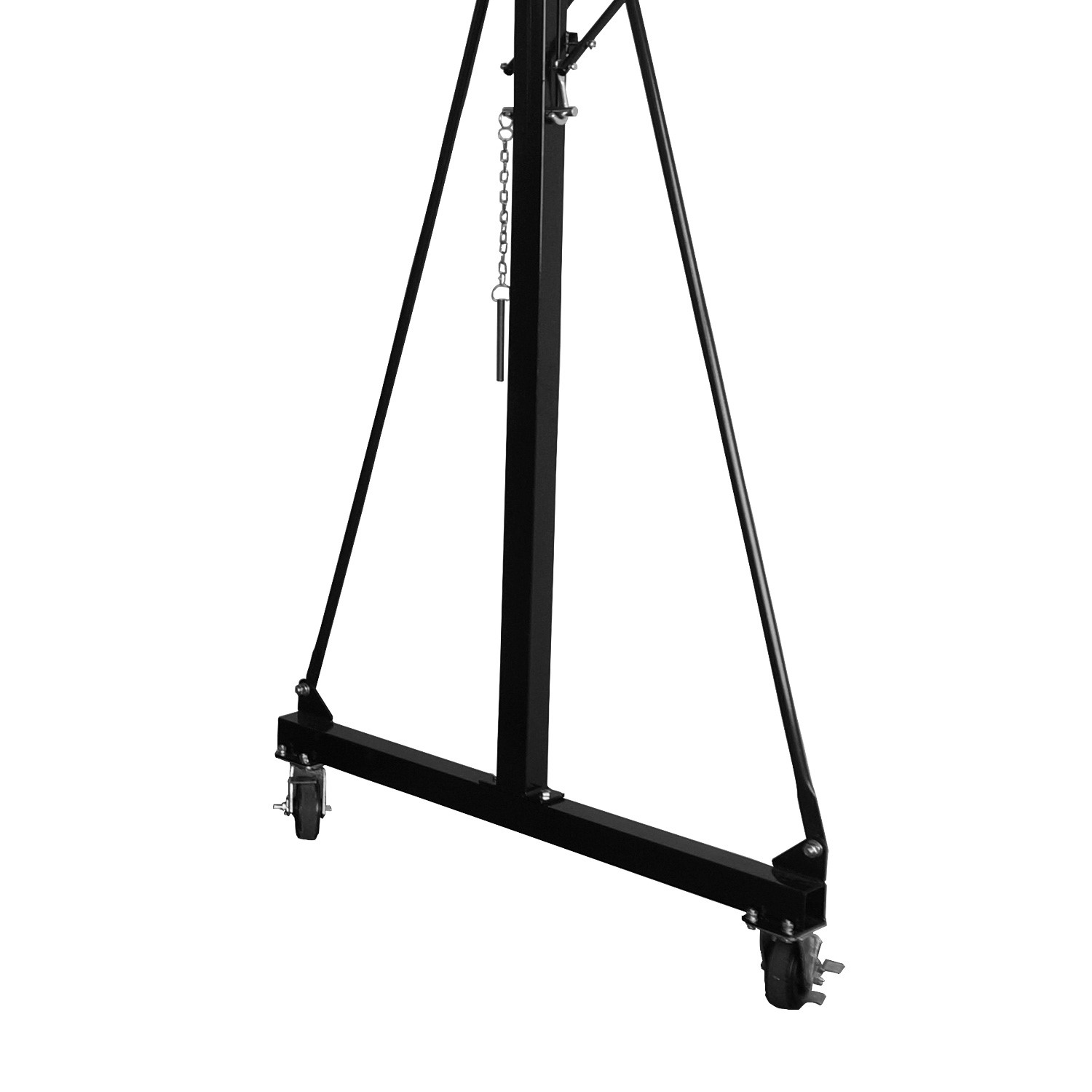

Mounted on 4 lockable swivel castors, this frame can be easily manoeuvred and positioned by a single operator for added user safety.

This frame is suitable for a versatile range of demands, particularly alongside the SIP Beam Trolley and SIP Chain Block accessories, including in automotive repair and maintenance, servicing, material handling and manufacturing requirements.

1 TONNE safe workload for versatile performance
Adjustable height range from min. 2.4mtr to max. 3.6mtr
Mobile gantry crane frame ideal for garages and workshops
Heavy-duty painted steel design with 'I' section crossbeam
4 industrial-grade lockable swivel castors for positioning
Ideal for repair, maintenance, servicing and handling
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03849
Safe Working Load:	1 TONNE
Min. Frame Height:	2.4mtr
Max. Frame Height:	3.6mtr
Full Frame Width:	2.4mtr
Net Weight:	128.00kg
Gross Weight:	145.00kg
Product Dimensions:	2550(H) x 1200(W) x 2535mm(D)
Packaged Dimensions:	200(H) x 500(W) x 2370mm(D)
