SIP 1.8mm Mirage HVLP Suction Spray Gun

02136

Click on image to enlarge

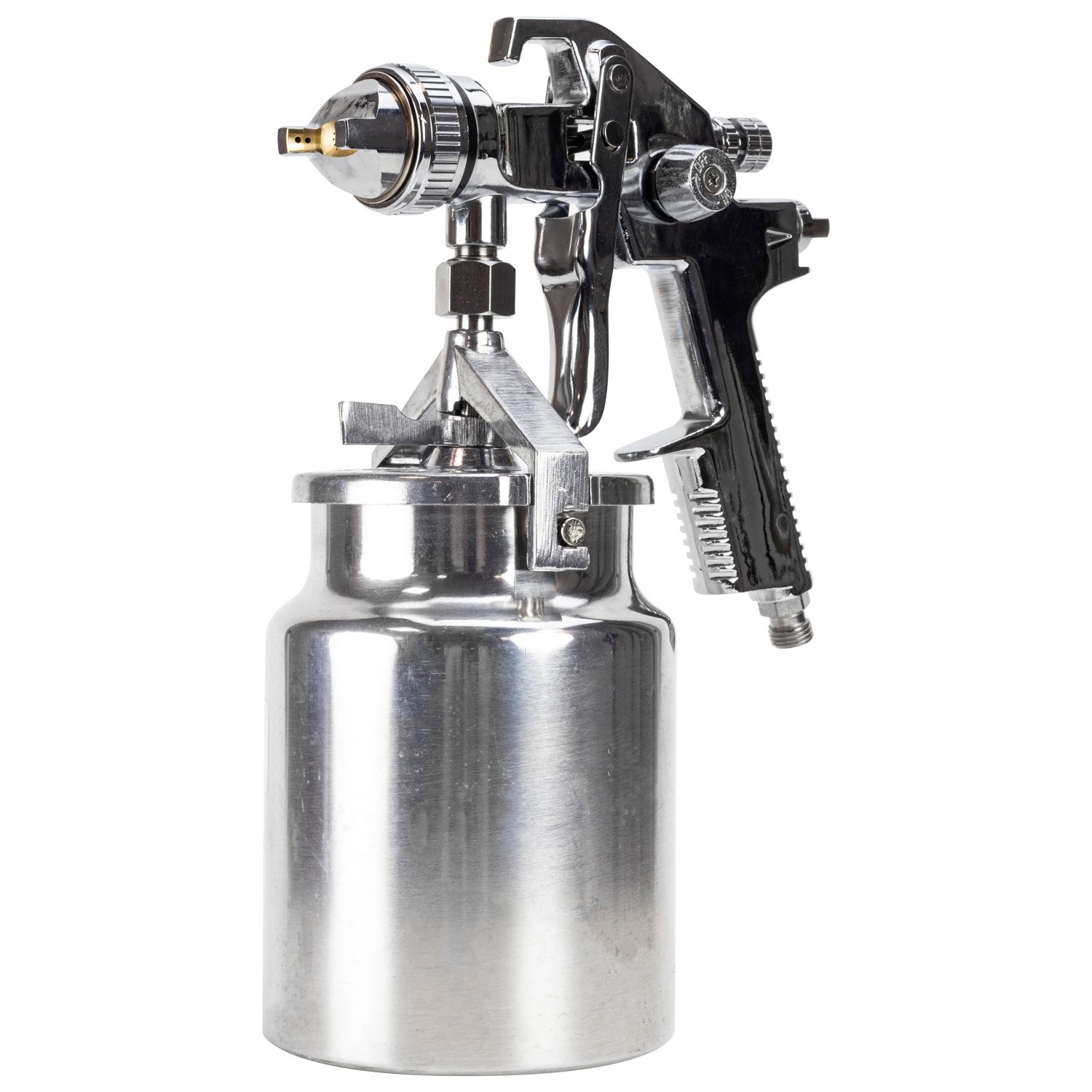

SIP 1.8mm Mirage HVLP Suction Spray Gun

02136

The SIP 1.8mm Mirage HVLP Suction Spray Gun is a powerful air-powered spray gun designed for optimal versatility and control when spraying in a variety of garage and workshop environments. This includes applying paints plus a selection of other mediums in automotive, woodwork, metalwork and industrial applications.

This gun is extremely versatile thanks to fully adjustable fluid output and fan control, and is particularly suited for high volume and low pressure requirements.

Suitable for water-based paints.

KEY FEATURES

Low pressure suction-fed spray with 1.8mm nozzle
1ltr locking paint cup provides a good paint reserve
Fully adjustable fluid output and fan control for versatility
Ideal for high volume and low pressure requirements
Suitable for water-based paint

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 1.8mm Mirage HVLP Suction Spray Gun is a powerful air-powered spray gun designed for optimal versatility and control when spraying in a variety of garage and workshop environments. This includes applying paints plus a selection of other mediums in automotive, woodwork, metalwork and industrial applications.

Built for maximum versatility, this spray gun is designed with fully adjustable fluid output and fan control. A 1ltr locking paint cup provides a good reserve for less refilling and reduced interruption. This helps to match the output to the desired specification.

It also offers greater paint control, applying fast and even coats on larger surfaces, as well as hard-to-reach areas unsuitable for brushes and rollers. SIP Spray Guns offer fine spray patterns suitable for achieving smooth and professional-looking finishes.

This gun is particularly well-suited to high volume and low pressure requirements.

Professional suction-fed spray gun with 1.8mm nozzle
14.7CFM (416ltr/min) average working air consumption
36psi (2.5bar) - 50psi (3.5bar) max. operating pressure
1ltr locking paint cup provides a good reserve for less refill interruption
Perfect for greater paint control, applying fast and even coats on large surfaces, and hard-to-reach areas unsuitable for brushes or rollers
Fully adjustable fluid output and fan control for added versatility and matching output to the required application
Ideal for high volume and low pressure requirements
Suitable for water-based paint
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	02136
Feed Type:	Suction
Nozzle Diameter:	Ø 1.8mm
Operating Pressure:	36psi (2.5bar) - 50psi (3.5bar)
Av. Air Consumption:	14.70CFM (416ltr/min)
Paint Cup Capacity:	1ltr
Water Based Paint:	Yes
Air Inlet:	1/4" BSP
Net Weight:	1.33kg
Gross Weight:	1.34kg
Product Dimensions:	125(H) x 125(W) x 300mm(D)
Packaged Dimensions:	180(H) x 340(W) x 140mm(D)
