SIP 10" Professional Cast Iron Table Saw

01332

Click on image to enlarge

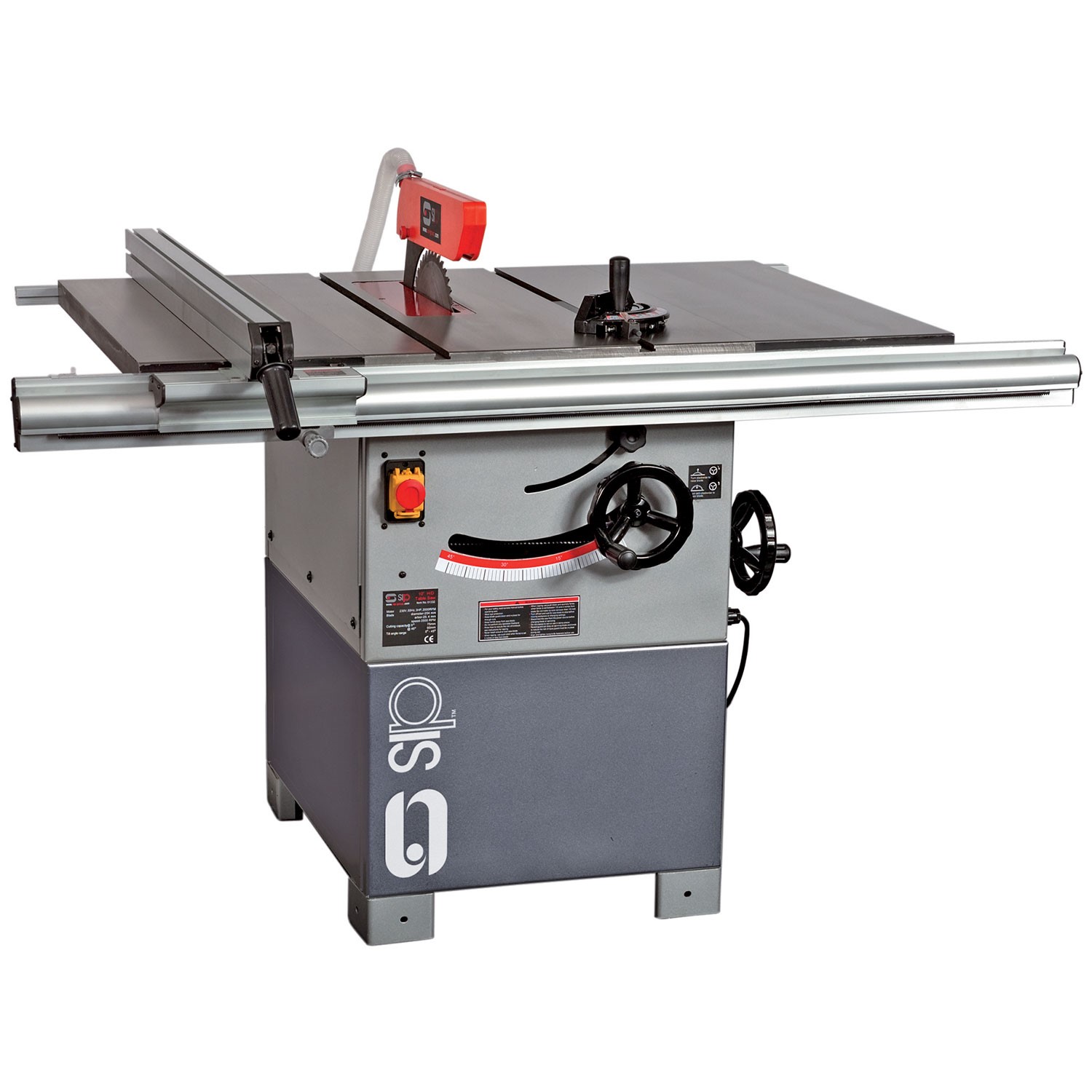

SIP 10" Professional Cast Iron Table Saw

01332

The SIP 10" Professional Cast Iron Table Saw is a must for any good woodworking workshop, offering easy ripping, cross cutting, miter cuts, bevelling, and sheet preparation through a combination of large and adjustable work surfaces suitable for all applications.

Designed for trade and professional woodwork applications.

KEY FEATURES

53mm @ 45° and 75mm @ 90° maximum depth of cut
10" TCT rise and fall blade with fine precision
1170mm x 800mm table size using two extensions
Rip fence with 'Quick-Lock' micro adjustment
T-slotted cast mitre guide and push stick

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

Having a powerful table saw in the arsenal is essential for all woodworking workshops, providing a versatility unmatched by most. The SIP 10" Professional Cast Iron Table Saw gives you exceptional performance regardless of the cut, whether ripping, cross cutting, miter, bevelling, or preparing a wood sheet.

This is made easy not only by the power of the saw and the high-quality blade within, but the large working surface that the saw offers, with a table and 2 extensions to amount to a 1170mm x 800mm total area, perfect for timber, logs, and more of all sizes.

Browse SIP WOODWORK for more woodworking and woodturning essentials.

53mm @ 45° and 75mm @ 90° maximum depth of cut
10" TCT rise and fall blade with lock for fine precision
Powerful induction motor provides heavy-duty performance

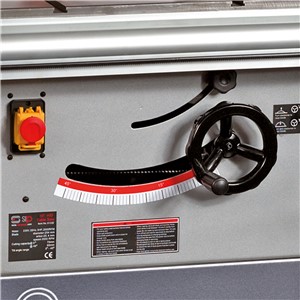

Fitted with an accurate 0° to 45° arbor with blade lock
560mm x 800mm standard table size for a large area for all wood sizes, which can be enhanced through two supplied extensions for total of 1170mm x 800mm

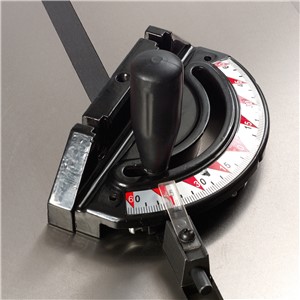

T-slotted heavy-duty cast iron mitre guide and push stick

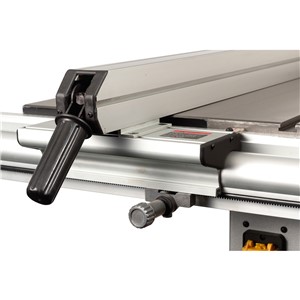

Quick adjustment rip fence with Quick-Lock micro adjustment
Heavy-duty cabinet stand included for improved stability
Optional wheel kit available; sold separately
Integrated NVR switch for added safety
SIP 2-Year Standard Silver Warranty

Product Video

Technical Information

ITEM NO.	01332
Input Supply:	230v (16A)
Motor Power:	2.2kW (3hp)
Blade Tilting:	to left 45°
Depth of Cut @ 45°:	53mm
Depth of Cut @ 90°:	75mm
Standard Table Size:	560mm x 800mm
Extended Table Size:	1170mm x 800mm
Blade to Fence Size:	1060mm
Blade Diameter:	Ø 254mm
Blade Bore Size:	25.4mm
Blade Speed:	3500rpm
Table Height:	845mm
Net Weight:	177.00kg 12.00kg
Gross Weight:	197.00kg 13.50kg
Product Dimensions:
Packaged Dimensions:	620(H) x 825(W) x 625mm(D) 190(H) x 350(W) x 1535mm(D)
