SIP 10 TON Shop Bench Press

03650

Click on image to enlarge

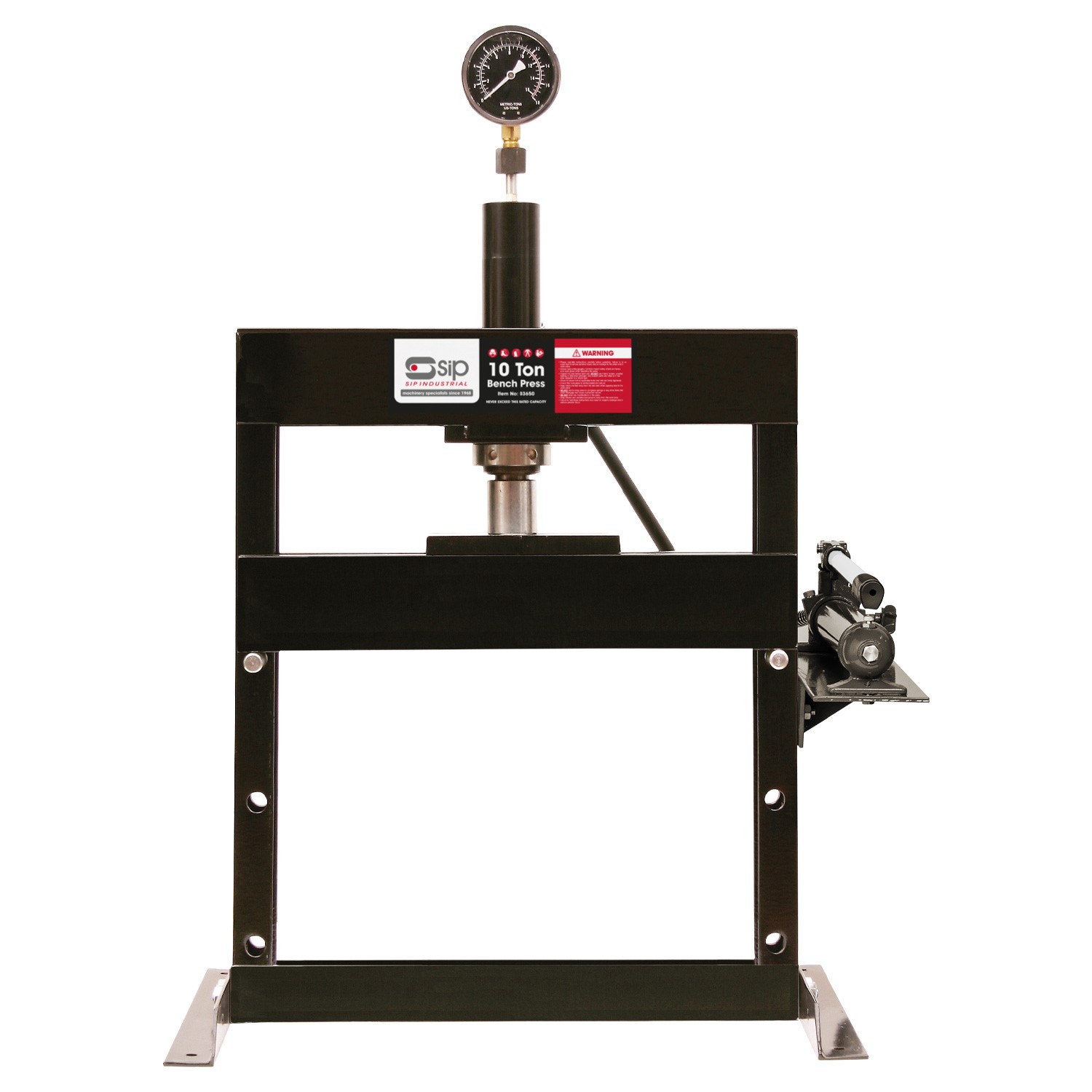

SIP 10 TON Shop Bench Press

03650

The SIP 10 TON Shop Bench Press is perfect for garage or workshop applications, such as bending, straightening, riveting or bonding, forming and assembling. It is particularly suited for easy removal and installation of bearings, wrist pins, universal joints and pulleys.

A heavy-duty steel frame with manually-operated press provides exceptional durability and long service life, while a fully adjustable workbed offers increased versatility.

KEY FEATURES

0mm to 340mm work range and a 180mm ram stroke
Ideal for bending, bonding, straightening applications
Bearing, wrist pin, universal joint or pulley removal
Fully adjustable workbed for improved versatility
Heavy-duty steel frame for increased durability
Integrated Glycerine-filled manometer

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 10 TON Shop Bench Press is perfect for a variety of applications in garage or workshop applications, offering heavy-duty manually-operated pressing performance within a robust and exceptionally durable frame, plus a fully adjustable workbed.

This press can be used for pressing bearings, bushings or sleeves, bending or shaping metal rods or bars, straightening bent metal, bonding and riveting, punching holes in sheets and plates, or forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys.

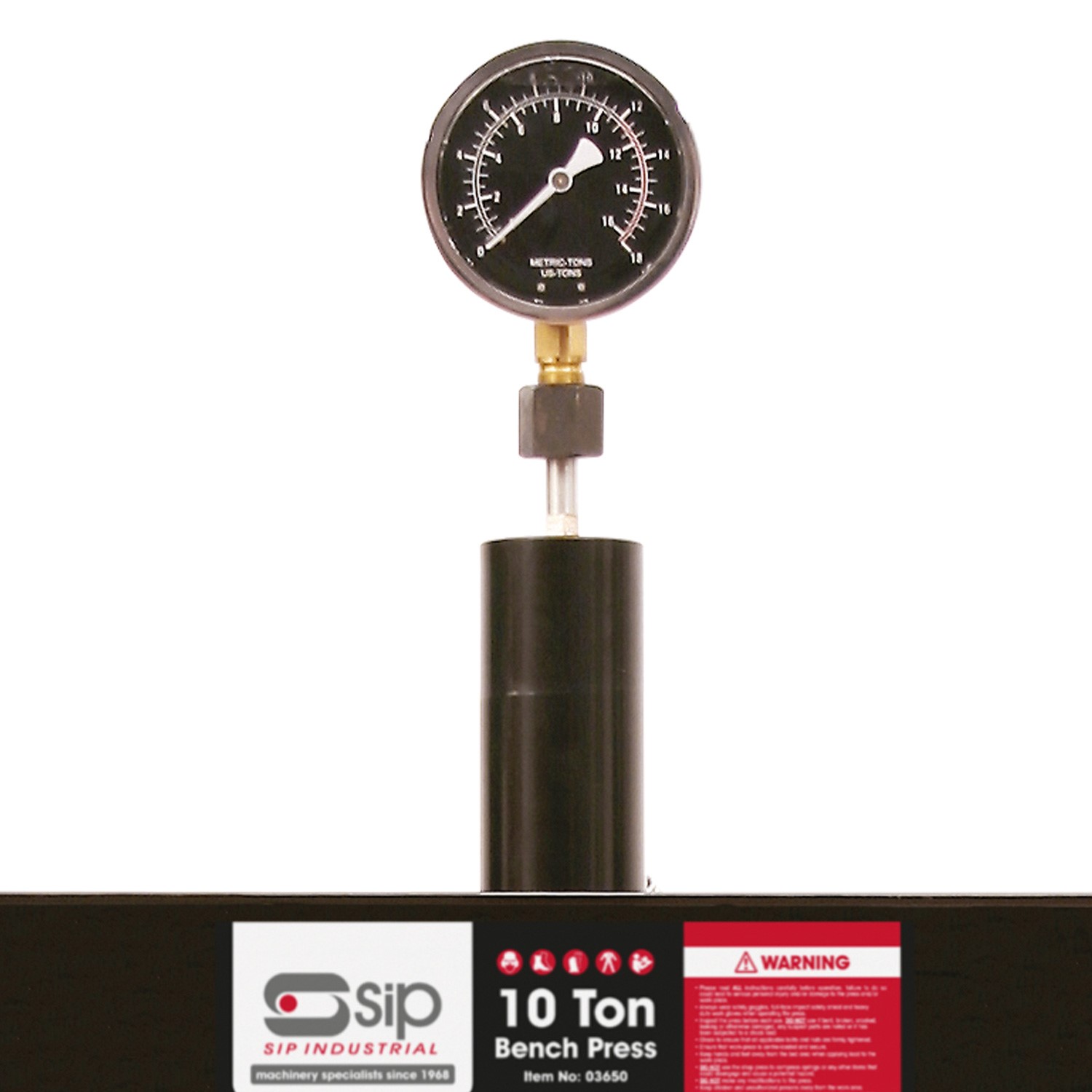

A glycerine-filled manometer helps protect the gauge and provides higher accuracy readings, plus durability against less-than-ideal conditions and corrosion.

10 TON bench-mounted manually-operated press
0mm to 340mm work range and a 180mm ram stroke
Heavy-duty steel frame for increased durability
Fully adjustable workbed for improved versatility
Suitable for pressing, bending, bonding and straightening
Bearing, wrist pin, universal joint or pulley removal
Glycerine-filled manometer for durability
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03650
Press Capacity:	10 TON
Press Type:	BENCH
Press Operation:	Manual
Working Range:	0mm - 340mm
Press Height:	1060mm
Press Width:	650mm
Press Depth:	495mm
Ram Stroke:	180mm
Bed Width:	335mm
Net Weight:	54.70kg
Gross Weight:	56.70kg
Product Dimensions:
Packaged Dimensions	150(H) x 525(W) x 780mm(D)
