SIP 12 TON Bottle Jack

03658

Click on image to enlarge

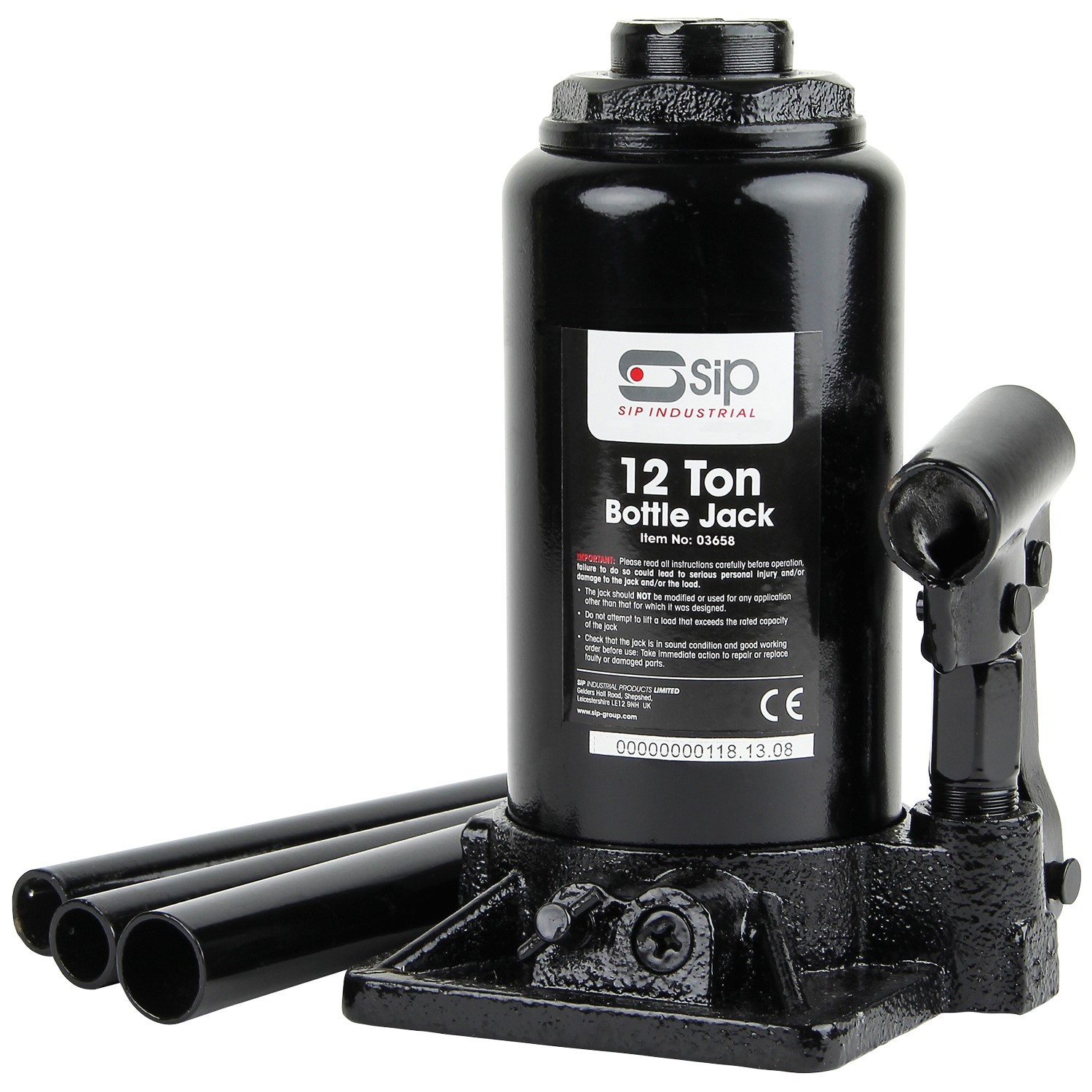

SIP 12 TON Bottle Jack

03658

The SIP 12 TON Bottle Jack offers optimal stability and support to a wide range of vehicle and machinery types, including cars and vans, thanks to a serrated saddle for secure load contact, heavy-duty cast iron wide base, and overload protection for added user safety.

A 60mm screw extension is supplied for increased versatility in a variety of applications.

KEY FEATURES

210mm to 415mm adjustable lifting range
60mm screw extension for increased versatility
Serrated saddle for safe and secure load contact
Wide base manufactured from heavy-duty cast iron
Overload protection and built-in safety valve

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 12 TON Bottle Jack offers optimal stability and load support to a wide range of vehicle and machinery types, including cars and vans, thanks to a variety of robust and durable components that give heavy-duty and reliable performance.

A durable serrated saddle ensures the safest load contact possible. This, coupled with a wide base manufactured from heavy-duty cast iron, means that the jack can offer continued and extremely reliable and powerful lifting performance.

The 12 TON Bottle jack is designed with reliable overload protection for reduced risk or damage to the jack, increased user safety and added peace-of-mind.

12 TON maximum weight capacity
210mm to 415mm adjustable lifting height
60mm screw extension for increased versatility
Serrated saddle for safe and secure load contact
Wide base manufactured from heavy-duty cast iron
Overload protection and built-in safety valve
Compact design for reduced physical footprint
Ideal for all garages and workshops
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03658
Weight Capacity:	12 TON
Min. Lifting Height:	210mm
Max. Lifting Height:	415mm
Ram Length:	142mm
Screw Extension:	60mm
Net Weight:	7.20kg
Gross Weight:	7.30kg
Product Dimensions:	220(H) x 130(W) x 140mm(D)
Packaged Dimensions:	210(H) x 140(W) x 140mm(D)
