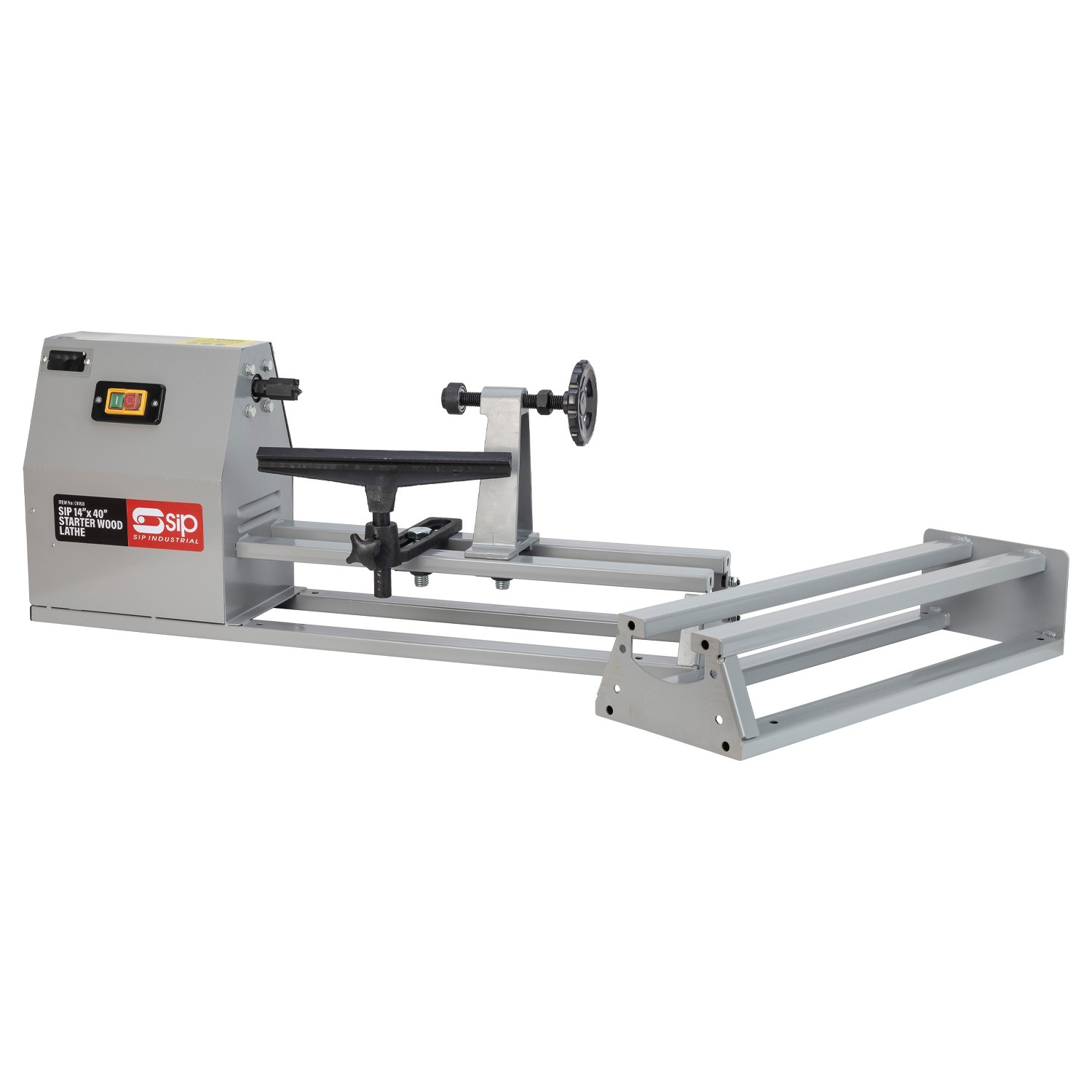

SIP 14" x 40" Starter Wood Lathe w/ Chisel Kit

01458

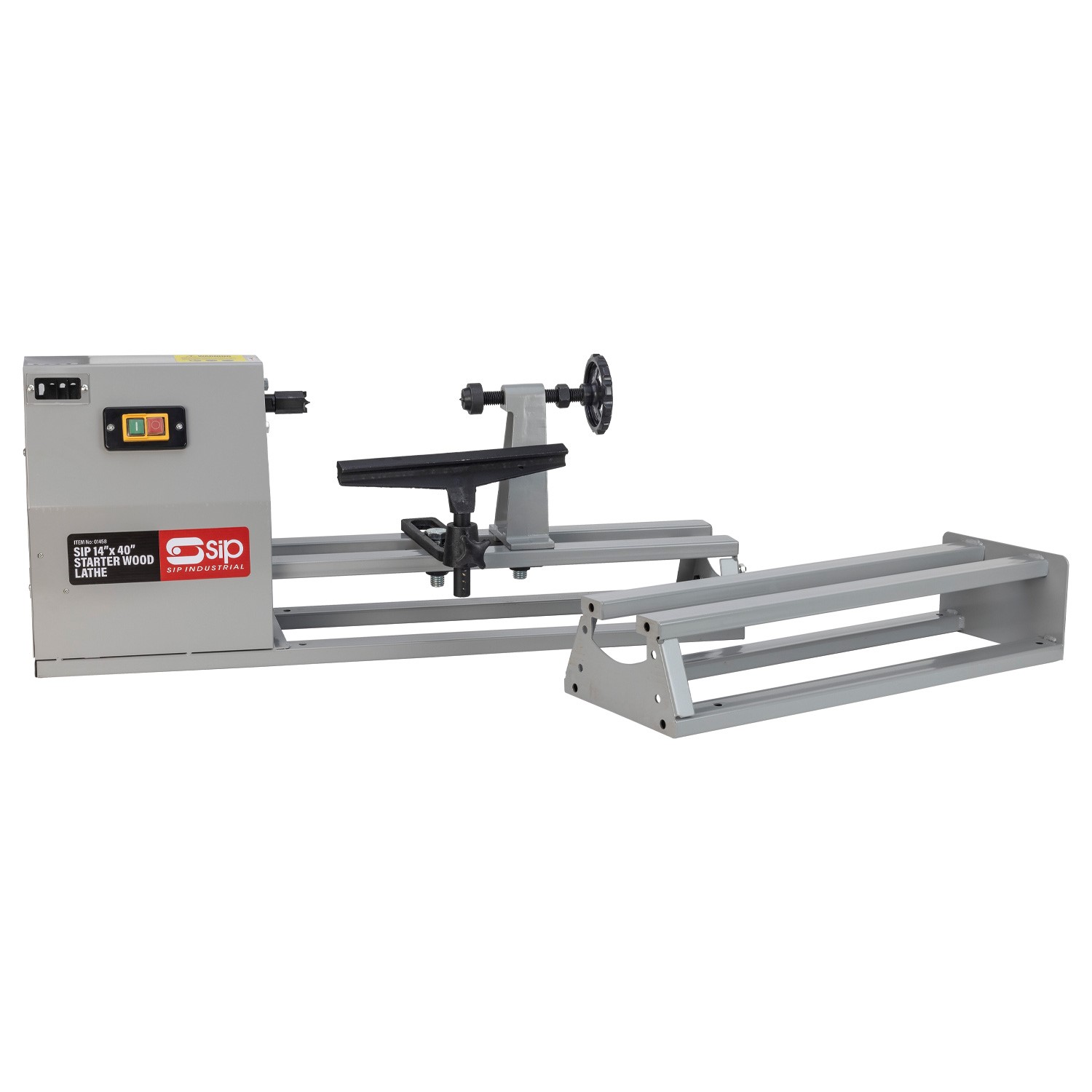

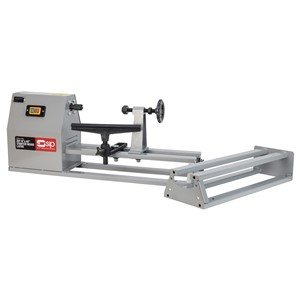

The SIP 14" x 40" Starter Wood Lathe with 3pc Chisel Kit is a benchtop wood lathe designed to shape, turn and sand wooden workpieces into various shapes and designs.

It's a compact design and reduced footprint makes it suitable for small workshops and low-scale woodworking projects where workspace is limited.

KEY FEATURES

4 turning speeds for greater versatility and application control
350mm turning capacity (1016mm distance between centres)
Suitable for turning larger and longer workpieces
Headstock spindle thread size: 3/4" x 16TP
Adjustable tool rest with quick release lever
Supplied with a 3pc chisel kit

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 14" x 40" Starter Wood Lathe with 3pc Chisel Kit is a benchtop wood lathe designed to shape, turn and sand wooden workpieces into various shapes and designs.

It's a compact design and reduced footprint makes it suitable for small workshops and low-scale woodworking projects where workspace is limited.

Applications & uses: Suitable for shaping, turning and sanding wooden workpieces. Ideal for small woodworking workshops and DIY uses.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

4 TURNING SPEEDS FOR GREATER VERSATILITY & APPLICATION CONTROL

Variable speed motor settings of 720rpm / 1240rpm / 1750rpm / 2150rpm.

HIGH TAILSTOCK WITH LOCKING NUT FOR LARGE TURNING CAPACITY OF LONGER PIECES

Wide distance between centres of 1016mm.
Height from centre of lathe base 176mm, which enables a turning capacity of 350mm.
A quick-release lever allows the tailstock to move easily along the lathe bed frame.
Headstock spindle size; 3/4" x 16TP.

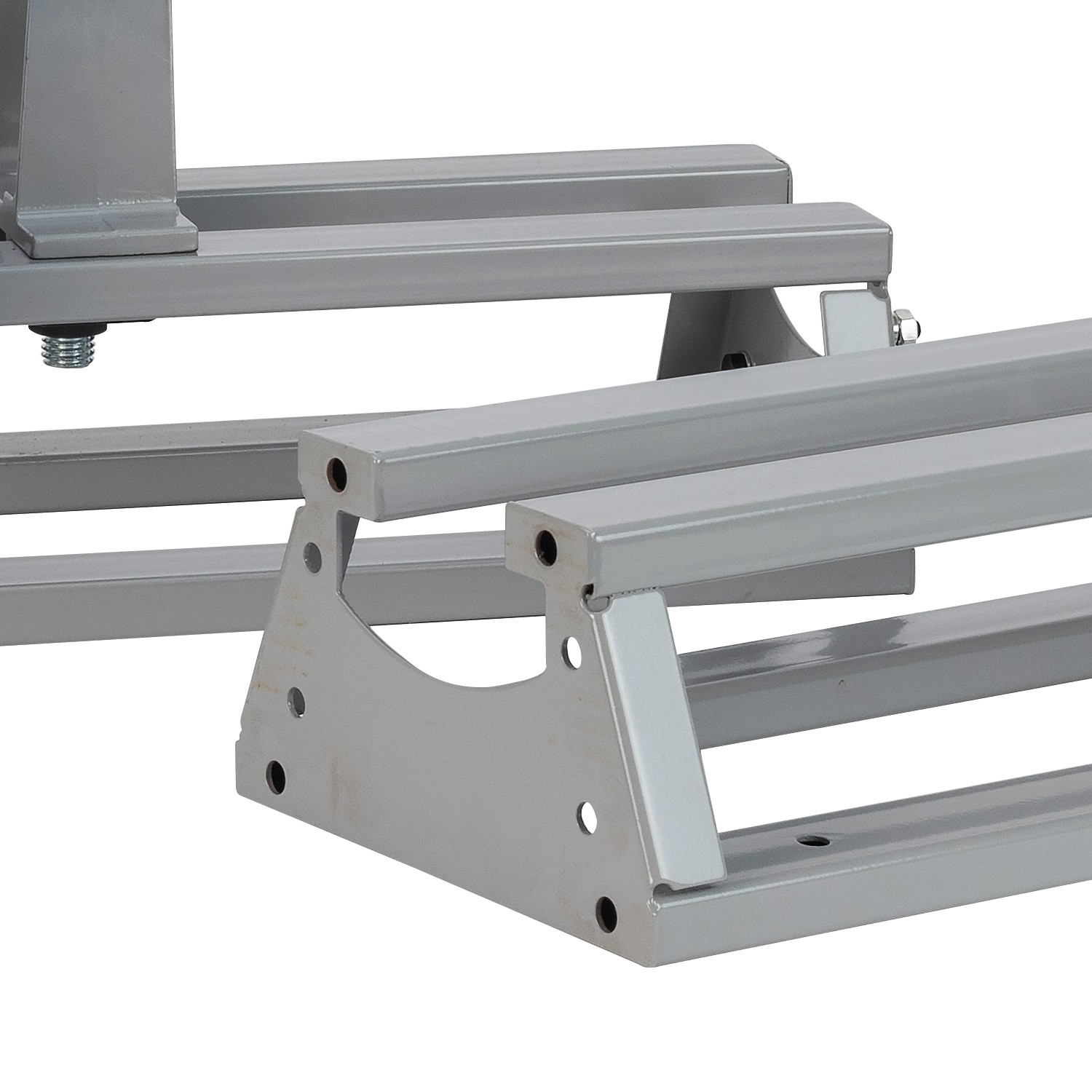

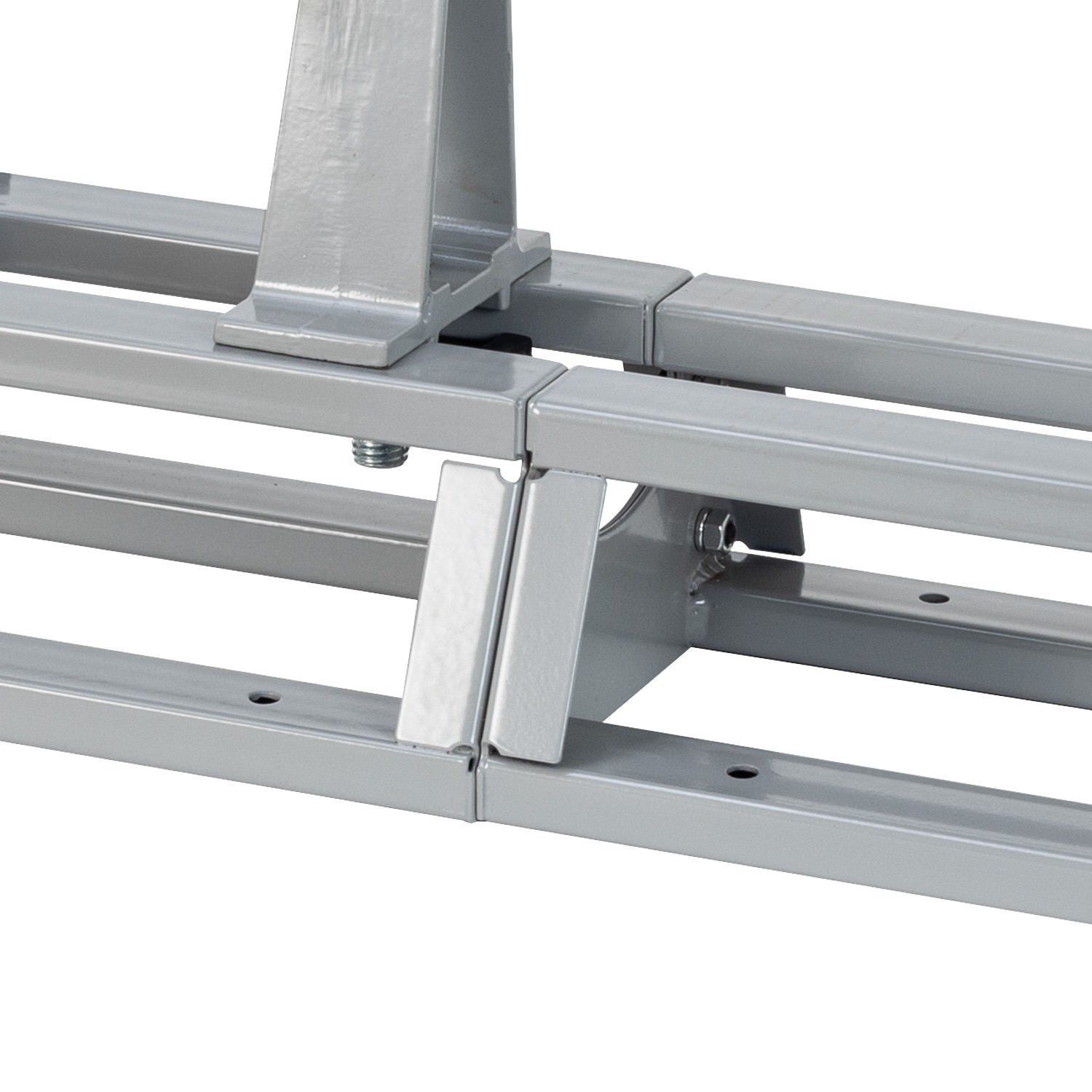

OPEN FRAME STEEL LATHE BED IS IDEAL FOR WORKSHOPS WITH LIMITED WORK SPACE

Features screw locking holes for securing to the workbench when in use.
For added flexibility, the lathe can also be operated without attaching the frame together.
Once separated, the lathe can be easily stored when not in use.

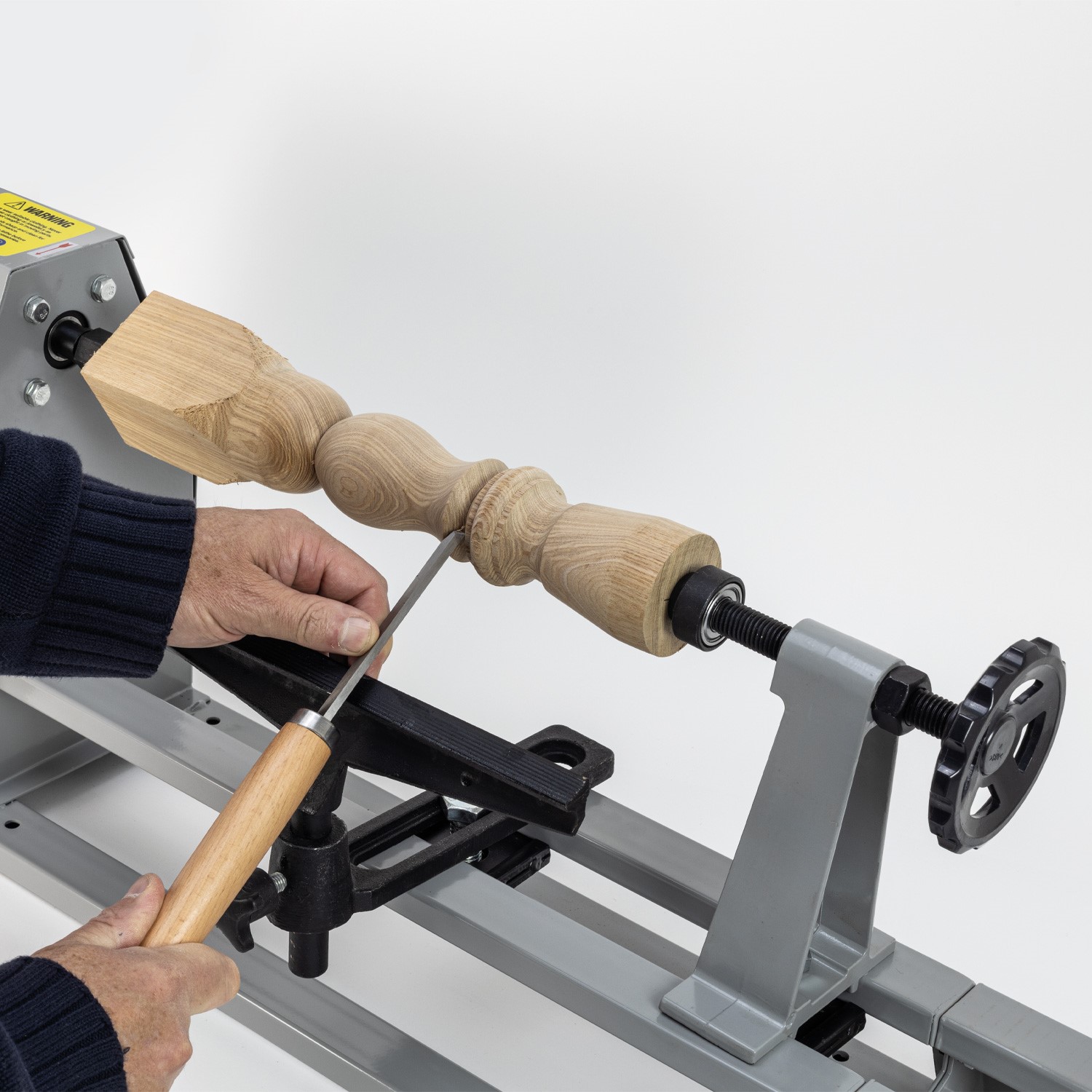

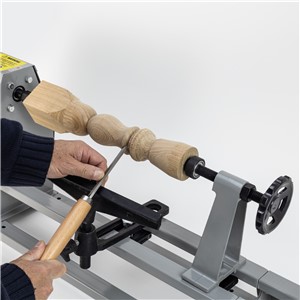

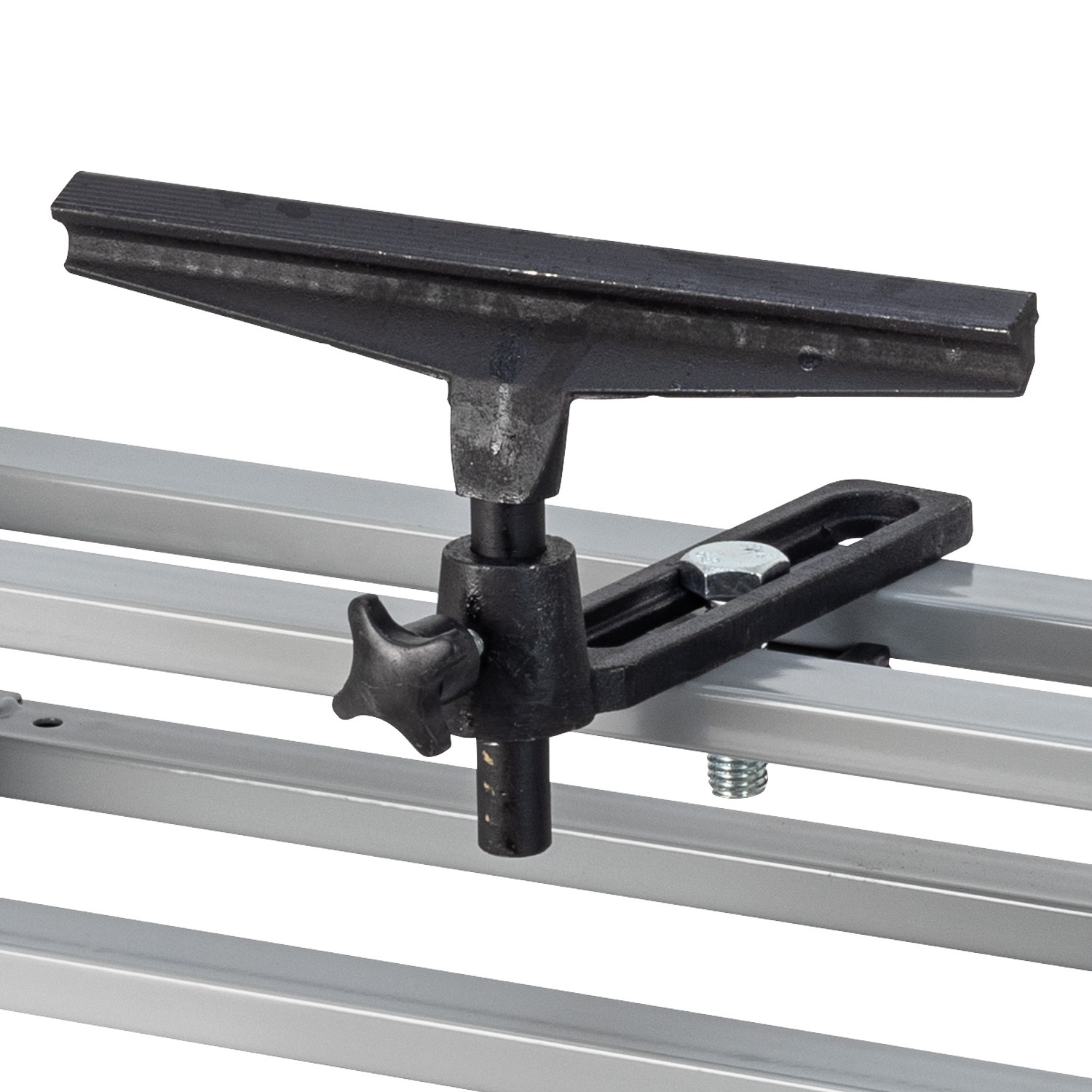

ADJUSTABLE TOOL REST FOR MAINTAINING CONTROL & POSITIONING WHEN SHAPING

Provides a stable platform for shaping tools, maximising woodturning versatility.
Quick-release lever for easy movement along the bed frame.
350mm turning capacity over tool rest.

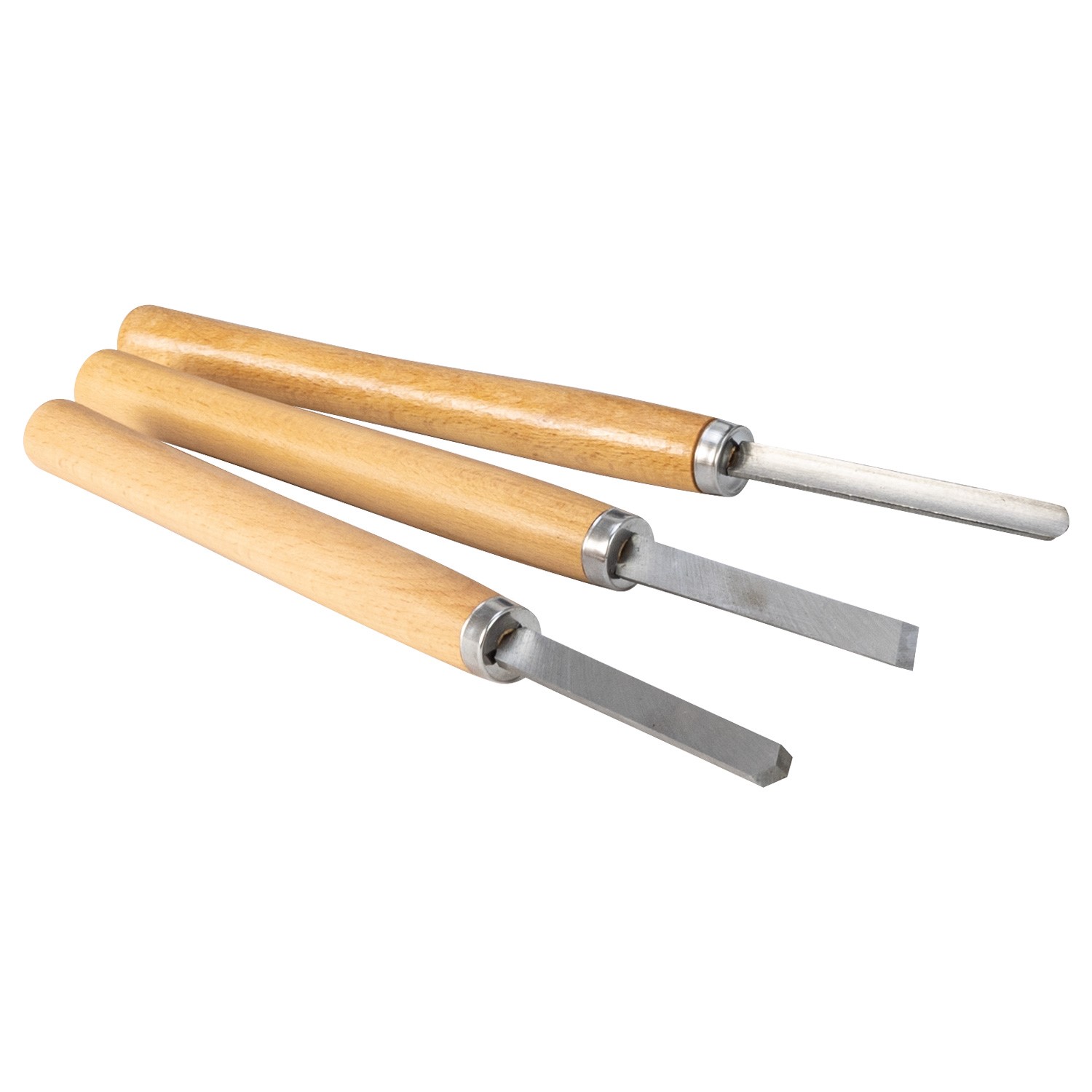

SUPPLIED WITH 3PC WOOD HANDLE CHISEL KIT FOR SHAPING, TURNING & SANDING USES

Other accessories supplied include tailstock, drive centre and faceplate.

ENHANCED SAFETY FEATURES

A No Voltage Release (NVR) switch prevents restart should the mains power be interrupted.

Technical Information

ITEM NO.	01458
Input Supply:	230v (13A)
Motor Power:	370w (0.5hp)
Speed Range:	720rpm - 2150rpm
Distance Between Centres:	1016mm
Turning Capacity:	350mm
Headstock Thread:	3/4" x 16TP
Net Weight:	20.00kg
Gross Weight:	24.80kg
Product Dimensions:	350(H) x 260(W) x 1420mm(D)
Packaged Dimensions:	440(H) x 310(W) x 940mm(D)
