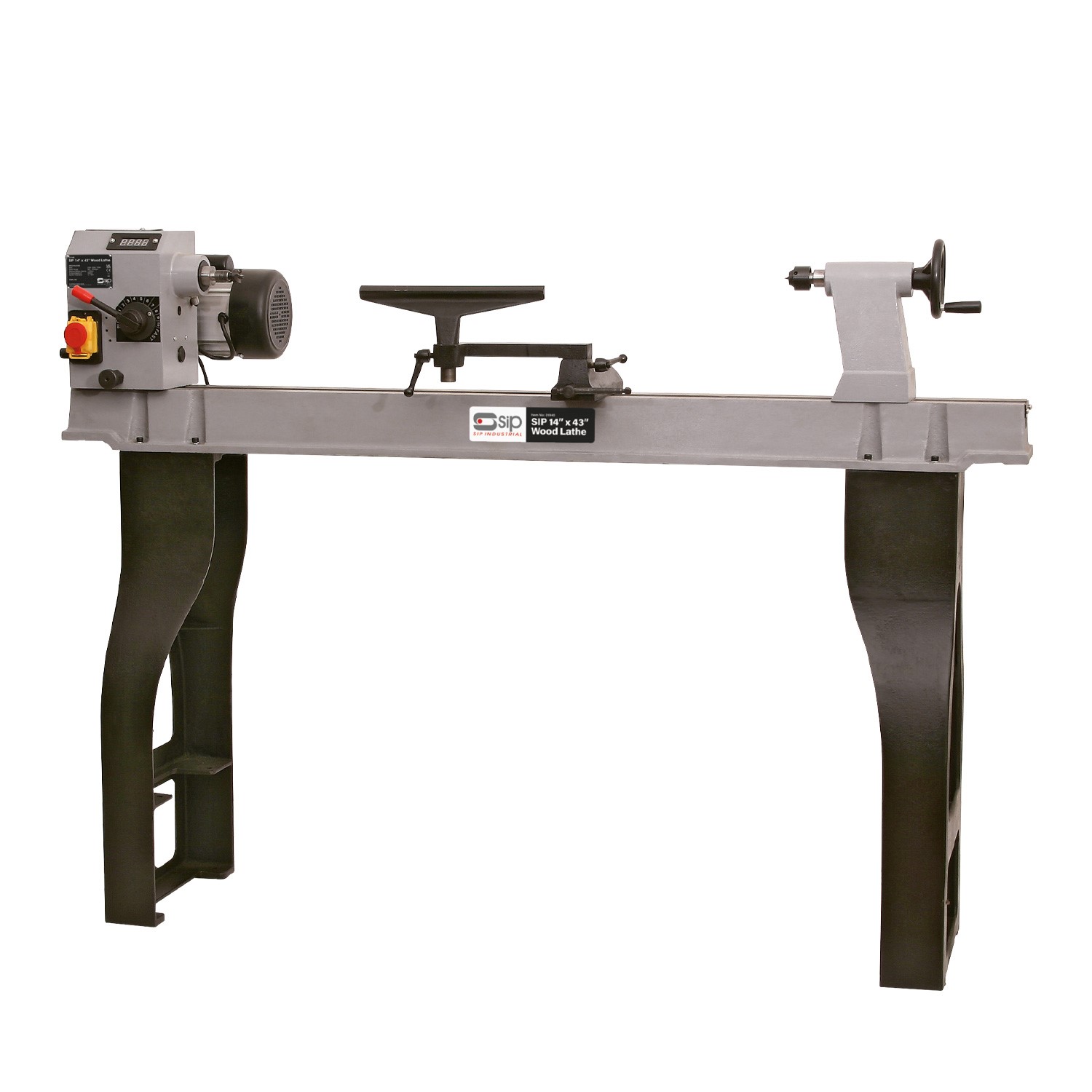

SIP 14" x 43" Swivel Head Wood Lathe

01940

SIP 14" x 43" Swivel Head Wood LatheSIP 14" x 43" Swivel Head Wood LatheSIP 14" x 43" Swivel Head Wood LatheSIP 14" x 43" Swivel Head Wood LatheSIP 14" x 43" Swivel Head Wood LatheSIP 14" x 43" Swivel Head Wood Lathe
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

The SIP 14" x 43" Swivel Head Wood Lathe is ideal for those seeking a robust, adaptable lathe with heavy-duty stability. This crucial woodworking machine tool accurately shapes, turns, drills and sand workpieces to the desired specification.

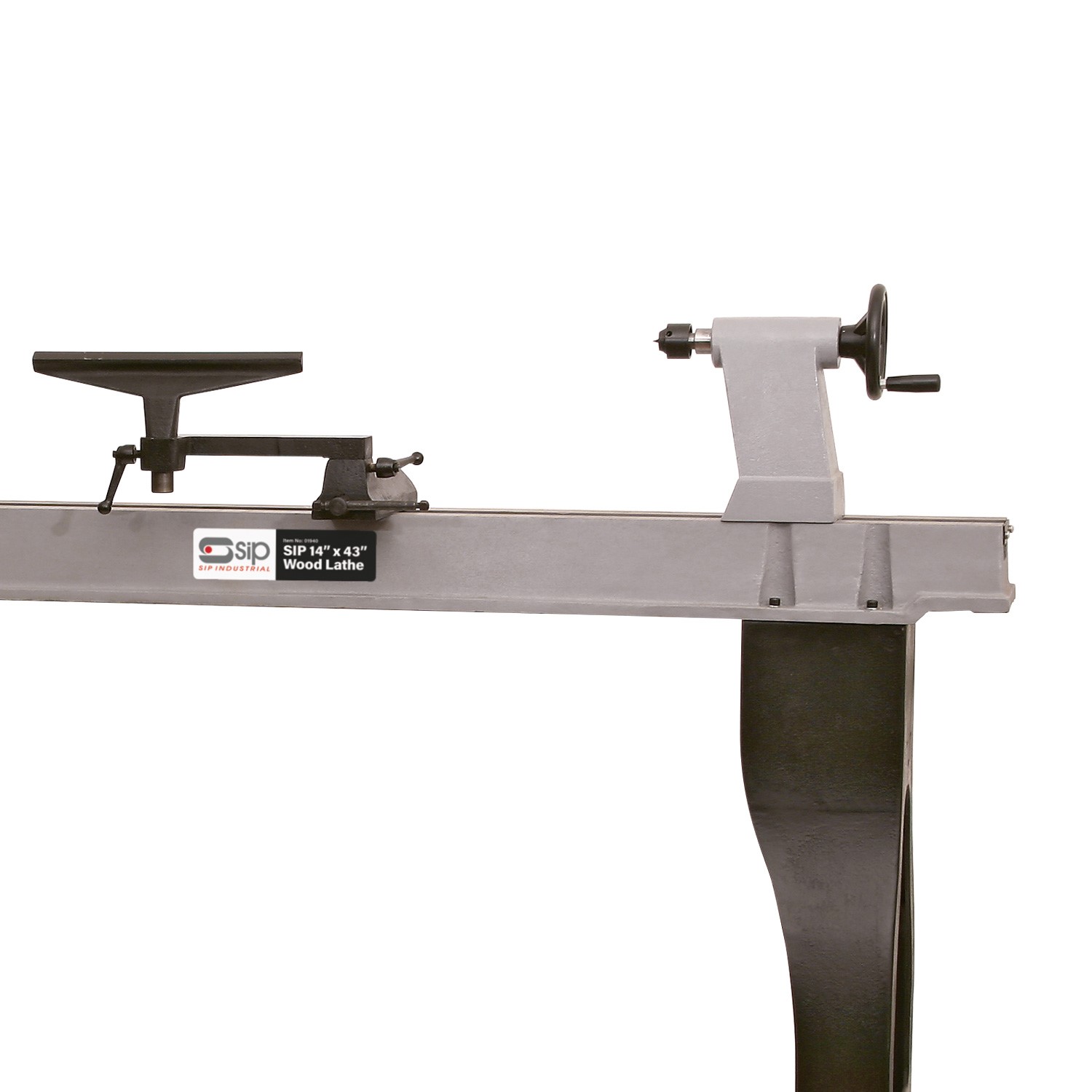

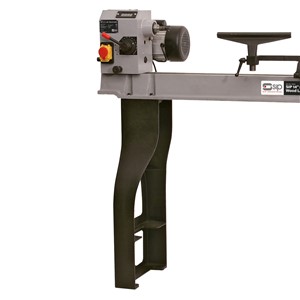

For added functionality, the headstock swivels 360° with four locking positions to allow outboard turning of larger wood materials, whilst heavy-duty cast iron legs maximise stability. The lathe bed, headstock (MT1) and tailstock (MT2) are also manufactured from heavy-duty cast iron. A hollow tailstock is fitted to allow long hole boring.

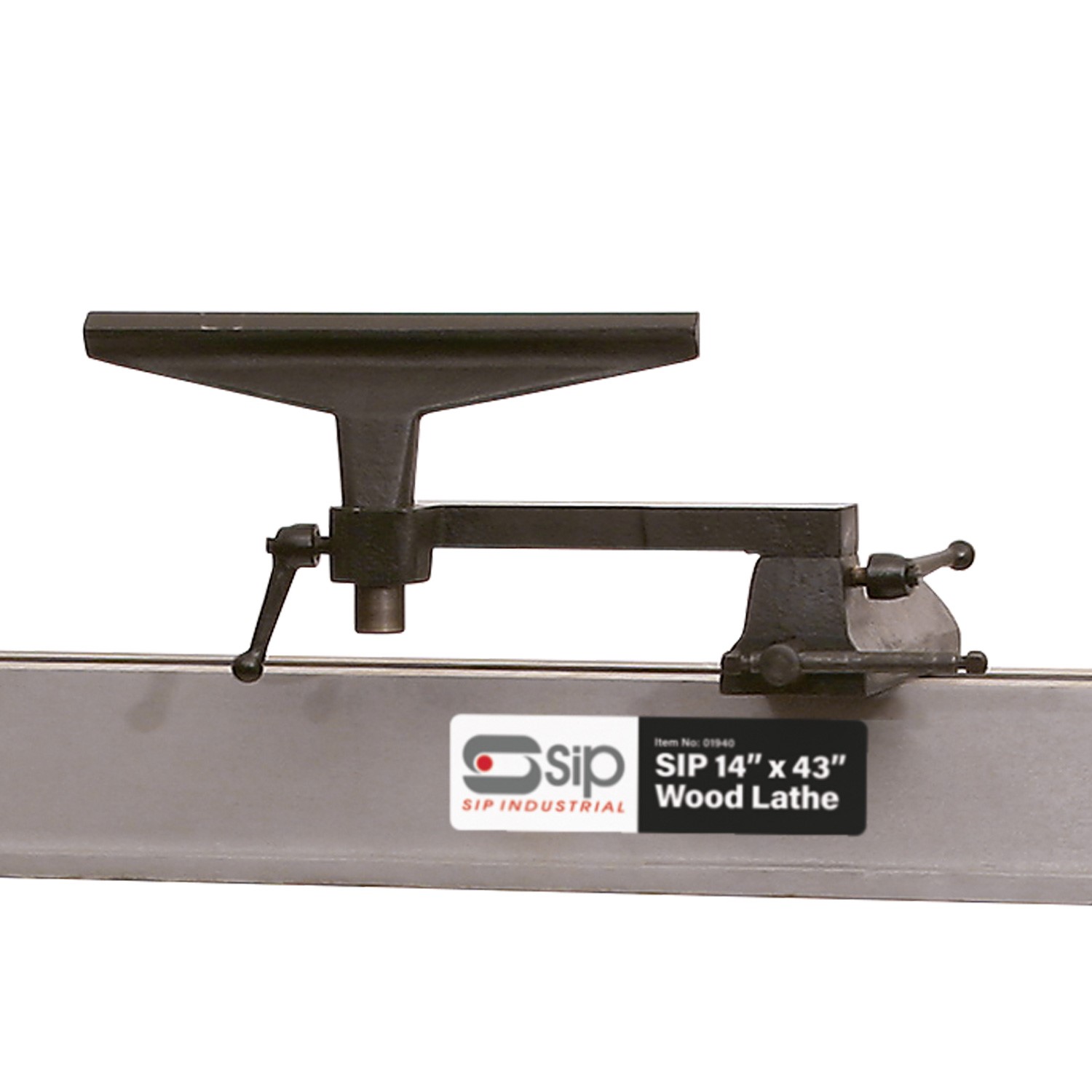

Supplied with tool rest, 6" faceplate, drive and tailstock centres.

KEY FEATURES

  •  3/4" x 16TPI spindle thread size for various attachments
  •  350mm max. turning diameter (1100mm between centres)
  •  Heavy-duty cast iron legs and lathe bed for enhanced stability
  •  Fitted with hollow tailstock suitable for long-hole boring
  •  Digital speedometer display up to 2000rpm
  •  10 setting easy-change speed handle

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 14" x 43" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.

For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to the lathe to maximise stability during this process. The lathe bed, headstock and tailstock are also manufactured to a professional finish from heavy-duty cast iron.

The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.

Supplied with tool rest, 6" faceplate, drive and tailstock centres.

Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

3/4" x 16TPI SPINDLE THREAD SIZE

  • Allows the use of various turning attachments.

350MM MAX. TURNING DIAMETER (1100MM BETWEEN CENTRES)

  • Enables a variety of woodwork projects and jobs.

360° SWIVEL HEADSTOCK WITH 4 LOCK POSITIONS

  • Allows for outboard turning of larger wood materials.

HEAVY-DUTY CAST IRON LEGS

  • Prevents flex and movement of the bed and enhances stability when outboard turning.

HEAVY-DUTY CAST IRON LATHE BED

  • Ensures greater turning stability and accuracy.

CAST IRON MT1 HEADSTOCK AND MT2 TAILSTOCK

  • For an assured hold to the workpiece when turning.

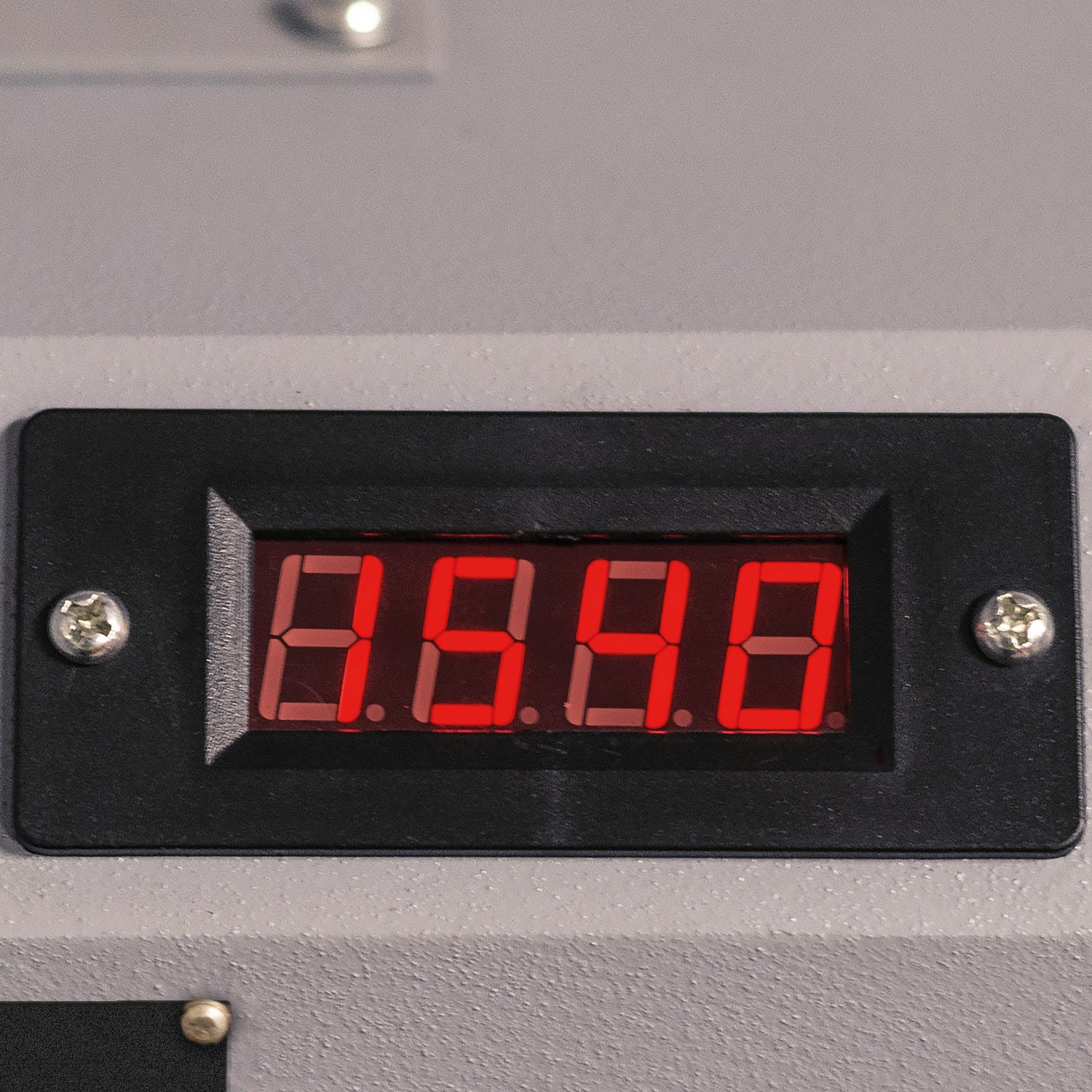

DIGITAL SPEEDOMETER DISPLAY

  • Provides accurate readout of headstock spindle speed.

FITTED WITH HOLLOW TAILSTOCK FOR LONG HOLE BORING

  • Offers added versatility for professional applications.

Product Video



Technical Information

ITEM NO. 01940
Input Supply: 230v (13A)
Motor Power: 750w (1hp)
Speed Range: 500rpm - 2000rpm
Distance Between Centres: 1100mm (43")
Turning Capacity: 350mm (14")
Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
Drive Spur Size: 1 Morse Taper
Tailstock Rotating Centre Size: 2 Morse Taper
Noise Level: 68dB(A)
Net Weight: 130.00kg
Gross Weight: 154.00kg
Product Dimensions: 1600(H) x 1160(W) x 450mm(D)
Packaged Dimensions: 1625(H) x 520(W) x 405mm(D)
