SIP 22 TON Air Floor Jack

03643

Click on image to enlarge

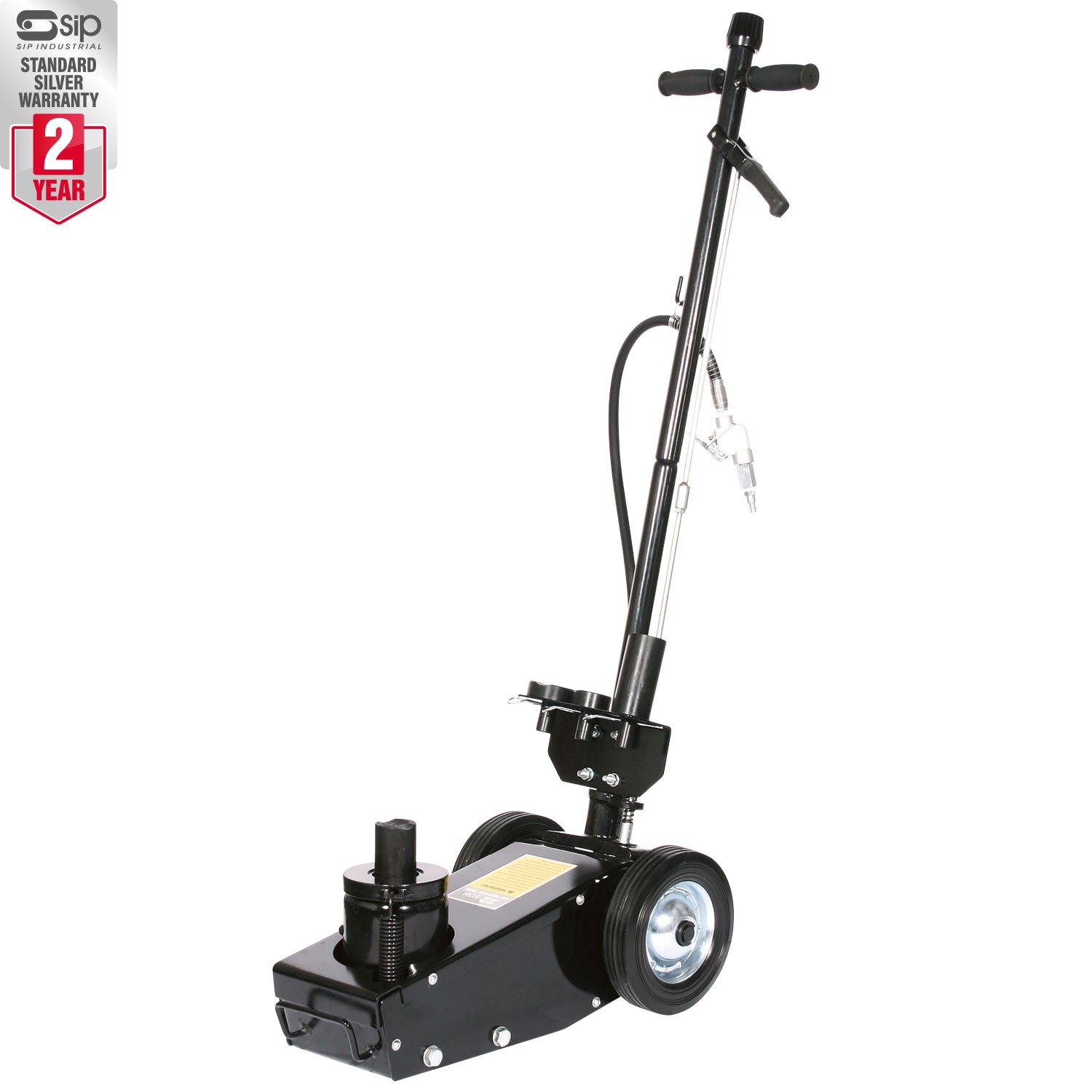

SIP 22 TON Air Floor Jack

03643

The SIP 22 TON Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery. A low-profile design ensures it can be easily positioned under vehicles with lower clearances.

This compressed air-controlled jack is ideal for demanding applications in professional garages and workshops handling a variety of larger and heavier vehicles.

KEY FEATURES

230mm to 555mm adjustable lifting height
115mm screw extension for added versatility
Manufactured from heavy-duty and durable steel
Low-profile design for easier under-vehicle access
Large non-marking rubber wheels for added durability

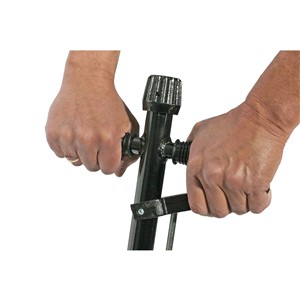

Built-in release knob and integrated handle lock

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 22 Ton Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery, offering dependable and reliable support across all demanding applications.

This compressed air-controlled jack is ideal for professional garages and workshops.

A low-profile design offer easier access under vehicles, particularly those with lower clearances. In conjunction with the large non-marking rubber wheels, this jack is easy to manoeuvre and positioning regardless of the vehicle type.

For optimal user safety, the 22 TON Air Floor Jack is built with a release knob to help lower any vehicles slowly in a controlled manor, and handle lock to prevent the jack from accidentally disengaging, reducing the risk to the operator.

22 TON maximum weight capacity
230mm to 555mm adjustable lifting height
115mm screw extension for added versatility
Manufactured from heavy-duty and durable steel
Low-profile design for easier under-vehicle access
Large non-marking rubber wheels for easy movement
Built-in release knob and integrated handle lock
Integrated air line hook and air control valve
9.5CFM (269ltr/min) maximum air consumption
102psi (7bar) to 145psi (10bar) pressure
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03643
Weight Capacity:	22 TON
Min. Lifting Height:	230mm
Max. Lifting Height:	555mm
Ram Stroke:	120mm
Screw Extension:	115mm
Working Pressure:	102psi (7bar) - 145psi (10bar)
Av. Air Consumption:	9.50CFM (269ltr/min)
Adaptor Size:	Ø 110mm x 50mm Ø 50mm x 50mm Ø 20mm x 50mm Ø 20mm x 70mm
Net Weight:	45.90kg
Gross Weight:	49.90kg
Product Dimensions:
Packaged Dimensions:	280(H) x 360(W) x 670mm(D)
