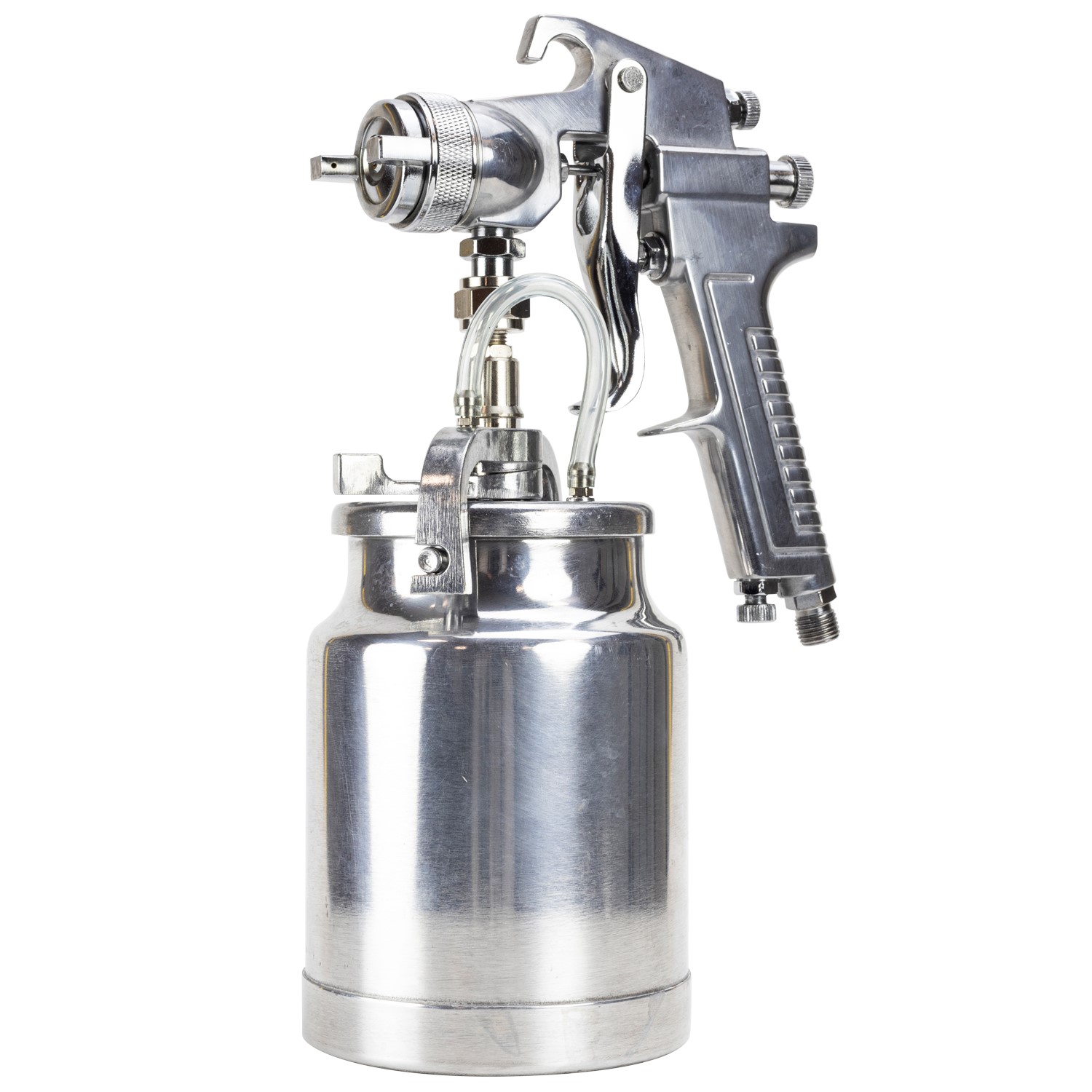

SIP 2mm Diamond Suction Spray Gun

02132

Click on image to enlarge

SIP 2mm Diamond Suction Spray Gun

02132

The SIP 2mm Diamond Suction Spray Gun is a powerful air-powered spray gun designed for optimal versatility and control when spraying in a variety of garage and workshop environments. This includes applying paints plus a selection of other mediums in automotive, woodwork, metalwork and industrial applications.

This gun has fully adjustable fluid output and fan control for high versatility.

Suitable for water-based paints.

KEY FEATURES

Professional-grade suction spray gun with 2mm nozzle
1ltr locking paint cup provides a good paint reserve
Fully adjustable fluid output and fan control
Breather hose helps to reduce paint spillage
Suitable for water-based paint

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 2mm Diamond Suction Spray Gun is a powerful air-powered spray gun designed for optimal versatility and control when spraying in a variety of garage and workshop environments. This includes applying paints plus a selection of other mediums in automotive, woodwork, metalwork and industrial applications.

Built for maximum versatility, this spray gun is designed with fully adjustable fluid output and fan control. A 1ltr locking paint cup provides a good reserve for less refilling and reduced interruption. This helps to match the output to the desired specification.

It also offers greater paint control, applying fast and even coats on larger surfaces, as well as hard-to-reach areas unsuitable for brushes and rollers. SIP Spray Guns offer fine spray patterns suitable for achieving smooth and professional-looking finishes.

A breather hose helps reduce paint spillage and prevents vacuum build-up.

This spray gun is suitable for water-based paints.

Professional suction spray gun with 2mm nozzle
8.5CFM (241ltr/min) average working air consumption
65psi (4.5bar) - 87psi (6bar) max. operating pressure
1ltr locking paint cup provides a good reserve for less refill interruption
Perfect for greater paint control, applying fast and even coats on large surfaces, and hard-to-reach areas unsuitable for brushes or rollers
Fully adjustable fluid output and fan control for added versatility and matching output to the required application
Breather hose helps reduce paint spillage, preventing vacuum build-up within both the gun and spray system
Integrated air control screw offers air pressure control
Easily disassembled for a speed clean-up and storage
Suitable for water-based paint
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	02132
Feed Type:	Suction
Nozzle Diameter:	Ø 2mm
Operating Pressure:	65psi (4.5bar) - 87psi (6bar)
Av. Air Consumption:	8.50CFM (241ltr/min)
Paint Cup Capacity:	1ltr
Water Based Paint:	Yes
Air Inlet:	1/4" BSP
Net Weight:	1.31kg
Gross Weight:	1.32kg
Product Dimensions:	125(H) x 125(W) x 300mm(D)
Packaged Dimensions:	180(H) x 340(W) x 140mm(D)
