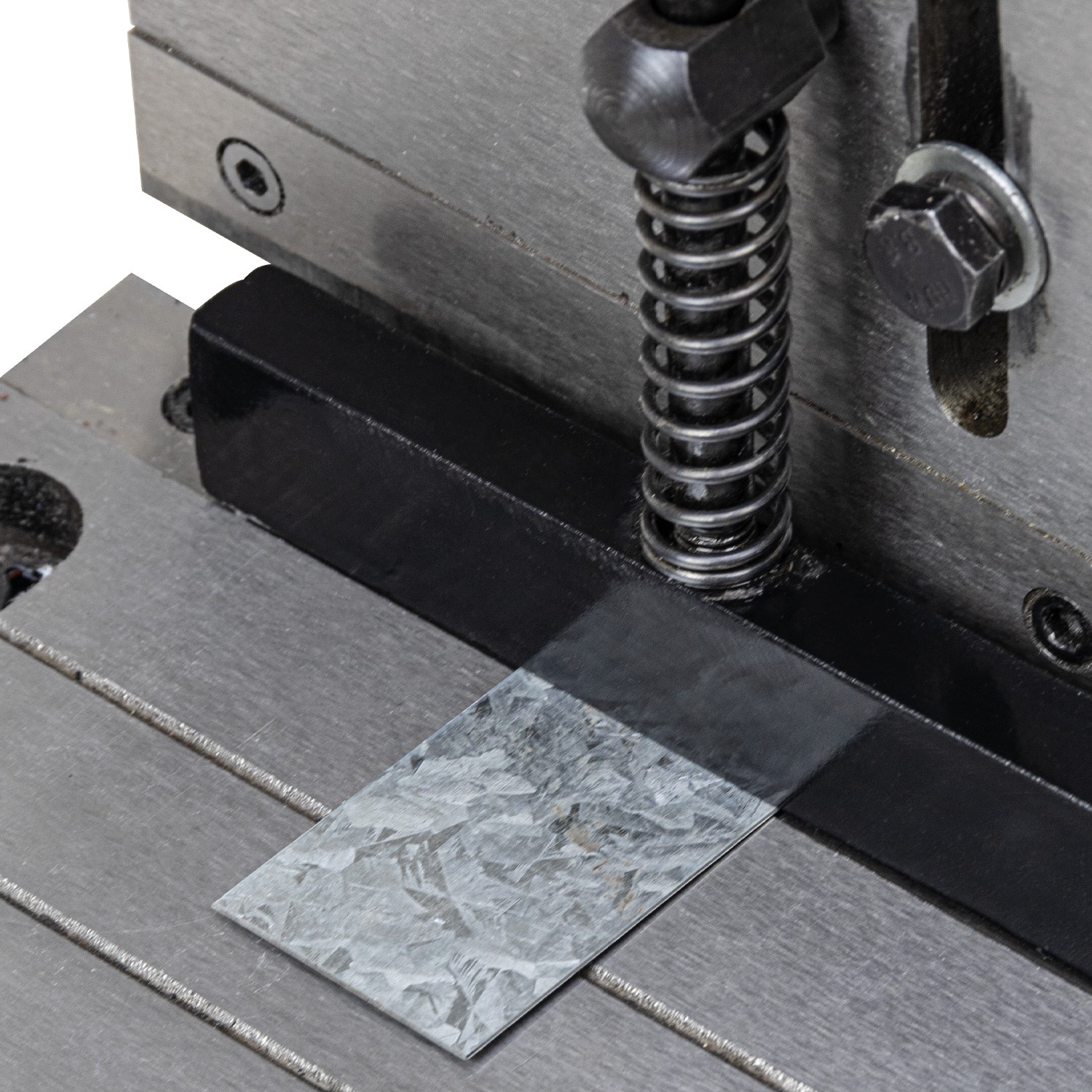

METAL SHEAR (MAX. PLATE WIDTH 760MM)

• A guillotine function uses a scissor action blade to cut sheet metal cross a fixed position to max. width of 760mm. Max. shearing thickness 1mm.
• Fitted with a clamp bar for holding sheet metal in place and an adjustable backstop to measure depth of cut.

METAL FOLDER

• Ideal for folding and shaping sheet metal as part of production and manufacturing processes.
• Max. bending angle 90°. Max. bending thickness 1mm.
• Perfect for creating steel box fabrications and enclosures for circuitry and electronics.
• Adjustable folding formers allow for various sized items to be produced.
• Metal formers allow for easy folding of enclosures and varying lengths of metal to be folded.

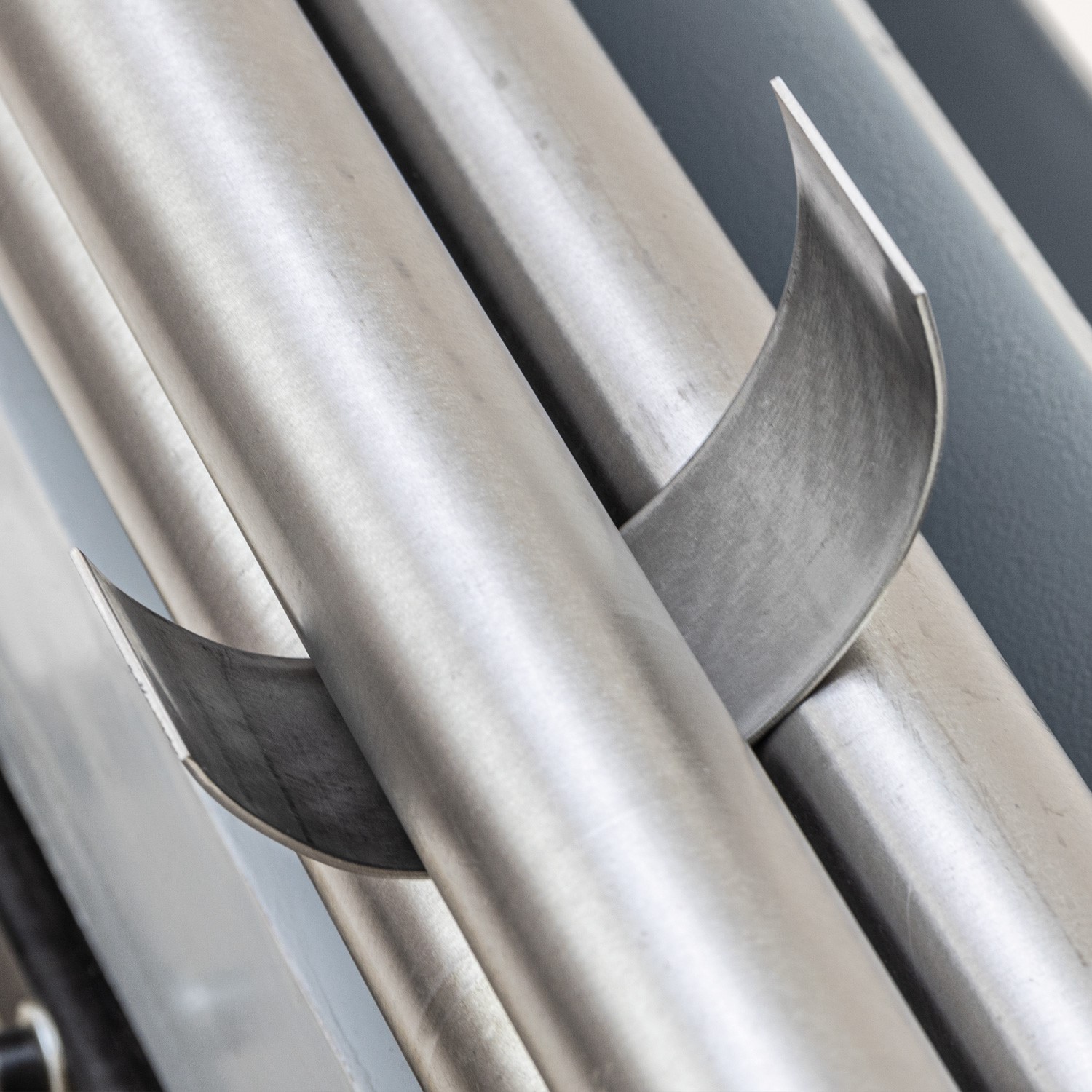

PYRAMID ROLLER

• 3 adjustable pyramid rollers allow sheet metal to be bent and rolled repeatedly to desired specification. Min. rolling diameter 39mm. Max. rolling thickness 1mm.
• Ideal for forming metal tubes, ducting and rings of varying thicknesses and diameters.
• Safety cover guard included for added user safety and storage.

ADJUSTABLE MACHINE HANDLE

• A multi-function handle, fixed to the machine, performs all 3 machine processes.
• This adjustable from left to right, allowing the user to apply the necessary pressure to each process.

CAST IRON & STEEL CONSTRUCTION

• Manufactured using high-quality steels for durability, accurate cutting and long life.
