SIP 75 TON Shop Floor Press

03696

Click on image to enlarge

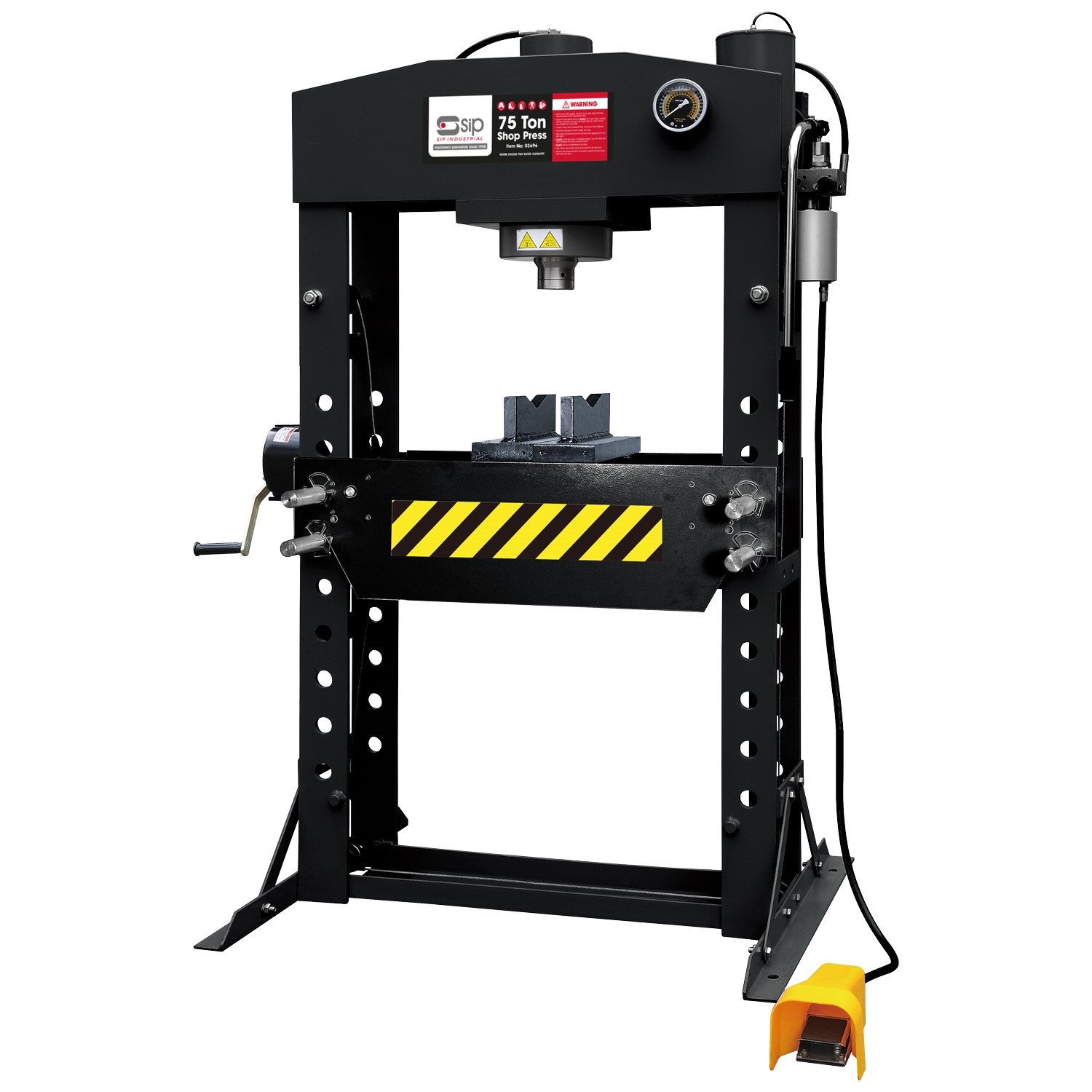

SIP 75 TON Shop Floor Press

03696

The SIP 75 TON Shop Floor Press is perfect for garage and workshop applications, such as bending, straightening, riveting or bonding, forming and assembling. It is particularly suited for easy removal and installation of bearings, wrist pins, universal joints and pulleys.

A heavy-duty steel frame with pneumatically-assisted press provides exceptional durability and long service life, while a fully adjustable workbed offers increased versatility.

KEY FEATURES

160mm to 880mm work range and a 250mm ram stroke
Ideal for bending, bonding, straightening applications
Bearing, wrist pin, universal joint or pulley removal
Fully adjustable workbed for improved versatility
Heavy-duty steel frame for increased durability
Integrated Glycerine-filled manometer

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP 75 TON Shop Floor Press is perfect for a variety of applications in garage or workshop applications, offering pneumatically-assisted pressing performance within a robust and exceptionally durable frame, plus a fully adjustable workbed.

This press can be used for pressing bearings, bushings or sleeves, bending or shaping metal rods and bars, straightening bent metal, bonding and riveting, punching holes in sheets and plates, or forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys.

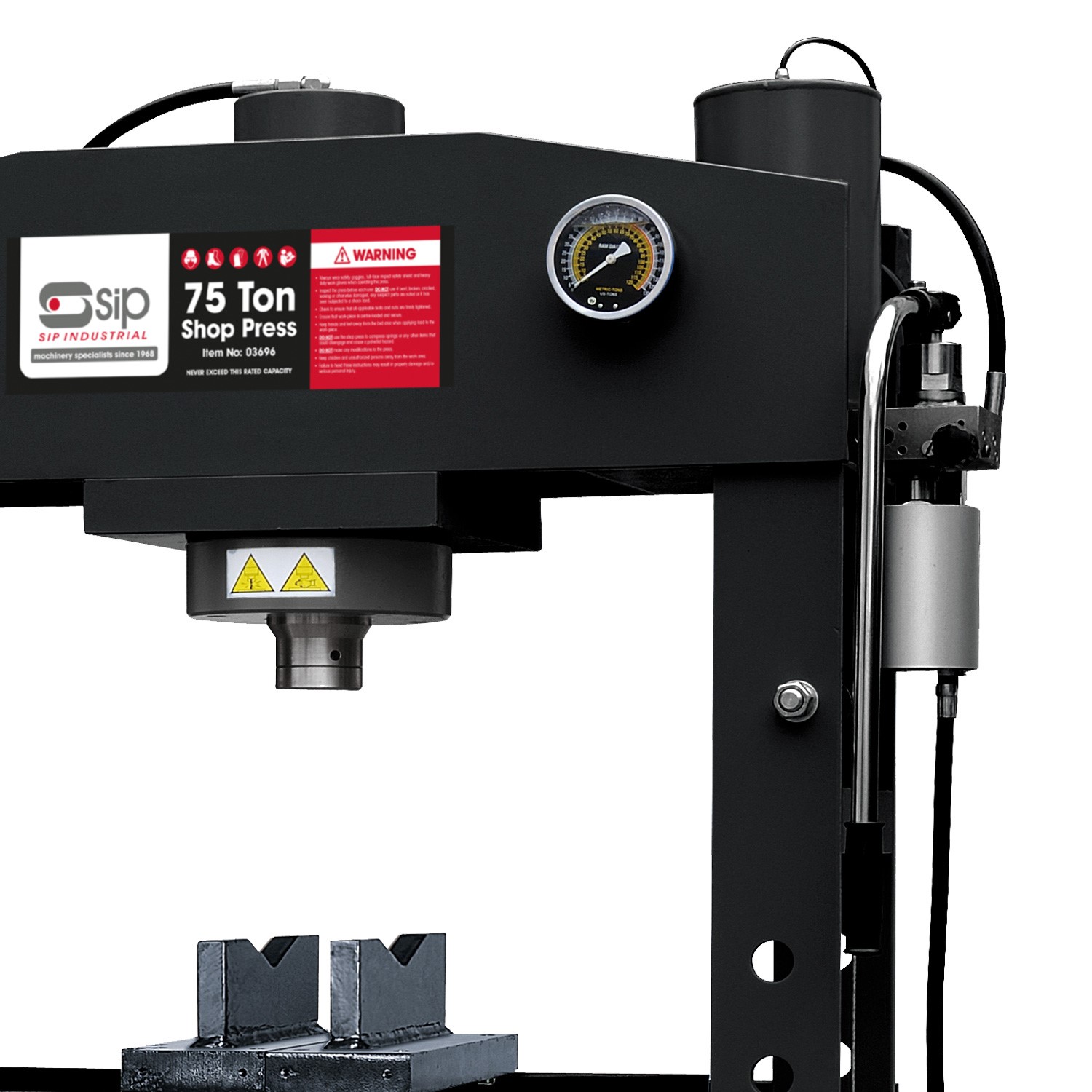

A glycerine-filled manometer helps protect the gauge and provides higher accuracy readings, plus durability against less-than-ideal conditions and corrosion.

75 TON floor-standing pneumatically-assisted press
160mm to 880mm work range and a 250mm ram stroke
Heavy-duty steel frame for increased durability
Fully adjustable workbed for improved versatility
Suitable for pressing, bending, bonding and straightening
Bearing, wrist pin, universal joint and pulley removal
Glycerine-filled manometer for durability
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	03696
Press Capacity:	75 TON
Press Type:	FLOOR
Press Operation:	Pneumatic
Working Range:	160mm - 880mm
Press Height:	1940mm
Press Width:	1150mm
Press Depth:	800mm
Ram Stroke:	250mm
Bed Width:	800mm
Net Weight:	451.00kg
Gross Weight:	498.00kg
Product Dimensions:
Packaged Dimensions:	2100(H) x 1110(W) x 320mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
