SIP 8" x 5" Planer Thicknesser

01557

Click on image to enlarge

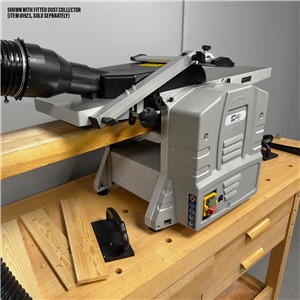

SIP 8" x 5" Planer Thicknesser

01557

The SIP 8" x 5" Planer Thicknesser is designed for efficient planing and trimming of workpieces to uniform thicknesses and width, comfortably removing large amount of material in one pass, making sure that all boards, planks, and surfaces are consistent.

Designed for home, trade, and professional woodwork applications.

KEY FEATURES

204mm planer width and 2.5mm max. cutting depth
Adjustable 90° to 135° fence tilting for versatility
Quality machine-surfaced cast aluminium table tops
Power-fed rollers for a consistently smooth finish
Perfect for both square and chamfered planing

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP 8" x 5" Planer Thicknesser is designed for efficient planing and trimming of workpieces to uniform thicknesses and width, comfortably removing large amount of material in one pass, making sure that all boards, planks, and surfaces are consistent.

Browse SIP WOODWORK for more woodworking and woodturning essentials.

204mm planer width and 2.5mm max. cutting depth
Adjustable 90° to 135° fence tilting for versatility
Machine-surfaced cast aluminium tables for accurate planing of larger timber
Power-fed rollers for a consistently high performance and a smooth finish

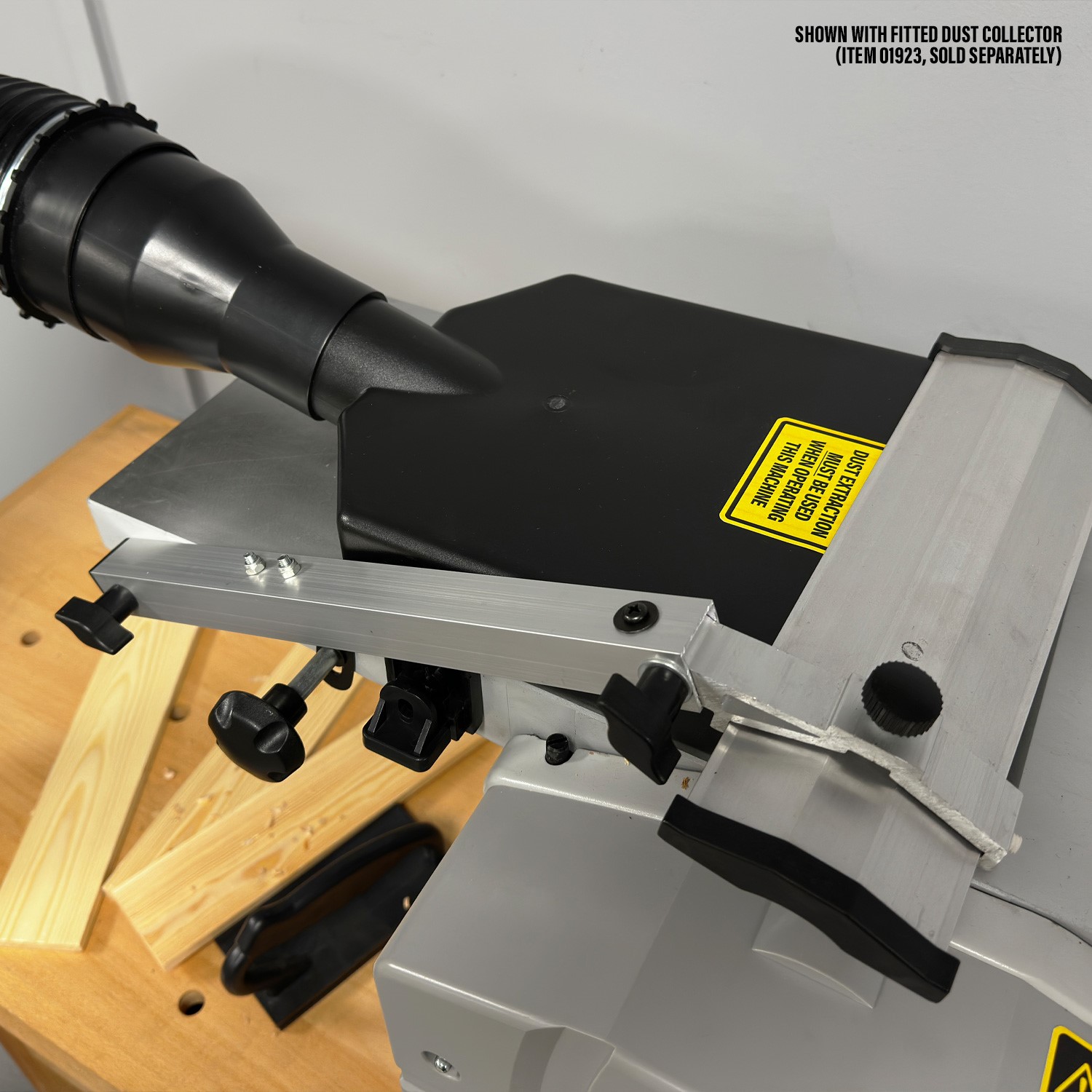

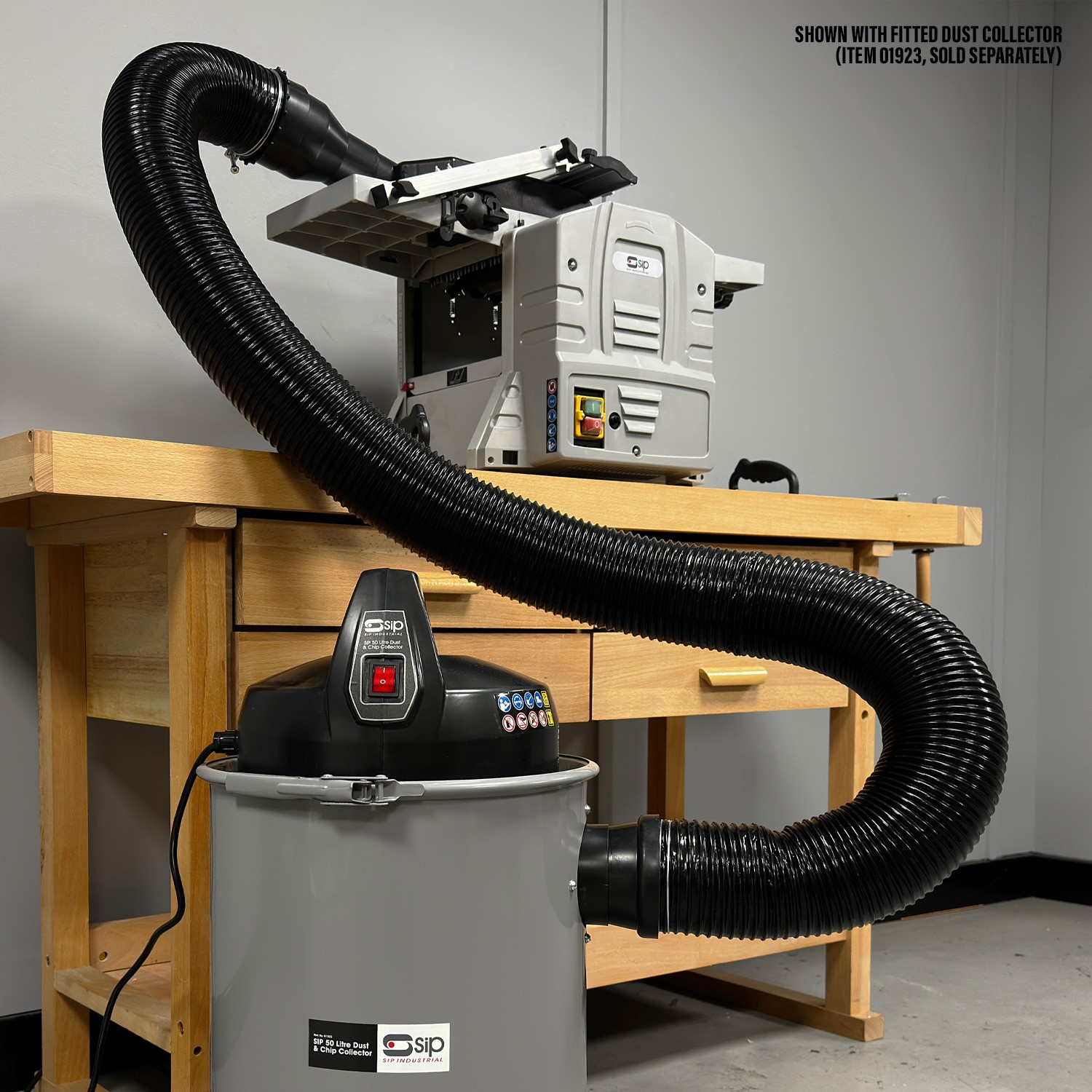

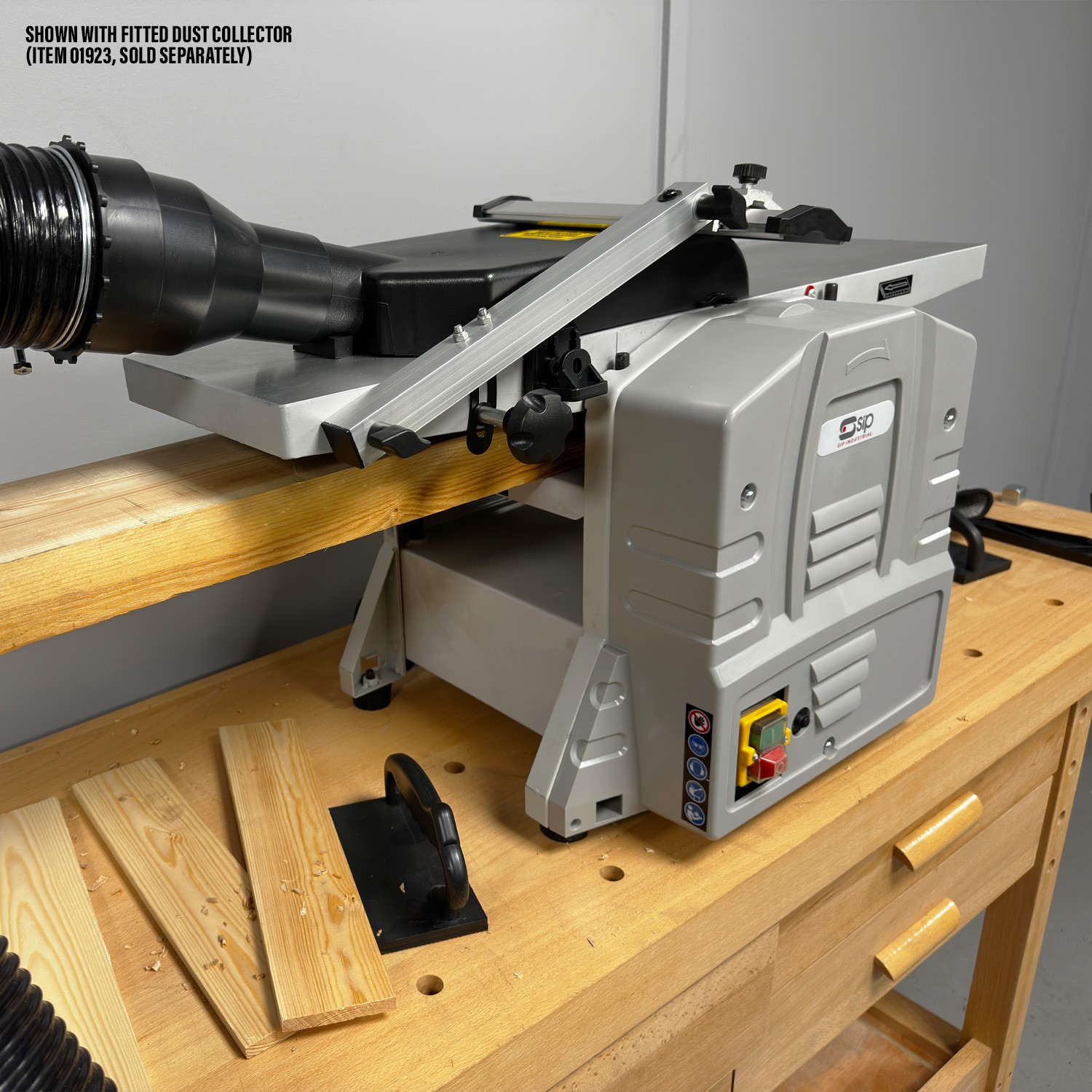

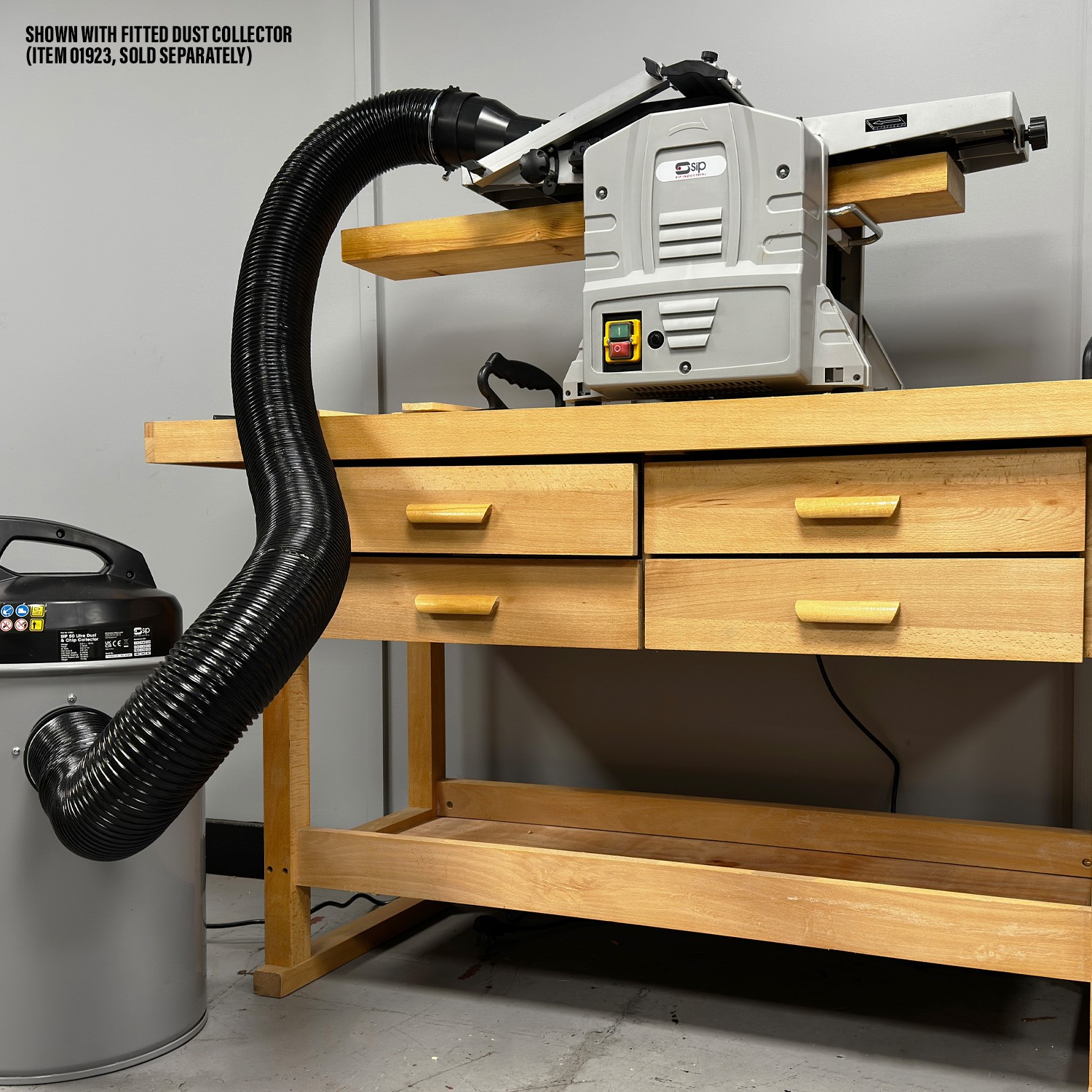

Built-in dust extraction port and expander adaptor
Fitted with reliable safety interlock switches
Perfect for both square and chamfered planing
Integrated NVR switch for added safety
SIP 2-Year Standard Silver Warranty

Technical Information

ITEM NO.	01557
Input Supply:	230v (13A)
Motor Power:	1.5kW (2hp)
Cutter Block Speed:	9000rpm
Dust Extraction Outlet (ID/OD):	55mm / 62mm
Dust Extraction Adaptor (ID/OD):	63mm / 68mm
Planer Width:	204mm
Table Height:	355mm
Table Length:	740mm
Fence Tilting:	90° - 135°
Max. Cutting Depth:	PLANING; 2.5mm THICKNESSING; 2mm
Timber Size Range:	5mm - 120mm
Max. Timber Width:	204mm
Noise Level:	105db(A)
Net Weight:	24.00kg
Gross Weight:	27.76kg
Product Dimensions:	490(H) x 980(W) x 460mm(D)
Packaged Dimensions:	850(H) x 430(W) x 460mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
