SIP Air Hose Reel 20

07400

Click on image to enlarge

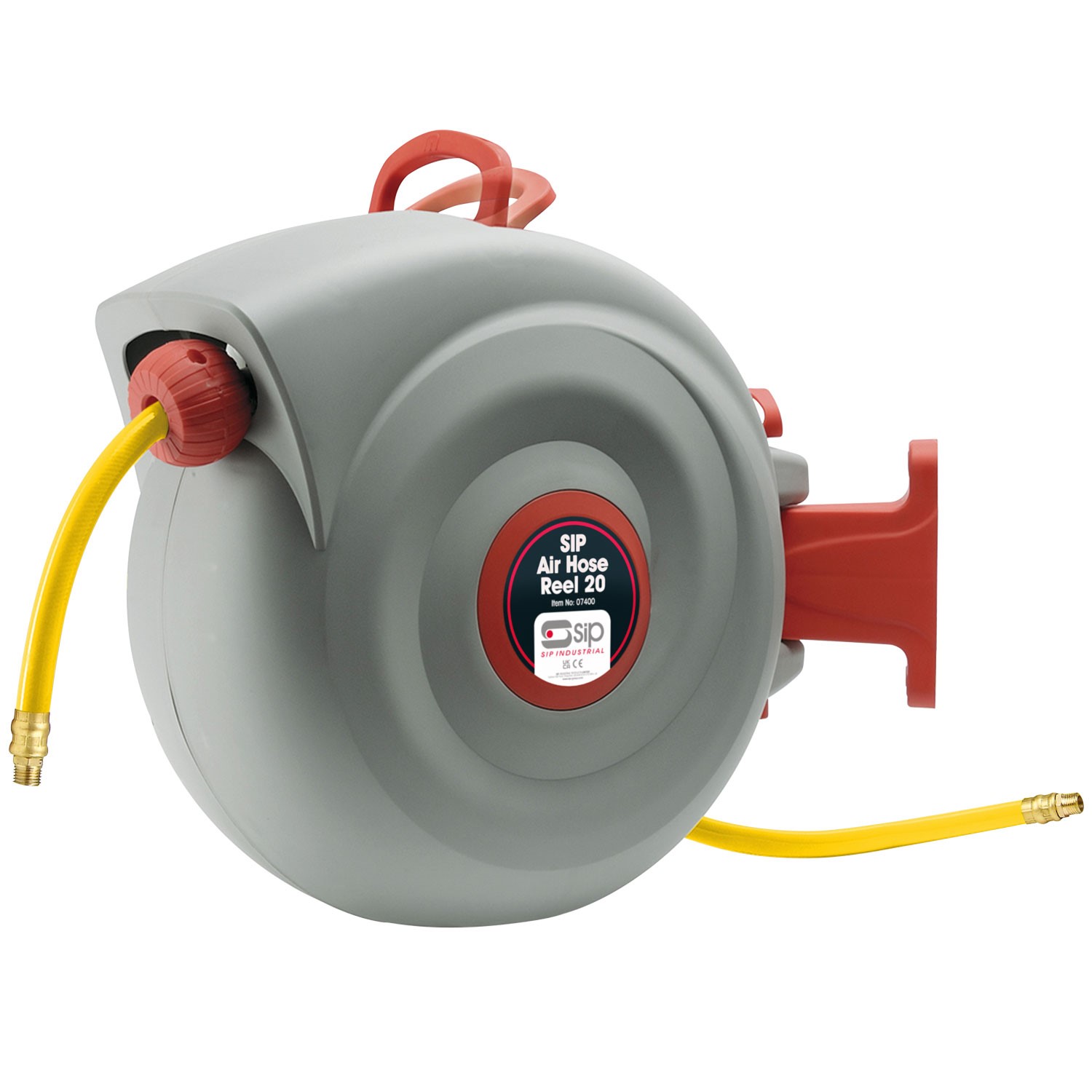

SIP Air Hose Reel 20

07400

The SIP Air Hose Reel 20 offers an easy and highly durable solution, via heavy-duty plastic casing, for carrying compressed air from a compressor to a variety of air-powered tools and equipment reliably and efficiently up to a max. pressure of 300psi (20bar).

This reel utilises Through Flow, ensuring it can be wound and unwound during operation by letting air through, plus Auto Layer technology to allow simple recoiling and storage.

KEY FEATURES

20mtr hose length with 300psi (20bar) max. pressure
Through Flow allows winding or unwinding during use
Auto-Layer technology for simple recoiling and storage
Heavy-duty plastic casing for increased durability
Supplied with mounting bracket for quick fixing
Supplied with air coupler hose fittings

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP Air Hose Reel 20 offers an easy and highly durable solution for carrying compressed air from an air compressor to a wide range of different air-powered tools and equipment, offering reliability and efficiency to a max. pressure of 300psi (20bar).

This reel boasts two key benefits that increase performance. Through Flow allows air to pass through the reel ensuring that it can be both wound and unwound before, during and after operation with ease. Auto Layer technology makes recoil and storage simple.

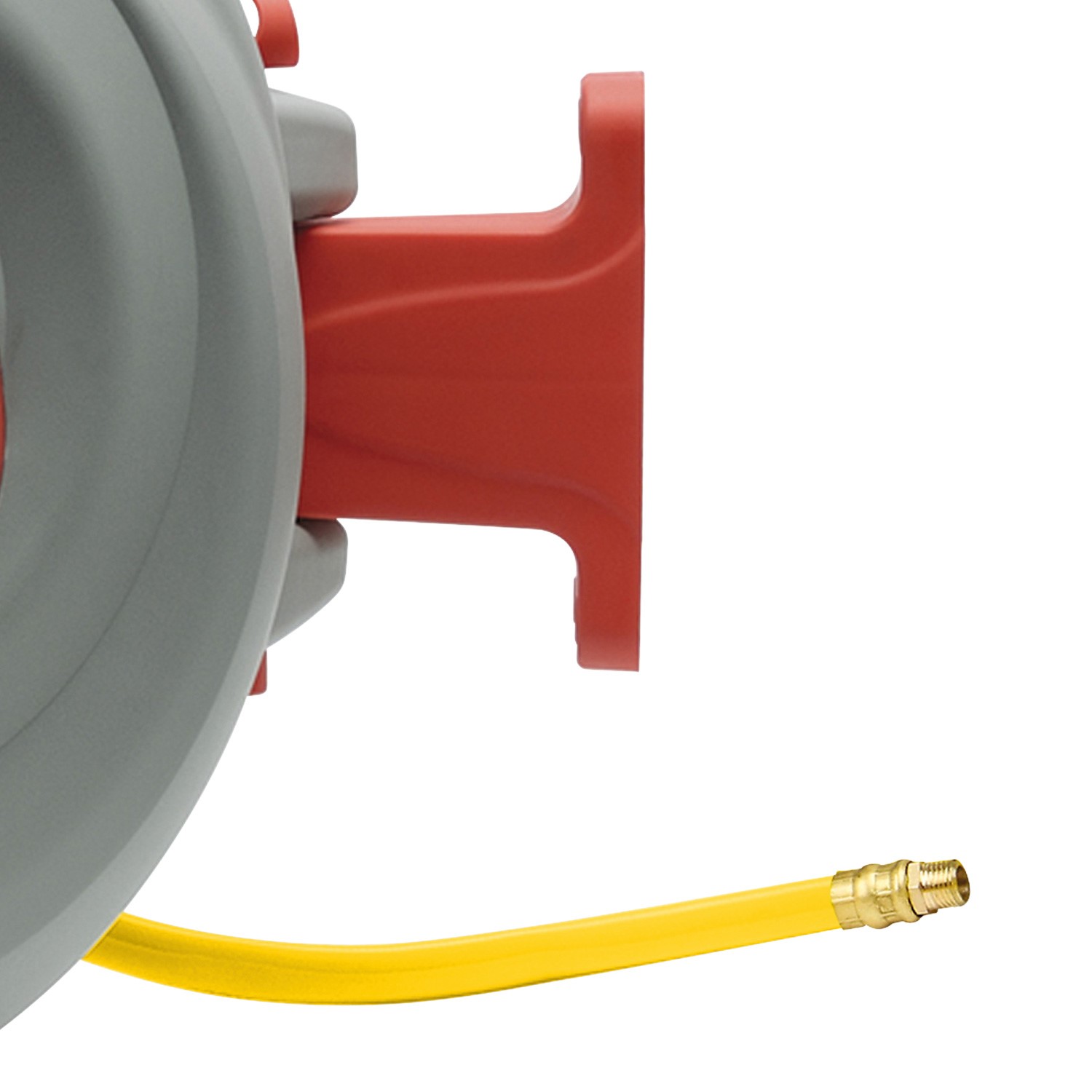

A design that includes a wall-mounting bracket on the rear of the reel and an easy carry handle on top allows the Air Hose Reel 20 to be extremely versatile no matter how it is being used. A heavy-duty plastic casing provides added durability.

Perfect for a wide range of home, trade and professional needs.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

20mtr hose length with 300psi (20bar) max. pressure
⌀ 9.5mm (3/8") inside and 14.5mm (9/16") outside diameters
Through Flow allows winding or unwinding during use
Auto-Layer technology for simple recoiling and storage
Heavy-duty plastic casing for increased durability

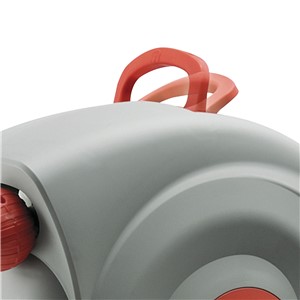

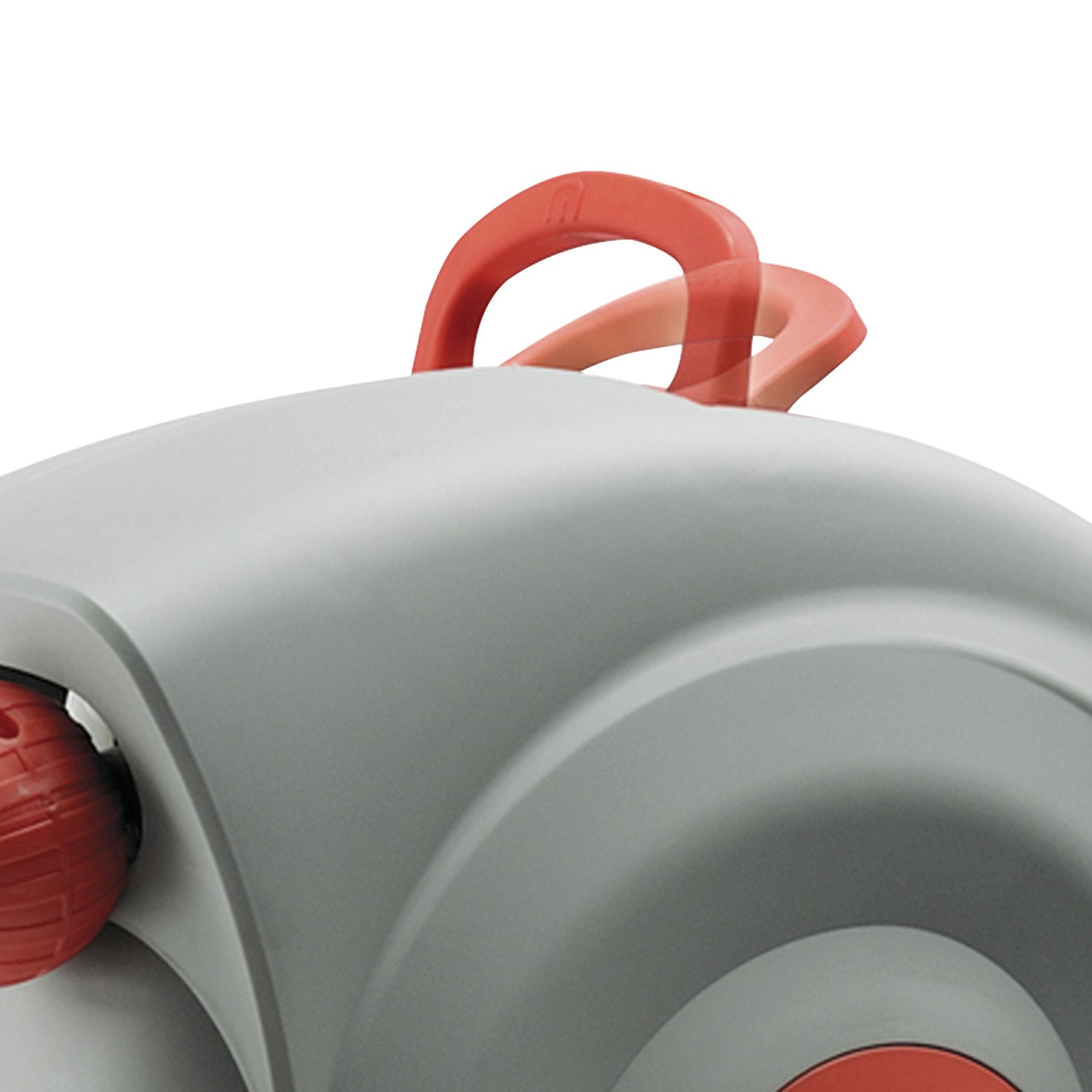

Easy carry handle for positioning and portability
Supplied with mounting bracket for quick fixing

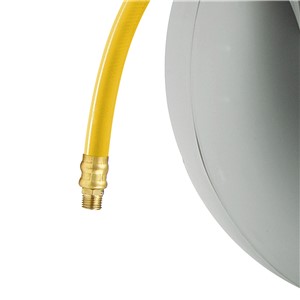

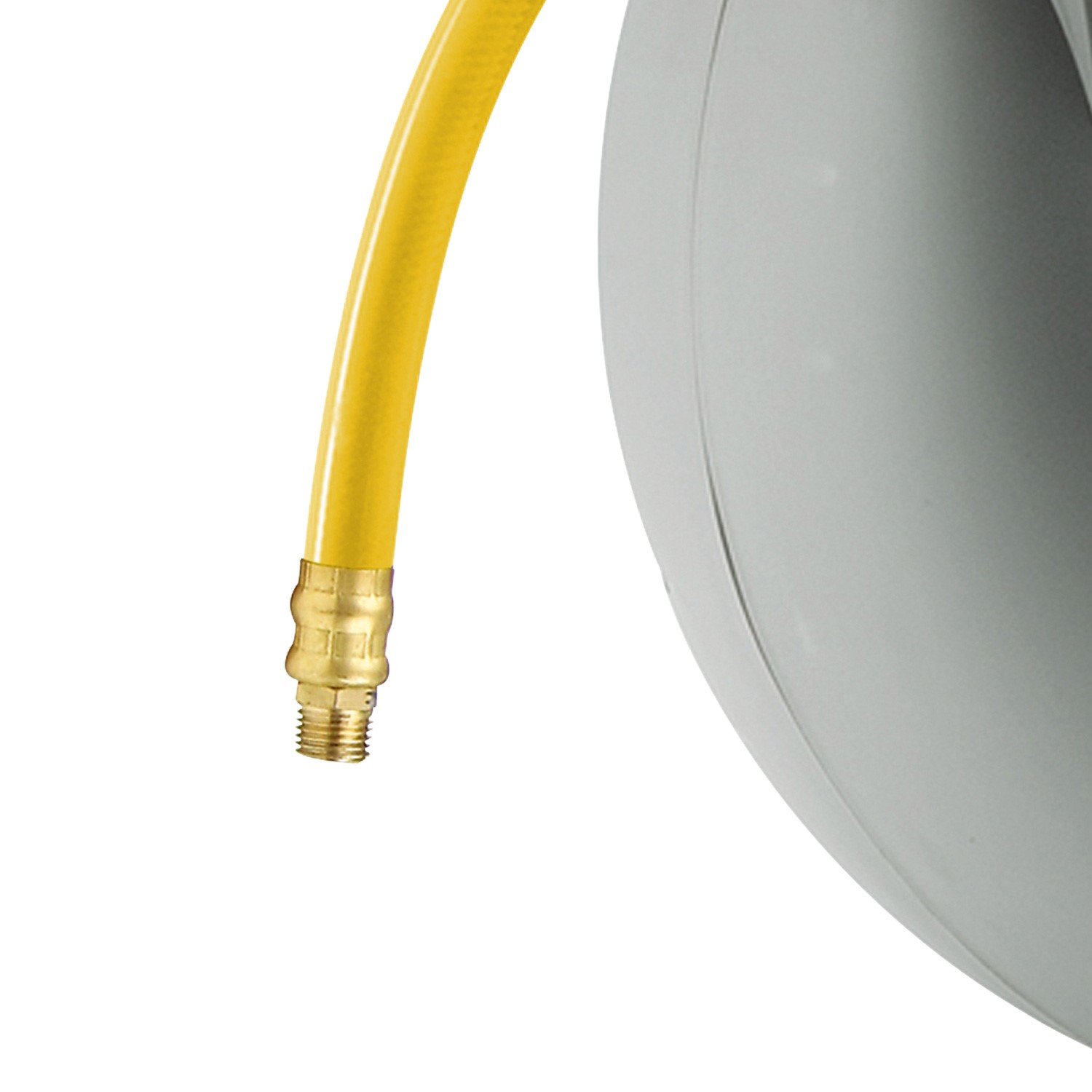

Supplied with air coupler hose fittings
-5°C to 45°C working temperature
SIP 2-Year Standard Silver Warranty*

Technical Information

ITEM NO.	07400
Hose Length:	20mtr
Inside Hose Diameter:	Ø 9.5mm (3/8")
Outside Hose Diameter:	Ø 14.5mm (9/16")
Connection Hose Length:	1mtr
Working Temperature:	-5°C - 45°C
Max. Pressure:	300psi (20bar)
Hose Fitting:	Air Coupler
Net Weight:	6.20kg
Gross Weight:	6.75kg
Product Dimensions:	180(H) x 355(W) x 470mm(D)
Packaged Dimensions:	370(H) x 195(W) x 410mm(D)
