SIP CSW25P Pneumatic Column Spot Welder

25113

Click on image to enlarge

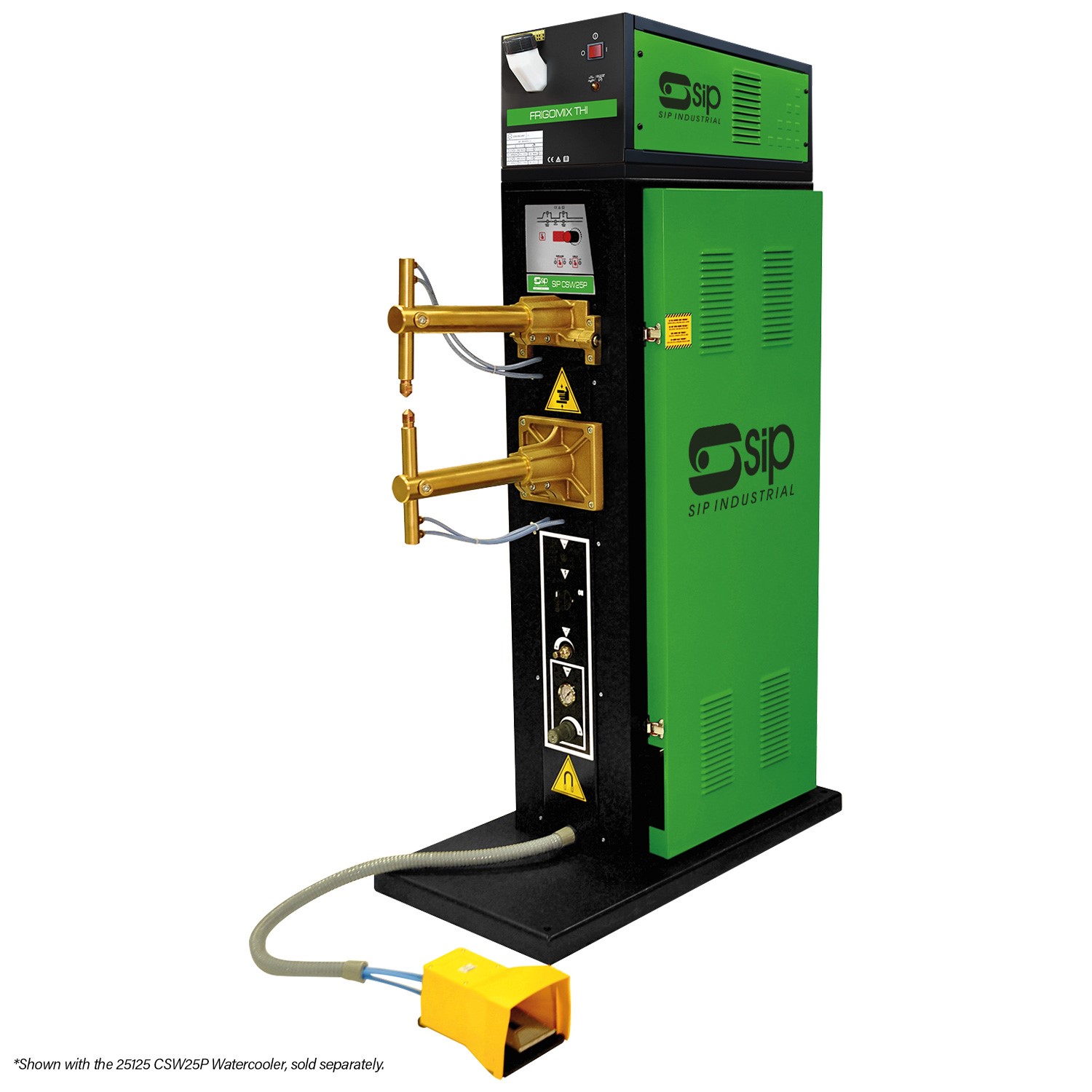

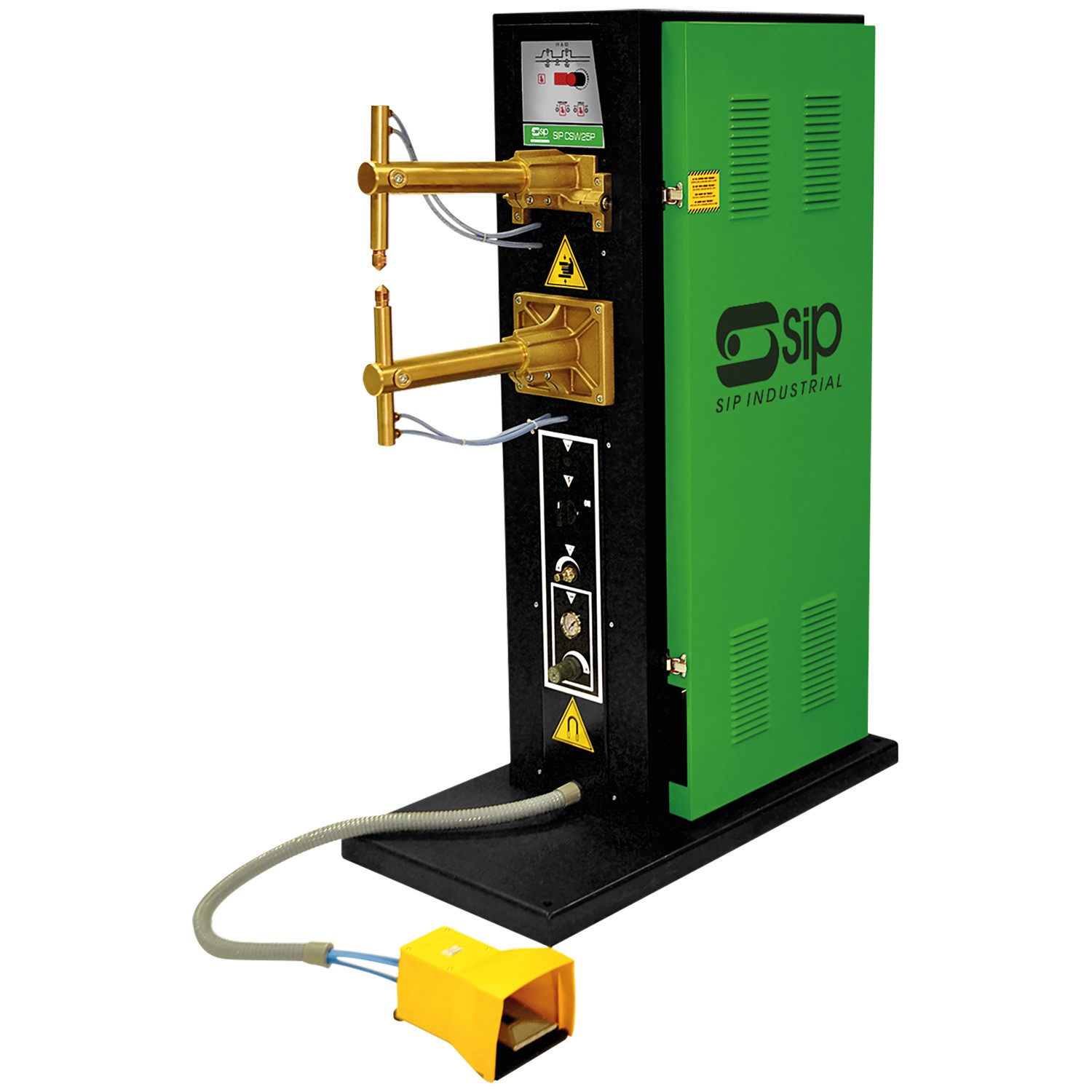

SIP CSW25P Pneumatic Column Spot Welder

25113

The SIP CSW25P Pneumatic Column Spot Welder offers easy spot welding in a variety of demanding applications, utilising single or double spot welding modes for use on oxidised or coated steels, and a 2-stage pneumatic foot pedal for precise positioning.

Perfect for a variety of trade and professional applications.

KEY FEATURES

340mm to 480mm standard welding arm length
Digital display for welding current and welding time
Adjustable air regulator with dampener for easy control
2-stage pneumatic foot pedal; precise work positioning
Fitted with high-quality watercooling hoses

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP CSW25P Pneumatic Column Spot Welder offers easy spot welding in a variety of demanding applications, utilising single or double spot welding modes for use on oxidised or coated steels, and a 2-stage pneumatic foot pedal for precise positioning.

Browse SIP WELDING for more high-quality welding machines and accessories.

50kVA max. / 25kVA @ 50% welding output

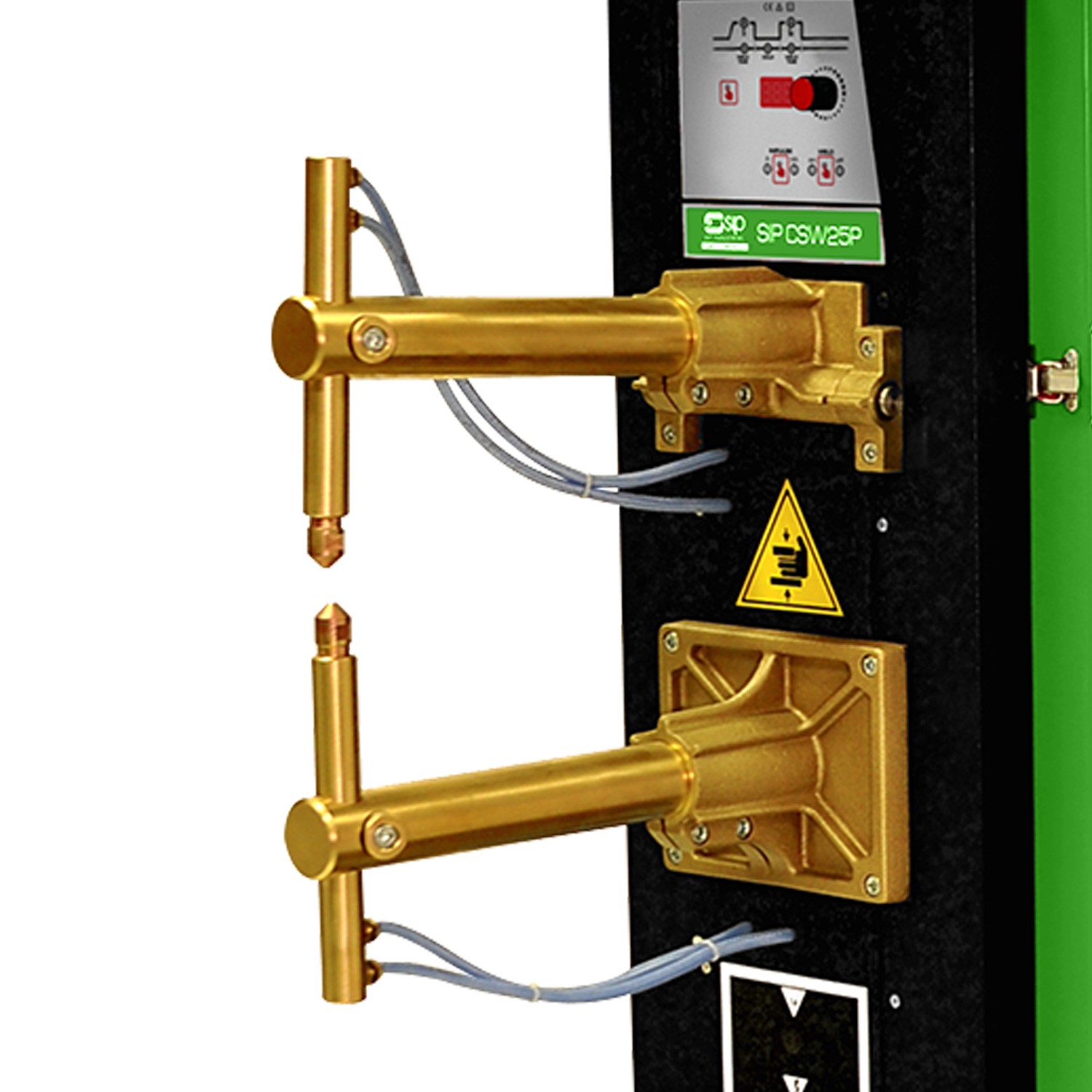

340mm to 480mm standard welding arm length
5+5mm (mild steel plate) / 20+20mm (bar) weld capacity
Single or double spot welding modes perfect for oxidised or coated steels

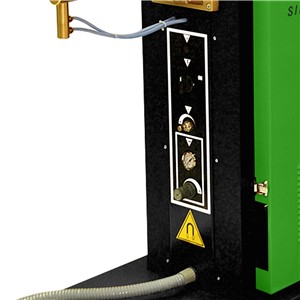

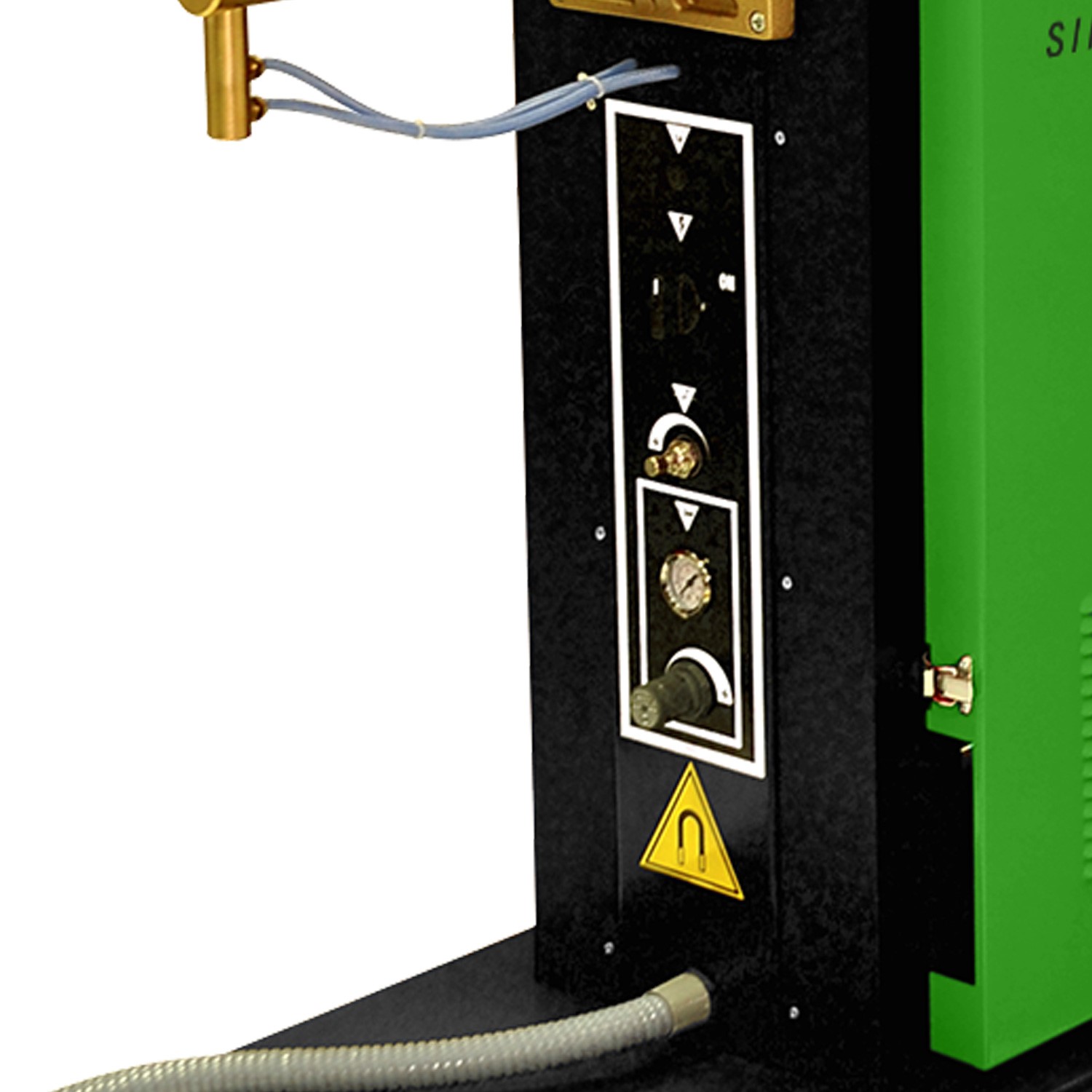

Adjustable air regulator with dampener; controls air pressure and descent speed
Digital display for monitoring and controlling welding current and welding time

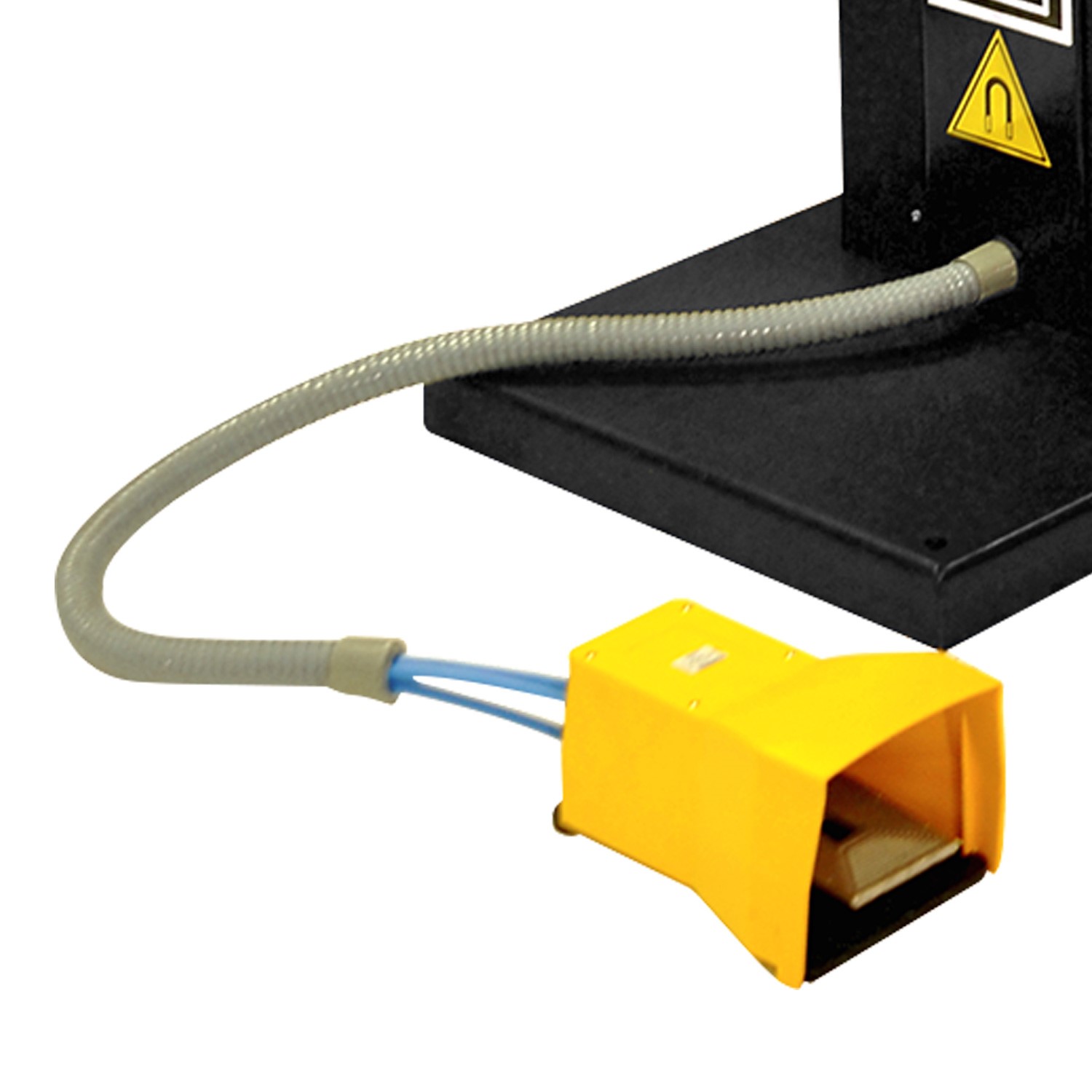

2-stage pneumatic foot pedal; precise work positioning and easy operation
Fitted with high-quality watercooling hoses
SIP 2-Year Standard Silver Warranty
Manufactured in the EU

Technical Information

ITEM NO.	25113
Input Supply:	400v (50A) 1-PHASE
Max. Welding Power:	50kVA
Duty Cycle:	25kVA @ 50%
Mild Steel Capacity:	5+5mm (flat) / 20+20mm (bar)
Stainless Steel Capacity:	3+3mm (flat) / 12+12mm (bar)
No-Load Voltage:	1.4v
Short Circuit Current:	13.8KA
Max. Air Pressure:	70psi (4.8bar)
Water Flow Rate:	4ltr/min
Max. Electrode Force:	204kgF @ 340mm 140kgF @ 450mm
Distance Between Arms:	200mm (standard) 320mm (optional)
Arm Length:	340mm to 480mm (standard) 200mm to 1000mm (optional)
Electrode Throat Size:	100mm
Electrode Holder Diameter:	Ø 25mm
Electrode Diameter:	Ø 20mm
Arm Diameter:	Ø 45mm
Noise Level:	70dB(A)
Net Weight:
Gross Weight:	178.00kg
Product Dimensions:
Packaged Dimensions:	1450(H) x 520(W) x 1070mm(D)
