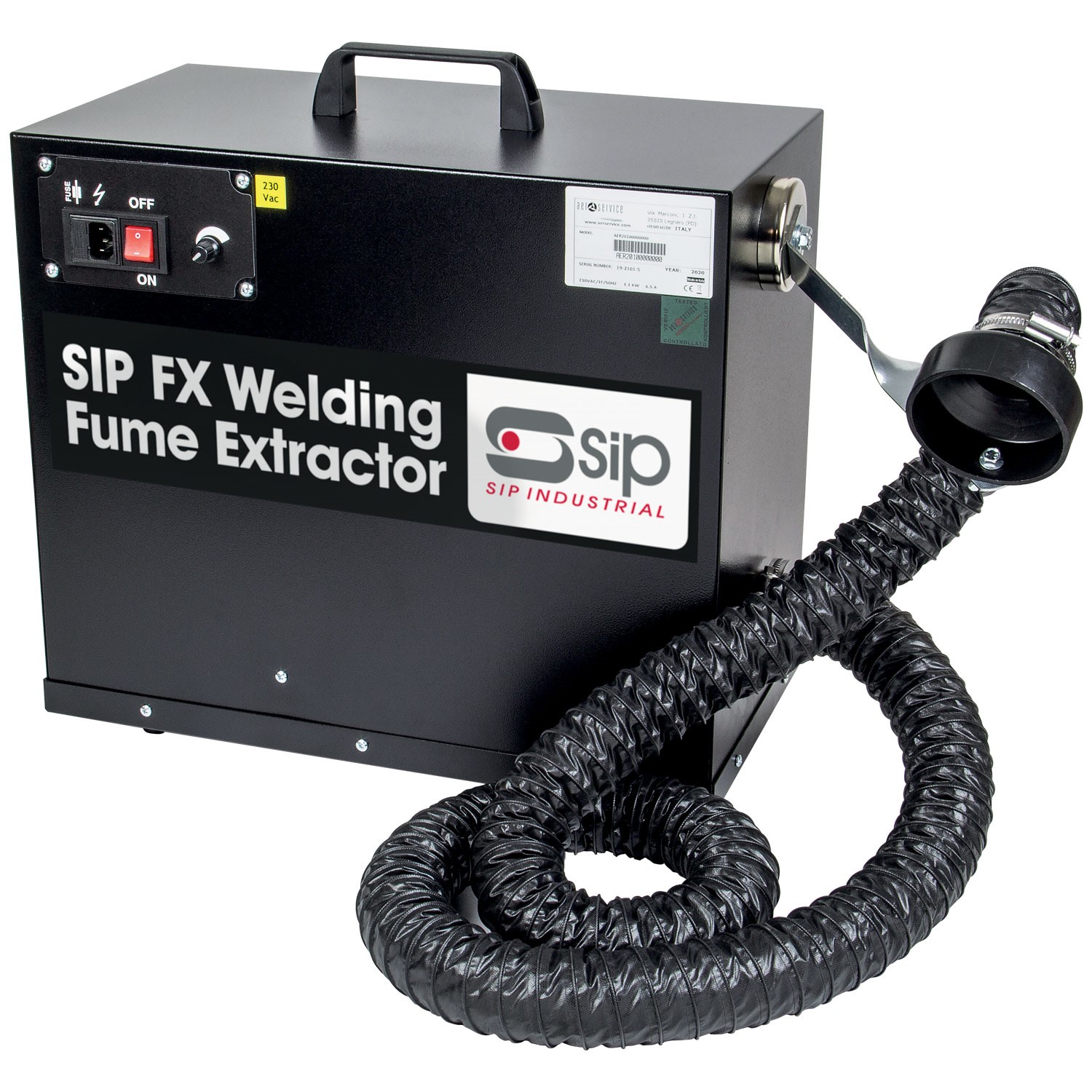

SIP FX Portable Welding Fume Extractor

05800

Click on image to enlarge

SIP FX Portable Welding Fume Extractor

05800

The SIP FX Portable Welding Fume Extractor efficiently and safely removes harmful toxic welding fumes, filtering them and returning clear air into your environment, giving added peace-of-mind that your or garage or workshop remains protected and safe.

Perfect for low and medium pollutant concentrations.

KEY FEATURES

Adjustable extraction hose for simple positioning
Heavy-duty 3-stage effective filtration up to 85%
Ideal for intermittent operation with adjustable speed
Complies with all current weldable material regulations
Heavy-duty steel casing with powder-coated finish

2-Year Standard Silver Warranty | Find out more

Full Specification

The SIP FX Portable Welding Fume Extractor efficiently and safely removes harmful toxic welding fumes, filtering them and returning clear air into your environment, giving added peace-of-mind that your garage or workshop remains protected and safe.

Browse SIP WELDING for more high-quality welding machines and accessories.

250mtr³/hr max. flow rate and 110mtr³/hr max. suction

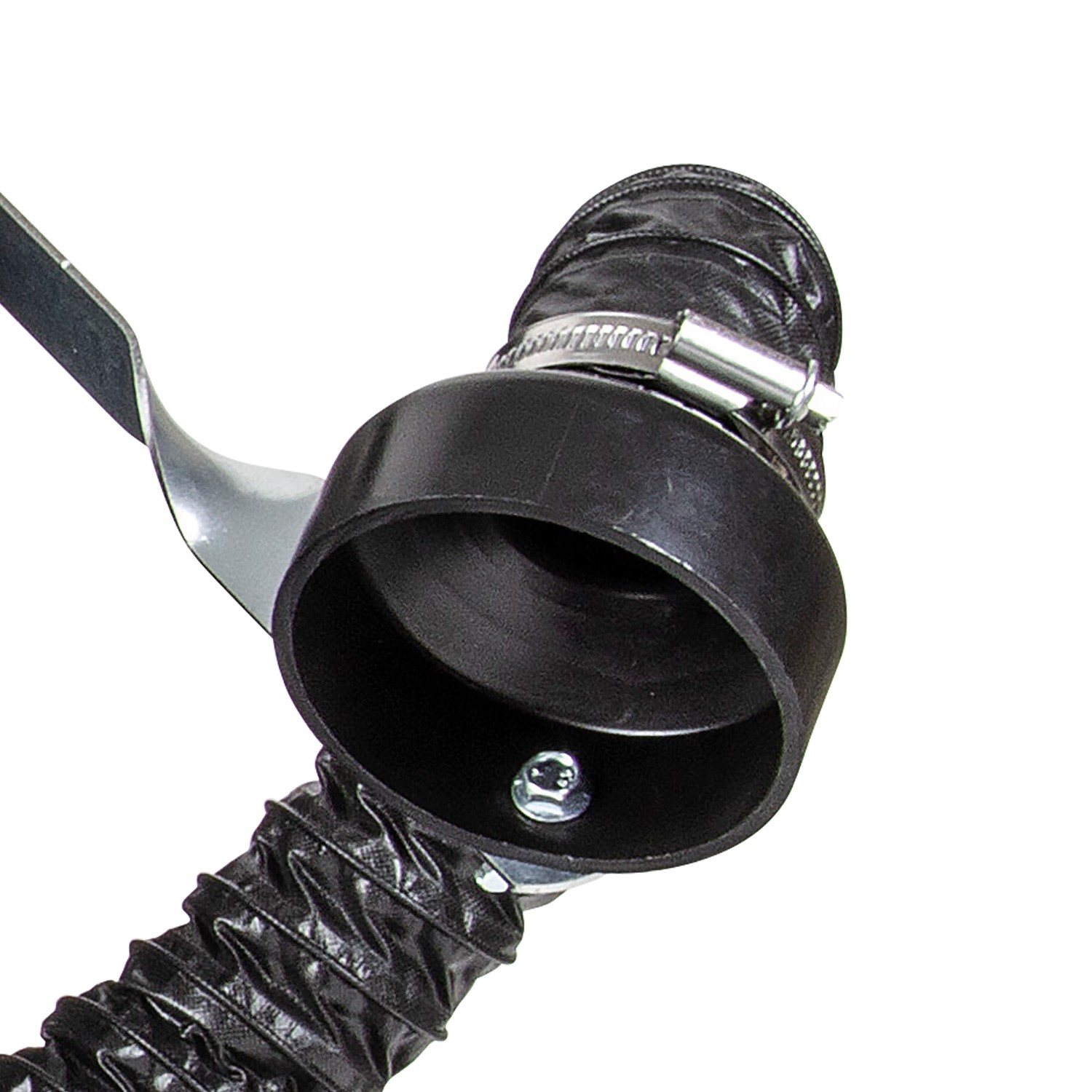

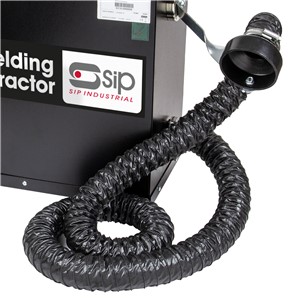

Adjustable extraction hose for simple positioning
Heavy-duty 3-stage effective filtration up to 85%:

Filter Stage 1: Metallic Spark Arrestors G25%
Filter Stage 2: Cartridge Filter F5 85%
Filter Stage 3: Active Carbon Panel

Harmful fumes are removed through filters with clean air returned
Ensures workshops are protected from potentially harmful toxic fumes

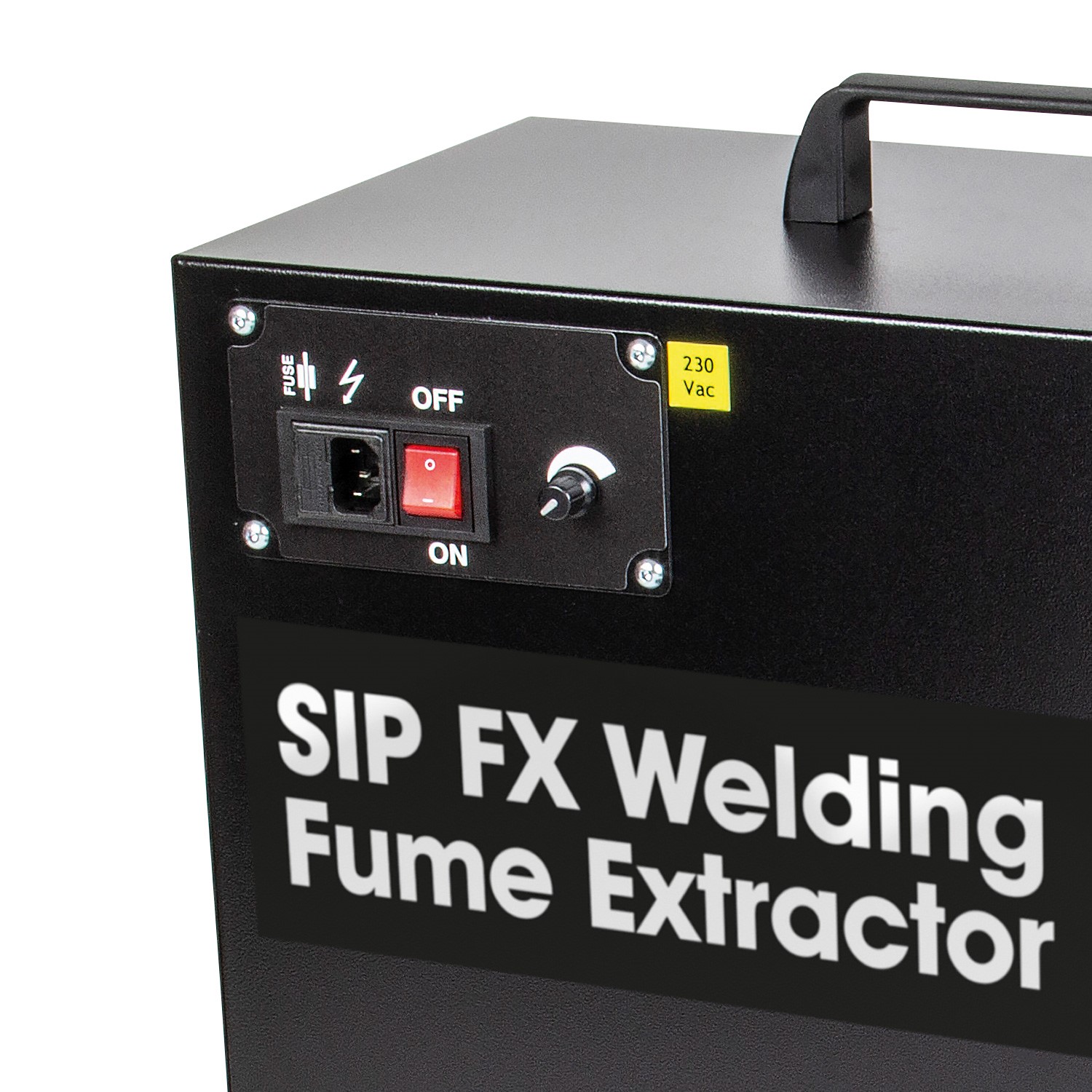

Ideal for intermittent operation with adjustable speed regulation
Complies with all current regulations on weldable materials
Ideal for low and medium concentrations of pollutants
Heavy-duty steel casing with powder-coated finish
SIP 2-Year Standard Silver Warranty
Manufactured in Italy

Technical Information

ITEM NO.	05800
Input Supply:	230v
Input Power:	1.1kW
Power Consumption:	4.85A
Max. Flow Rate:	250m³/hr
Max. Suction Rate:	110m³/hr
Filtration Level:	85%
Filter Stage 1:	G25% Metallic Spark Arrestors
Filter Stage 2:	85% F5 Cartridge Filter
Filter Stage 3:	Active Carbon Panel
Extraction Type:	Adjustable Hose
Max. Temperature:	60°C
Noise Level:	65dB(A)
Net Weight:	16.15kg
Gross Weight:	19.50kg
Product Dimensions:
Packaged Dimensions:	575(H) x 310(W) x 585mm(D)
