SIP P200W-DC ES HONDA Pro Welder Generator

25172

Click on image to enlarge

SIP P200W-DC ES HONDA Pro Welder Generator

25172

The SIP P200W-DC ES HONDA™ Professional Welder Generator utilises a heavy-duty HONDA™ GX390 engine that provides powerful performance in tandem with a robust wheel-mounted design and durable components suited for demanding environments.

KEY FEATURES

230v or 115v generator output supply
Heavy-duty HONDA™ GX390 OHV EURO V petrol engine
50A to 200A welding power; powerful DC output current
Splash-fed lubrication system and low oil shutdown
Heavy-duty cast iron cylinder liner for durability

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP P200W-DC ES HONDA™ Professional Welder Generator utilises a heavy-duty HONDA™ GX390 engine that provides powerful performance in tandem with a robust wheel-mounted design and durable components suited for demanding environments.

Browse SIP WELDING for more high-quality welding machines and accessories.

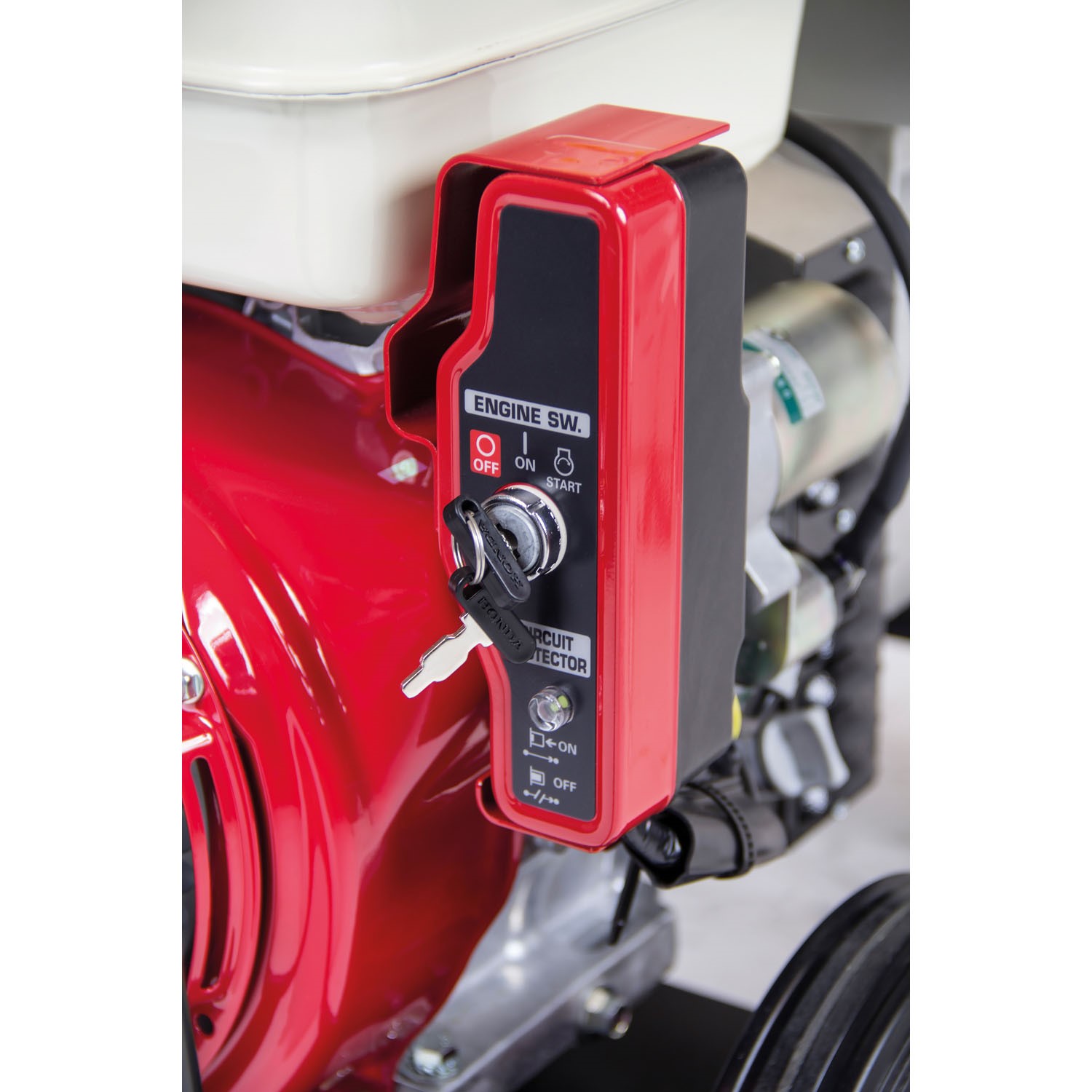

Fitted with an electric start
230v or 115v generator output supply
Heavy-duty HONDA™ GX390 OHV EURO V petrol engine
50A to 200A welding power; powerful DC output current
DC welding allows specialist electrodes for ferrous and non-ferrous metals
High 4kVA generator output for increased performance
7.3ltr fuel tank capacity; 2.45hrs approx. runtime
Splash-fed lubrication system for higher efficiency
Heavy-duty cast iron cylinder liner for durability
Quality inclined cylinder and counterbalance shaft
Low oil shutdown helps to prevent engine damage
Equipped with cable socket connections
Assembled and tested by SIP in the UK
SIP 2-Year Standard Silver Warranty
HONDA™ 3 Year Engine Warranty

Technical Information

ITEM NO.	25172
Electric Starting:	Yes
Engine Type:	HONDA GX390 389cc EURO V
Output Current:	50A - 200A DC
Output Supply:	230v / 115v
Duty Cycle:	170A @ 60%
Open Circuit Voltage:	75v
Electrode Diameter:	Ø 1.6mm - 5mm
Welding Thickness:	1.5mm - 8mm
Max. Rated Output:	4.00kVA
Fuel Tank Capacity:	7.3ltr
Approx. Runtime:	2.45hrs
Protection Level:	IP21
Insulation Class:	Class H
Net Weight:	85.50kg
Gross Weight:	90.00kg
Product Dimensions:
Packaged Dimensions:	820(H) x 800(W) x 1200mm(D)
