SIP RS11-10-270BD/FF Rotary Screw Compressor

06534

SIP RS11-10-270BD/FF Rotary Screw CompressorSIP RS11-10-270BD/FF Rotary Screw CompressorSIP RS11-10-270BD/FF Rotary Screw CompressorSIP RS11-10-270BD/FF Rotary Screw CompressorSIP RS11-10-270BD/FF Rotary Screw CompressorSIP RS11-10-270BD/FF Rotary Screw Compressor
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

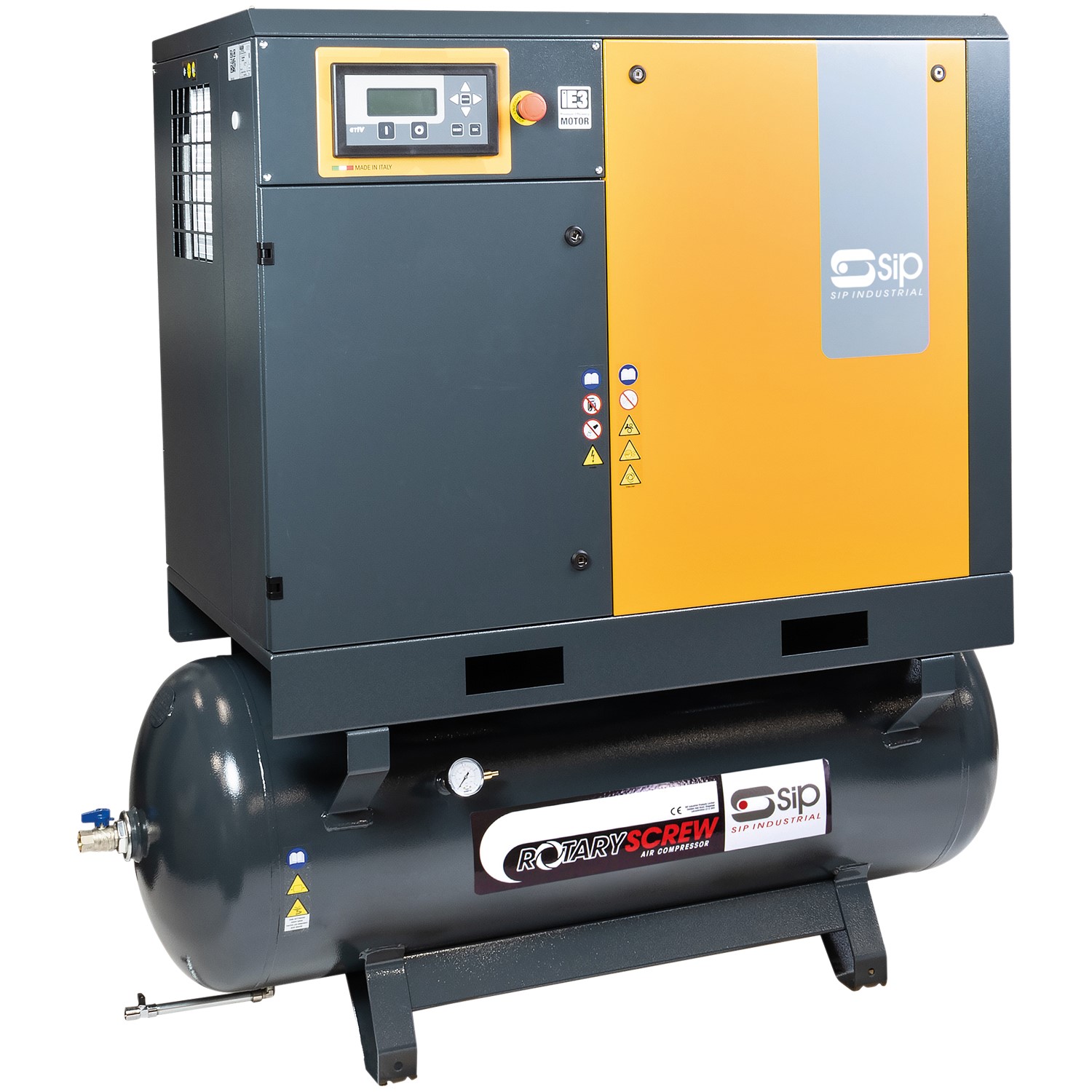

The SIP RS11-10-270BD/FF 270ltr Rotary Screw Compressor is a fully integrated workstation complete with air treatment module that includes a generously-sized refrigeration dryer with a 3°C dew point, 10µm inlet filtration and 1µm outlet filtration.

Acting as an all-in-one system, this compressor has a compact and modern design that houses the air end, dryer, filters, controller and receiver in a single modular unit, providing high-quality compressed air production in a space-saving solution.

Each RS11-10-270BD/FF is built to the highest standard in Italy, and then tested by experienced SIP technicians in the UK prior to dispatch for added peace-of-mind.

KEY FEATURES

  •  All-in-one workstation; compressor, receiver, dryer, and filter
  •  Compact, modern design for easy servicing and maintenance
  •  Dry tank technology for constant airflow and reduced corrosion
  •  Generously-sized refrigeration dryer with 3°C dew point
  •  10µm inlet filtration / 1µm outlet filtration
  •  100% UK tested by SIP before dispatch

SIP 2-Year Standard Silver Warranty | Find out more

Full Specification



This unit requires a Site Survey Self Assessment form to be filled in prior to order acceptance. Please download and return to sales@sip-group.com.

The SIP RS11-10-270BD/FF 270ltr Rotary Screw Compressor is a fully integrated workstation complete with air treatment module that includes a generously-sized refrigeration dryer with a 3°C dew point, 10µm inlet filtration and 1µm outlet filtration.

Acting as an all-in-one system, this compressor has a compact and modern design that houses the air end, filters, controller and receiver in a single modular unit, providing high-quality compressed air production in a space-saving solution.

Unlike other screw compressors on the market, the integrated air system provides dry and clean air to a quality standard classification 2-4-2 in accordance with ISO 8573-1.

This compressor is designed for continuous use in demanding applications.

Each RS11-10-270BD/FF is built to the highest standard in Italy, and then tested by experienced SIP technicians in the UK prior to dispatch for added peace-of-mind.

  • Fully automatic, integrated, and self-monitoring
  • All-in-one system; compact and modern design for easy servicing access

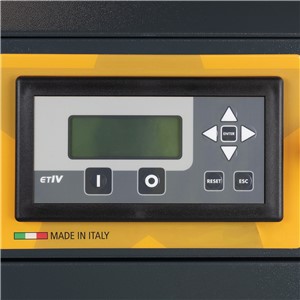

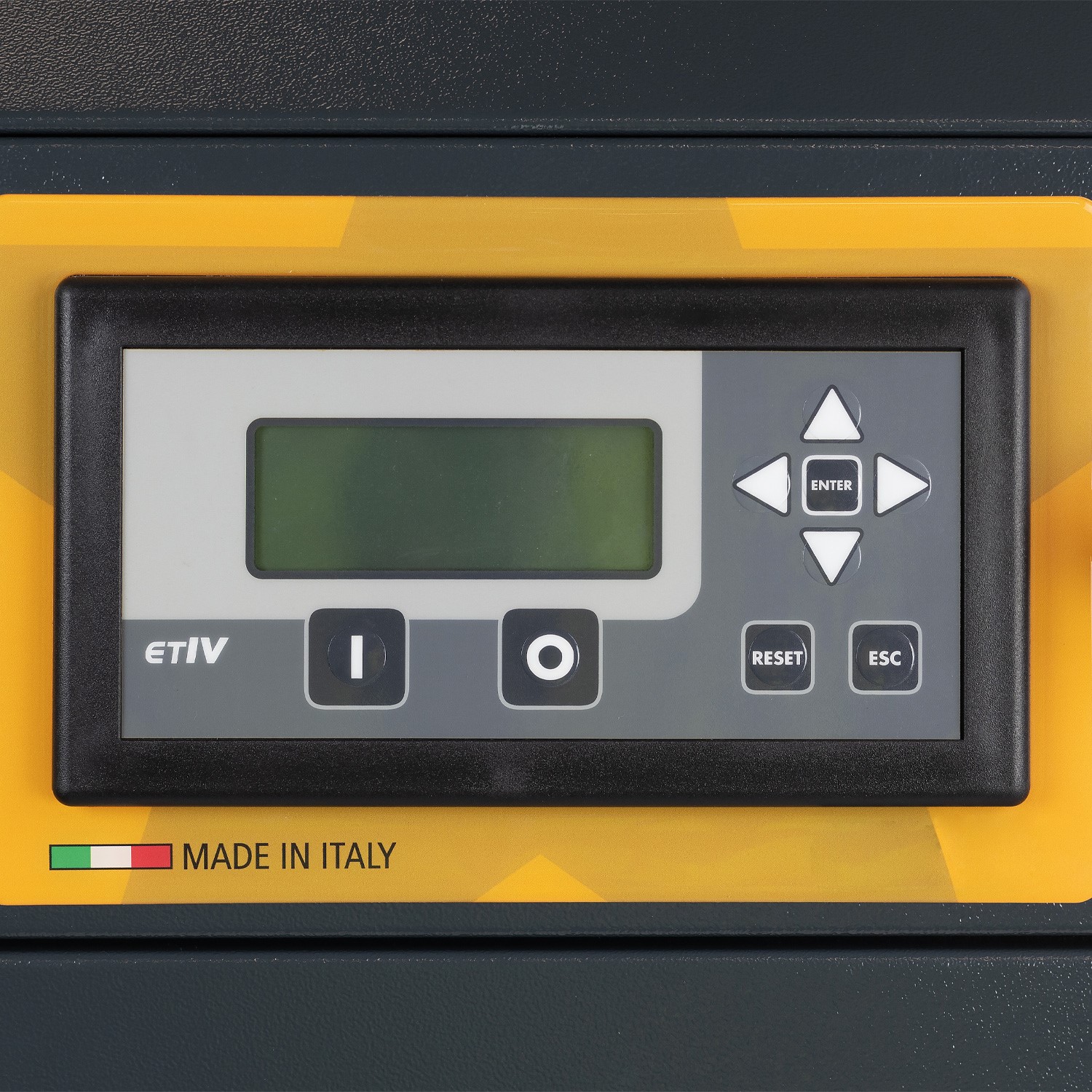

  • Electronic ETIV controller with digital display; easy-to-use and reliable

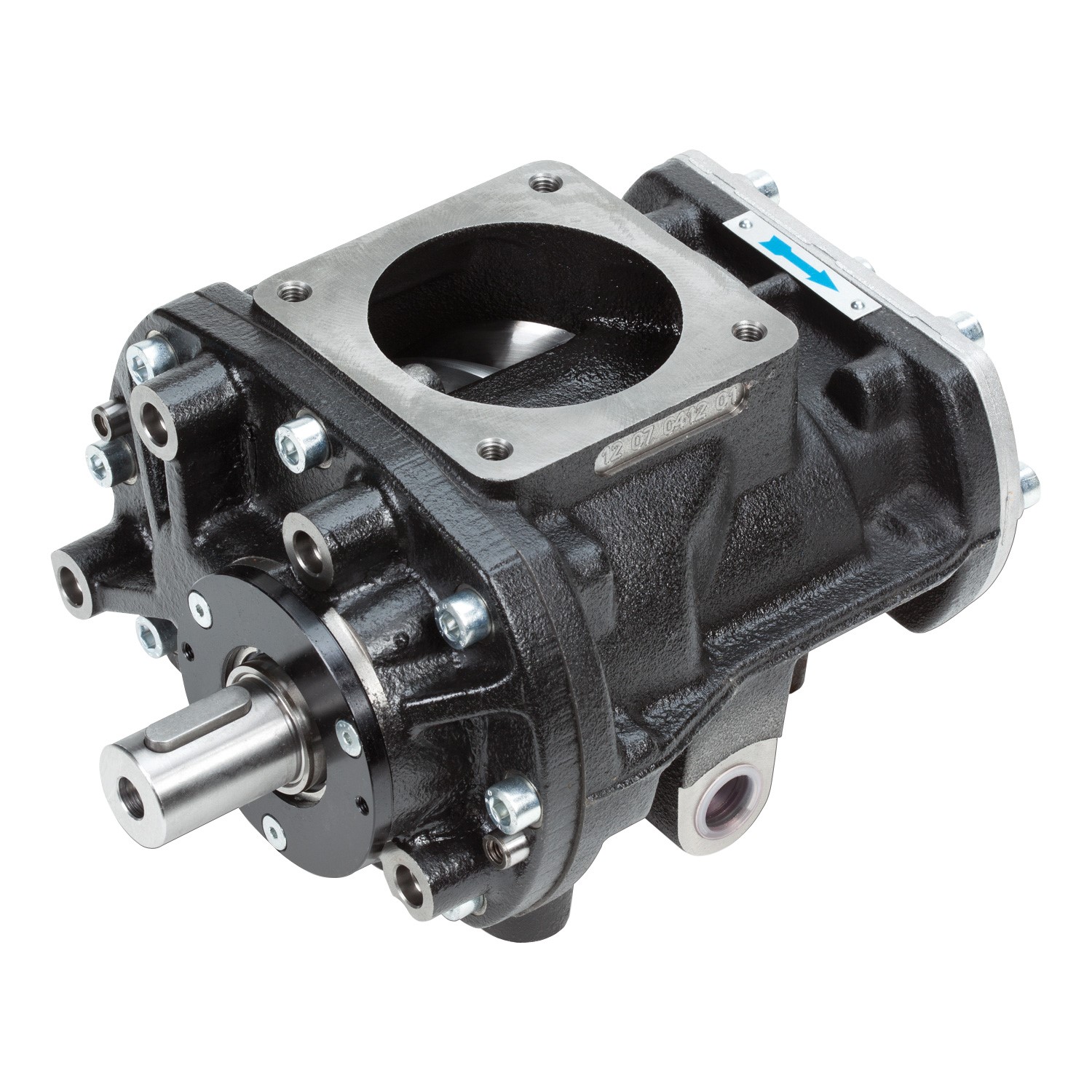

  • Italian-manufactured FS26 TF air end delivers high-quality constant airflow
  • Integrated air system provides both dry and clean air to quality standard classification 2-4-2, in accordance with ISO 8573-1
  • Air end, dryer, filters, controller, and receiver are in a single modular unit, providing a comprehensive space-saving solution
  • Dry tank technology for constant airflow and reduced corrosion
  • Automatic condensate discharge and status via electronic panel

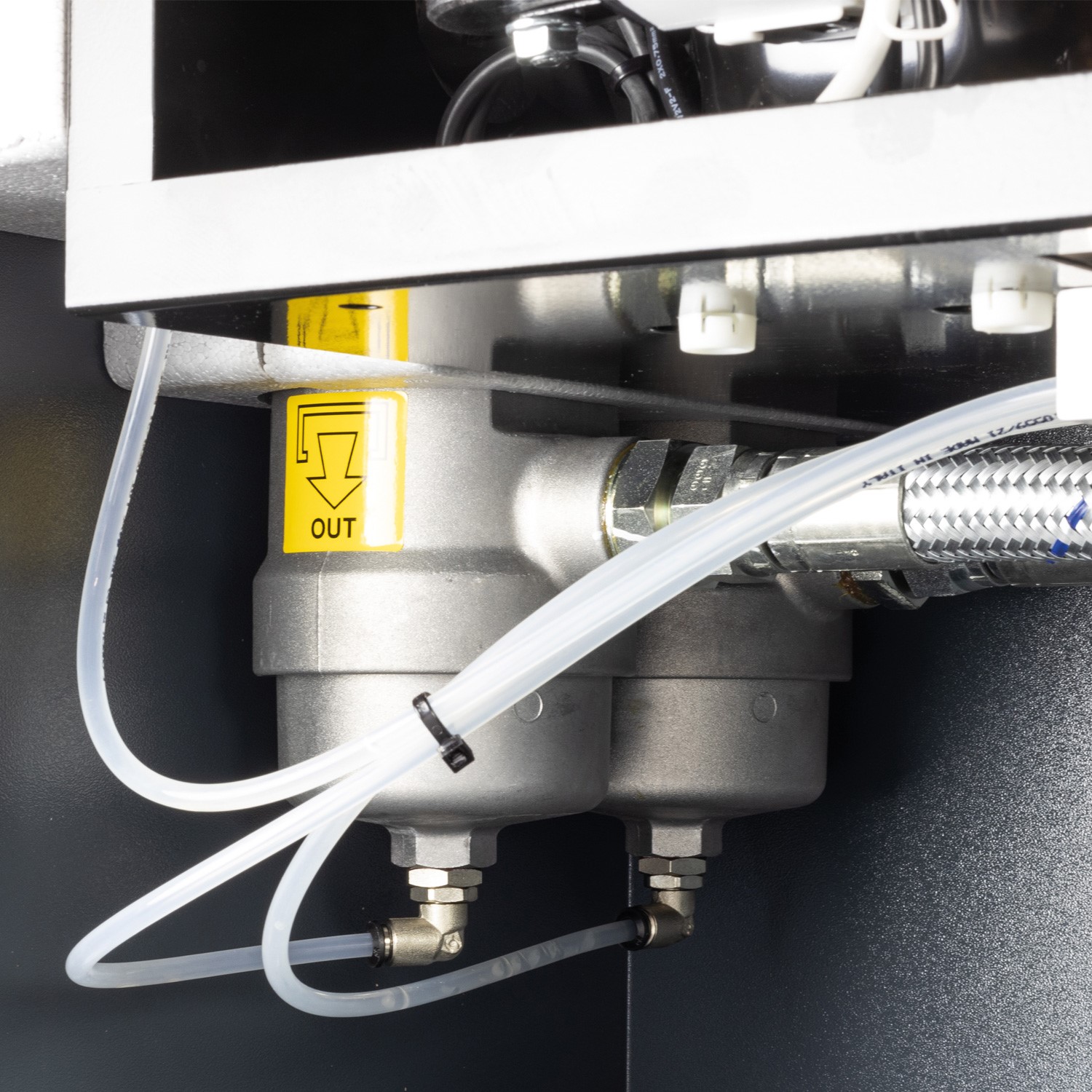

  • 10µm inlet filtration and 1µm outlet filtration
  • 100% UK tested by SIP before dispatch
  • SIP 2-Year Standard Silver Warranty
  • Manufactured in Italy

 

Technical Information

ITEM NO. 06534
Input Supply: 400v (40A) 3-PHASE
Motor Power: 11kW (14.75hp)
Receiver Size: 270ltr
Free Air Delivery (FAD): 53.00CFM (1500ltr/min)
Max. Air Pressure: 145psi (10bar)
Filtration Level: 10µm particulate
1µm oil filter
Refrigeration Dryer: 3°C Dew Point
Air Quality Level: 2-4-2 (ISO 8573-1*)
Noise Level: 65dB(A)
Net Weight: 363.00kg
Gross Weight: 375.00kg
Product Dimensions: 1560(H) x 700(W) x 1580mm(D)
Packaged Dimensions: 1600(H) x 700(W) x 1650mm(D)
*CLASS (ISO 8573-1)
  SOLID PARTICLE (max. per mtr³)
 WATER OIL
  0.1µm - 0.5µm 0.5µm - 1µm 1µm - 5µm Pressure Dew Point mg/mtr³
1 100 1 0 -70°C 0.01
2 100,000 1,000 10 -40°C 0.1
3 N/A 10,000 500 -20°C 1
4 N/A N/A 1,000 3°C 5
5 N/A N/A 20,000 7°C N/A
6 N/A N/A N/A 10°C N/A
