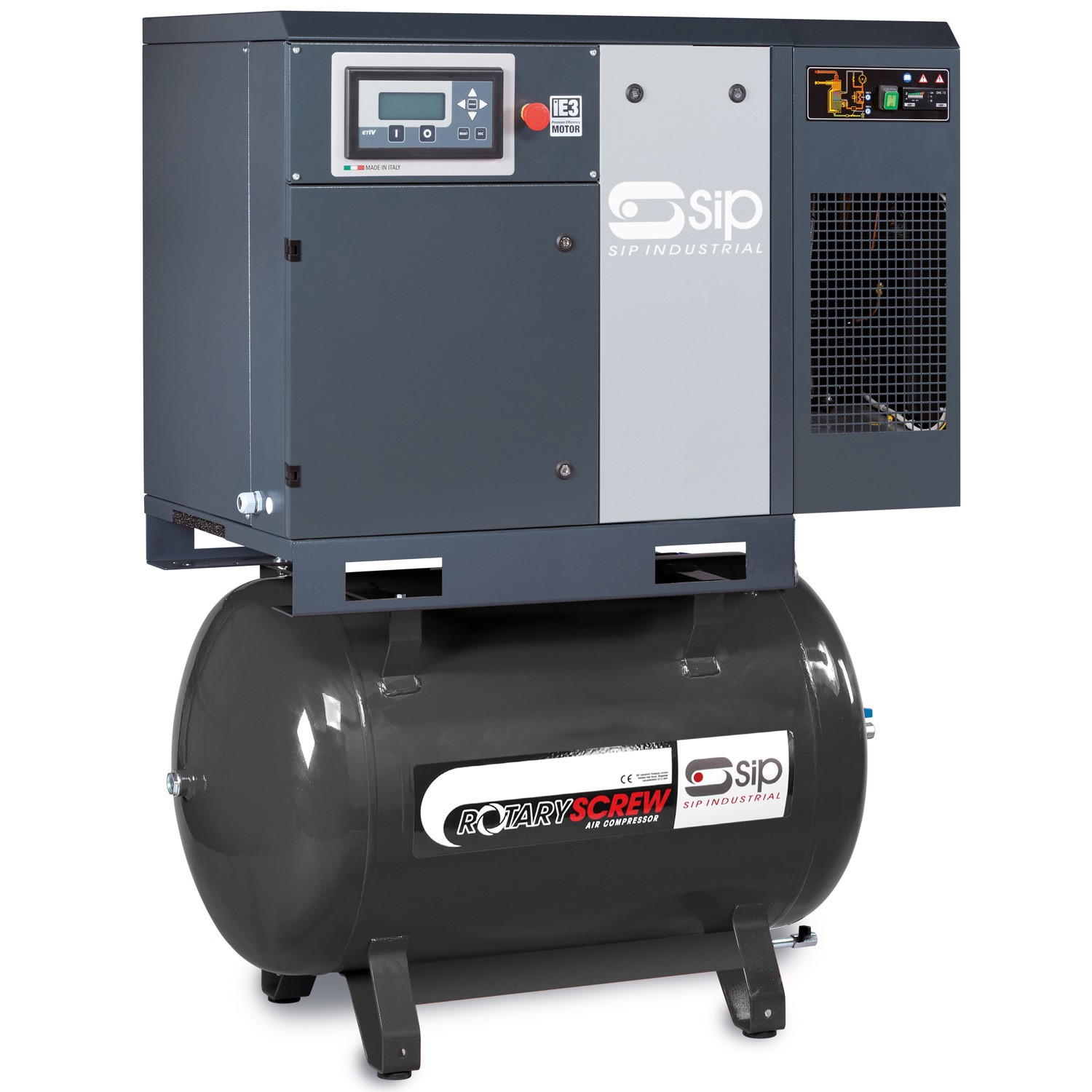

SIP RS5.5-10-270DD/RD Rotary Screw Compressor

05343

SIP RS5.5-10-270DD/RD Rotary Screw Compressor05343SIP RS5.5-10-270DD/RD Rotary Screw CompressorSIP RS5.5-10-270DD/RD Rotary Screw CompressorSIP RS5.5-10-270DD/RD Rotary Screw CompressorSIP RS5.5-10-270DD/RD Rotary Screw CompressorSIP RS5.5-10-270DD/RD Rotary Screw Compressor
05343
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.
Product thumbnail.

The SIP RS5.5-10-270DD/RD 270ltr Rotary Screw Compressor with Dryer is a rotary screw compressor designed with a robust direct drive transmission system which results in increased reliability and machine longevity. Armed with proven technologies, this machine is guaranteed for high efficiency and maintained performance.

Designed for continuous use and ideal for arduous operating conditions.

KEY FEATURES

  • IE3 high-efficiency motor with Italian-made air ends
  • Efficient direct drive transmission and gearless connection
  • Low noise level; soundproof cabinet and low speed radial fans
  • Remote monitoring and control via PCs, smartphones, tablets
  • Advanced electronic controller ensures optimal regulation

   SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification



This unit requires a Site Survey Self Assessment form to be filled in prior to order acceptance. Please download and return to sales@sip-group.com.

The SIP RS5.5-10-270DD/RD 270ltr Rotary Screw Compressor with Dryer is a purpose-built rotary screw compressor designed with a direct drive transmission system which results in increased reliability and machine longevity. Armed with proven technologies, it guarantees high efficiency and constant maintained performance.

With no power transmission losses, this compressor offers a 4% advantage compared to models using belt-driven transmission. Added benefits include lower maintenance requirements, reduced energy consumption and improved efficiency.

An integrated refrigeration dryer helps produce high-quality compressed air with reduced moisture, and is ready-to-go with minimal installation.

Designed for continuous use and ideal for arduous operating conditions.

  • Designed for a range of heavy-duty industrial applications
  • IE3 high-efficiency motor reduces energy use and overall CO2 emissions
  • Continuously monitored manufacturing controls ensure utmost precision

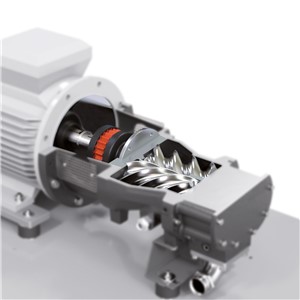

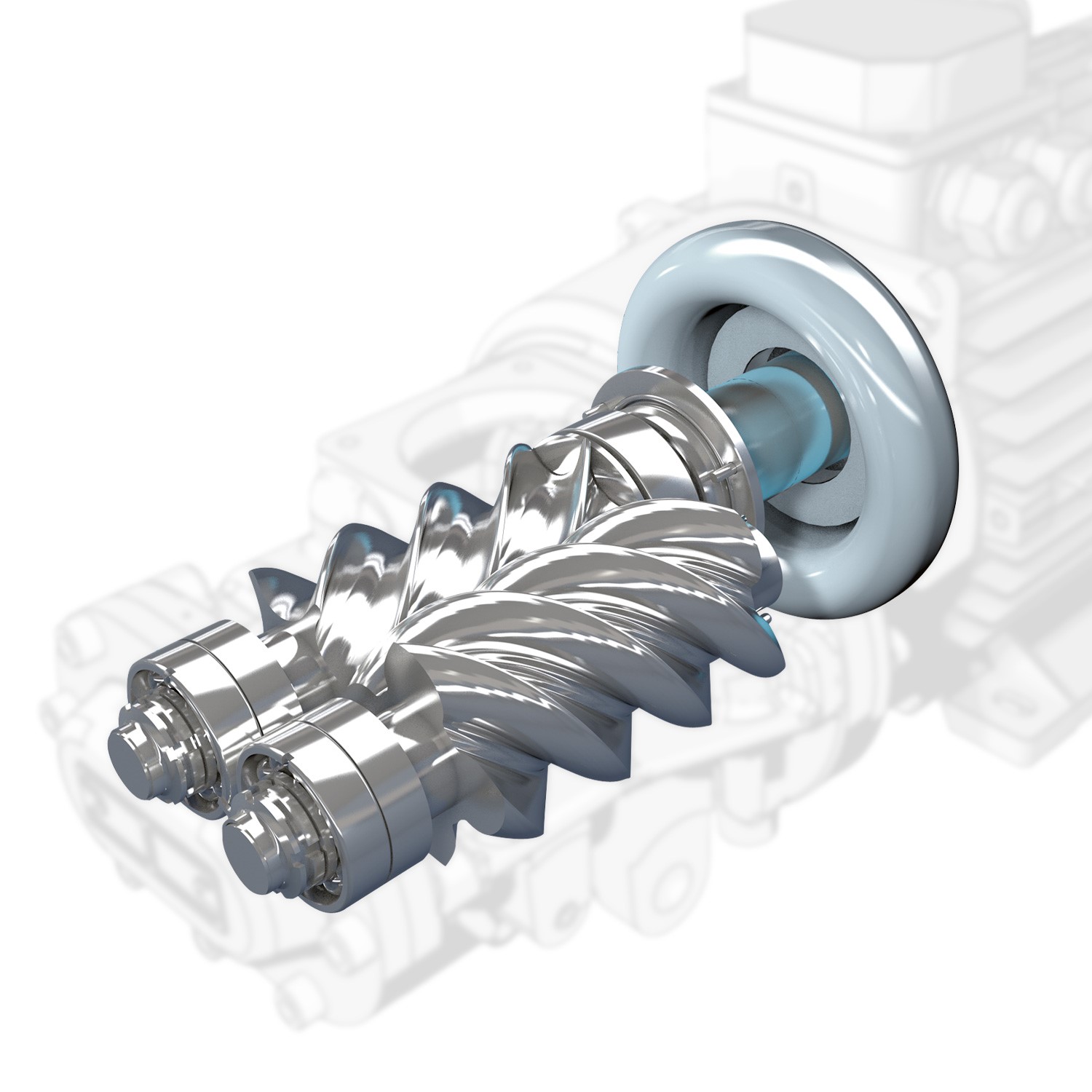

  • High performance Italian air ends with specially-designed rotor profiles
  • Special attention paid to reduction of energy consumption and efficiency
  • Remote monitoring and control through PCs, smartphones, and tablets

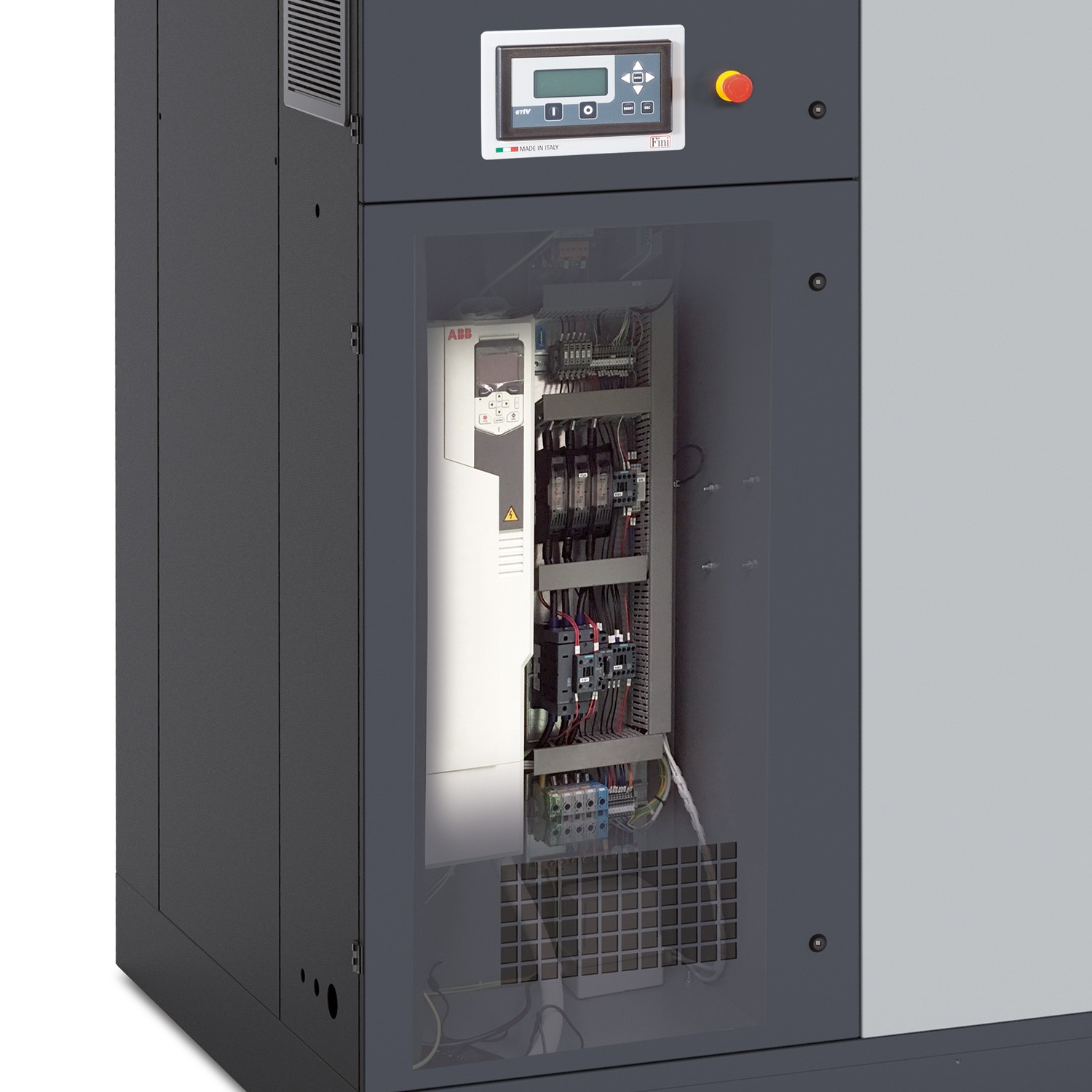

  • Advanced electronic controller ensures optimal monitoring and regulation
  • Direct drive transmission and gearless connection for reduced power usage and lower operational costs in comparison to belt-driven screw compressors
  • Low noise level achieved through a soundproof cabinet, and lower speed radial cooling fans for suitable positioning near workstations and other spaces

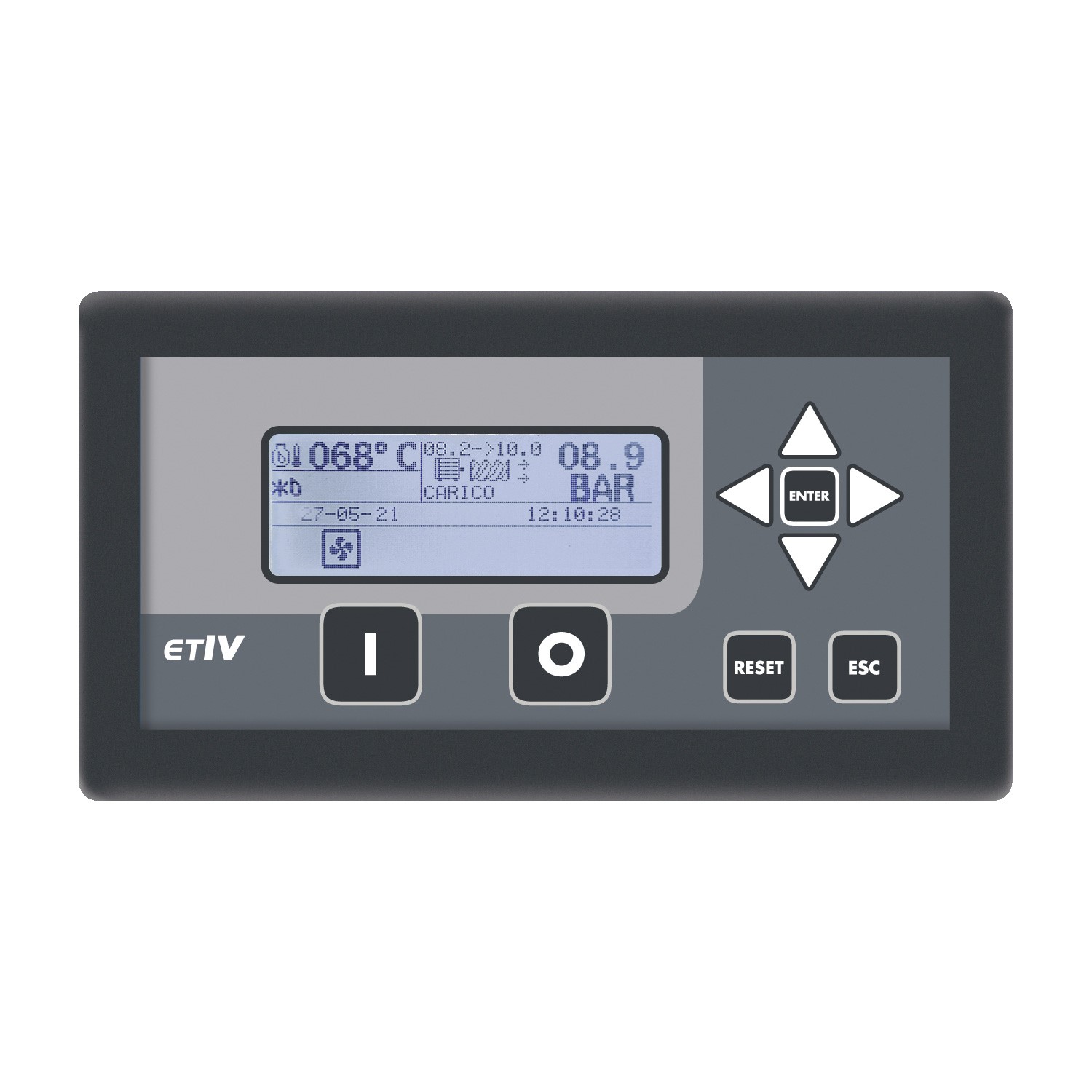

  • Backlit LCD shows operating pressure values, oil temperature, compressor status, fan status, time and date maintenance hours, total and working hours
  • Weekly programming with 9 independent operating programs, plus multiple compressor controls up to 4 units with manual, auto, and group programming
  • Thermostatic-controlled centrifugal fan ensures internal temperature is maintained within a controlled range, avoiding temperature peaks
  • SMS Device kit available; emails for monitoring, servicing, and fault codes
  • Pre-filter panels separate incoming dust keeping internals clean
  • SIP 2-Year Standard Silver Warranty
  • Manufactured in Italy

 

Technical Information

ITEM NO. 05343
Input Supply: 400v 3-PHASE
Motor Power: 5.50kW (7.50hp)
Receiver Size: 270ltr
Free Air Delivery (FAD): 25.00CFM (705ltr/min)
Max. Air Pressure: 145psi (10bar)
Noise Level: 62db(A)
Net Weight: 277.00kg
Gross Weight: 305.00kg
Product Dimensions: 1540(H) x 680(W) x 1200mm(D)
Packaged Dimensions: 1720(H) x 850(W) x 1320mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information



COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
