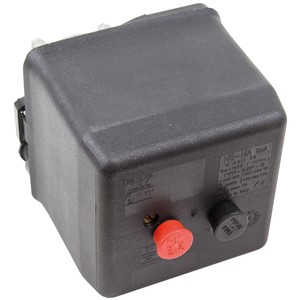

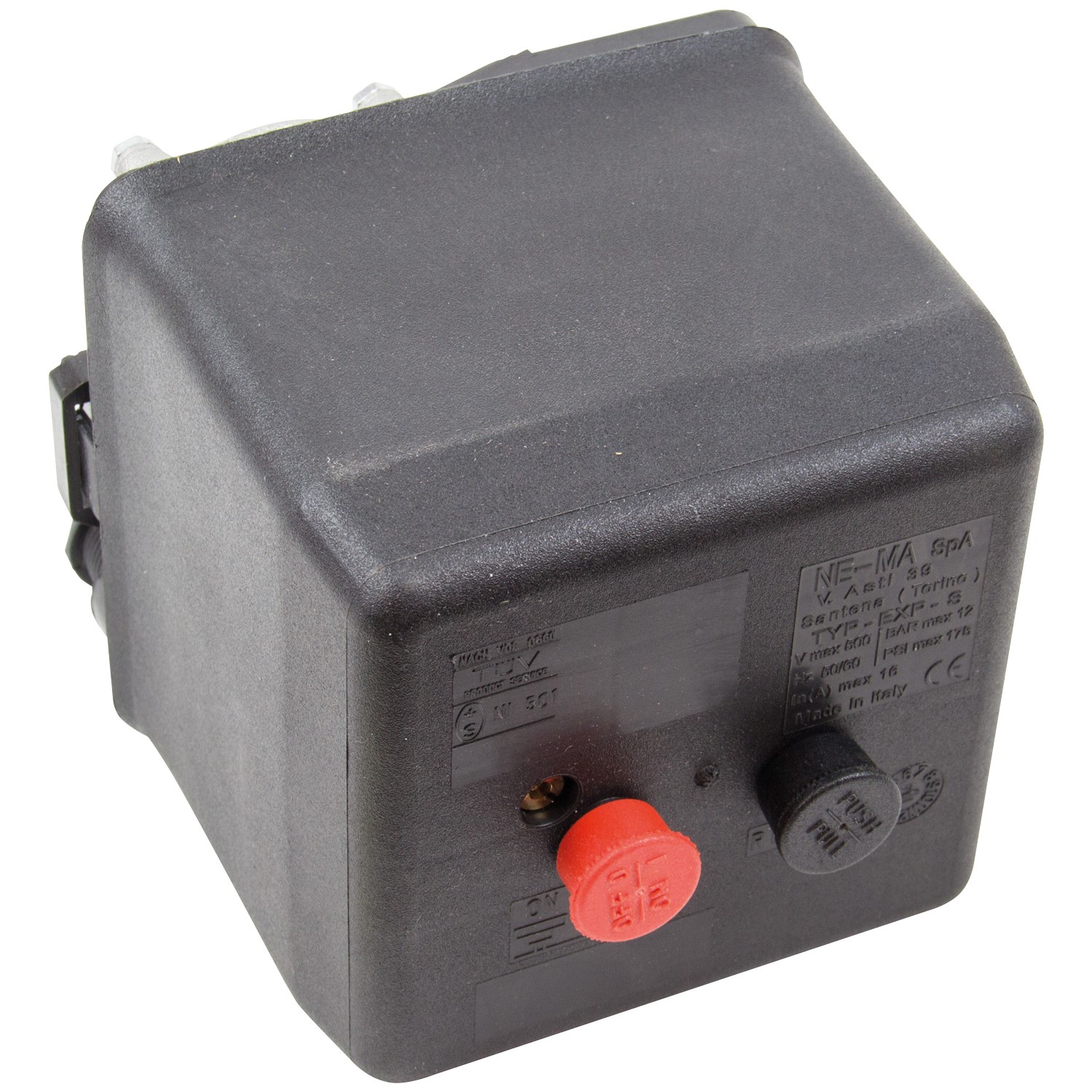

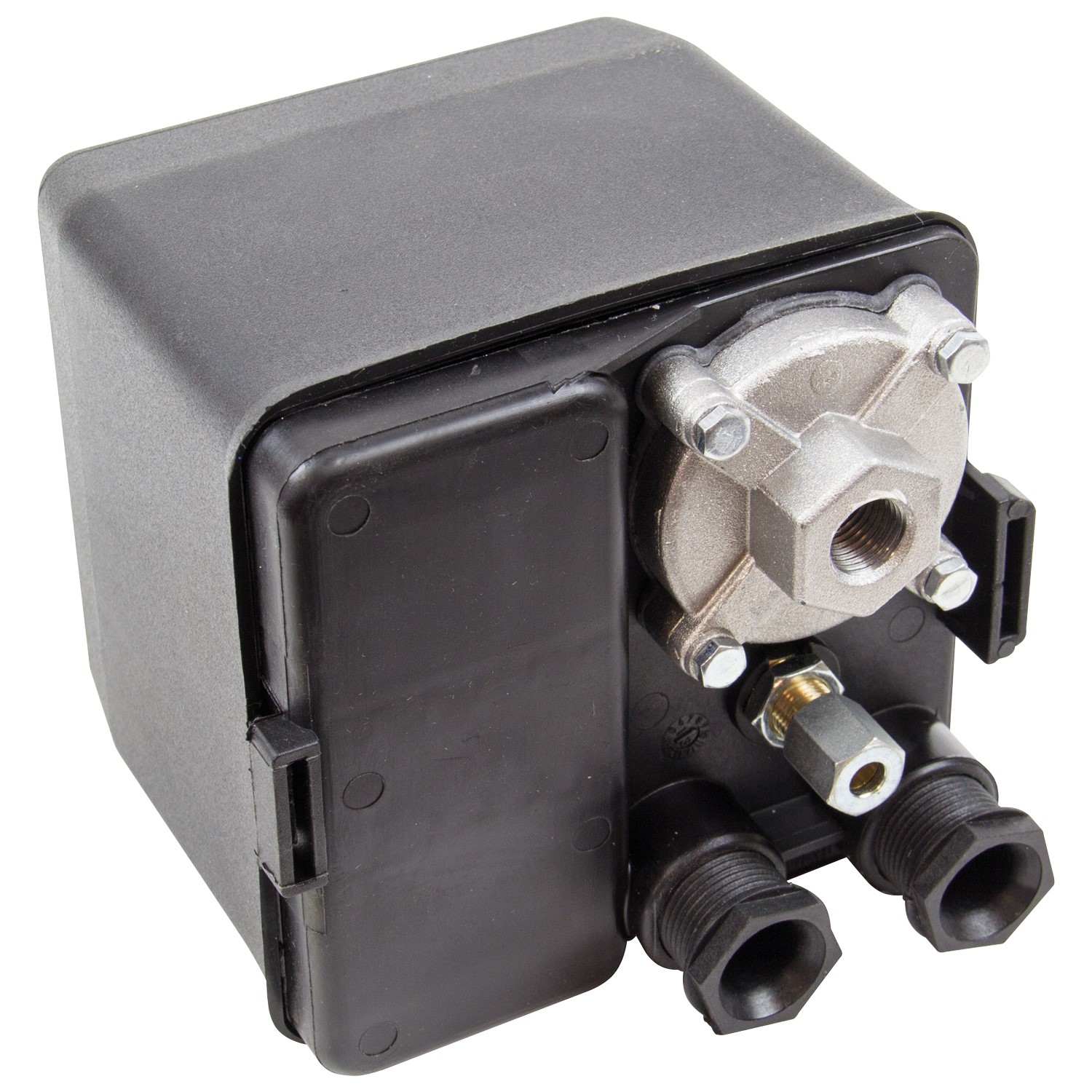

SIP TELE10 9A - 14A Pressure Switch

02344

SIP TELE10 9A - 14A Pressure Switch02344SIP TELE10 9A - 14A Pressure Switch
02344
Product thumbnail.

The SIP TELE10 9A - 14A Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and features an integrated motor starter.

KEY FEATURES

  •  TELE10 pressure switch with integrated motor starter
  •  Easily adjustable cut-off pressure via built-in switch
  •  Designed to start and stop electric compressor motors
  •  Manufactured for long-lasting and reliable use
  •  Integrated bleed facility with 6mm pipe entry
BUY NOW

Full Specification

The SIP TELE10 9A - 14A Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and features an integrated motor starter.

  • TELE10 pressure switch with integrated motor starter
  • Easily adjustable cut-off pressure via built-in switch
  • Designed to start and stop electric compressor motors
  • Manufactured for long-lasting and reliable use
  • Integrated bleed facility with 6mm pipe entry

 

Technical Information

ITEM NO. 02344
Switch Type: TELE10
Voltage / Current: 400v / 20A
Overload: 9A - 14A
Inlet Connection Size: 1/4" BSP
Inlet Connection Type Bottom Entry
Side Port Size: None
Switch Type: Pull
Phase Type: 3-phase
No. of Poles: 3 poles
Net Weight: 1.00kg
Gross Weight: 1.00kg
Product Dimensions:
Packaged Dimensions: 130(H) x 80(W) x 50mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE
