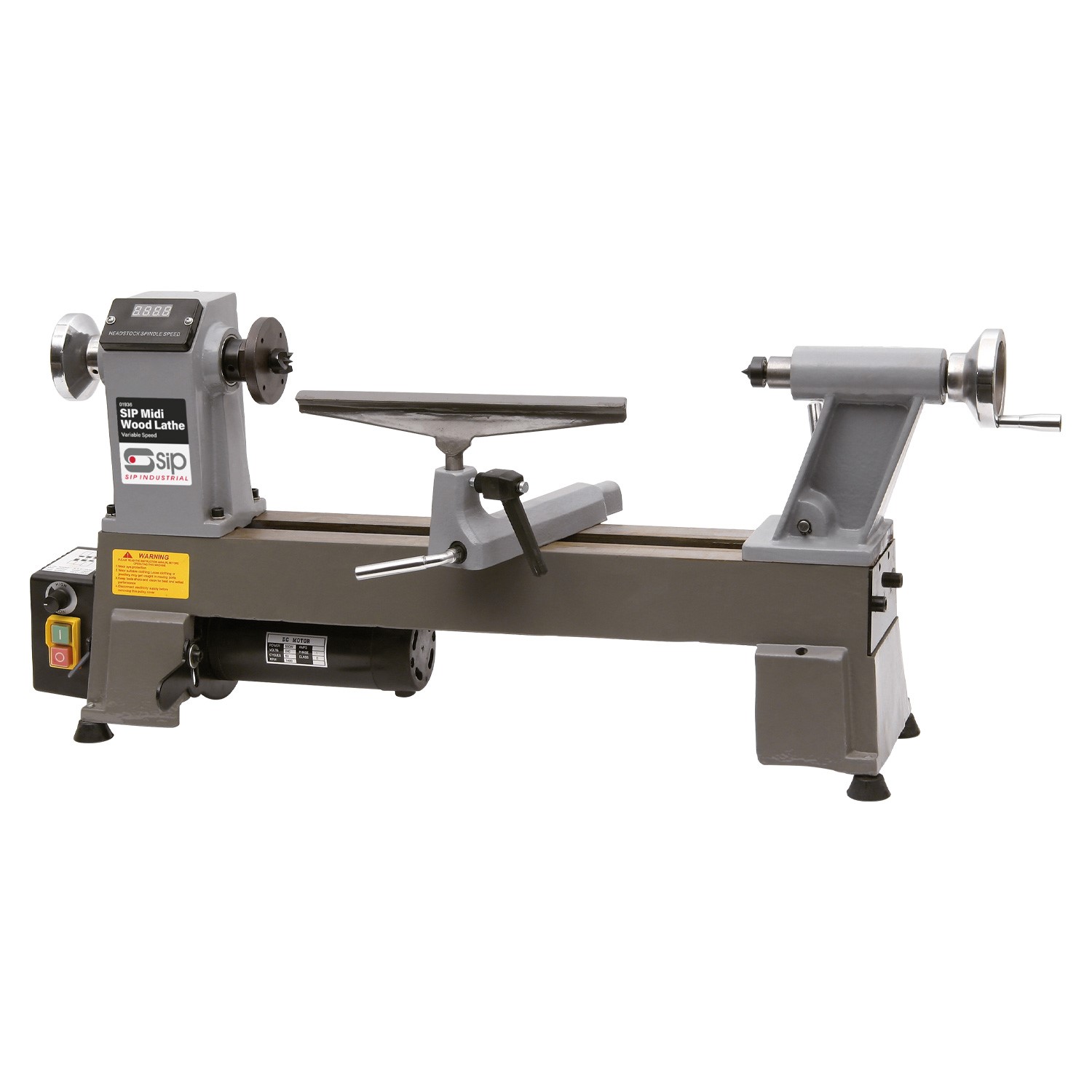

SIP Variable Speed Midi Wood Lathe

01936

Click on image to enlarge

SIP Variable Speed Midi Wood Lathe

01936

The SIP Variable Speed Midi Wood Lathe is ideal for those seeking a robust and reliable wood lathe to accurately shape, turn, drill and sand pieces to the desired specification.

A perfect starter lathe for home enthusiasts or second lathe for advanced turners making smaller pieces, its designed to maximise stability whilst turning. This includes a cast iron bed, mounted headstock and tailstock - both supplied with MT1 tapers.

Supplied with tool rest, 100mm faceplate, 4-prong drive centre and revolving tailstock centre.

KEY FEATURES

3/4" x 16TPI spindle thread size for various attachments
305mm max. turning diameter (432mm between centres)
Heavy-duty cast iron lathe bed ensures greater stability
Cast iron MT1 headstock and MT1 tailstock for assured hold
Digital speedometer display up to 3500rpm

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP Variable Speed Midi Wood Lathe is an ideal solution for those seeking a robust and reliable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.

The lathe has a cast iron bed for maximum stability for a mounted cast iron headstock and tailstock - both supplied with MT1 tapers. Powering the headstock is an electronic variable speed motor which runs between 500rpm and 3500rpm.

Spindle speed can be easily adjusted using the control dial for greater accuracy, whilst a digital panel displays the headstock spindle speed.

Supplied with tool rest, 100mm faceplate, 4-prong drive centre and revolving tailstock centre.

Applications & uses: Perfect for turning lace bobbins, small bowl turning, drilling and sanding. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

3/4" x 16TPI SPINDLE THREAD SIZE

Allows the use of various turning attachments.

305MM MAX. TURNING DIAMETER (432MM BETWEEN CENTRES)

Enables a variety of woodwork projects and jobs.

HEAVY-DUTY CAST IRON LATHE BED

Ensures greater turning stability and lasts longer.

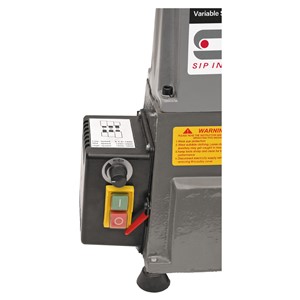

THERMAL CUT-OFF SWITCH

For improved safety when the lathe is in operation.

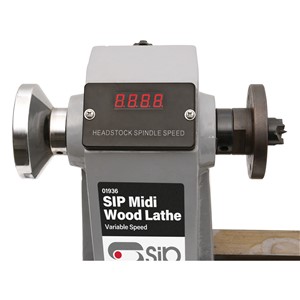

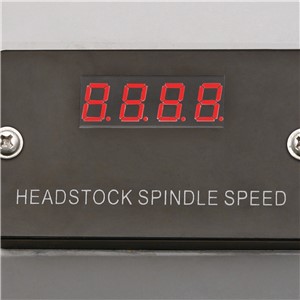

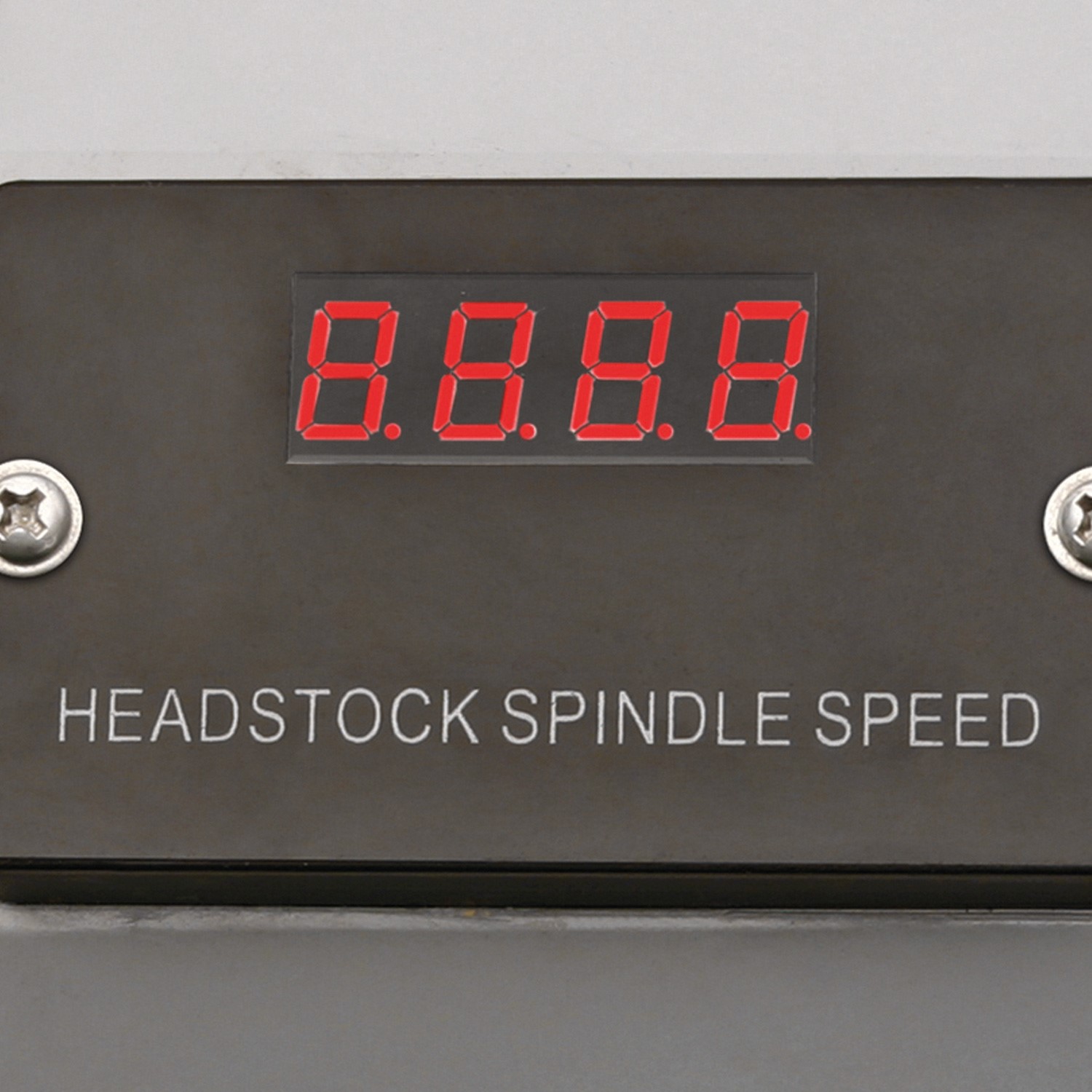

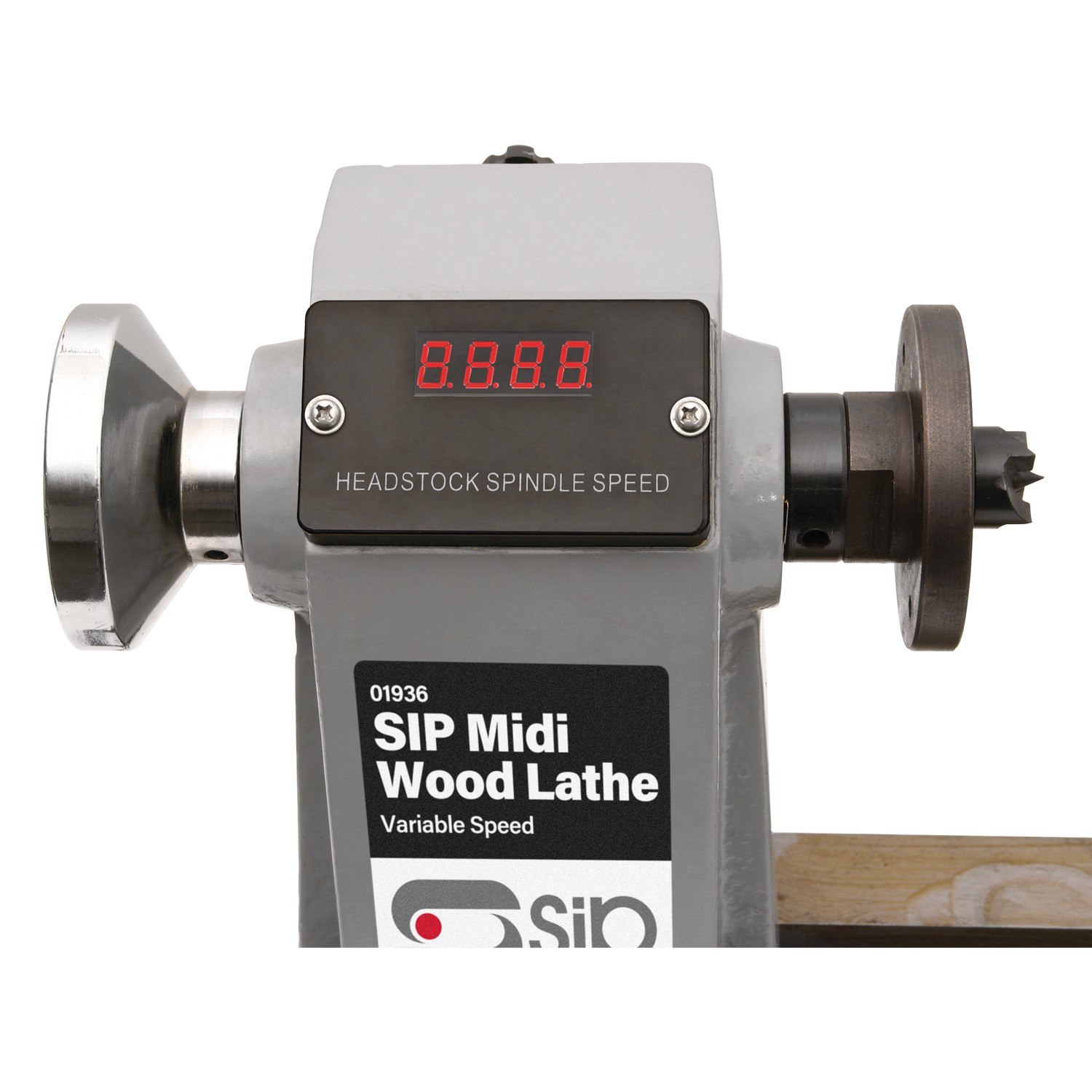

DIGITAL SPEEDOMETER DISPLAY

Provides accurate readout of headstock spindle speed.

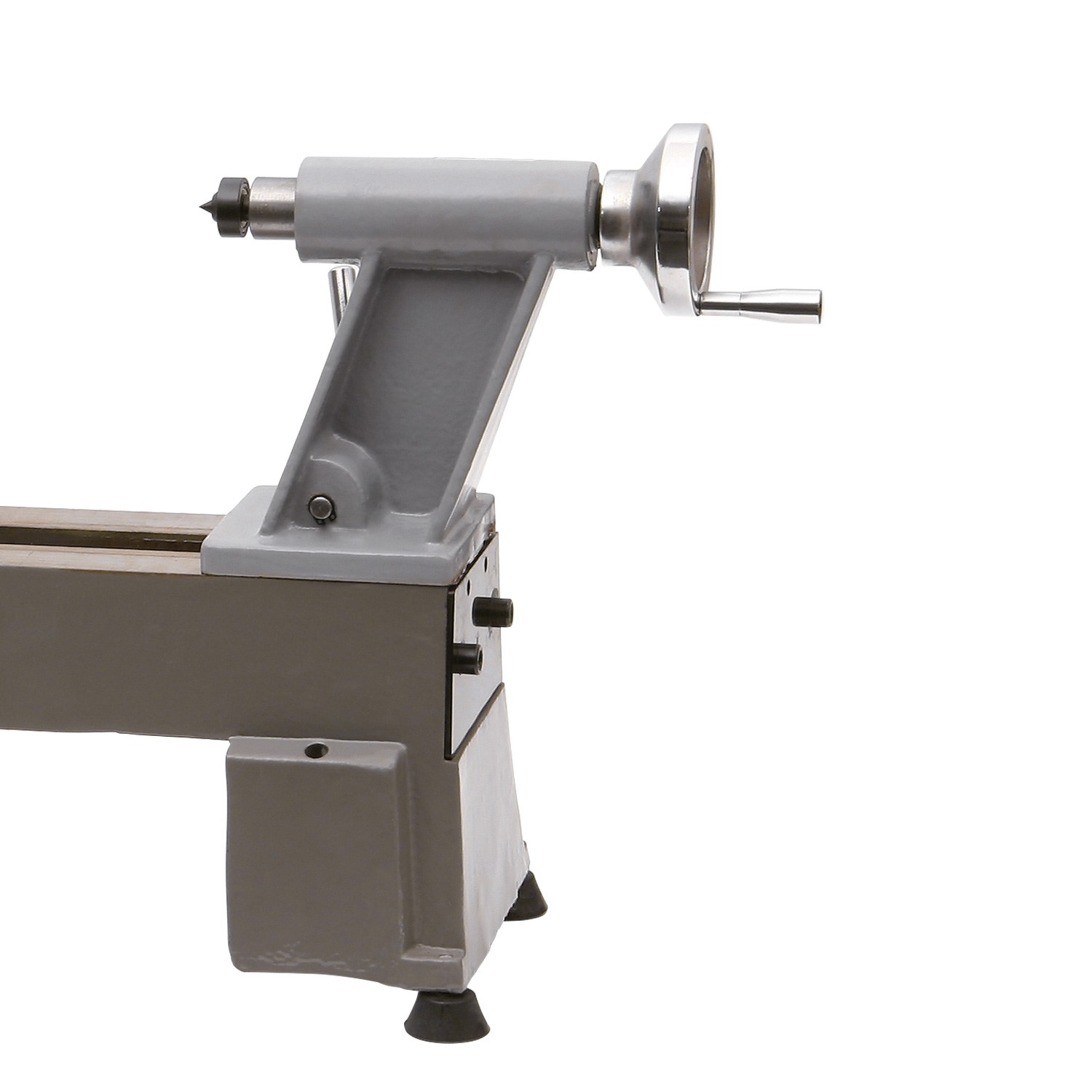

CAST IRON MT1 HEADSTOCK & MT1 TAILSTOCK

For an assured hold to the workpiece when turning.

Technical Information

ITEM NO.	01936
Input Supply:	230v (13A)
Motor Power:	550w (0.75hp)
Speed Range:	500rpm - 3500rpm
Distance Between Centres:	432mm (17")
Turning Capacity:	305mm (12")
Net Weight:	32.30kg
Gross Weight:	34.80kg
Product Dimensions:	890(H) x 180(W) x 400mm(D)
Packaged Dimensions:	820(H) x 440(W) x 300mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 2 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL SIP MACHINES!

SIP products offer exceptional durability, reliability, and heavy-duty performance. All of our machines are underpinned by the SIP 2-Year Standard Silver Warranty*. In addition to this, we offer a service-based Gold Warranty that extends your cover for a further 2 years when purchased.

All SIP Premium Partner Brands offer comprehensive warranties of their own!

*Excludes accessories and consumables.

FIND OUT MORE
