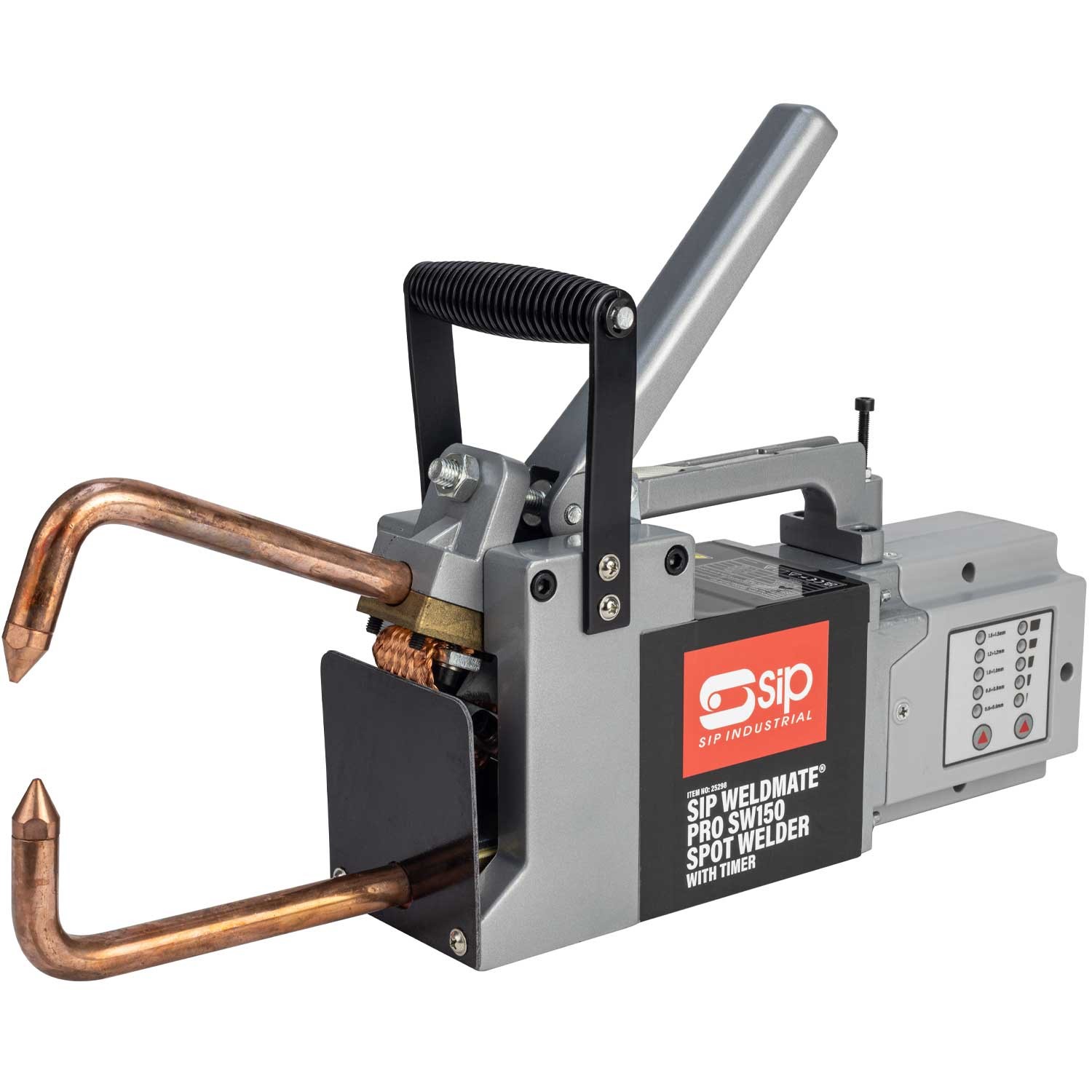

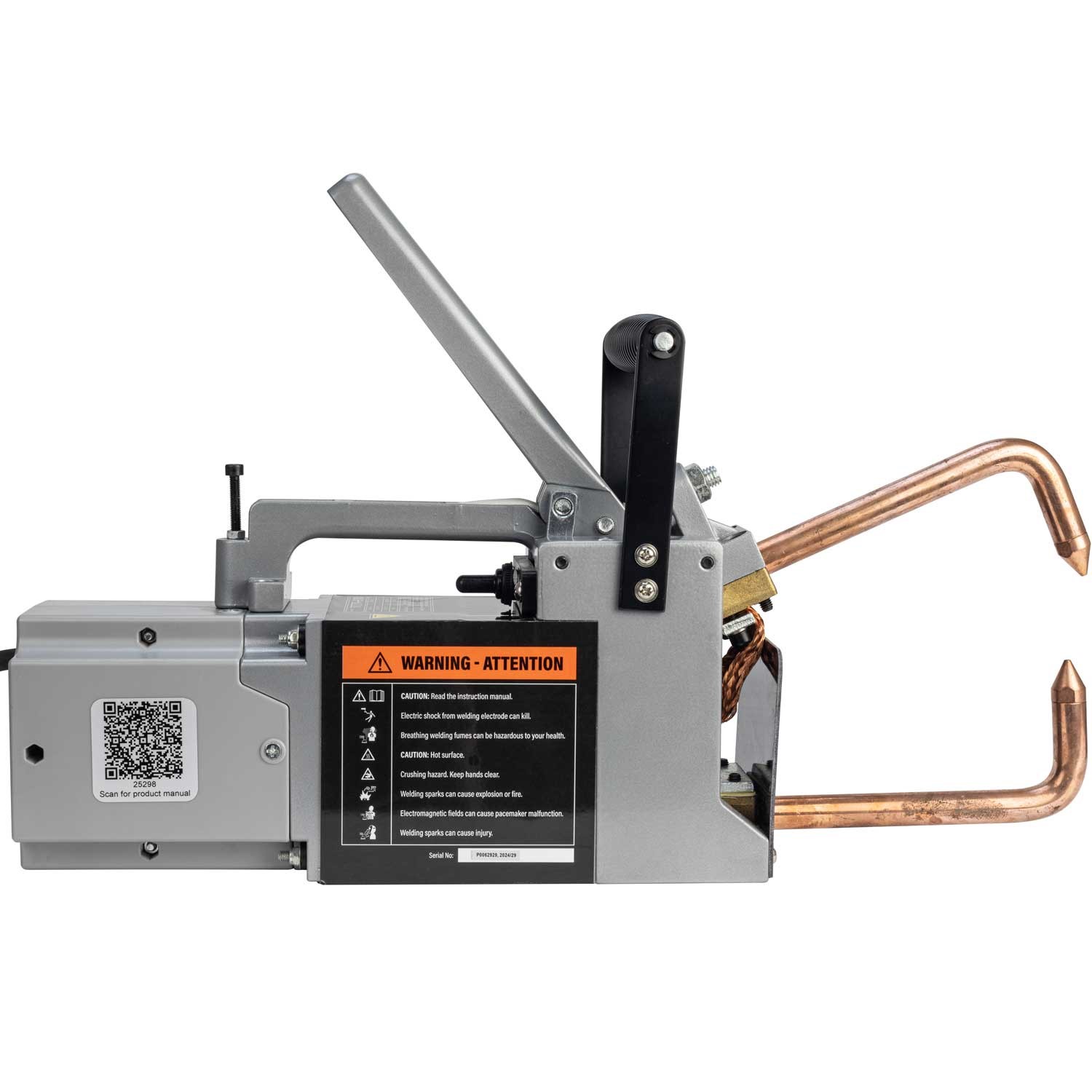

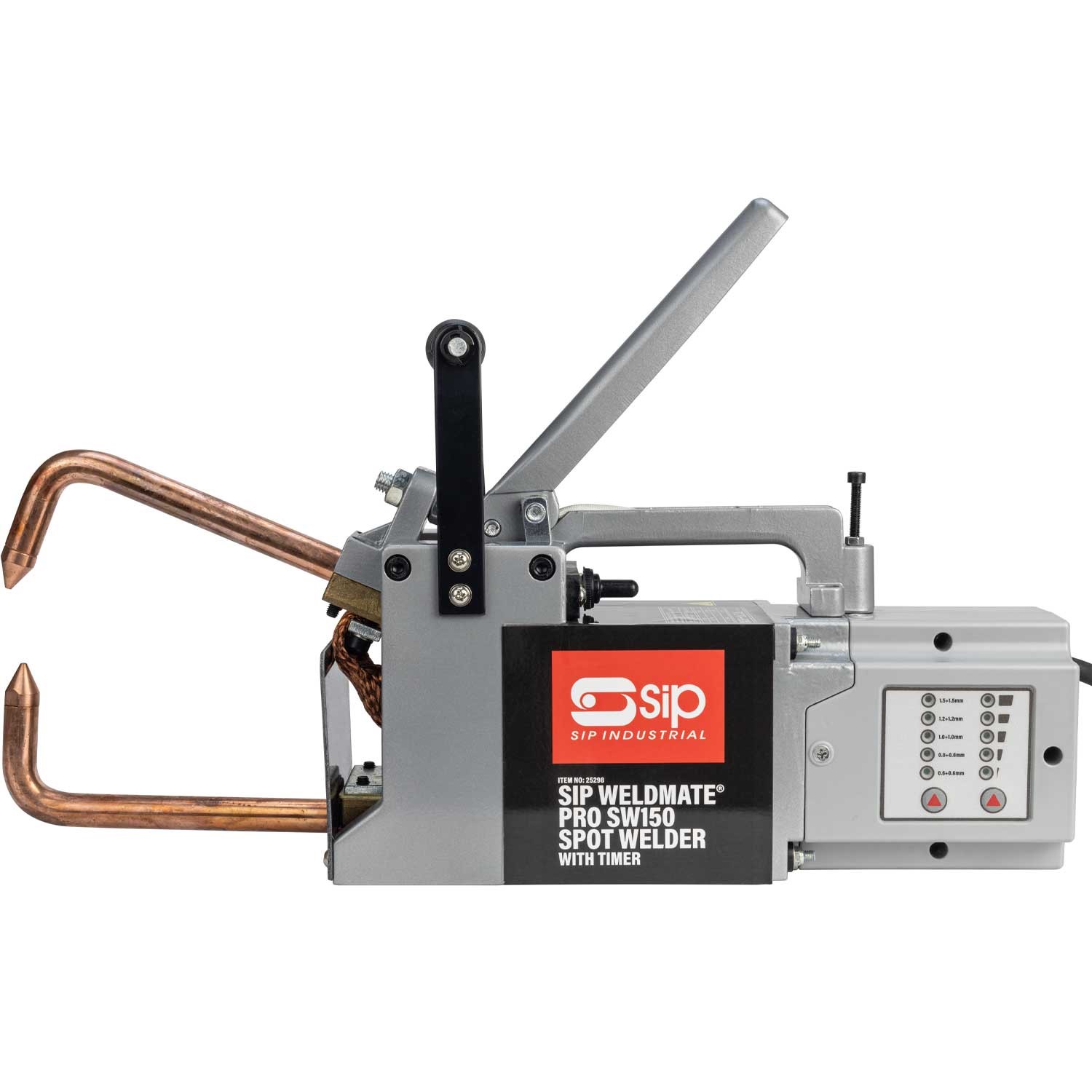

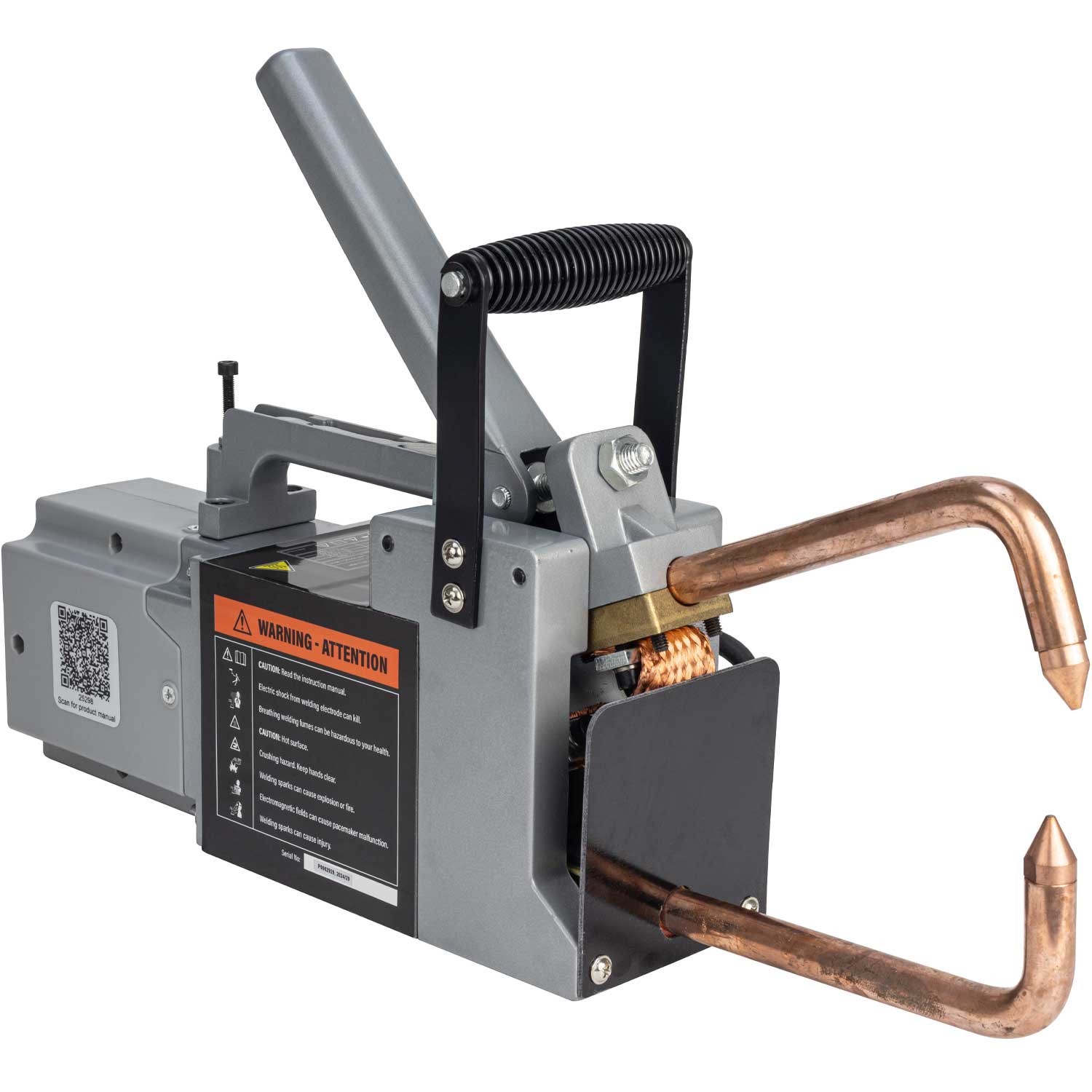

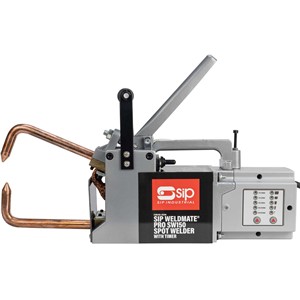

SIP WELDMATE® PRO SW150 Spot Welder w/ Timer

25298

Click on image to enlarge

SIP WELDMATE® PRO SW150 Spot Welder w/ Timer

25298

The SIP WELDMATE® PRO SW150 Spot Welder with Timer is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.

Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 1.5mm - 1.5mm and features a microprocessor-controlled timer function for precise and consistent welds.

For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.

KEY FEATURES

Maximum welding thickness of 1.5mm - 1.5mm
Timer function of 120~900ms for consistent welds
Fitted with heavy-duty weld switch for reliable operation
Operates from a 13A supply added for ease-of-use

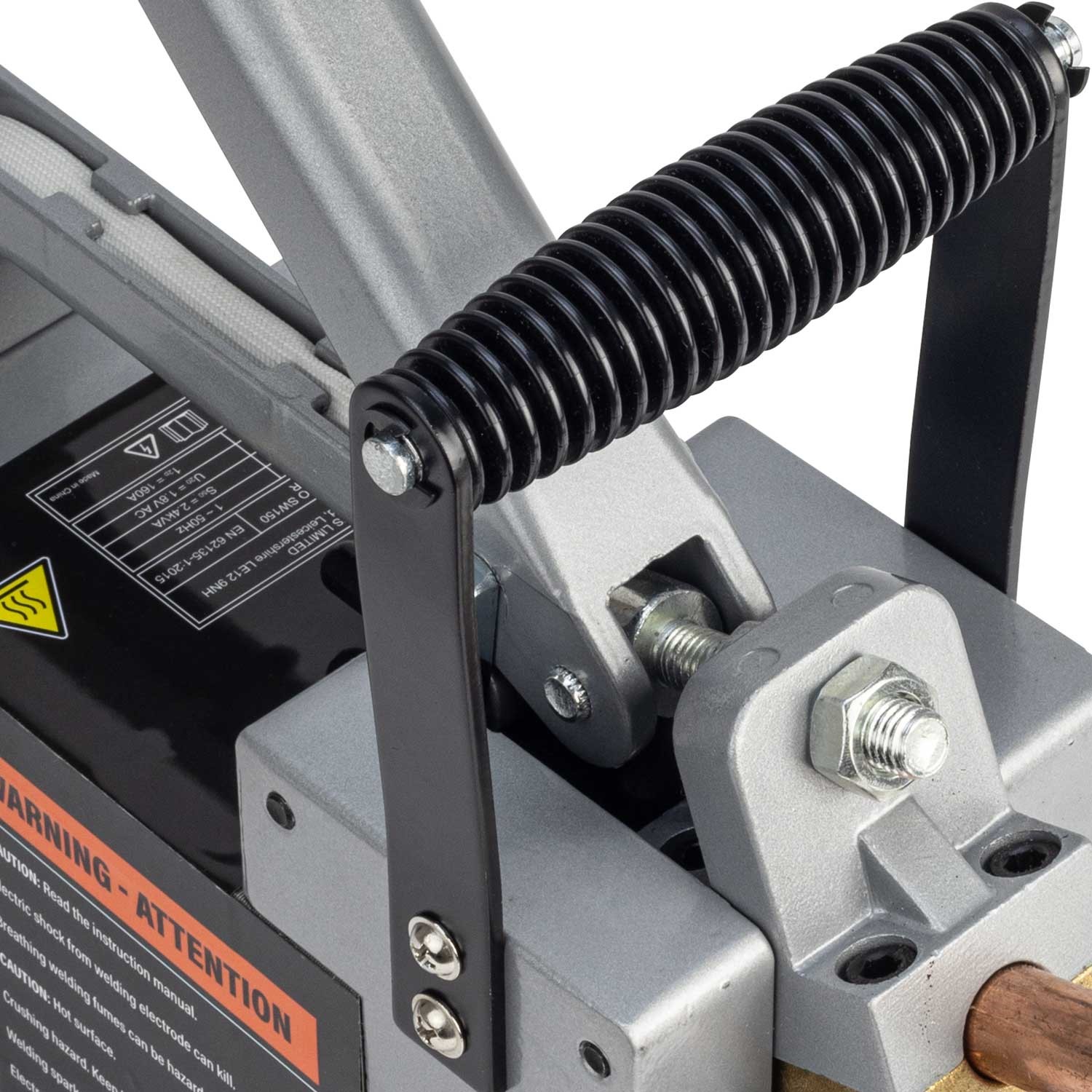

Heavy-duty carry handle for work area movement
Supplied with replacement 16mm straight electrodes

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification

The SIP WELDMATE® PRO SW150 Spot Welder with Timer is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.

Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 1.5mm - 1.5mm and features a microprocessor-controlled timer function for precise and consistent welds.

For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.

Applications & uses: Perfect for automotive and garage environments. Ideal for sheet metal welding applications. Suitable for fabrication workshops. Suitable for mild steel, stainless steel and galvanised steel.

What's in the box?: 1x SIP WELDMATE® PRO SW150 Spot Welder with Timer, 2x 16mm straight electrodes, 1x steel carry handle with 4 fixing screws. User manual available via QR code sticker applied to product.

SIP 2-Year Standard Silver Warranty* | Find out more

Full Specification 2

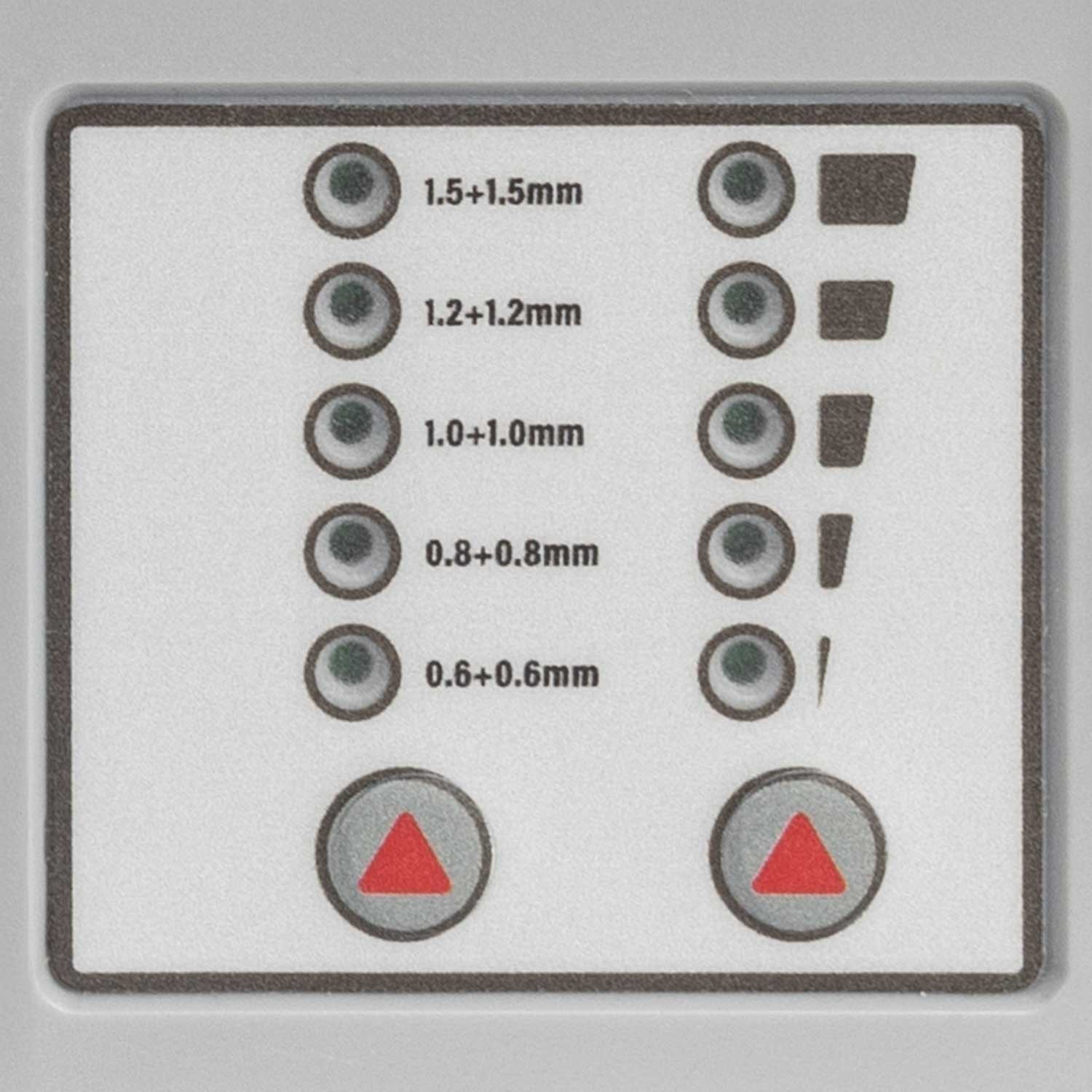

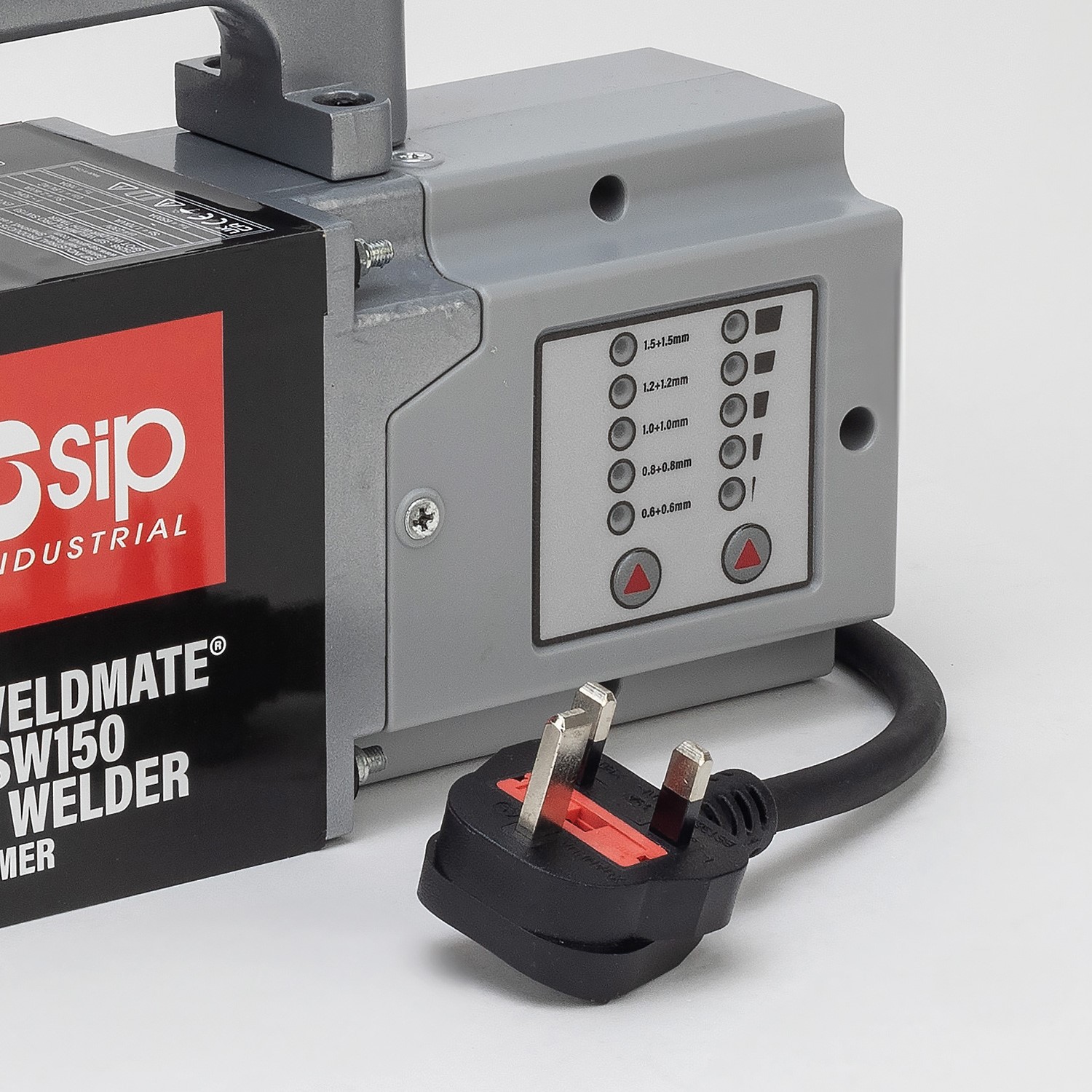

INTUITIVE SOFT TOUCH CONTROL PANEL FEATURES ADJUSTABLE WELDING THICKNESS & TIMER FUNCTION FOR ROBUST & REPEATABLE WELDING CAPABILITY IN A VARIETY OF APPLICATIONS

Maximum welding thickness of 1.5mm - 1.5mm with sufficient welding current output to achieve 3 welds per minute.
A microprocessor-controlled timer function allows settings of 120~900ms for consistent welds.
Offers strong localised welds with minimal heat distortion to the surrounding sheet metal.
Suitable for mild steel, stainless steel and galvanised steel.

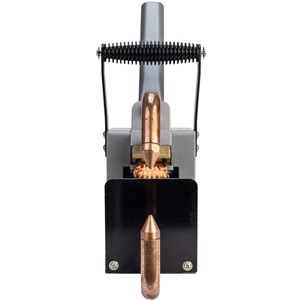

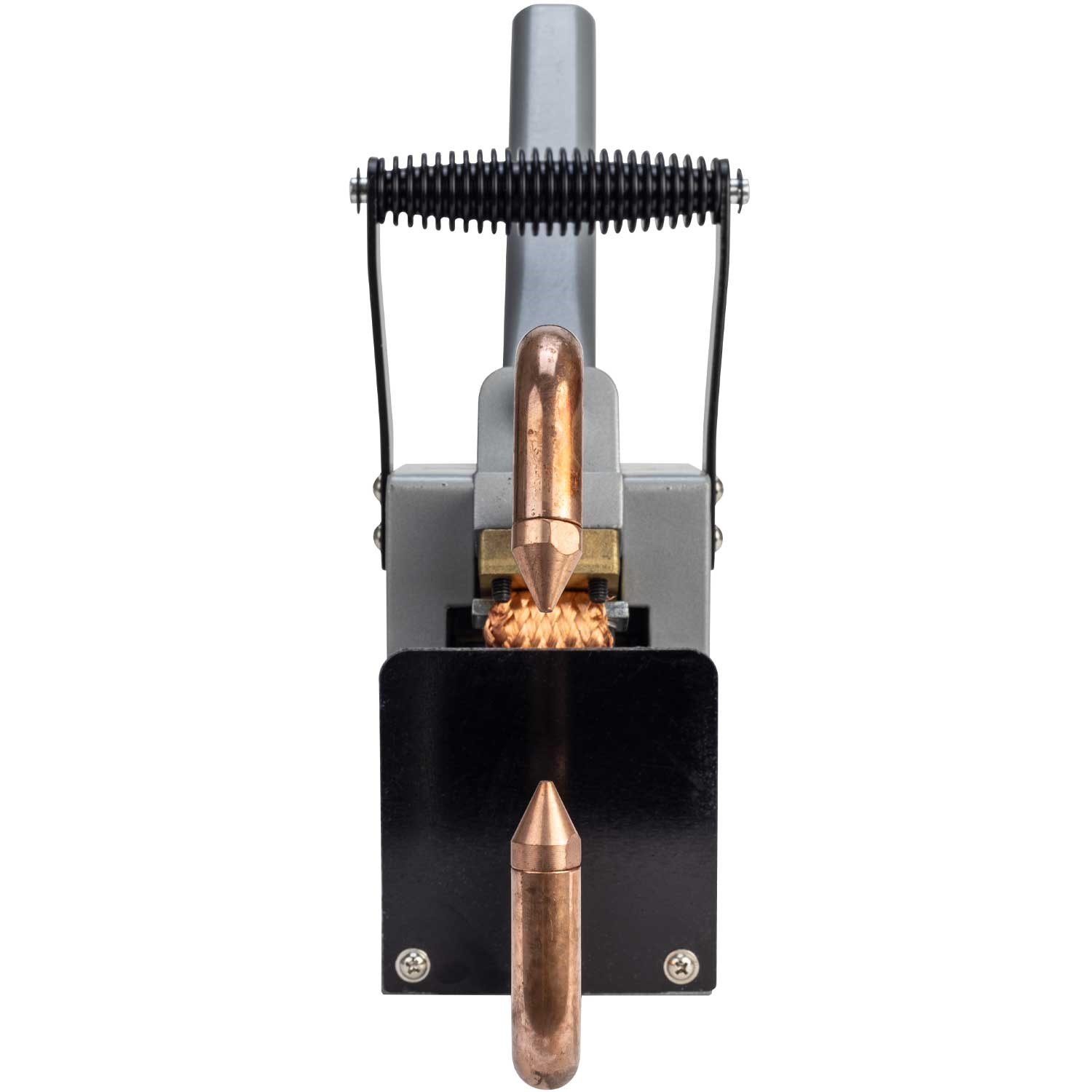

Handle allows for easy alignment of the electrodes for accurate welding performance.
Fitted with a heavy-duty weld switch for reliable operation in demanding environments.

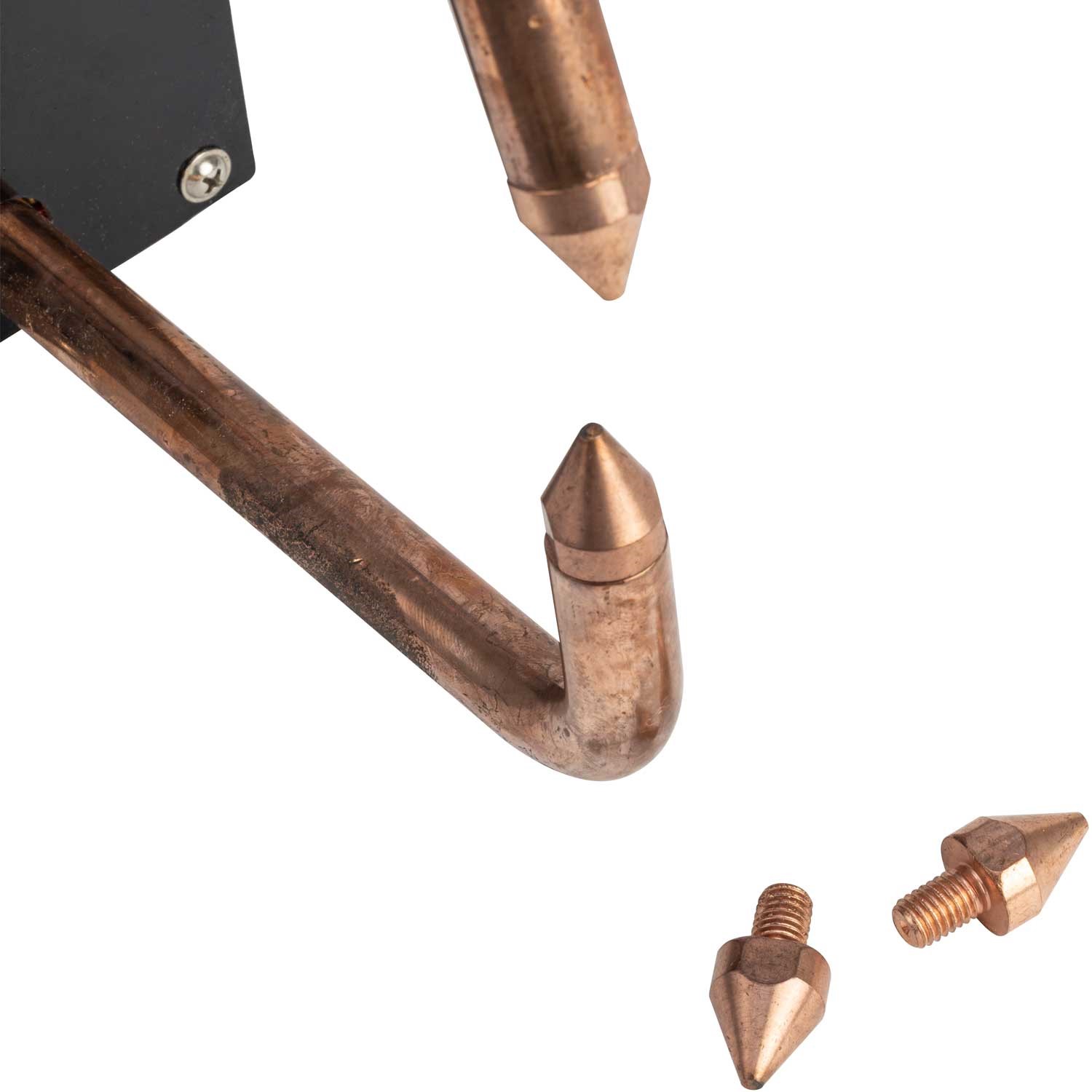

Supplied with a set of replacement 16mm copper/chrome electrodes.

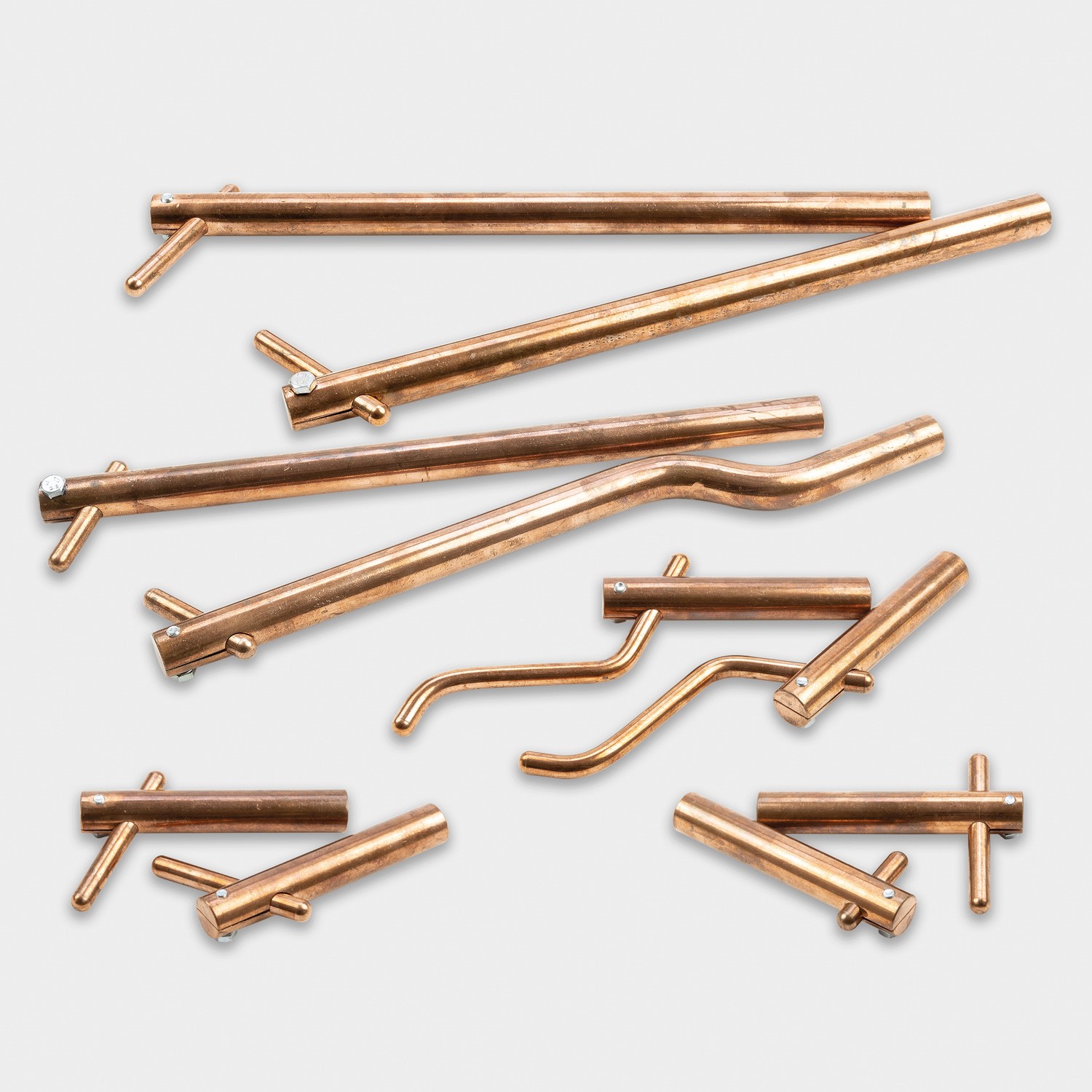

ADDITIONAL ELECTRODES & BODYWORK KITS AVAILABLE FOR GREATER APPLICATION VERSATILITY

These easy-to-fit accessories are sold separately as individual parts or available as a bodywork kit.
The 16mm electrode arms offer added dexterity for a variety of welding applications
- 25418 SIP Spot Welder 120mm Arms with Straight Electrodes (⌀ 16mm)
- 25417 SIP Spot Welder 120mm Arms with Offset Electrodes (⌀ 16mm)
- 25419 SIP Spot Welder 350mm Arms with Offset Electrodes (⌀ 16mm)
- 25415 SIP Spot Welder 350mm Restricted Access Arms with Offset Electrodes (⌀ 16mm)
- 25416 SIP Spot Welder 120mm Arms with Swan Neck Electrodes (⌀ 16mm)
- 25424 SIP Spot Welder 5pc Bodywork Kit (⌀ 16mm) (for 25298)

Technical Information

ITEM NO.	25298
Input Supply:	230v (13A)
Max. Welding Thickness:	1.5mm - 1.5mm
Spot Duration:	120-900ms
Welds Per Minute:	3 welds per minute
Max. Electrode Force:	460N
Net Weight:	12.6kg
Gross Weight:	13.5kg
Product Dimensions:	244(H) x 94(W) x 475mm(D)
Packaged Dimensions:	230(H) x 140(W) x 540mm(D)
