TIGREN 100ltr 3hp Belt-Driven Compressor

04396

Click on image to enlarge

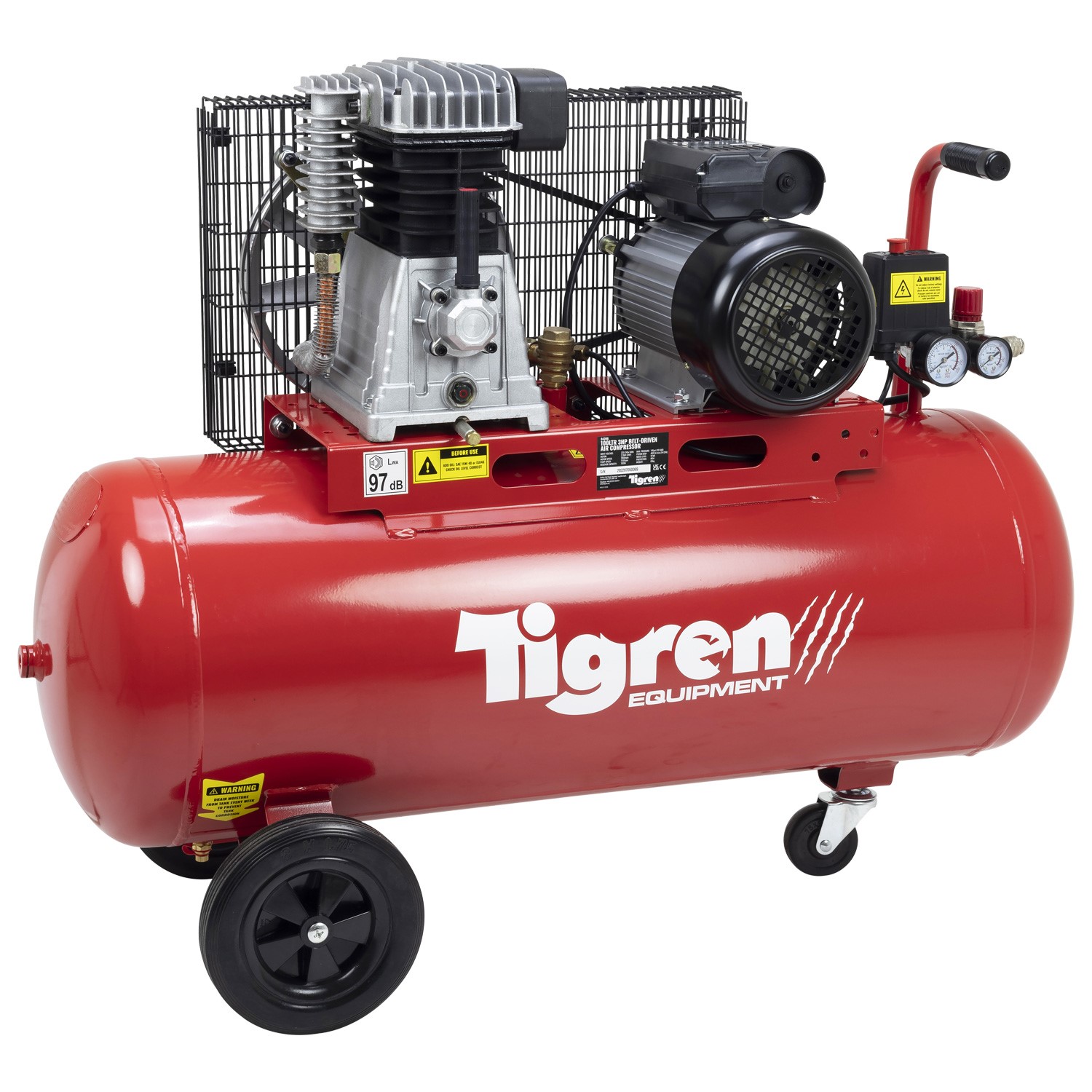

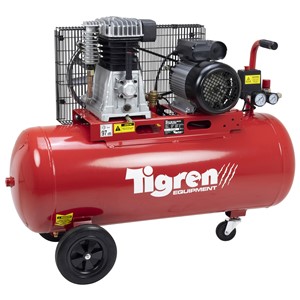

TIGREN 100ltr 3hp Belt-Driven Compressor

04396

The TIGREN 100ltr 3hp Belt-Driven Compressor delivers performance and mobility to small and medium-sized workshops. This no-nonsense solution is ideal for demanding and busy work areas and is particularly suited to automotive and agriculture applications.

KEY FEATURES

14CFM piston displacement and 10CFM free air delivery (FAD)
Belt-driven transmission for proven and reliable everyday use
Compact, space-saving, wheel-mounted design with 100ltr receiver
Twin cylinder splash oil-lubricated pump for increased production
Heavy-duty brushless induction motor meets demanding lifespan
Adjustable air regulator optimises working pressure

TIGREN 1-Year Standard Silver Warranty* | Find out more

Full Specification

The TIGREN 100ltr 3hp Belt-Driven Compressor delivers powerful performance and mobility to small and medium-sized workshops. This no-nonsense solution is ideal for busy and demanding work areas, particularly automotive and agriculture applications.

Through robust design and professional construction, reliability and long lifespan is assured. Fitted with durable components including a twin-cylinder splash oil-lubricated pump and heavy-duty brushless induction motor, compressed air is delivered for a variety of workshop uses. Also fitted with a 13A plug and wheel kit for flexibility.

Applications & uses: Workshop air tools, paint spraying and tyre maintenance.

TIGREN 1-Year Standard Silver Warranty* | Find out more

Full Specification 2

BELT-DRIVEN TRANSMISSION

Delivers a positive transmission drive for proven and reliable everyday use.

100LTR AIR RECEIVER

Stores high air volume within a compact space-saving design.

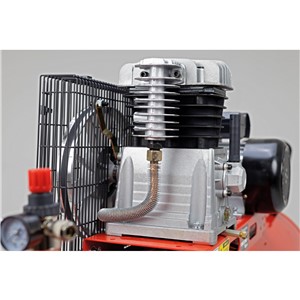

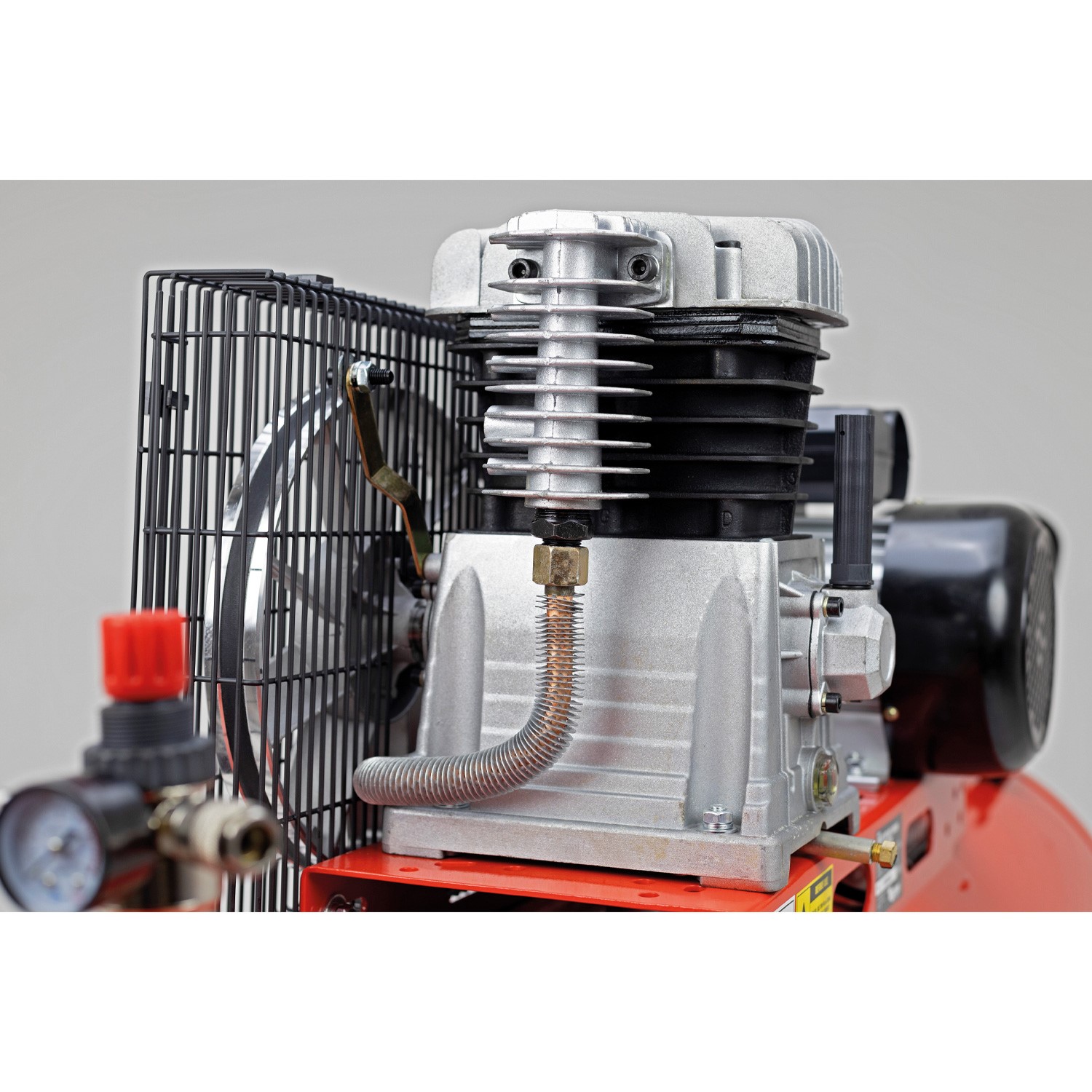

TWIN-CYLINDER SPLASH OIL-LUBRICATED PUMP

Designed to maximise the volume of air, this durable component supports increased production as the air receiver fills faster for the task at hand.

HEAVY-DUTY 3HP BRUSHLESS INDUCTION MOTOR

Enables the compressor to meet it's full capability and support the demanding lifespan of the product.

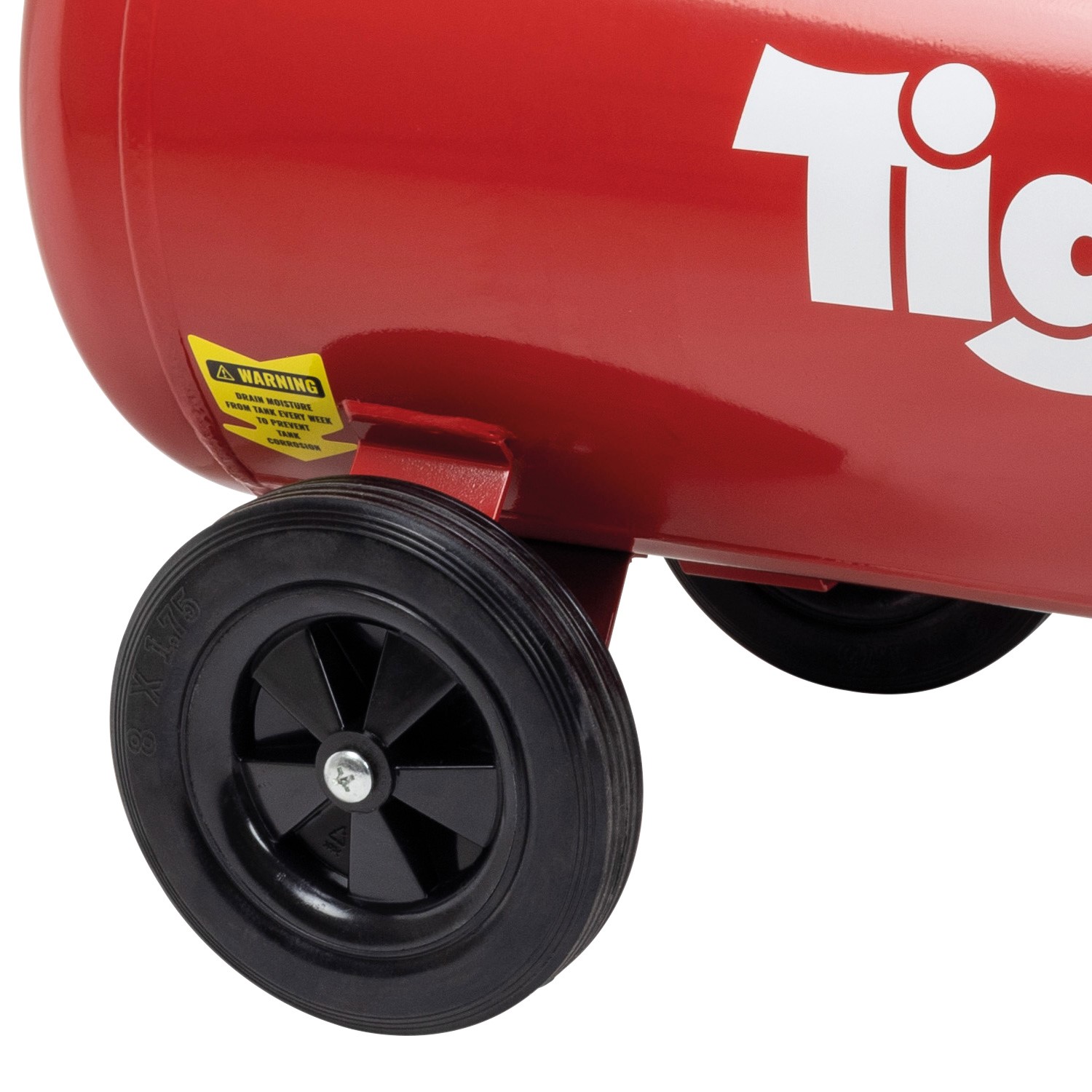

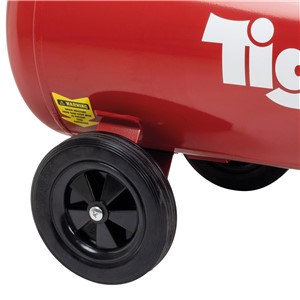

WHEEL-MOUNTED DESIGN

Improves mobility to support use throughout the workshop.

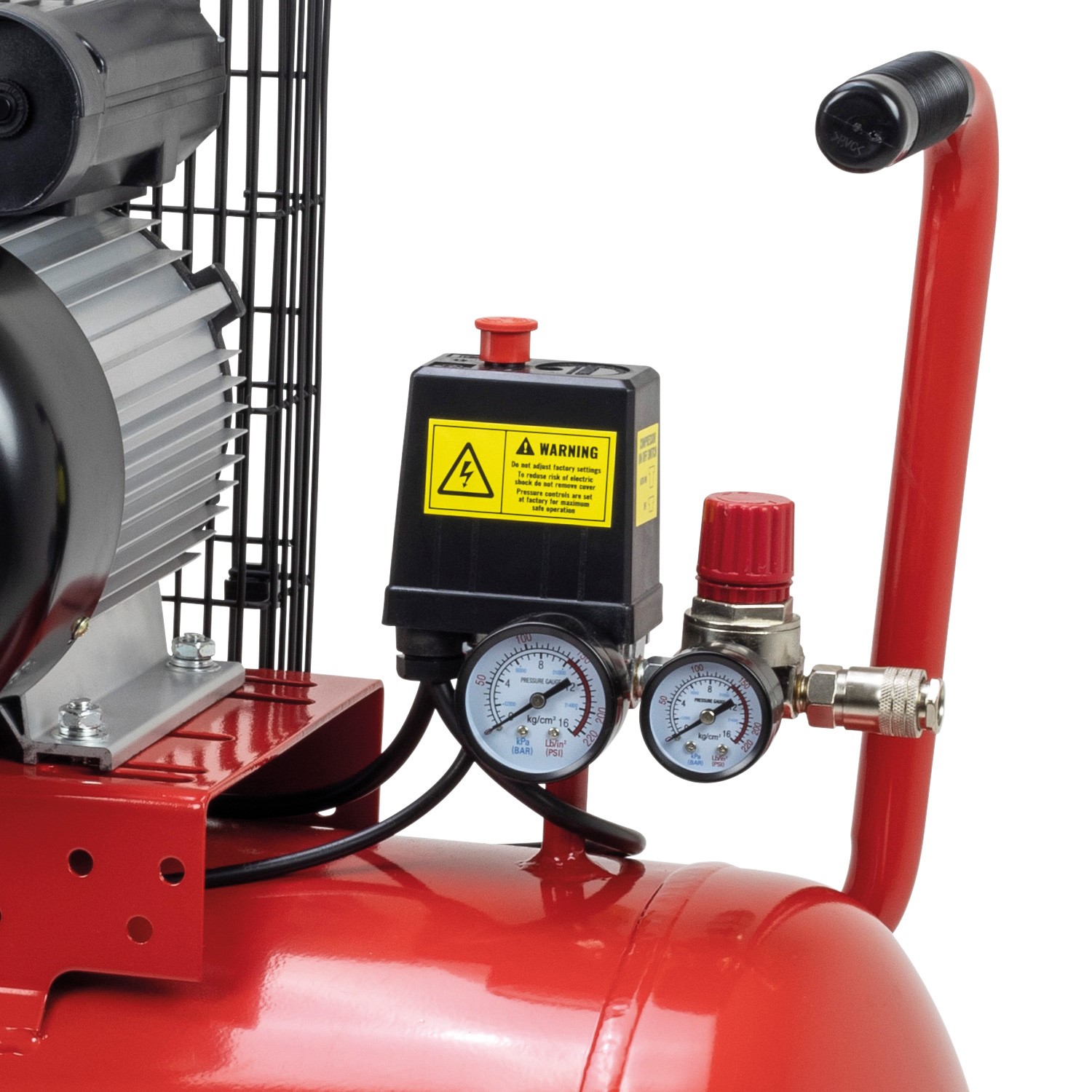

ADJUSTABLE AIR REGULATOR

Optimises the working pressure for effective operation and application use.

Technical Information

ITEM NO.	04396
Input Voltage:	230v (13A)
Motor Power:	3hp (2.2kW)
Receiver Size:	100ltr
Max. Air Pressure:	150psi (10bar)
Pump Speed:	1100rpm
Piston Displacement:	14CFM (400ltr/min)
Free Air Delivery (FAD):	10CFM (285ltr/min)
Isolation Class:	Class F
Protection Type:	IP54
Motor Efficiency:	80%
Noise Level:	97dB
Net Weight:	65.00kg
Gross Weight:	74.00kg
Product Dimensions:	750(H) x 350(W) x 1030mm(D)
Packaged Dimensions:	775(H) x 380(W) x 1070mm(D)
