TIGREN V50DD 3HP Direct-Driven Compressor

04387

Click on image to enlarge

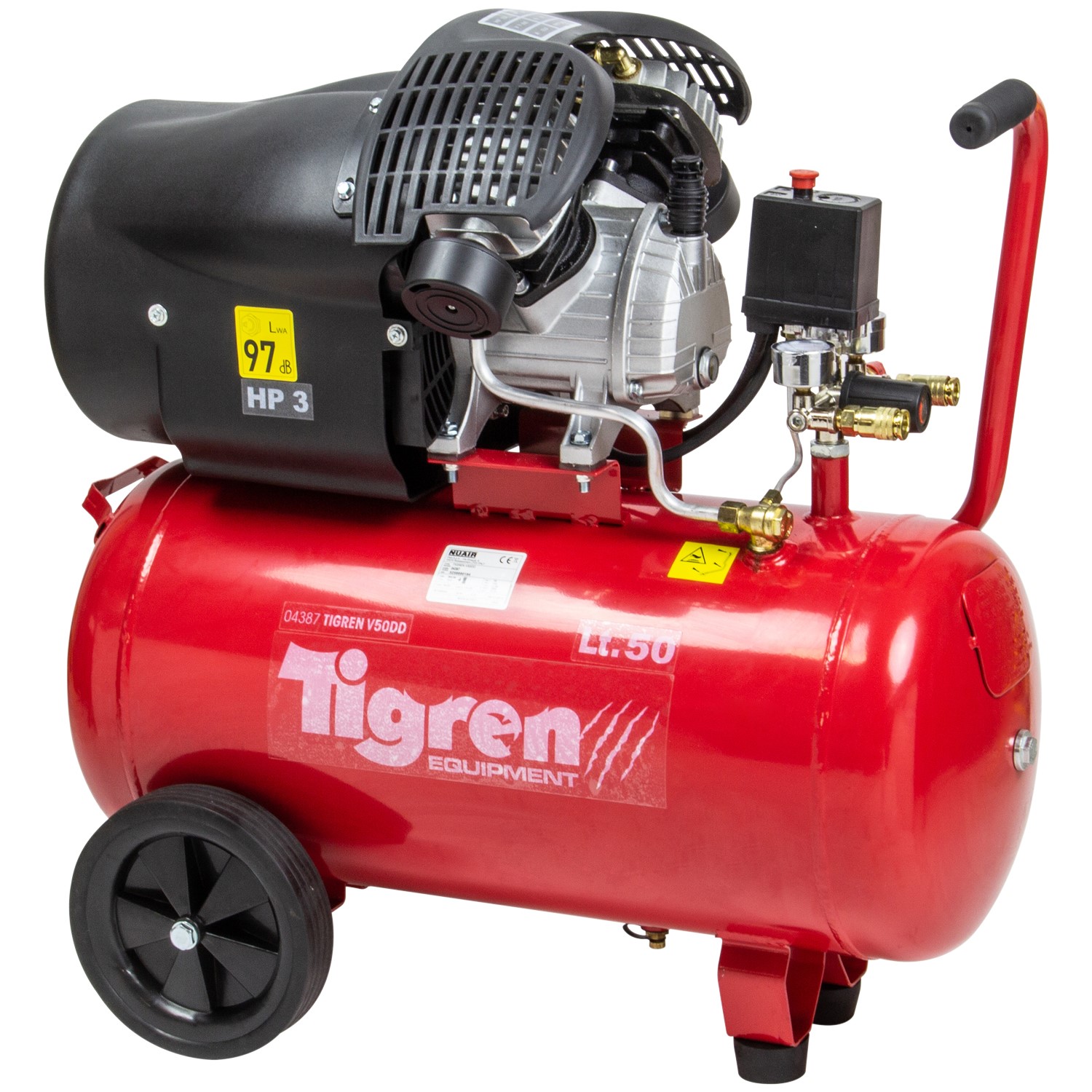

TIGREN V50DD 3HP Direct-Driven Compressor

04387

The TIGREN V50DD 3HP Direct-Driven Compressor utilises a heavy-duty V-configuration pump unit which helps to keep the physical footprint of the compressor minimal, meaning a more compact and lightweight design ensuring easy and effortlessly portability.

Not only is the TIGREN V50DD ready-for-use and ideal for the home user, small garages and workshops, it also caters for portable air requirements in a range of environments.

KEY FEATURES

No-nonsense workhorse compressor
Direct-driven model that is fully ready-for-use

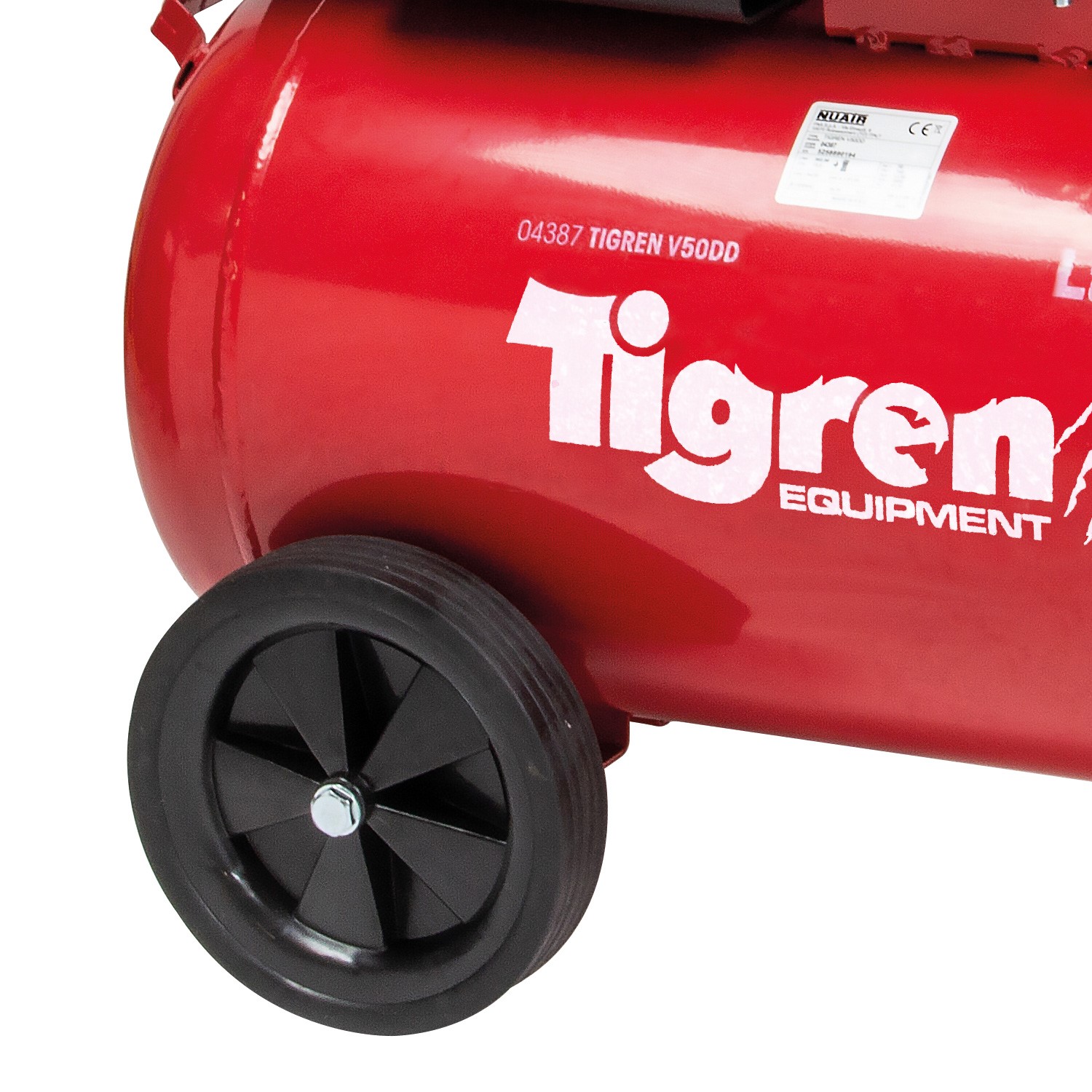

Wheel-mounted for easy manoeuvrability and positioning

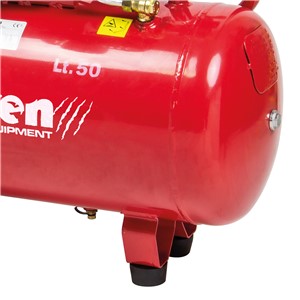

Anti-vibration rubber mounts for tank and pump protection

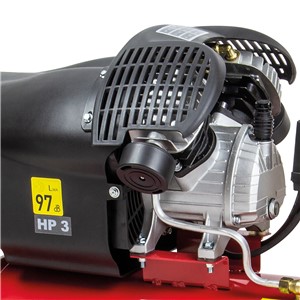

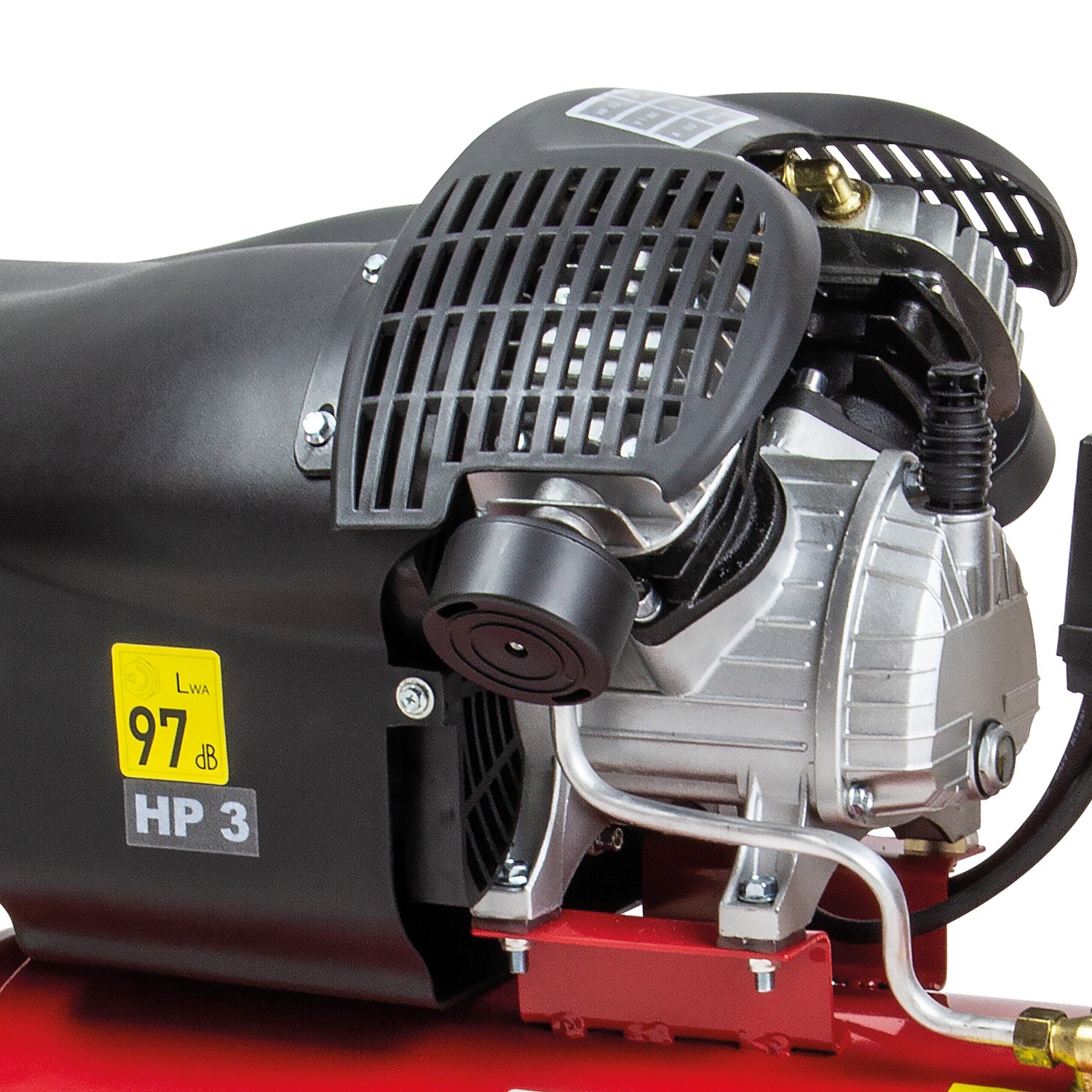

2-cylinder V-configuration splash oil-lubricated pump

TIGREN 1-Year Standard Warranty* | Find out more

BUY NOW

Full Specification

The TIGREN V50DD 3HP Direct-Driven Compressor utilises a V-configuration pump unit which helps to keep the physical footprint of the compressor minimal, meaning a more compact and lightweight design ensuring easy and effortlessly portability.

Not only is the TIGREN V50DD ready-for-use and ideal for the home user, small garages and workshops, it also caters for portable air requirements.

As part of the curated TIGREN range, the V50DD is affordable and reliable, imparting powerful performance via unique and user-friendly features that offer the best, without spending big money.

Browse TIGREN Equipment for more no-nonsense, affordable, and reliable kit.

No-nonsense workhorse compressor
Direct-driven model that is fully ready-for-use
Wheel-mounted for easy manoeuvrability and positioning
Anti-vibration rubber mounts for tank and pump protection
2-cylinder V-configuration splash oil-lubricated pump
2-pole brushless induction motor for longer life and performance
Powerful twin cylinder compression for increased production
Heavy-duty cast iron barrel for higher heat efficiency and life
Force air cooling via motor fan ducting for added protection
Ideal for the home user, small garages, and workshops, plus portable air applications

Technical Information

ITEM NO.	04387
Input Supply:	230v (13A)
Motor Power:	2.2kW (3hp)
Receiver Size:	50ltr
Piston Displacement:	13.00CFM (368ltr/min)
Free Air Delivery (FAD):	8.00CFM (227ltr/min)
Max. Air Pressure:	116psi (8bar)
Net Weight:	41.74kg
Gross Weight:	44.50kg
Product Dimensions:	850(H) x 350(W) x 1350mm(D)
Packaged Dimensions:	1090(H) x 890(W) x 390mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE
