WINNTEC 10 TON Long Chassis Jack

09886

Click on image to enlarge

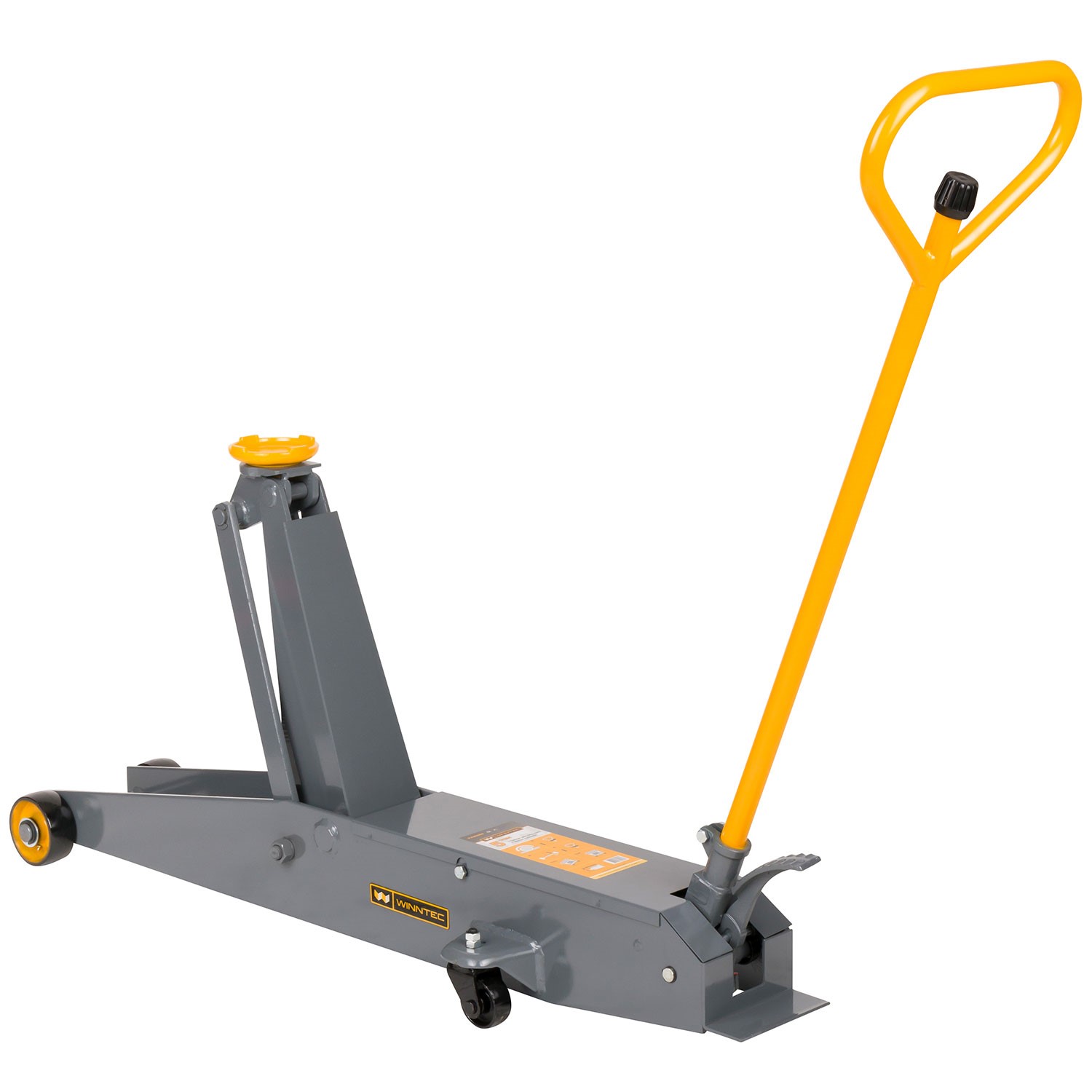

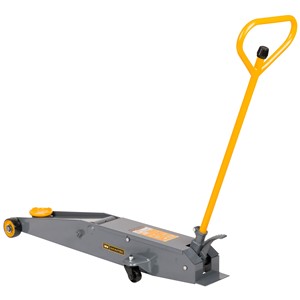

WINNTEC 10 TON Long Chassis Jack

09886

The WINNTEC® from SIP 10 TON Long Chassis Jack is perfect for extreme lifting of trucks and heavy machinery, offering high-reach performance from a low-profile design and exceptionally safety usage via automatic overload and universal joint release valves.

Designed for all automotive garages and workshops.

KEY FEATURES

160mm to 680mm lifting height range
Low-profile design for lower ground clearances
Foot-operated pump for effortless efficiency
Heavy-duty steel wheels offer easy movement

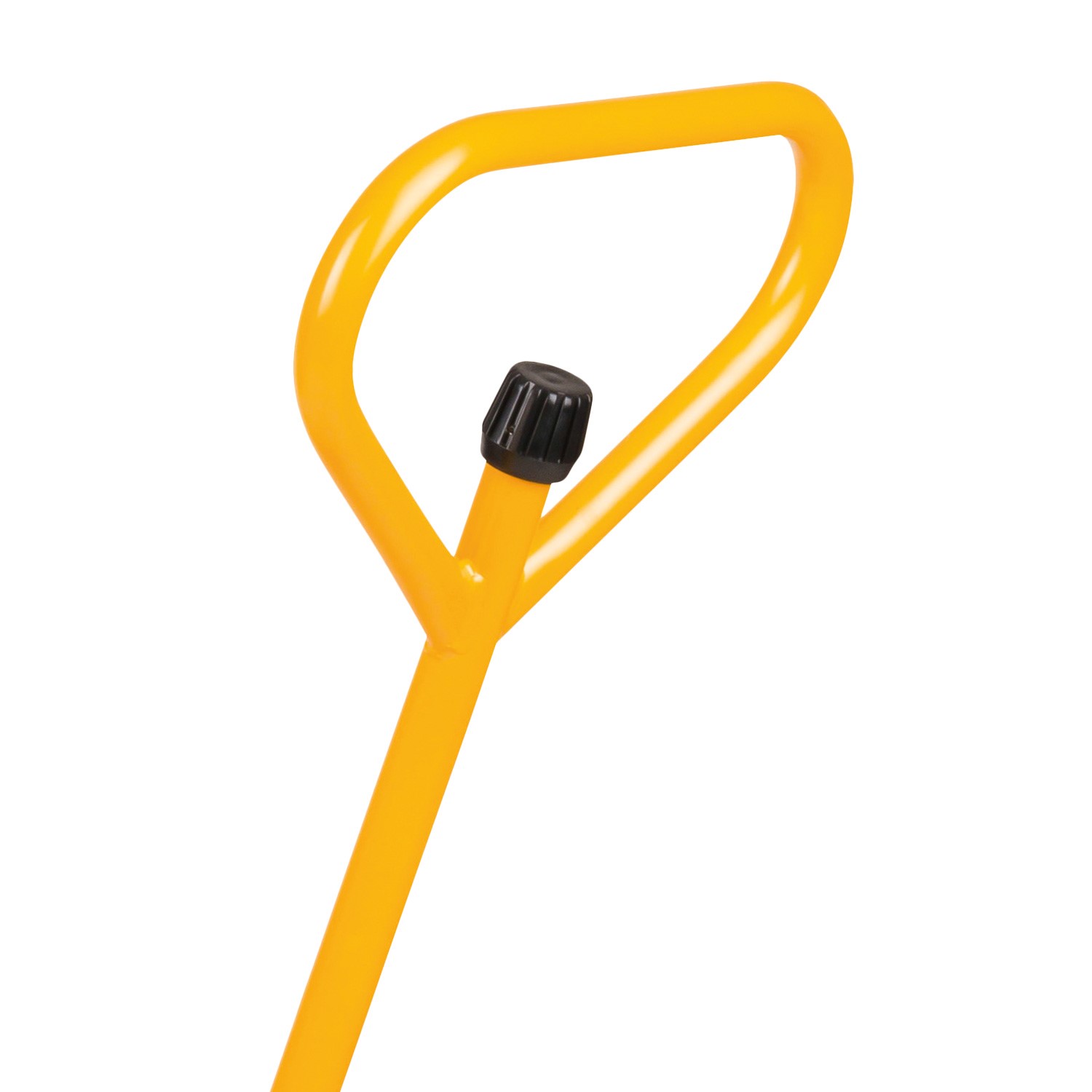

Handle with integrated load control knob
WINNTEC® from SIP 3-Year Warranty

WINNTEC 3-Year Warranty* | Find out more

Full Specification

The WINNTEC® from SIP 10 TON Long Chassis Jack is essential for automotive garages and workshops, providing extreme heavy-duty lifting designed for trucks and heavy machinery, offering high-reach from a low-profile design to accommodate all.

Peace-of-mind and operator safety is at the forefront of the jack design, and thus is built with a foot-operated pump for easy and efficient lifting, automatic overload safety and universal joint release valves, and a load control knob integrated on the handle.

Browse WINNTEC from SIP for high-quality and reliable garage equipment.

10 TON maximum weight capacity
160mm to 680mm lifting height range
Designed for heavy-duty lifting of trucks and heavy machinery
Low-profile design with high-reach ensures versatility on vehicles of all kinds, including those with minimal ground clearance
Automatic overload valve and universal joint release valve for added safety
Foot-operated pump provides easy and efficient lifting and reduced strain

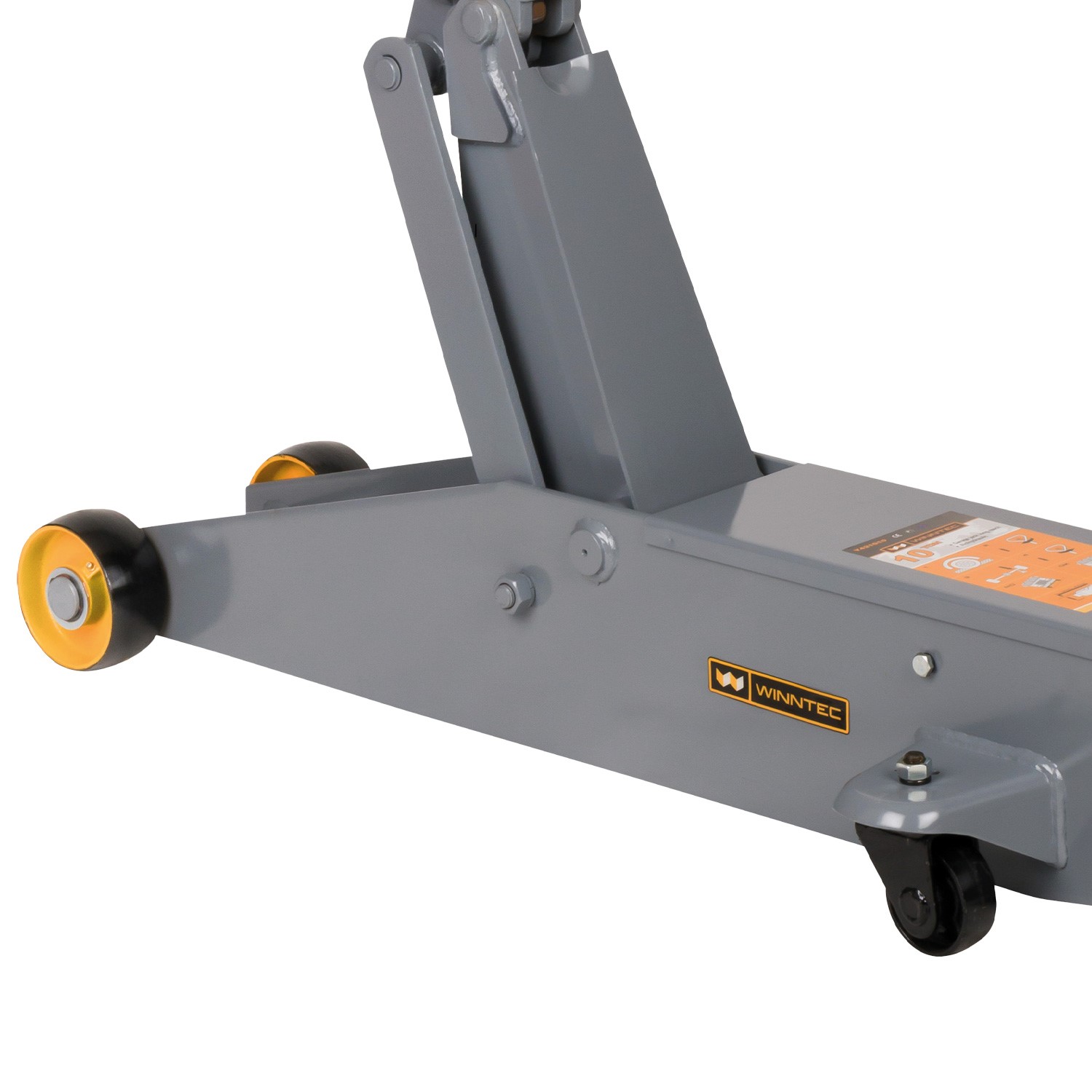

Heavy-duty steel wheels for easy manoeuvrability in workshops and garages
Long handle with integrated load control knob
Quality European design for performance
WINNTEC® from SIP 3-Year Warranty

Technical Information

ITEM NO.	09886
Weight Capacity:	10 TON
Min. Lifting Height:	160mm
Max. Lifting Height:	680mm
Turbo-Lift System:	No
Net Weight:	134.00kg
Gross Weight:	151.50kg
Product Dimensions:
Packaged Dimensions:	330(H) x 520(W) x 1670mm(D)
