WELCOME TO SIP UK

WINNTEC 20 TON Bottle Jack

09818

Click on image to enlarge

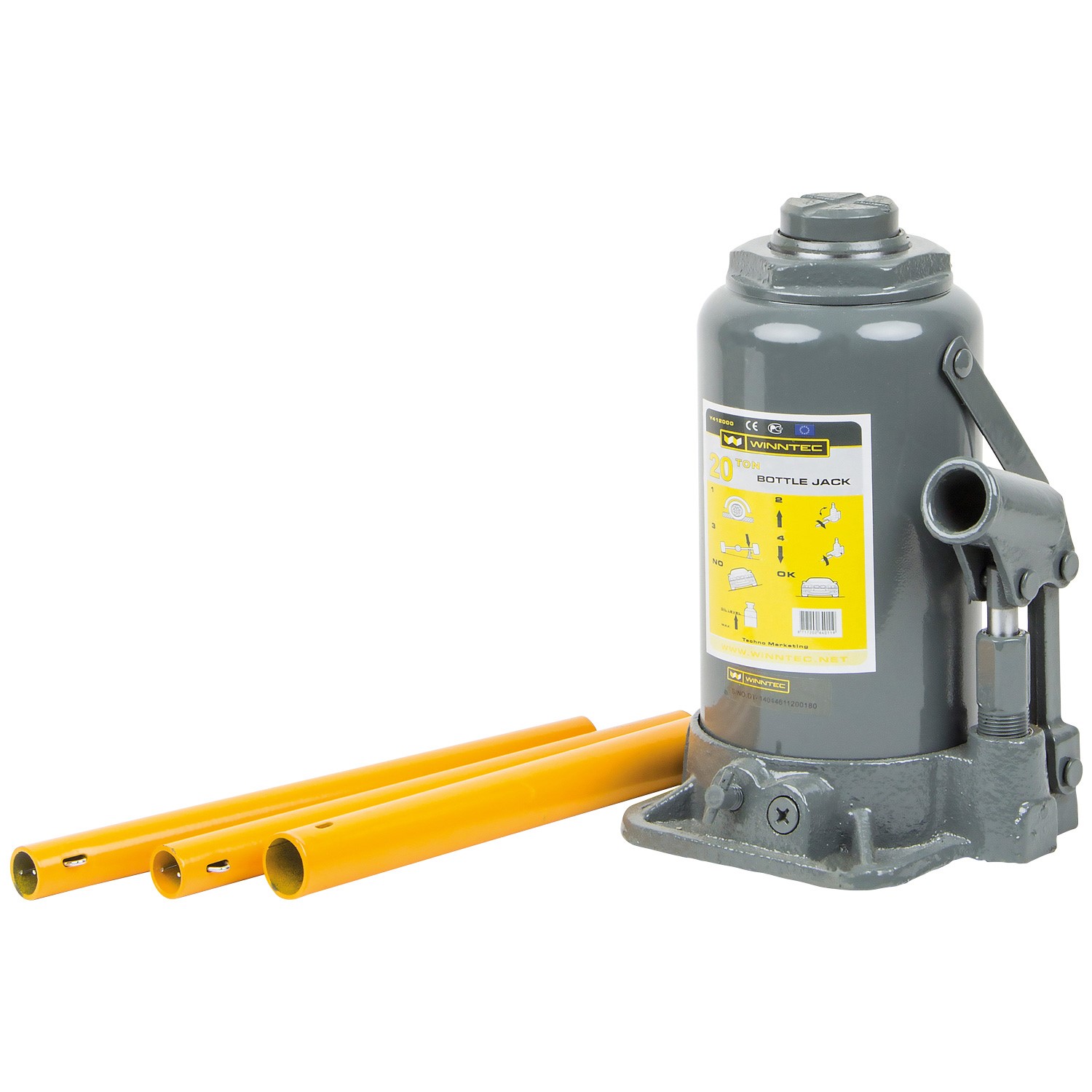

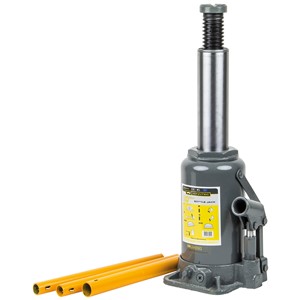

WINNTEC 20 TON Bottle Jack

09818

The WINNTEC® from SIP 20 TON Bottle Jack is perfect for pushing and pressing in a range of garages and workshops, with increased versatility achieved through full horizontal and vertical operation and rugged performance via a range of heavy-duty components.

Suitable for automotive and commercial vehicles in garages and workshops.

KEY FEATURES

244mm to 449mm lifting height range
60mm screw extension for improved versatility
Heavy-duty wide cast iron base spreads weight
Designed for horizontal and vertical operation
WINNTEC® from SIP 3-Year Warranty

Full Specification

The WINNTEC® from SIP 20 TON Bottle Jack is perfect for pushing and pressing in automotive and commercial applications in a variety of garages and workshops, offering exceptional versatility in design through horizontal and vertical operation.

Heavy-duty components, including wide cast iron base and polished main ram, ensures extremely reliable and rugged performance with smaller and larger vehicles.

Browse WINNTEC from SIP for high-quality and reliable garage equipment.

20 TON maximum weight capacity
244mm to 449mm lifting height range

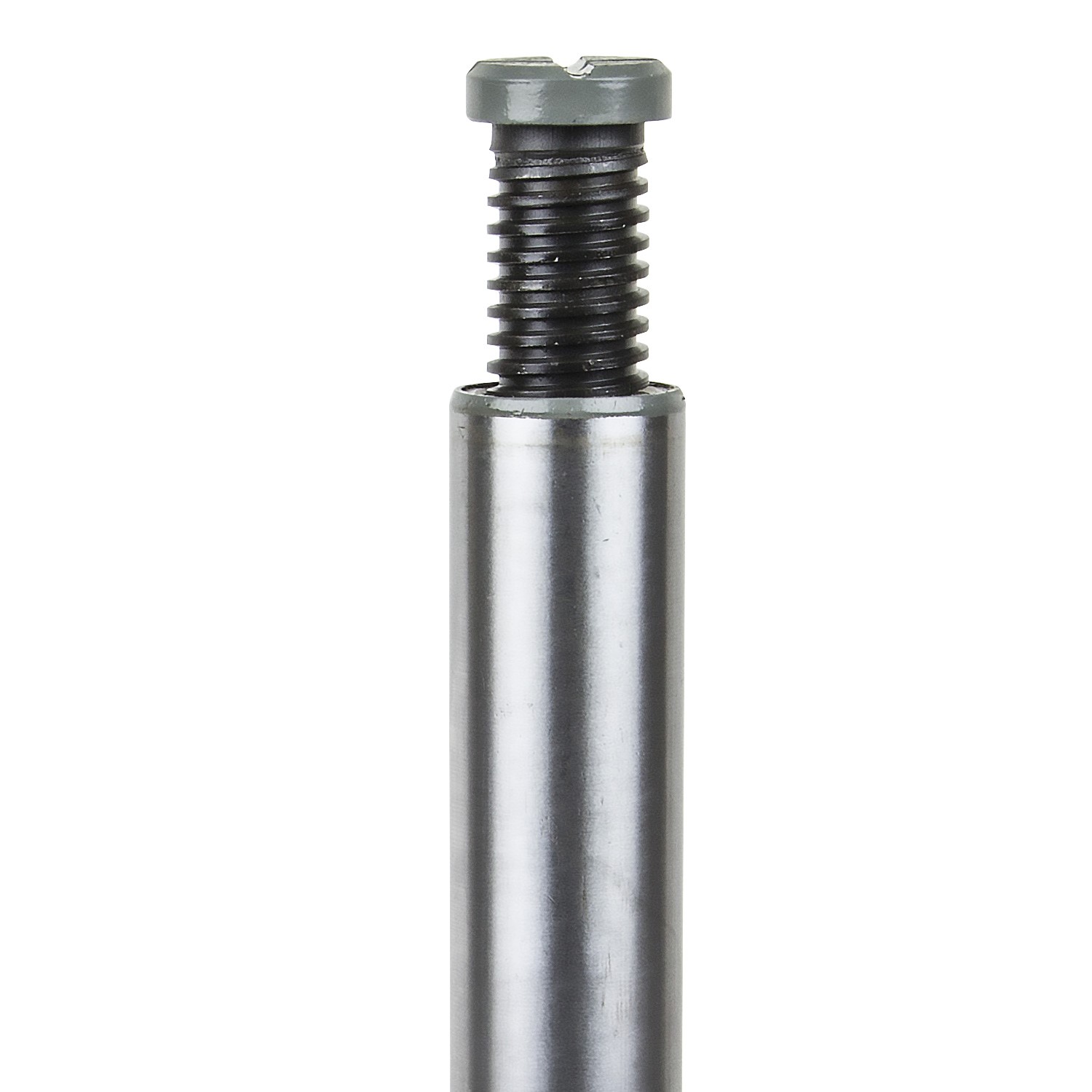

60mm screw extension for improved lifting versatility
Heavy-duty wide cast iron base helps spread weight evenly
Designed for both horizontal and vertical operation

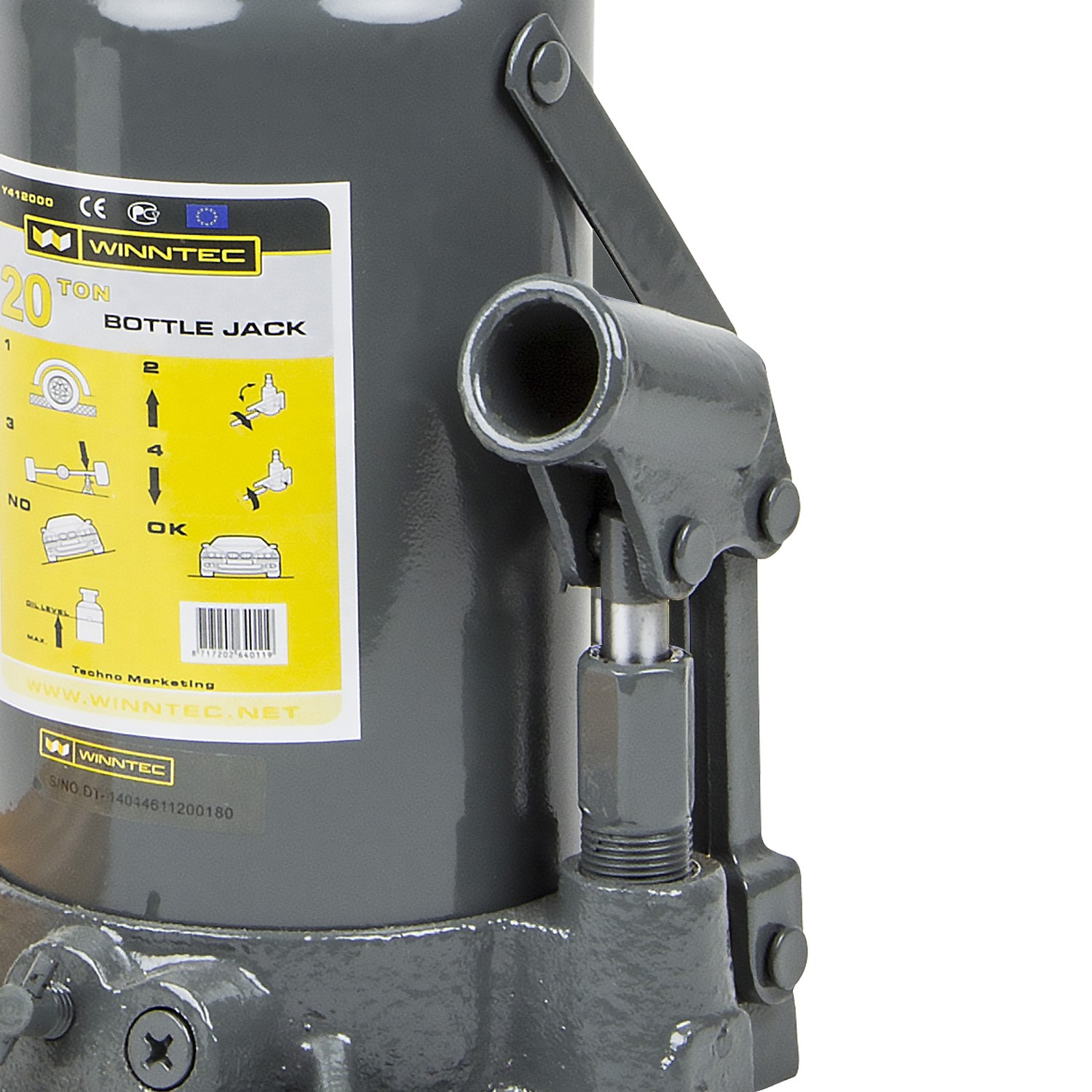

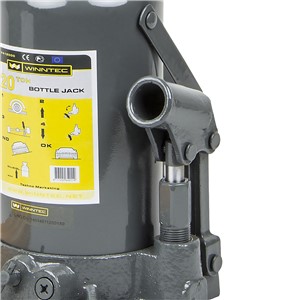

Polished main ram and chromed pump linkage
Integrated overload protection for safety
Quality European design for performance
WINNTEC® from SIP 3-Year Warranty

Technical Information

ITEM NO.	09818
Weight Capacity:	20 TON
Min. Lifting Height:	244mm
Max. Lifting Height:	449mm
Screw Extension:	60mm
Net Weight:
Gross Weight:	10.64kg
Product Dimensions:
Packaged Dimensions:	255(H) x 180(W) x 165mm(D)

Documentation

PRODUCT DOCUMENTATION

Click below to access any documentation currently available for this product.

DOWNLOAD HERE

Warranty Information

COMES WITH A 3 YEAR STANDARD WARRANTY*

NOW AVAILABLE ON ALL WINNTEC PRODUCTS!

We are extremely confident that our products will offer exceptional durability, reliability, and heavy-duty performance, and to back that up we are now offering the WINNTEC 3-Year Warranty across all* WINNTEC products. On top of this, we offer a service-based Gold Warranty that extends the duration of your warranty for a further 24 months if purchased.
